Phase Technologies CL-1.5 Istruzioni originali

T E C H N O L O G Y

Custom Installation Series

Owners Manual / Installation Instructions

Power FL-8 Power FL-10 Power FL-12

CI-1.5

MSE Audio Group 8650 College Boulevard Overland Park, Kansas 66210 (866) 663-9770

www.mseaudio.com www.phasetech.com

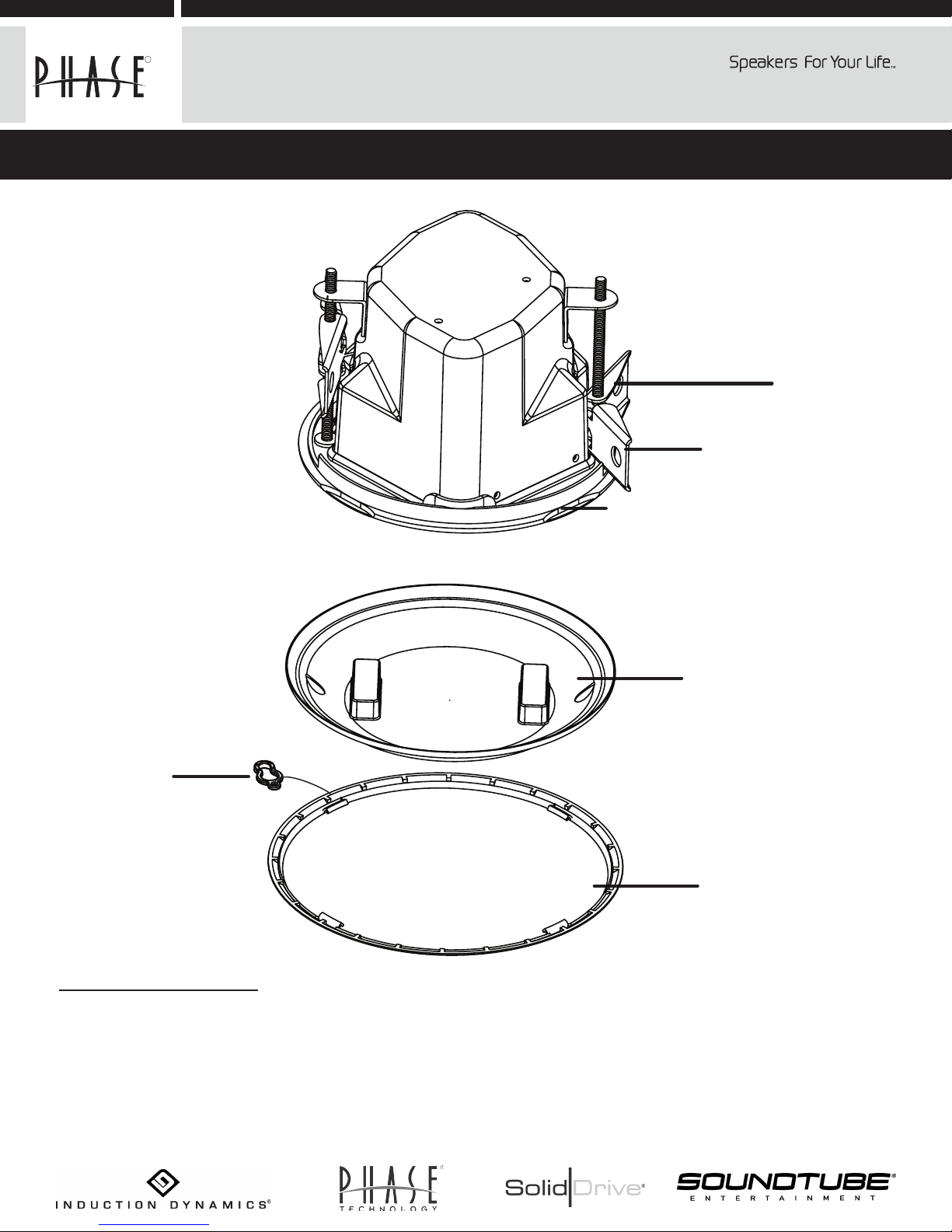

Box contents

1 Speaker

1 Grille

1 Paint mask

1 Hole template

1 Euroblock connector

Speaker seismic

restraint hole

SpeedWing™ mounting arms

Bafﬂe

Installation aid/paint mask

Grille

Grille safety clip

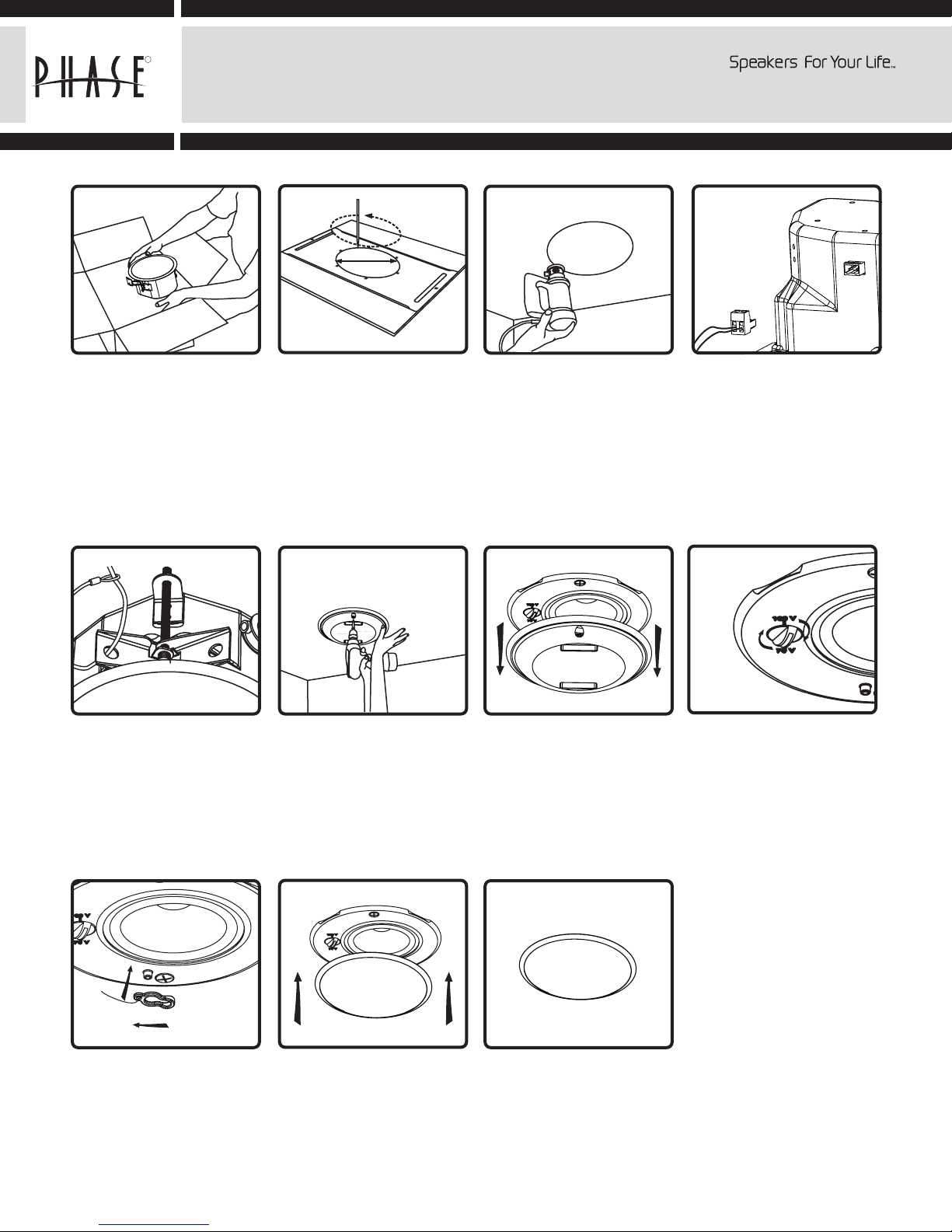

1. Unpack speaker. Leave

paint mask in place until

after speaker is installed or

painting is complete.

3. Use RotoZip or other tool

to cut hole. Hole diameter:

5.6 in. (142 mm).

5. If required, attach seismic

restraint system to hole in

clamping arm, then to

reinforced structure (safety

cable not included).

7. Remove paint mask

unless painting is required.

In that case, follow steps

8-11 when painting is

complete.

9. Attach grille safety clip by

placing the large end of the

clip over snap-fit post (1),

then sliding clip until small

end snaps into place around

post (2).

10. Align tabs on snap-fit

grille with slots in baffle,

gently press grille into place.

11. Done!

T E C H N O L O G Y

Installation Instructions: Installing the

CI-1.5 in a Sheetrock Ceiling

8. Adjust tap switch to

proper setting. Switch is

preset to 8-ohm mode.

2. Use hole template to

mark cutout on sheetrock.

6. Insert speaker into

mounting hole with paint

mask in place. Tighten both

screws on the baffle face to

actuate the mounting wings.

Firmly secure both screws,

DO NOT OVERTIGHTEN.

4. Connect Euroblock to

speaker wires, and connect

to speakers.

1. Nail or screw bracket to

joists.

2. Finish installing ceiling.

8. Remove paint mask

unless painting is required.

In that case, follow steps

9-12 when painting is

complete.

10. Attach grille safety clip

by placing the large end of

the clip over snap-fit post (1),

then sliding clip until small

end snaps into place around

post (2).

3. Use RotoZip or other tool

to cut hole.

6. If required, attach

seismic restraint system to

the sheet-metal tab on the

rear panel of the speaker,

then to reinforced structure

(safety cable not included).

11. Align tabs on snap-fit

grille with slots in baffle,

gently press grille into place.

4. Unpack speaker. Leave

paint mask in place until

after speaker is installed or

painting is complete.

12. Done!

T E C H N O L O G Y

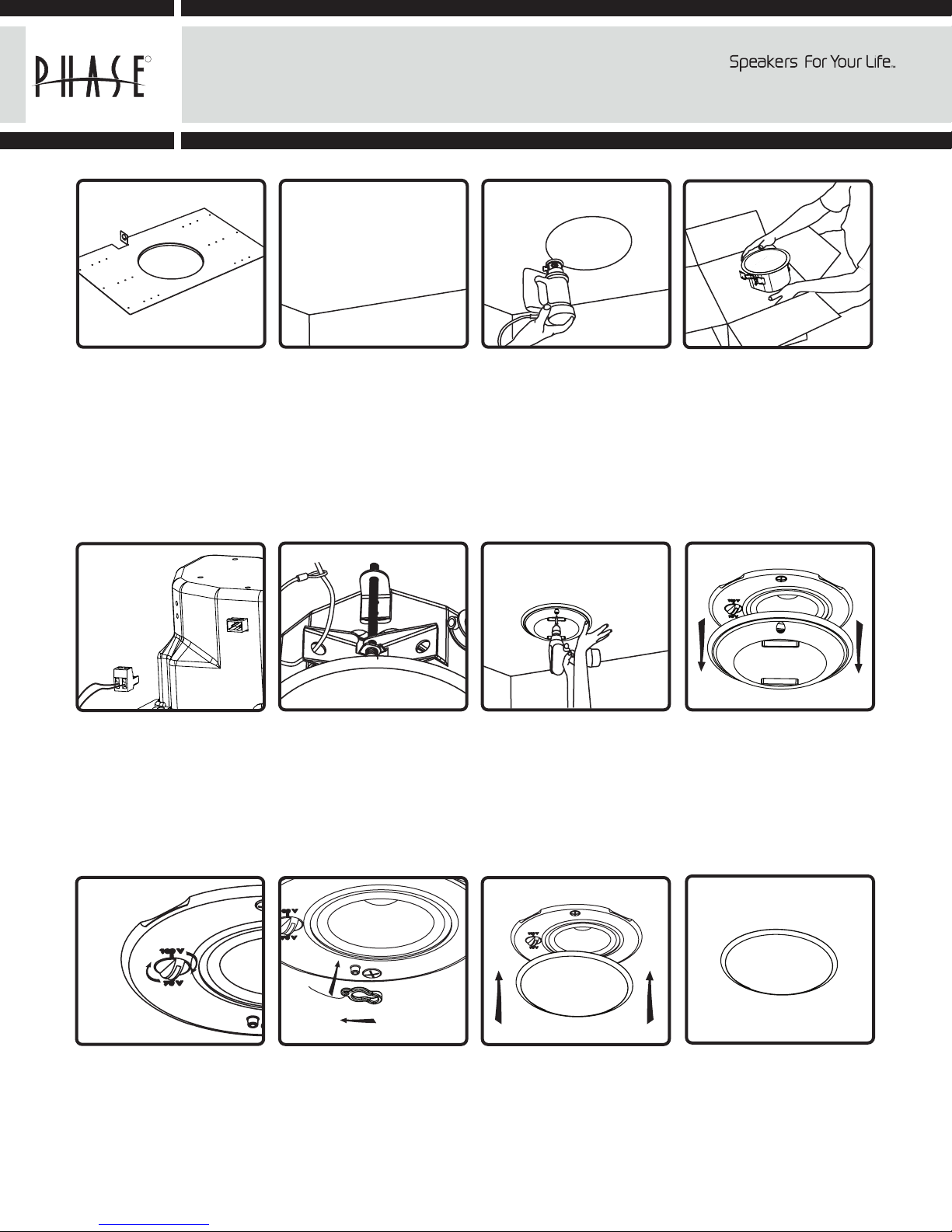

Installation Instructions: Installing the CI-1.5

Using Optional Pre-Construction Bracket

9. Adjust tap switch to

proper setting. Switch is

preset to the 8-ohm mode.

5. Connect euroblock to

speaker wires, and connect

to speakers.

7. Insert speaker into

mounting hole. Tighten both

screws on the baffle face to

actuate the mounting wings.

DO NOT OVERTIGHTEN.
