Pilz PSSu E F PS1-T Manuale utente
PSSu E F PS1(-T)
Operating Manual-21298-EN-06
}Decentralised system PSSuniversal I/O
Preface
This document is a translation of the original document.
All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made
for internal purposes. Suggestions and comments for improving this documentation will be
gratefully received.
Source code from third-party manufacturers or open source software has been used for
some components. The relevant licence information is available on the Internet on the Pilz
homepage.
Pilz®, PIT®, PMI®, PNOZ®, Primo®, PSEN®, PSS®, PVIS®, SafetyBUS p®,
SafetyEYE®, SafetyNET p®, the spirit of safety® are registered and protected trademarks
of Pilz GmbH & Co. KG in some countries.

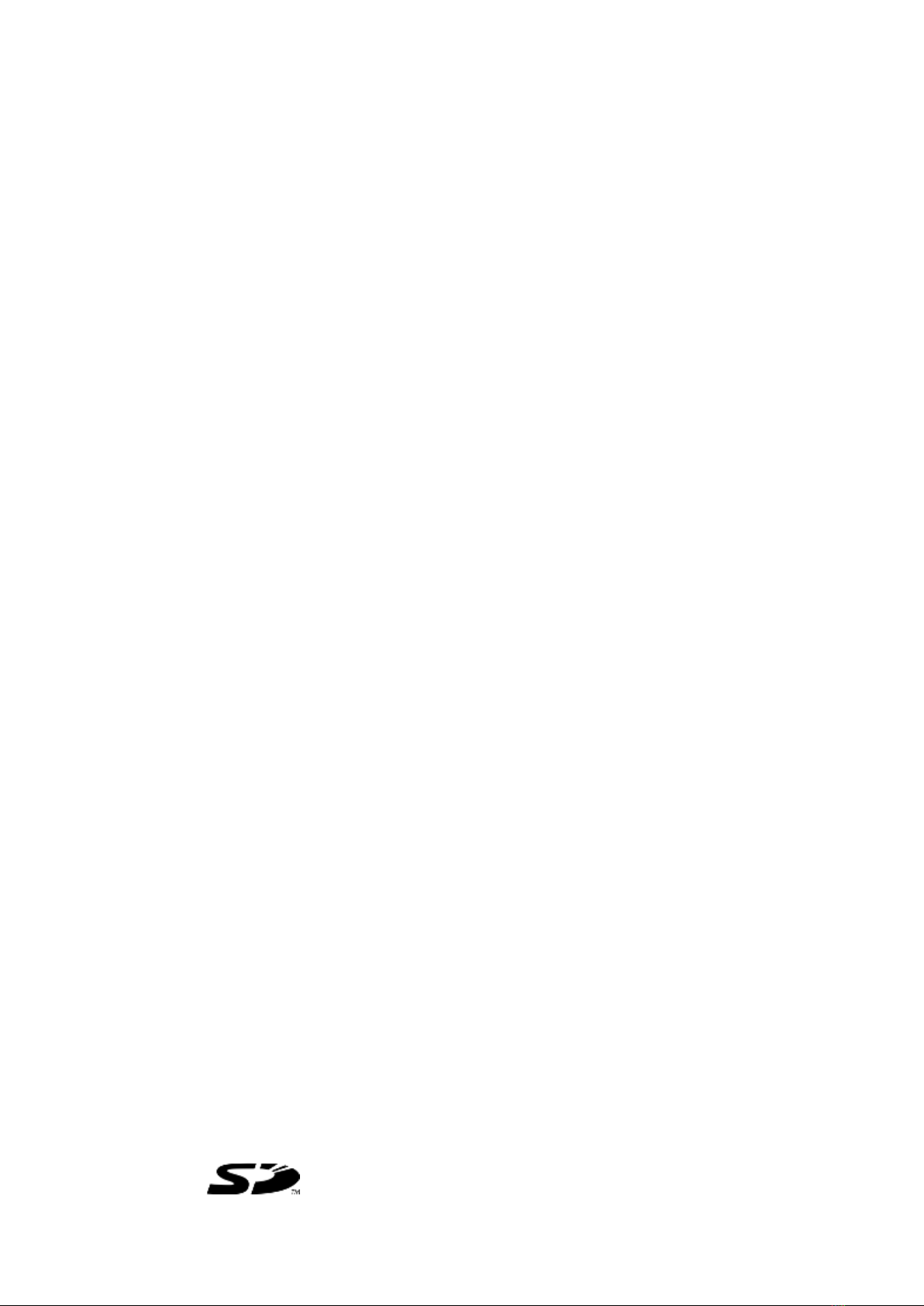

SD means Secure Digital
Contents
Operating Manual PSSu E F PS1(-T)
21298-EN-06 3
Section 1 Introduction 5
1.1 Validity of documentation 5
1.1.1 Retaining the documentation 5
1.2 Definition of symbols 5
Section 2 Overview 7
2.1 Module structure 7
2.2 Module features 7
2.3 Front view 8
Section 3 Safety 10
3.1 Intended use 10
3.2 Safety regulations 11
3.2.1 Use of qualified personnel 11
3.2.2 Warranty and liability 11
3.2.3 Disposal 11
Section 4 Function description 12
4.1 Block diagram 12
4.2 Module features 12
4.2.1 Supply voltage 12
4.2.1.1 Current load capacity 13
4.2.2 Integrated protection mechanisms 15
4.3 Configuration 15
4.3.1 Application as a general supply module 15
4.3.2 Addresses in the process image 15
4.3.3 FS error behaviour 16
Section 5 Installation 17
5.1 General installation guidelines 17
5.1.1 Dimensions 17
5.2 Installing the base module 18
5.3 Inserting and removing an electronic module 19
5.3.1 Inserting an electronic module 20
5.3.2 Removing an electronic module 21
5.3.3 Changing an electronic module during operation 21
Section 6 Wiring 22
6.1 General wiring guidelines 22
6.1.1 Mechanical connection of the base modules 22
6.2 Terminal configuration 24
6.3 Connecting the module 27
Section 7 Operation 28
7.1 Messages 28
7.2 Display elements 28
7.2.1 Display elements for module diagnostics 28
Contents
Operating Manual PSSu E F PS1(-T)
21298-EN-06 4
7.2.2 Display elements for the status of the module supply and periphery supply 29
7.3 Status byte 30
Section 8 Technical details 31
Section 9 Order reference 34
9.1 Product 34
9.2 Accessories 34
Introduction
Operating Manual PSSu E F PS1(-T)
21298-EN-06 5
1 Introduction
1.1 Validity of documentation
This documentation is valid for the products PSSu E F PS1 and PSSu E F PS1-T. It is valid
until new documentation is published.
The module PSSu E F PS1-T is suitable for use where there are increased environmental
requirements (see Technical Details).
This operating manual explains the function and operation, describes the installation and
provides guidelines on how to connect the product.
1.1.1 Retaining the documentation
This documentation is intended for instruction and should be retained for future reference.
1.2 Definition of symbols
Information that is particularly important is identified as follows:
DANGER!
This warning must be heeded! It warns of a hazardous situation that poses
an immediate threat of serious injury and death and indicates preventive
measures that can be taken.
WARNING!
This warning must be heeded! It warns of a hazardous situation that could
lead to serious injury and death and indicates preventive measures that can
be taken.
CAUTION!
This refers to a hazard that can lead to a less serious or minor injury plus
material damage, and also provides information on preventive measures
that can be taken.
NOTICE
This describes a situation in which the product or devices could be dam-
aged and also provides information on preventive measures that can be
taken. It also highlights areas within the text that are of particular import-
ance.
Introduction
Operating Manual PSSu E F PS1(-T)
21298-EN-06 6
INFORMATION
This gives advice on applications and provides information on special fea-
tures.
Overview
Operating Manual PSSu E F PS1(-T)
21298-EN-06 7
2 Overview
2.1 Module structure
A module consists of
}Electronic module and
}Base module with
– Screw terminals or
– Cage clamp terminals
The base modules are the carrier units for the electronic modules and are used to connect
the field wiring. The electronic modules are inserted on to the base modules and determine
the module's function.
Details of the base modules that can be used are available in the chapter entitled “Intended
Use”.
2.2 Module features
The product has the following features:
}Current load capacity of module supply [max. 2 A
}When the supply voltage is interrupted, the module supply is buffered for 20ms.
}Separate infeed for periphery supply
}Separate infeed for module supply
}Infeed for C-rail supply
}LEDs for:
– Module supply
– Periphery supply
– Module error
}Application range depends on the base module
}T-type:
PSSu E F PS1-T: for increased environmental requirements
Overview
Operating Manual PSSu E F PS1(-T)
21298-EN-06 8
2.3 Front view
2111
2212
2313
Err
11 21
12
0V
22
0V
13 23
14
C
24
C
PSSu E F
PS1
5 V 24V
0V24V
24V 24V
2414
PSSu E F
PS1
312191
000000
001
1
3
8
7
4
5
6
10
2
11
9
A
B
Key:
}A: Electronic module
}B: Base module
}1: LED for module diagnostics
}2: Labelling strip with:
– Name of electronic module
– Order number
– Serial number
– Hardware version number
– 2D code
}3: Labelling strip for the terminal configuration on the base module
}4: Name of electronic module
}5: Connection level 1
}6: Connection level 2
}7: Connection level 3
}8: Connection level 4
Overview
Operating Manual PSSu E F PS1(-T)
21298-EN-06 9
}9: Square mounting holes (connection levels 1, 2, 3 and 4)
– With screw to loosen/tighten the screw terminal on base modules with screw termin-
als
– With mechanism to operate the cage clamp on base modules with cage clamp ter-
minals
}10: Round connection holes (connection levels 1, 2, 3 and 4) for connecting the signal
lines
}11: Mounting slot for colour marker to label the connection level (connection levels 1, 2,
3 and 4)
Safety
Operating Manual PSSu E F PS1(-T)
21298-EN-06 10
3 Safety
3.1 Intended use
The module provides the supply for the module supply and periphery supply within the sys-
tem.
Depending on which base module is used, the module may be used as a:
}General supply module (first module after a head module, if the head module does not
have an integrated supply voltage)
}Supply module to refresh the module supply and periphery supply
}Supply module to form supply groups
The module PSSu E F PS1-T is suitable for use where there are increased environmental
requirements (see Technical Details).
Intended use includes making the electrical installation EMC-compliant. Please refer to the
guidelines stated in the "PSSuniversal Installation Manual". The module is designed for use
in an industrial environment. It is not suitable for use in a domestic environment, as this can
lead to interference.
The following is deemed improper use in particular:
}Any component, technical or electrical modification to the module
}Use of the module outside the areas described in this manual
}Any use of the module that is not in accordance with the technical details.
INFORMATION
The module is supported by
}PSSuniversal Configurator and PSSuniversal Assistant from Version
1.4.0
}PAS4000 from Version 1.0.0
– We recommend that you always use the latest version (download
from www.pilz.com).
The PSSu E F PS1 module may be used in conjunction with the following base modules:
}PSSu BS 2/8 S
}PSSu BS-R 2/8 S
}PSSu BS 2/8 C
}PSSu BS-R 2/8 C
The module PSSu E F PS1-T may be used in conjunction with the following base modules:
}PSSu BS 2/8 S-T
}PSSu BS-R 2/8 S-T
}PSSu BS 2/8 C-T
}PSSu BS-R 2/8 C-T
