Planet MGSW-28240F Manuale utente
24-Port 100/1000X SFP + 4-Port 10G SFP+
Managed Metro Ethernet Switch
MGSW-28240F
Quick Installation Guide
Table of Contents
1. Package Contents ....................................................................................... 3
2. Requirements ............................................................................................. 4
3. Wiring DC Power Inputs .............................................................................. 5
4. Terminal Setup ........................................................................................... 6
5. Logon to the Console .................................................................................. 7
6. ConguringIPAddress................................................................................ 8
7. Starting Web Management .........................................................................10
8. Customer Support .....................................................................................14
3
1. Package Contents
Thank you for purchasing PLANET Managed Metro Ethernet Switch, MGSW-28240F.
The term “Managed Switch” mentioned in this Quick Installation Guide refers to
theMGSW-28240F.
Open the box of the Managed Switch and carefully unpack it. The box should
contain the following items:
TheMGSW-28240FSwitchx1l
User’s Manual CD x 1l
QuickInstallationGuidex1l
DB9toRJ-45ConsoleCablex1l
Dust Cap x 33l
RubberFeetx4l
RackMountAccessoryKitx1l
ACPowerCordx1l
If any item is found missing or damaged, please contact your local reseller for
replacement.
4
2. Requirements
WorkstationshouldberunningWindowsXP/Vista/7/8,Windows2003/2008,MACl
OSXorlater,Linux,UNIXorotherplatformscompatiblewithTCP/IPprotocols.
WorkstationshouldbeinstalledwithEthernetNIC(NetworkInterfaceCard)l
Serial Port Connectionl(Terminal)
TheaboveworkstationshouldcomewithCOMPort(DB9)
Ethernet Port Connectionl
Networkcables-Usestandardnetwork(UTP)cableswithRJ-45connectors.
The above PC should be installed with WEB Browser and JAVA runtime envi-
ronmentPlug-in.
Note
It is recommended to use Internet Explore 7.0 or above to access
theManagedSwitch.
5
3. Wiring DC Power Inputs
The 6-contact terminal block connector on the rear panel of the MGSW-28240F is
used for two DC redundant power inputs. Please follow the steps below to insert
the power wire.
1.Insert positive / negative DC power wires into the contacts 1 and 2 for DC
POWER1,or5and6forDCPOWER2.
100~240V AC
50/60 Hz
ON
AC POWER
OFF
DC POWER
ON
OFF
Ring R.O.
FaultFAN2
FAN1
PWR
DC 2
DC 1
DC Input Range:
36V~72V Fault
GNDGNDDO 1DO 0DI 1DI 0
DC 2DC 1 1
2.Tightenthewire-clampscrewsforpreventingthewiresfromloosening.
123456
DC 1 Fault
Alarm
DC 2
+-+-
Note
Thewiregaugefortheterminalblockshouldbeintherangeof12
~24AWG.
6
4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebookcomputerandtoserial(console)portoftheManagedSwitch.Theconsole
port of the Managed Switch is DCE already so that you can connect the console
portdirectlythroughthePCwithouttheneedofNullModem.
PC / Workstation
with
Terminal emulation software
Serial Port
PLANET Managed Switch
RS-232
Serial Port
115200,8,n,1
A terminal program is required to make the software connection to the Managed
Switch. Windows' Hyper Terminal program may be a good choice. The Hyper
TerminalcanbeaccessedfromtheStart menu.
1. Click START,thenPrograms,AccessoriesandthenHyper Terminal.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud : 115200
Data bits : 8
Parity :None
Stop bits : 1
Flow Control :None
7
5. Logon to the Console
Oncetheterminalhasbeenconnectedtothedevice,powerontheManagedSwitch
andtheterminalwilldisplay“runningtestingprocedures”.
Then, the following message asks for the login username and password. The
factory default username and password are admin as the following and the login
screeninFigure5-1appears.
Username: admin
Password:admin
Figure 5-1: MGSW-28240F Managed Switch Console Login Screen
Note
1.For security reason, please change and memorize the new pass-
wordafterthisfirstsetup.
2.Only accept command in lowercase letter under console inter-
face.
8
6.ConguringIPAddress
TheManagedSwitchisshippedwithdefaultIPaddressasshownbelow:.
IPAddress:192.168.0.100
Subnet Mask: 255.255.255.0
TocheckthecurrentIPaddressormodifyanewIPaddressfortheSwitch,please
usetheproceduresasfollows:
Show the current IP address
1. On “MGSW-28240F/>”prompt,enter“show ip”.
2.ThescreendisplaysthecurrentIPaddress,SubnetMaskandGatewayasshown
inFigure6-1.

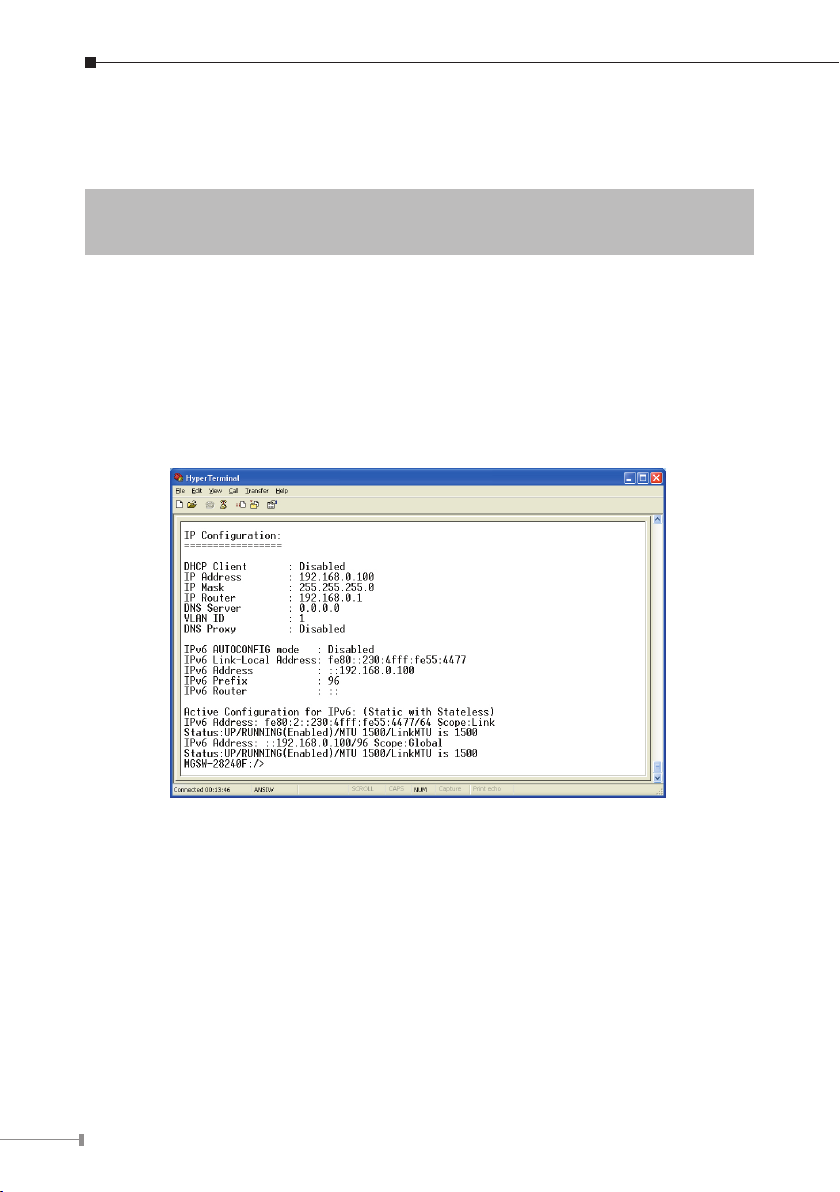

Figure 6-1: Show IP Information Screen
9
ConguringIPaddress
3. On “MGSW-28240F/>” prompt, enter the following command and press
<Enter>asshowninFigure6-2.
MGSW-28240F/> ip setup 192.168.1.100 255.255.255.0 192.168.1.1
ThepreviouscommandwouldapplythefollowsettingsfortheSwitch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1

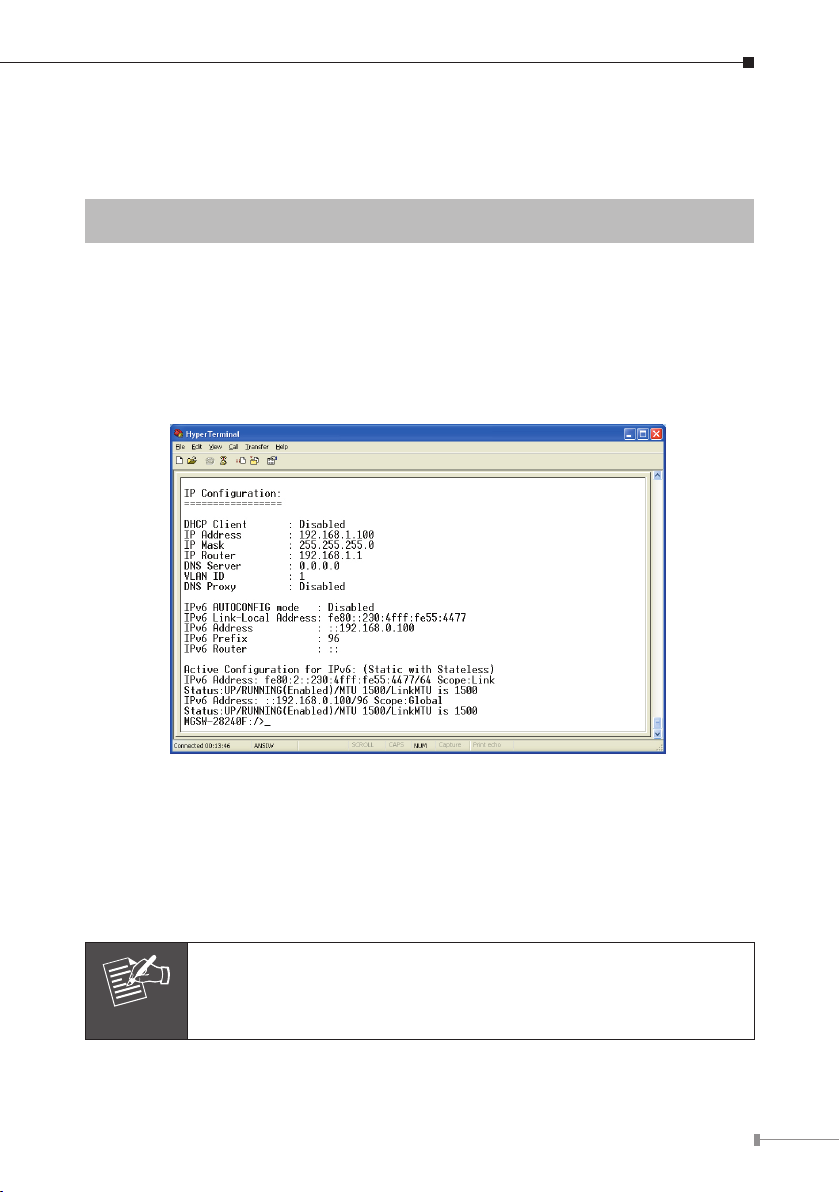

Figure 6-2: Set IP Address Screen
4.RepeatStep1tocheckiftheIPaddressischanged.
If the IP is successfully congured, the Managed Switch will apply the new IP
address setting immediately. You can access the Web interface of the Managed
SwitchthroughthenewIPaddress.
Note
Ifyouarenotfamiliarwithconsolecommandortherelatedparam-
eter,enter“help”anytimeinconsoletogetthehelpdescription.
10
7. Starting Web Management
The following shows how to start up the Web Management of the Managed
Switch. Note the Managed Switch is congured through an Ethernet connection.
Please make sure the manager PC must be set on the same IP subnet address.
For example, the default IP address of the Managed Switch is 192.168.0.100,
thenthemanagerPCshouldbesetat192.168.0.x(wherexisanumberbetween
1and254,except100),andthedefaultsubnetmaskis255.255.255.0.
IP Address:
192.168.0.100
PLANET Managed Switch
PC / Workstation
with
IE Browser
IP Address :
192.168.0.x RJ-45 / UTP Cable

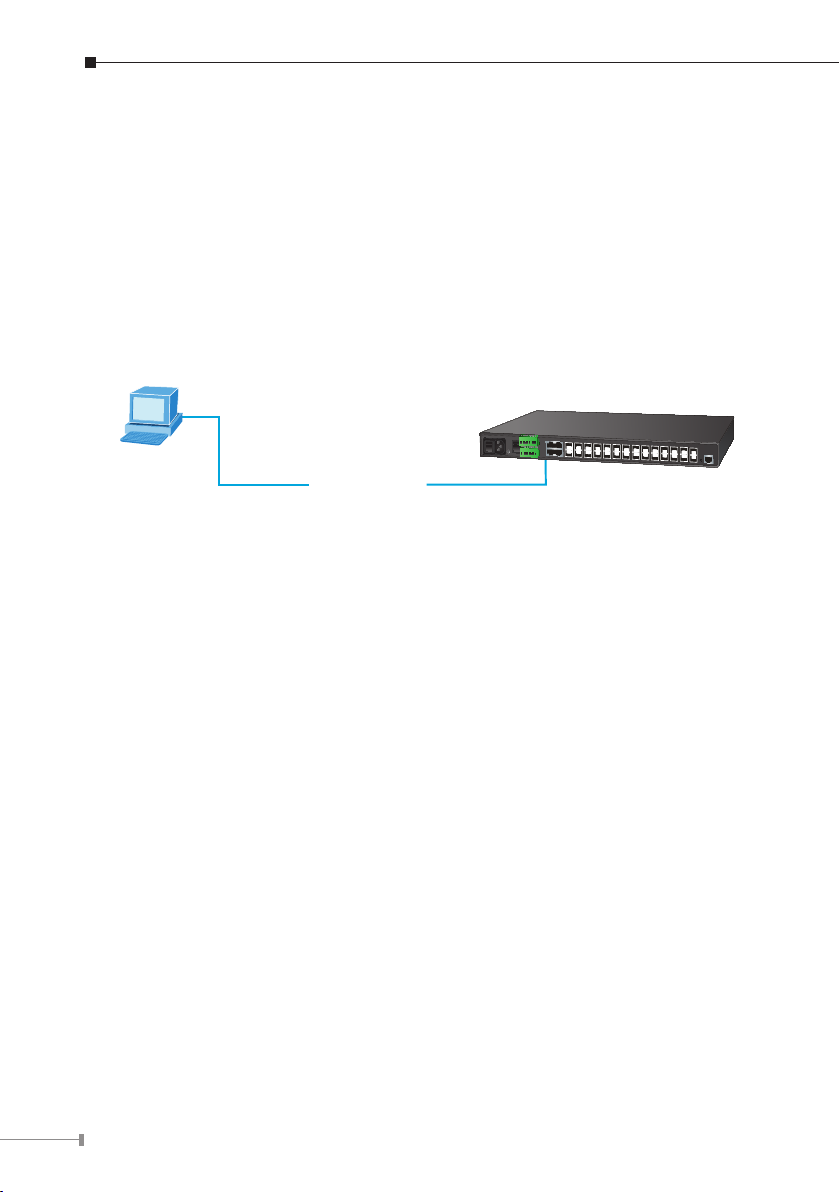

Figure 7-1: IP Management Diagram
Login the Managed Switch
1.Use Internet Explorer 7.0 or above Web browser and enter IP address
http://192.168.0.100 (the factory-default IP address or that you have just
changedinconsole)toaccesstheWebinterface.
