Quantum ATL 4000 Library Unpacking Instructions

Document 6434005-02, Ver. 2, Rel. 0

August 2002

2 6207947-04fN 13

Introduction

Quantum ATL 4000 Library Unpacking Instructions

Document 6434005-02, Ver. 2, Rel. 0

August 2002

Introduction 0

The ATL ATL P4000 is an automated storage and retrieval library

consisting of up to 10 tape drives and up to 322 tape cartridges (see

figure 1).

This document explains how to unpack the ATL P4000. Once the

library is unpacked and moved to the desired installation location, set

up the library using the instructions in the ATL P4000 and ATL P7000

User’s Guide (PN 6434003).

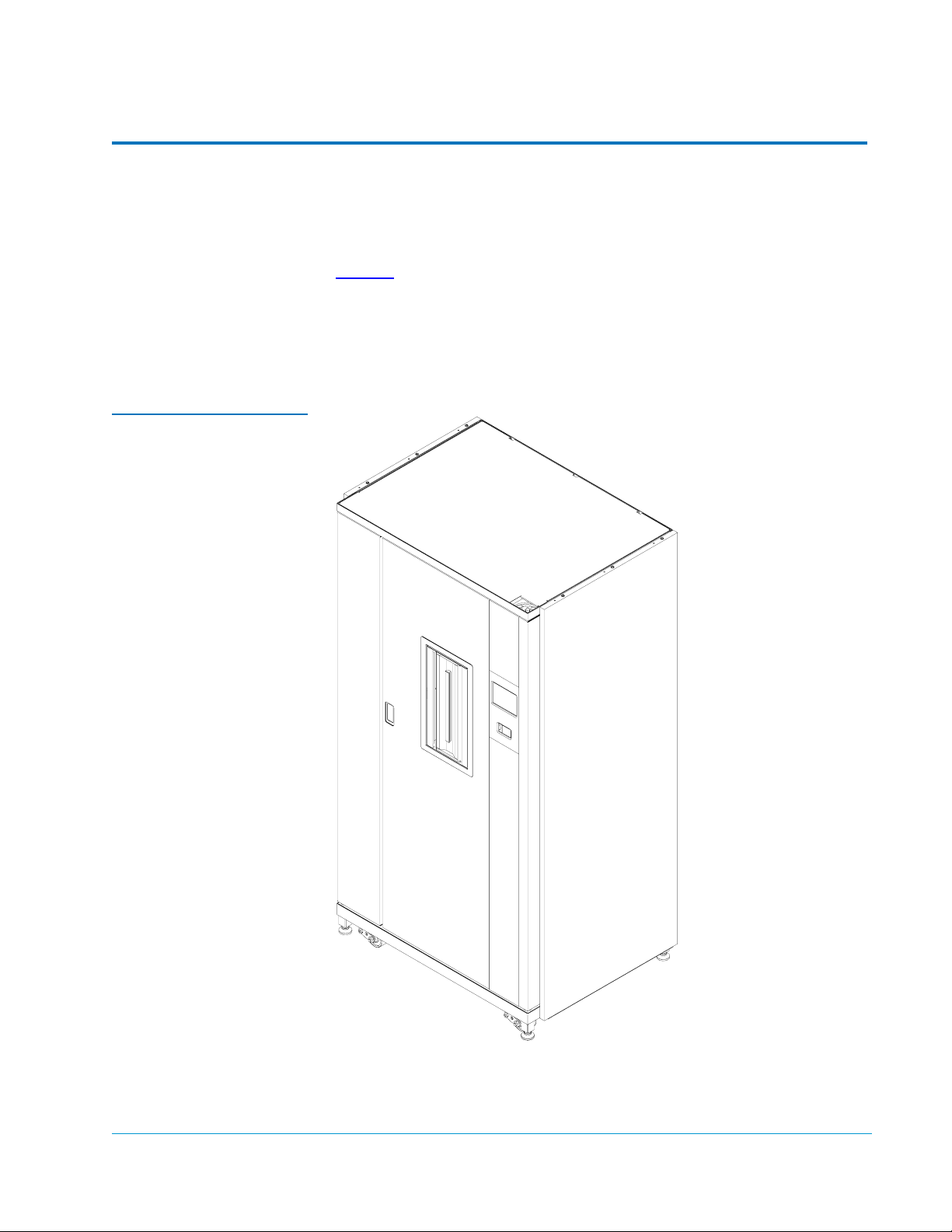

Figure 1 ATL P4000 Library

Quantum ATL 4000 Library Unpacking Instructions

Document 6434005-02, Ver. 2, Rel. 0

August 2002

4 Selecting an Installation Location

Selecting an Installation Location 0

When choosing an installation site for the ATL P4000, consider the

following requirements:

• Floor space

• Floor clearance

• Floor strength and inclination

• Power and grounding

• Environmental conditions

These requirements are also described in the ATL P4000 and ATL P7000

User’s Guide (PN 6434003).

Floor Space 0Figure 2 shows the minimum floor space required by the ATL P4000.

Figure 2 Floor Space

Requirements

Rear

Front

Library

27 in (69 cm)

40 in (102 cm)

89 in (226 cm)

26 in (66 cm)

67 in (170 cm)

29 in (74 cm)

33 in (84 cm)

Quantum ATL 4000 Library Unpacking Instructions

Document 6434005-02, Ver. 2, Rel. 0

August 2002

Selecting an Installation Location 5

Floor Clearance 0The library has a floor clearance of 0.75 inch (19 mm). Place the library

on a level, uncarpeted floor free of defects.

Floor Strength and

Inclination 0

The floor at the installation site must be rated at 250 lb/ft2

(1221 kg/m2). This is sufficient to support a fully loaded ATL P4000

library.

The floor must be level to within 0.25 inch (6.4 mm) over a 6-foot-by-6-

foot (1.83-meter-by-1.83-meter) area.

Power and Grounding 0For the United States and Canada, one or two UL/CSA certified power

cords are furnished. Each uses a 14/3 SJT cord, a 5-20P plug, and an

IEC-C320 C19 female connector (see figure 3).

Figure 3 Power Supply

Cord

The library is rated 100-240V~, 50-60Hz, 12A-8A, 1200W.

The library power requirements may require modification of the

facilities existing power capabilities by a qualified electrician. The

required wall outlet for the United States and Canada is rated at 125V

20A (see figure 4).

Figure 4 Wall Outlet

The dedicated wall outlet and a 20 amp circuit breaker must provide

power to the ATL P4000 library only. Outside North America, replace

the supplied power cord with a harmonized 3 x 1.5 mm2power cord

that is approved by the country where used, and install the

appropriate wall outlet. More information on the electrical

requirements is provided in the ATL P4000 Pre-Installation Site Survey

Instructions.

Caution: The ATL P4000 library must be connected to a grounded

electrical outlet.

Plug:

NEMA 5-20

Connector:

IEC-C320 C19

Connects to library

power supply

Connects to

wall outlet

Neutral

Ground

Line

Wall outlet

NEMA 5-20R

rated 125V 20A

Quantum ATL 4000 Library Unpacking Instructions

Document 6434005-02, Ver. 2, Rel. 0

August 2002

6 Preparing for the Installation

Environmental

Conditions 0

The installation site must have the following environmental

conditions:

• Humidity: 20%-80% non-condensing

• Temperature: 15°C-32°C (59°F-90°F)

• Altitude: sea level to 10,000 feet

• Air: free of airborne contaminates; e.g., dust, paper particles

These environmental conditions apply when the library is in

operation.

Preparing for the Installation 0

Before you begin the installation procedure, make the following

preparations:

• Providing necessary tools and equipment for installation

• Taking ESD precautions

Providing Necessary

Tools and Equipment 0

Provide the following tools for unpacking the library:

•Scissors

• Ratchet with 15/16 inch socket (or 15/16 inch open-end wrench)

Provide the following tools for removing the shipping restraints:

• #2 Phillips® screwdriver

•Tiewrap

Provide the following tools for leveling the library:

• 3/4-inch open-end wrench

• Carpenter’s level

Taking ESD

Precautions 0

Some components within the ATL P4000 library contain static-

sensitive parts. To avoid damaging these parts while performing

installation procedures, always observe the following precautions:

Note: For additional library specifications (including

environmental requirements during shipping and storage),

see appendix A in the ATL P4000 and ATL P7000 User’s Guide

(PN 6434003).

Quantum ATL 4000 Library Unpacking Instructions

Document 6434005-02, Ver. 2, Rel. 0

August 2002

Unpacking the Library 7

• Keep the library turned off during all installation procedures.

• Keep the library power cord plugged into a grounded power

outlet except when working with AC electrical components.

• Avoid contact with power supplies, EMI filters, and AC electrical

components while the library is connected to a power outlet.

• Use an antistatic wrist strap.

• Keep static-sensitive parts in their original shipping containers

until ready for installation.

• Do not place static-sensitive parts on a metal surface. Place them

inside their protective shipping bag or on an antistatic mat.

• Avoid touching connectors and other components.

Unpacking the Library 0

This section explains how to unpack the library and move it to its final

installation location. The ATL P4000 is shipped in packing materials

designed to protect it from damage during transit. By following these

instructions, you help ensure that the library will continue to be

safeguarded after it arrives at the installation site.

The following are the major steps in this procedure:

• Receiving the library

• Unboxing the library

• Positioning the library

• Unpacking the library

• Leveling the library

Note: Dry climates and cold-weather heating environments have

lower relative humidity and are more likely to produce static

electricity.

Quantum ATL 4000 Library Unpacking Instructions

Document 6434005-02, Ver. 2, Rel. 0

August 2002

8 Unpacking the Library

Receiving the Library 0Unpack the library as close to the installation site as possible. Inspect

the shipping pallet and carton for damage that may have occurred

during shipment. Report any damage to the shipper.

Unboxing the Library 0To unbox the library:

1Choose the unloading side. The ATL P4000 may be unloaded from

either the right or left side of the pallet.

2Verify the minimum floor space requirements.

Caution: The ATL P4000 weighs approximately 1072 pounds

(486 kg), without drives. Each drive weighs

approximately 13.5 lbs. It is strongly advised to use at

least two people to move and install the library.

Note: Uncrating the library requires a minimum of 3 feet (91 cm)

on all sides. For the side being used for the ramp, uncrating

the library requires 9 feet (2.74 m). Figure 5 shows the

minimum floor space required by the ATL P4000 at its

uncrating site. The minimum height required for unpacking

the ATL P4000 is 85 inches (2.16 meters).

Quantum ATL 4000 Library Unpacking Instructions

Document 6434005-02, Ver. 2, Rel. 0

August 2002

Unpacking the Library 9

Figure 5 Minimum Floor

Space Requirements—

Uncrating Site

3Cut the two steel bands that secure the library and packing

material to the pallet (see figure 6).

Caution: The steel bands are under tension and will snap away

when cut.

3 ft (91 cm)

3 ft ( 91 cm)

9 ft (2.74 m) for ramp extensions 9 ft (2.74 m) for ramp extentions

Quantum ATL 4000 Library Unpacking Instructions

Document 6434005-02, Ver. 2, Rel. 0

August 2002

10 Unpacking the Library

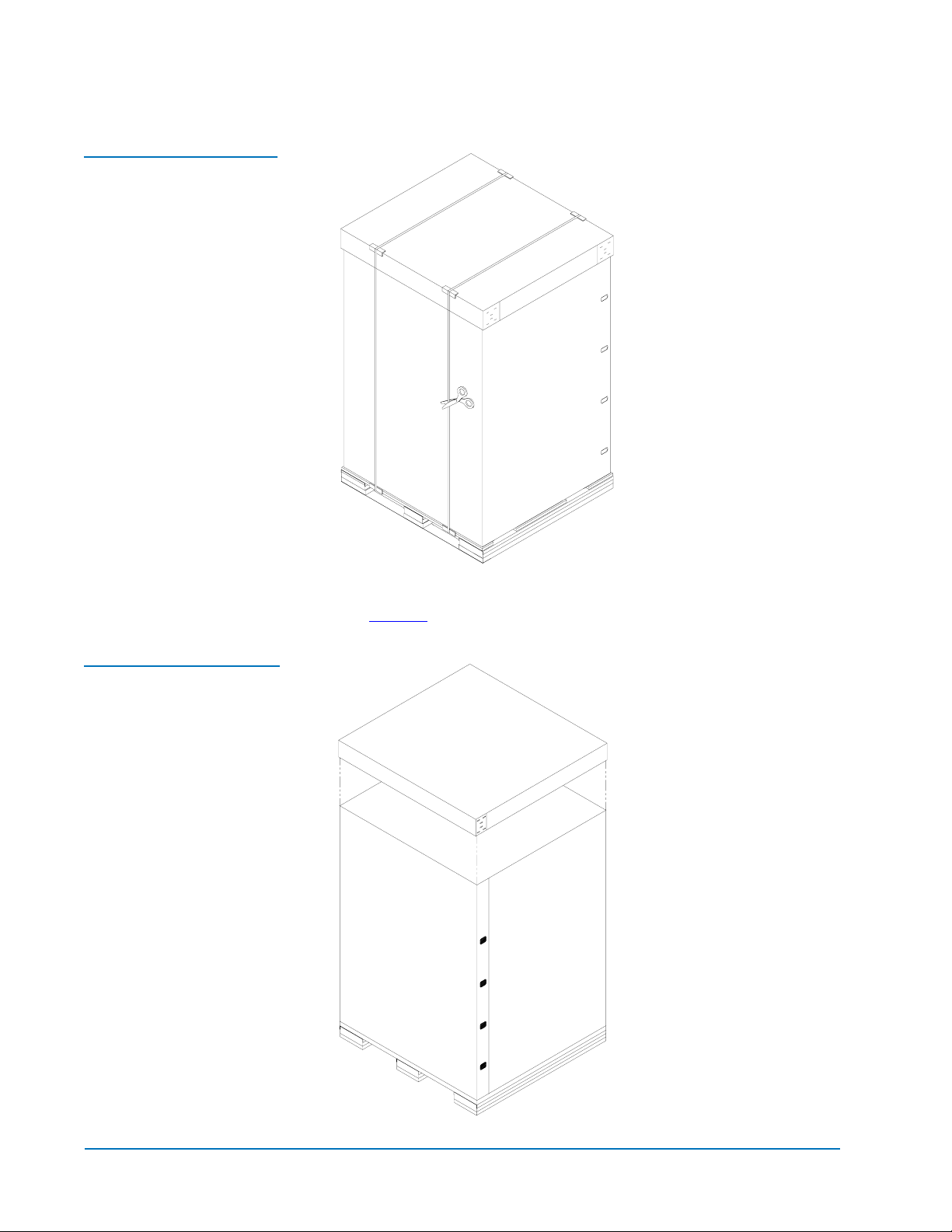

Figure 6 Removing the

Steel Bands

4Lift the cardboard box top cover straight up and off of the pallet

(see figure 7).

Figure 7 Removing the

Box Top Cover
