Revox Re:sound H190 Manuale utente

Dominating Entertainment.

Revox of Switzerland.

Revox Re:sound H190

Re:sound H190 – „forward to the roots”:

With this completely newly developed product, Re:sound H190, Revox

is once again setting new standards in the development of high-

quality speaker systems. The combination between breathtaking

design and the highest audio quality guarantees total listening

pleasure.

Great importance was given to achieving a tonal balance across the

whole transmission range during product development. The

specification also called for a particularly luxurious, dark and dry bass

reproduction, a spatial yet discreet mid-range and silken, generous

treble tones.

A further goal was a high linearity, using the best-possible physical

emission characteristics.

The Re:sound H190 is available in veneer cherry or silver varnished and is

manufactured in the Revox factory in Villingen, Southern Germany

and each unit is tested against the most demanding of tolerances, as

part of the company’s stringent quality assurance program.

Tecnical Data

Components

Nominal music power

Frequency response (IEC)

Sensitivity

Nominal impedance

Weight

Dimensions

4x154mm woofers, 1x154mm midrange, 25mm tweeter calotte

180 / 220 watts

28 Hz – 40kHz

87dB (1 W / 1m)

4 Ohm

38.5 kg

Housing including pedestal 1940mm

Housing width 180mm

Housing depth 250mm

Pedestal measuements (width x depth) 395x295mm

Product article number

Re:sound H190 in veneer cherry 1.084.540.00

Re:sound H190 in silver varnished 1.084.541.00

Dominating Entertainment.

Revox of Switzerland.

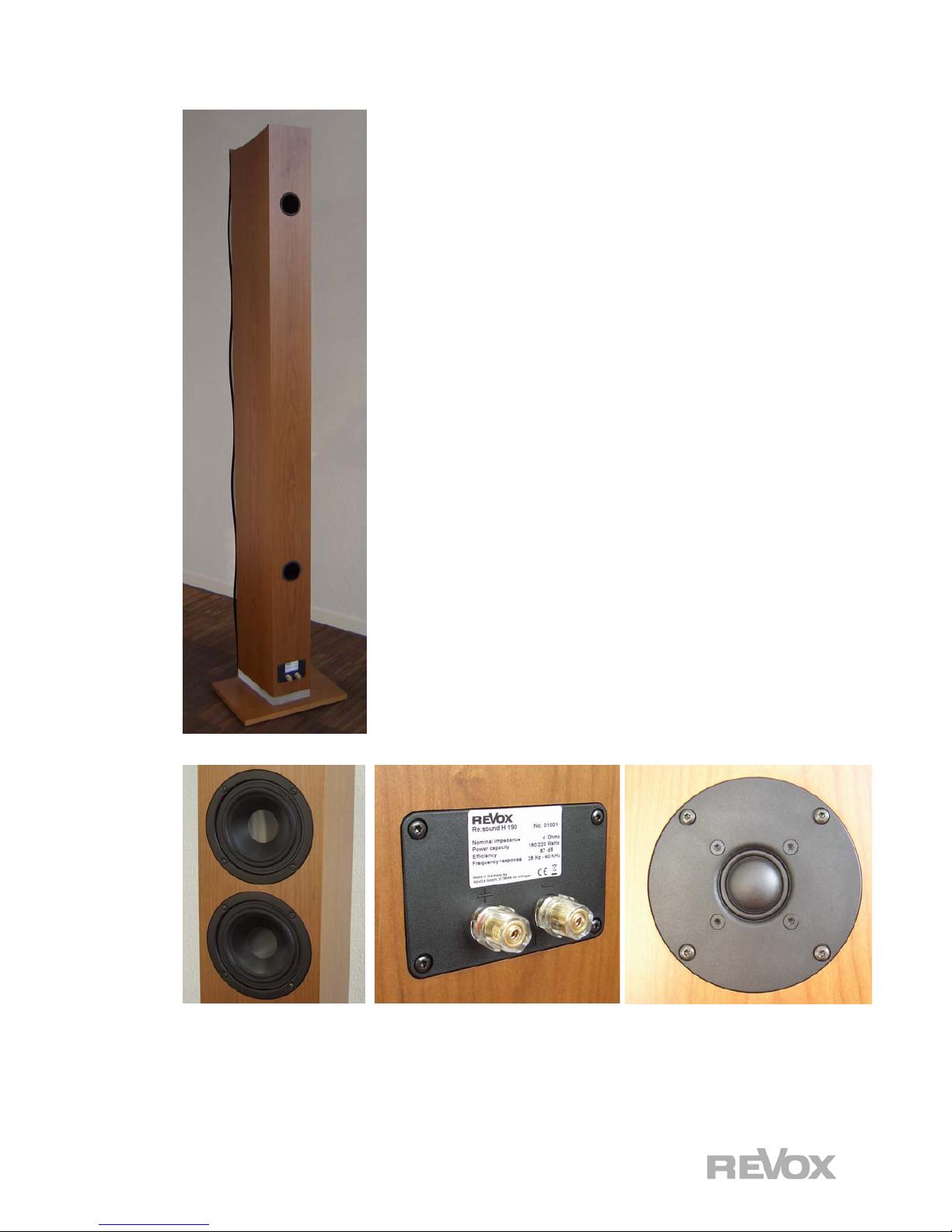

This all called for some new developments:

1. Bass range: 4 new, long-throw base drivers with powerful

magnets and durable membranes made of high-strength, black

anodised aluminium. Short-circuit rings with internal magnets

prevent distortion very effectively.

2. 154 mm mid-range system with hand-coated paper membranes

and linear, low-distortion magnets.

3. Broad, 25 mm soft calottes in the treble range, which reach far

beyond the audibility limit.

4. Unusually extensive, over-dimensioned, low-distortion crossover

network with high-specification components.

5. Vibration-optimised and internally reinforced housing. The result

is that no sound discolouration caused by partial oscillation of the

housing is audible.

High-quality speaker connections reduce unwanted contact

resistance and other interference to an absolute minimum.
