Rexing M1 Manuale utente
M1
Quick Start Guide
M1 クイックスタートガイド
Guide de démarrage rapide M1
Guida di avvio rapido M1
Guía de inicio rápido M1
M1 Schnellstartanleitung
FR
IT
DE
SP
JP
2
Table of Contents
English
Overview
What’s in the Box
Camera Overview
Installation
Basic Operation
日本語
概説
本製品の同梱物
カメラの概説
画面のアイコン
基本操作
Français
Aperçu
Que contient la Boîte
Aperçu de la Caméra
Conseils D’utilisation
Opération De Base
Italiano
Descrizione
Nella Confezione
Descrizione Telecamera
Come Si Usa
Funzionamento Base
page
4
5
6
8
12
16
17
18
20
24
28
29
30
32
36
40
41
42
44
48
3
Español
Visión General
Qué hay en la Caja
Resumen de la Cámara
Instalación
Operación Básica
Deutsch
Übersicht
Verpackungsinhalt
Kamera Übersicht
Gebrauchsanweisungen
Grundbedienung
52
53
54
56
60
64
65
66
68
72
page
4
Facebook Instagram Site
1. Overview
Thank you for choosing REXING! We hope you love your new
product as much as we do. If you need assistance, or have any
suggestions to improve it, please contact us. You can reach us
support team will respond you as soon as possible.
Always a surprise in Rexing. Check us out here.
https://www.facebook.com/rexingusa/
https://www.instagram.com/rexingdashcam/
https://www.rexingusa.com/support/registration/
5
2. What’s in the Box
1. Rexing M1 Dash Cam
2. Waterproof HD Rear Camera
3. Rear Camera Extension Cable (18ft)
4. Car Charger (12ft)
5. Cable Management Tool
6. M1 Quick Start Guide
7. Safety Guide
1.
3.
2.
4.
5.
6. 7.
1. Overview
6
3. Camera Overview
1. Power Button / Screen Toggle Button
2. USB Charging Port
3. Rear Camera Port
4. Micro SD (TF) Card Slot
5. GPS Logger Port (M1 not support)
7
Screen Icons
Record (blinking)
Tap to begin
recording Setting Menu
Playback
Mode
Tap to lock
recording
Tap to take a photo
Tap to disable
audio recording
* Swipe left/right on touchscreen to switch front/rear view
* Swipe up/down on touchscreen to adjust view angle
Brightnes Adjustment
Time Date
(DD/MM/YYY)
8
4. Installation
Step 1:
Install the Dash Cam
Unhook the straps in the back of the front camera, then wrap
them around your rearview mirror.
Connect the straps to the hook on the back of the camera to
secure the camera to the rearview mirror.
Step 2:
Insert the Memory Card
The Rexing M1 accepts [Class 10/UHS-1 or higher] Micro SD
memory cards up to 256GB.
You will need to insert a memory card before you can begin
recording. Before inserting or removing a memory card,
rst ensure you’ve powered down the device.
Gently push the memory card in until you hear a click, and
allow the spring release to push the card out.
9
Step 3:
Power the Camera and Format the Memory Card
Power the camera by connecting the charger to the car
cigarette lighter and camera. To ensure the M1 records to
your memory card properly and without error. Before you
start using a new memory card, you must format the
card within the camera using the format function. Always
backup card before formatting.
To format the memory card, make sure you have inserted
your memory card, then turn on the device by connecting to a
power source. Upon turning on the camera, tap Record button
to stop recording. Then tap the Settings button to access the
Settings Menu.
Use the arrow keys to navigate to the “Format” option. Once
this option is highlighted, tap “Yes” to continue. You will be
asked to conrm your choice. Tap “OK” to conrm.
You may now disconnect from power. The camera will shut
down after 3 seconds. The camera should begin recording
automatically the next time it is powered on.
Press the Yes button to
conrm formatting the card
10
Step 4:

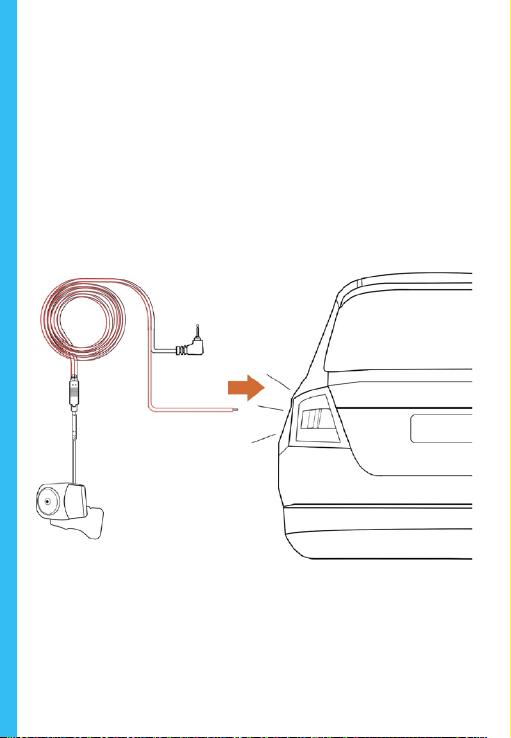

Hardwire the red line to rear tail reverse light
In order to use automatic backup camera switch function,
connect the red line of rear camera to your car’s rear tail
reverse light.
When put the car on reverse, the dash cam will automatically
switch to backup camera view.
