M018/M019

PE-MF2b/PE-MF2c

Slide 1

Service Training

M018/M019

Product Overview

PE-MF2b/PE-MF2c

Version 1.0

This training course explains the differences between the PE-MF2 series and

the older PE-MF1 series.

RicohCo.Ltd.http://www.ricoh.com/

M018/M019

PE-MF2b/PE-MF2c

Slide 2

What Models are there in the Series?

PE-MF2b (M018)

20 ppm (color and b/w)

No optional memory

DDST (GDI)

Duplex built-in

Fax built-in

Optional 500-sheet paper tray

PE-MF2c (M019)

20 ppm (color and b/w)

Optional 256MB memory available

PCL/PS

Duplex built-in

Fax built-in

Optional 500-sheet paper tray

No additional notes

RicohCo.Ltd.http://www.ricoh.com/

M018/M019

PE-MF2b/PE-MF2c

Slide 3

Appearance

These machines have a built-in ADF.

RicohCo.Ltd.http://www.ricoh.com/

M018/M019

PE-MF2b/PE-MF2c

Slide 4

Product Positioning

PE-MF2 is the successor model to PE-MF1.

Model PE-MF1 b and c were enhanced and will be launched as PE-MF2b

and PE-MF2c.

PE-MF1a will continue to be sold as the cheapest A4 LP-based MF in the

company’s line-up, and selling for this product will be focused in low

H/W price oriented channels.

It is intended to sell PE-MF1a as long as possible, but it will be

necessary to review the balance between marketability and profitability,

because competition in this segment is expected to increase.

PL-MF1

31/8ppm

3-in-one

4-in-one

GDI

PE-MF1b

21/21ppm

PE-MF1c

21/21ppm

PE-MF1a

16.5/16.5ppm

GDI

PCL/PS

4-in-one

PE-MF2b

21/21ppm

PE-MF2c

21/21ppm

GDI

PCL/PS

4-in-one

2006 2007 2008

3-in-one: Copier, Printer, Scanner

4-in-one: Copier, Printer, Scanner, Fax

RicohCo.Ltd.http://www.ricoh.com/

M018/M019

PE-MF2b/PE-MF2c

Slide 5

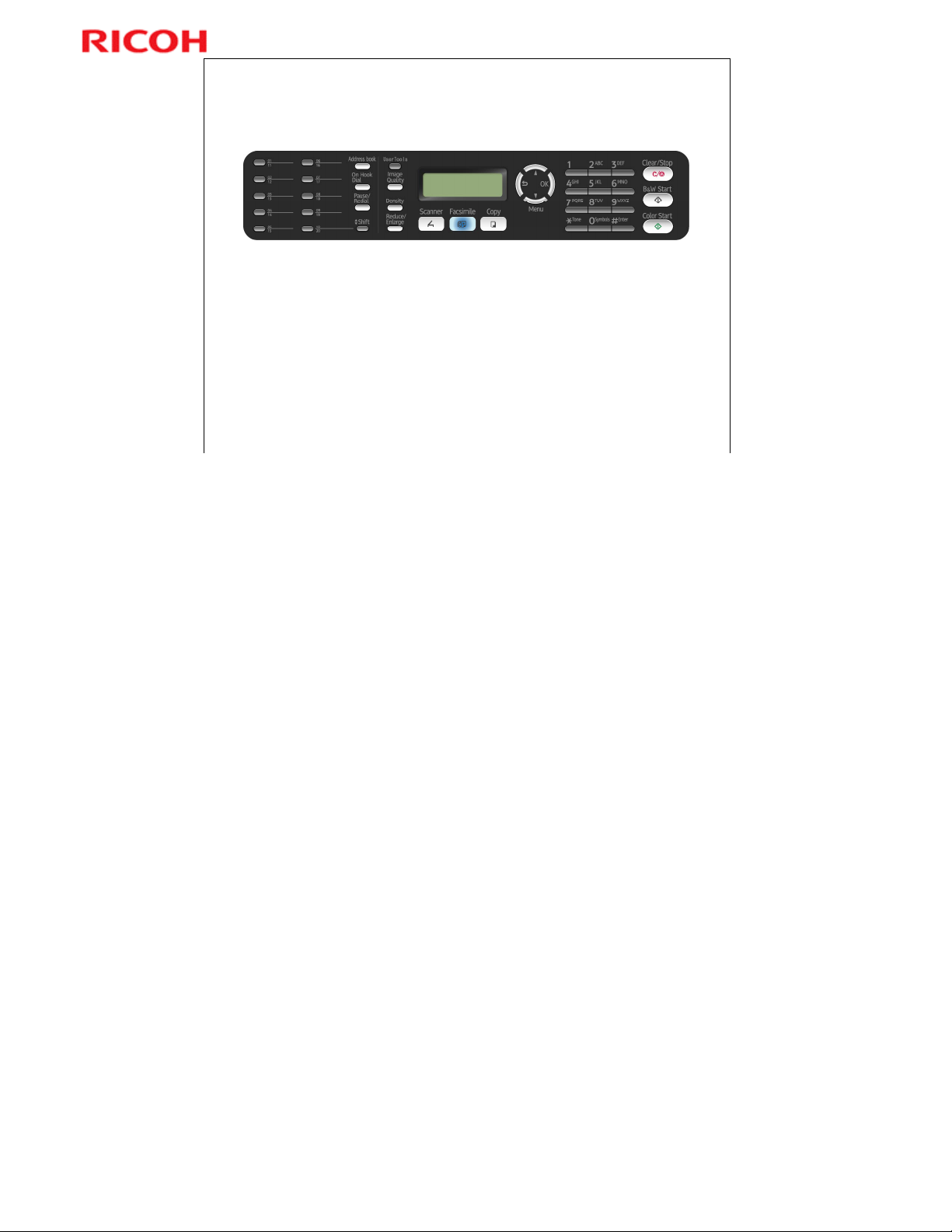

Operation Panel

There is a User Tools button to make initial setup easier.

Service mode is the same as the PE-MF1. It is not necessary to use a PC,

like it was for the PE-P1.

RicohCo.Ltd.http://www.ricoh.com/

M018/M019

PE-MF2b/PE-MF2c

Slide 6

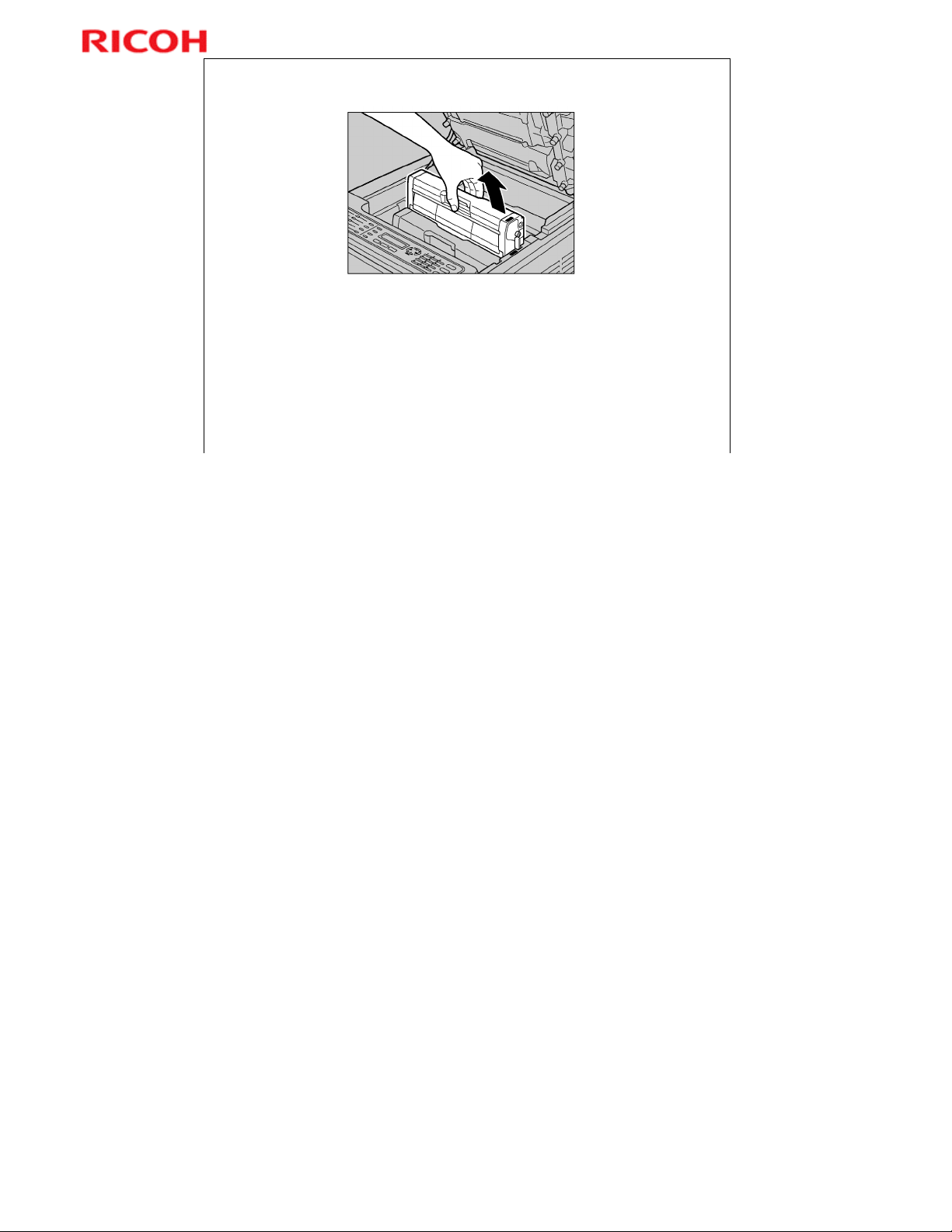

Uses an AIO Cartridge

The OPC, charge roller, and development unit are all in an AIO

cartridge.

AIO: All-in-one

The cartridge can be removed with one hand.

The AIO cartridge for the PE-MF2 is different from the AIO

cartridge for the PE-MF1.

It is the same as the AIO cartridge that is used with the MD-P1.

No additional notes

RicohCo.Ltd.http://www.ricoh.com/

M018/M019

PE-MF2b/PE-MF2c

Slide 7

Two Types of AIO (Print) Cartridge

Starter

1 k prints per cartridge

Short Yield

2.5 k prints per cartridge

Long (High Yield)

6.5 k prints per cartridge (BK)

6.0 k prints per cartridge (CMY)

» Method was changed: From 5% chart & 50% color to

ISO19798

» Yield based on ISO 19798 (ISO chart, continuous prints)

Waste Toner Tank

Approximately 25 k prints per tank

No additional notes

RicohCo.Ltd.http://www.ricoh.com/

M018/M019

PE-MF2b/PE-MF2c

Slide 8

Standard Equipment

This equipment is built-in for both models.

35-sheet automatic document feeder

250-sheet paper feed unit

1-sheet bypass feed

Duplex (for printing and copying)

» PE-MF1: Duplex is for printing only

Ethernet: 10Base-T/100base-TX

USB 2.0

Fax

Memory

RAM: 128 MB (Main board: PE-MF2b & PE-MF2c)

» PE-MF2c also has 128MB on its PDL board (built-in), with an empty

slot which can be upgraded with an optional 256MB board, for a

maximum of 384MB on the PDL board (in addition to the main board's

128MB)

– Note: As the memory for the main board and the memory for the

PDL board serve different functions, the 128MB of the Main Board

and the maximum of 384MB on the PDL board should not be

thought of as additive for a total of 512MB.

No hard disk (built-in or optional) for either model

Memory

¾PE-MF2b (GDI model): The memory on the main board is used for

printing.

¾PE-MF2c (PDL/PS model): The memory on the PDL board is used for

printing. Raster data in the memory on the PDL board is sent to the

memory on the main board. However, the memory on the main board is

not used for printing processing; it is only a temporary holding area. So

the 128 MB on the main board cannot be included in the total printer

memory spec.

RicohCo.Ltd.http://www.ricoh.com/

M018/M019

PE-MF2b/PE-MF2c

Slide 9

Optional Equipment

Memory Unit Type F 256MB, G891 (PE-MF2c only)

TK1010 Paper Feed Unit, G849 (PE-MF2b and PE-

MF2c)

Both of these are also used in the PE-MF1.

No additional notes

RicohCo.Ltd.http://www.ricoh.com/

M018/M019

PE-MF2b/PE-MF2c

Slide 10

Improvements to Basic Features

Faster warm-up time

Improved from 51 s to 48 s

Higher yield for the AIO Cartridge

Improved from 2k to 6.5k (black) and 6k (CMY)

Improved copying functions

“Duplex Copy”, for example.

In the PE-MF1, duplex printing is available but not duplex copying.

PC-Fax is added

Improvement of “Dual Access Capability”

This means that there are more cases in which the machine can

do two jobs at the same time (for example, scanning and printing a

fax at the same time).

Additional security features, such as “Locked Print” and “User

Restriction”.

Improved operation panel

A User Tools key was added.

No additional notes
