Microwave Leakage Detector

Microwave Leakage Detector / English

2020-10-07/ V001 EN-1

Contents

Introduction EN-2

Features EN-2

General Specification EN-2

Instrument Description EN-3

Safety EN-3

Operation EN-4

Battery Replacement EN-5

Limited Warranty EN-6

Contact information EN-7

Microwave Leakage Detector / English

EN-2 2020-10-07/ V001

Introduction:

Detector measures electromagnetic field value of the radio

frequency. The meter is calibrated precisely on the frequency

value 2.45 GHZ (Microwave Oven).

Features:

⚫Switch between 2.45 GHZ (microwave frequency) or

normal (50MHZ~3.5 GHZ).

⚫Data hold (HOLD), Maximum (MAX) Hold, Minimum (MIN)

Hold and Zero function.

⚫Measurement range of RF power density：0.01~2.700m

W/cm2.

⚫Builtin alarm setting, the buzzer sounds when the

measurement value is more than 1m W/cm2.

⚫Auto power OFF function.

⚫Low battery indication.

⚫Over load indication.

General specification:

⚫Display:

LCD display with maximum

reading of 3999.

⚫Sampling Rate:

2.5 times per second.

⚫Sensor:

Single axis.

⚫Frequency response:

50MHz to 3.5 GHz.

⚫Measuring Range:

⚫Accuracy:

⚫Power Supply:

⚫Battery life:

0.01~2.700m W/cm2

±2 dB at 2.45 GHz ± 50MHz.

9V NEDA 1604, IEC 6F22,

JIS 006 P. battery x 1pc.

Approx. 100 hours

⚫Dimension: (LxWXH):

130mm x 56mm x 38mm.

Microwave Leakage Detector / English

2020-10-07/ V001 EN-3

⚫Weight:

Approx. 170g with battery

⚫Accessories:

Manual, 9V battery and carrying

bag.

Instrument description:

1. Sensor.

2. LCD

3. Zero button

4. Power on/off.

5. Max. Hold / Min. Hold

6. Frequency Team select

button

7. Data hold button

8. Tripod mounting screw

9. Battery cover.

Safety:

CAUTION

Be extremely careful for the following

conditions while measuring.

⚫Do not operate the meter in any environment with

explosive gas (material), combustible gas (material)

steam or filled with dust.

⚫In order to avoid reading incorrect data, please replace

the battery immediately when the symbol appears

on the LCD.

Microwave Leakage Detector / English

EN-4 2020-10-07/ V001

⚫In order to avoid the damage caused by contamination or

static electricity, do not touch the circuit board before you

take any adequate action.

⚫Operating Environment -indoors use only. The meter

was designed for being used in an environment of

pollution degree 2.

⚫Operation Altitude: Up to 2000M.

⚫Operating Temperature & Humidity: 5°C ~ 40°C, 0%~

80%RH.

⚫Storage Temperature & Humidity: -10°C ~ 60°C, 0%~

70%RH.

Operation:

1. Press to turn the power on or off.

2. Turn the meter on, press to select the frequency of

2.45 GHZ or normal (50MHz to 3.5 GHz).

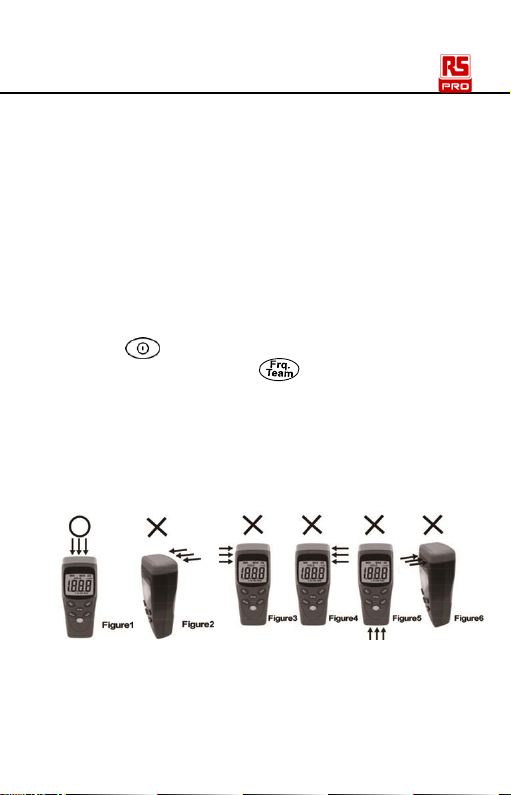

3. Position the front (see Figure 1) of the meter to measure

the electromagnetic waves. Change the measurement

angle or position to obtain the highest reading value (see

Figure 2 through Figure 6).

MEASUREMENT PROCESURES:

Arrow pointing direction indicates the direction of

electromagnetic waves.

4. The LCD displays the measured value.

Microwave Leakage Detector / English

2020-10-07/ V001 EN-5

NOTE: Due to the environmental magnetic field factors,

this magnetic field meter may display a reading

value that is lower than 0.002 m W/cm2prior to

measuring. This is not a malfunction of the

device.

5. After testing, turn the power off.

Hold

Freezes the reading present on the LCD at the moment

when is pressed. Press again to disable data

hold.

MAX/MIN

Press repeatedly to select the displayed reading from

MAX to MIN to MAX/MIN and back to MAX. Press for

more than 2 seconds to disable these functions.

AUTO POWER OFF

When the meter is power on, it is automatically set to auto

power-off after 30 minutes of non-use. To disable this

function, please turn the power off, press and hold and

Together until the meter is power on.

Turn the power off and turn it on to restore this function, the

symbol is displayed.

Battery Replacement:

The meter is powered by 9V battery x 1pc.

Use the following procedure to replace the battery:

1. Replace battery immediately when the LCD

displays .

2. Turn the meter off and remove the battery cover.

3. Replace with the new battery; take care to note the

correct polarity.

4. Re-install the battery cover.

Microwave Leakage Detector / English

EN-6 2020-10-07/ V001

Limited Warranty:

This meter is warrantied to the original purchaser against

defects in material and workmanship for 3 year from the

date of purchase. During this warranty period, RS

Components will, at its option, replace or repair the

defective unit, subject to verification of the defect or

malfunction. This warranty does not cover fuses,

disposable batteries, or damage from abuse, neglect,

accident, unauthorized repair, alteration, contamination, or

abnormal conditions of operation or handling.

Any implied warranties arising out of the sale of this product,

including but not limited to implied warranties of

merchantability and fitness for a particular purpose, are

limited to the above. RS Components shall not be liable for

loss of use of the instrument or other incidental or

consequential damages, expenses, or economic loss, or for

any claim or claims for such damage, expense or economic

loss. Some states or countries laws vary, so the above

limitations or exclusions may not apply to you. For full terms

and conditions, refer to the RS website.
