sauter CT Q1 Manuale utente
Sauter GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
Tel.: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.sauter.eu
Instruction Manual / Data sheet
CT Q1
V. 1.0
12/2018
EN
CT Q1-BA-e-1810
2 CT Q1-BA-e-1810
GB
SAUTER CT Q1
V. 1.0 12/2018
Instruction Manual / Data sheet
Summarize:
1Short description........................................................................................... 3
2Available models............................................................................................ 3
3Introduction.................................................................................................... 3
4Warning notes................................................................................................ 3
5Warranty......................................................................................................... 4
6Detailed specifications.................................................................................. 4
7Wiring.............................................................................................................. 4
8Dimensions in mm......................................................................................... 5
8.1 Dimensions in mm (300kg -5000kg) ....................................................................................... 5
8.2 Dimensions in mm (7500kg -10000kg) ................................................................................... 5
9Certificate of Compliance.............................................................................. 5
CT Q1-BA-e-1810 3
1 Short description
Stainless steel IP68 (acc. to EN 60529) / IP69K (acc. to ISO 20653) shear
beam load cell
Suitable platform, hopper, bed and other weighing devices in raw
environment
hermetically sealed
Accuracy OIML R60 C3
OIML certificated
RoHS conform
Option on request: EX
2 Available models
Capacity
Model
300kg
CT 300-3Q1
500kg
CT 500-3Q1
750kg
CT 750-3Q1
1000kg
CT 1000-3Q1
1500kg
CT 1500-3Q1
2000kg
CT 2000-3Q1
3000kg
CT 3000-3Q1
5000kg
CT 5000-3Q1
7500kg
CT 7500-3Q1
10000kg
CT 10000-3Q1
3 Introduction
Please pay attention to the notes of the operating manual: read these operating
manual carefully before commissioning, even if you already have experience with
SAUTER measuring cells.
After receiving the measuring cell, it should be checked in advance whether no
transport damage has occurred, whether the outer packaging or other parts or even
the article itself has been damaged. If any damage is evident, please inform
SAUTER GmbH immediately.
4 Warning notes
Observe the national accident prevention regulations.
Not correct executed use of the measuring cell can lead to serious injuries, death,
material damage and personal injuries. Use only by trained and experienced people.
Never load more than the max. capacity to a measuring cell. Overloaded measuring
cells no longer have the required accuracy. Overloaded or deformed measuring cells
are no longer allowed to use and must be changed quickly.
Never step under suspended loads.
Always fasten overload- or break security to your construction.
Pay attention to the allowed static and dynamic loads of the used equipment.
Let the measuring cells calibrate at regular intervals.
Only load the measuring cell in its specified load direction. Avoid lateral forces.
Control the measuring cells to deformations and cracks.
Measuring cells with 4-Conductor cable will change their characteristic value when
shortened or extended the cable length.
4 CT Q1-BA-e-1810
5 Warranty
The warranty expires at:
Disregard of the specifications of the operating manual
Modification or opening the measuring cell
Overload
Mechanical damages
Damage caused by liquids or media
Natural loss
Not correct installation

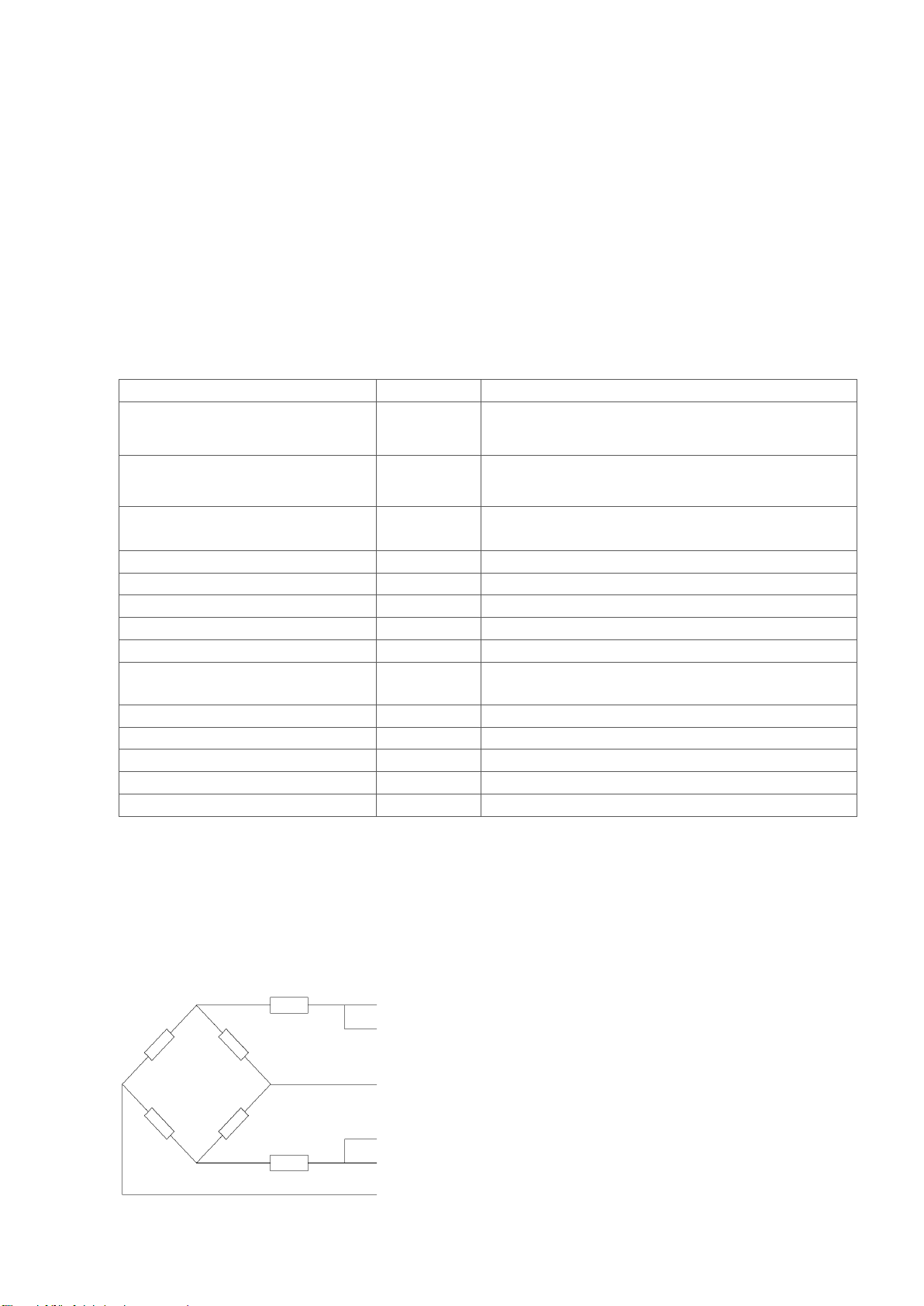

6 Detailed specifications
Output sensitivity ( FS )
mV/V
2.0 ± 0.001
Maximum capacity ( Emax )
kg
300, 500, 750, 1000, 1500, 2000, 3000,
5000, 7500, 10000
Max.number of load cell
intervals
nLC
3000
Ratio of min. LC verification
interval
Y = Emax
/ vmin
10000
Combined Error
%FS
≤± 0.017
Minimum dead load
Of Emax
0%
Safe overload
of Emax
150 %
Ultimate overload
of Emax
200 %
Zero balance
of FS
< ± 2.0 %
Excitation, recommended
voltage
V
10 ~ 15
Input resistance
Ω
400 ± 20
Output resistance
Ω
350 ± 3
Insulation resistance
MΩ
≥5000 ( at 50VDC )
Compensated temperature
°C
-10 ~+40
Operating temperature
°C
-35 ~ +65
7 Wiring
Shielded, 6 cable. Shield not connected to element.
Cable diameter: Ø6mm.
Standard cable length for 300kg –5000kg: 5m
Standard cable length for 7500kg –10000kg: 10m
6-wire diagram
Input(+)
Sense(+)
Output(-)
Sense(-)
Input(-)
Output(+)
Green
Blue
White
Yellow
Black
Red
CT Q1-BA-e-1810 5

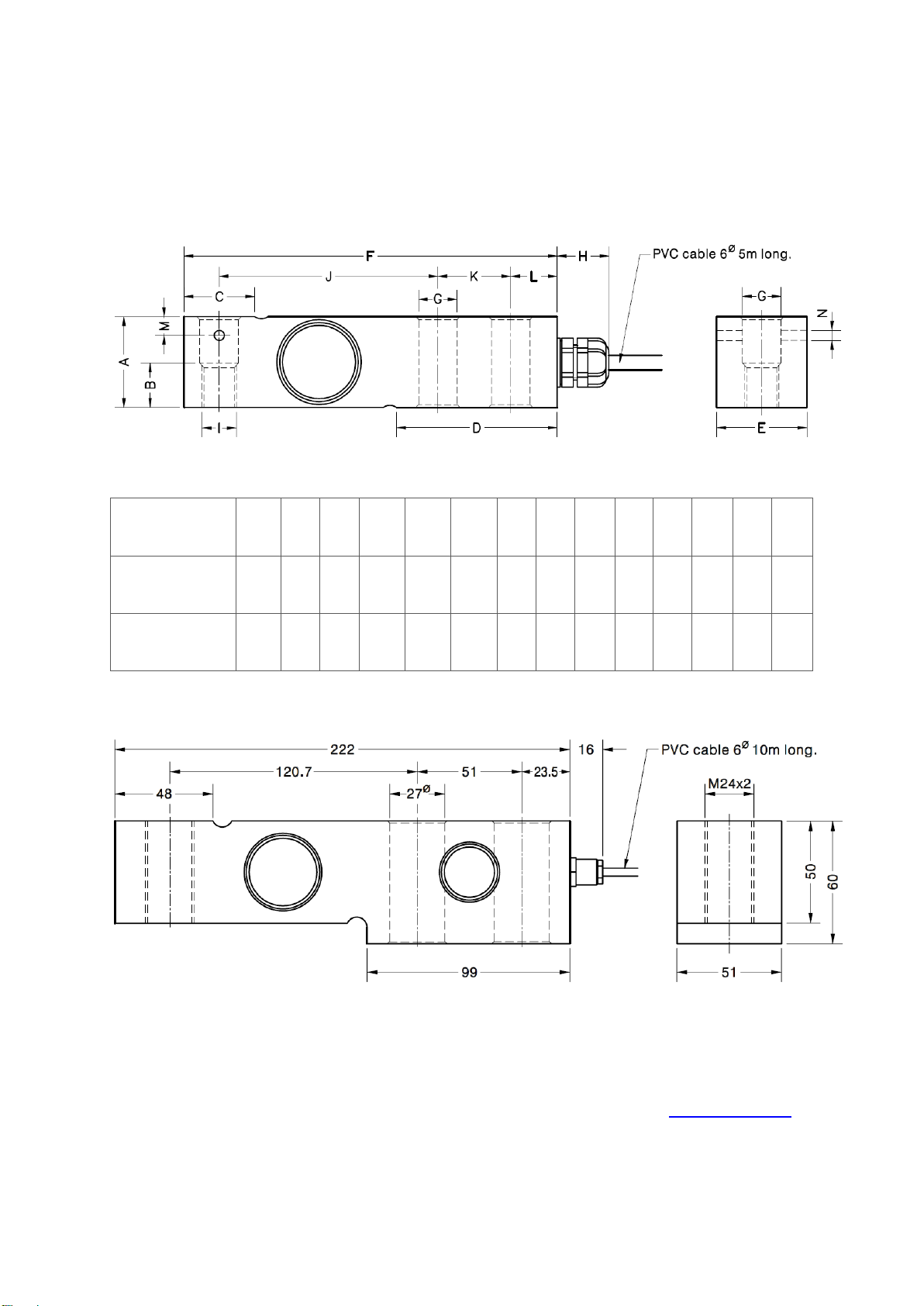

8 Dimensions in mm
8.1 Dimensions in mm (300kg -5000kg)
8.2 Dimensions in mm (7500kg -10000kg)
9 Certificate of Compliance
The Certificate of Compliance can be downloaded from the website www.sauter.eu
Dimension Capacity
A
B
C
D
E
F
G Ø
H
I
J
K
L
M
N Ø
300kg –2000kg
31,5
15
24,6
56
31,5
130
13,5
18
M12
76,2
25,4
15,8
6,5
3,5
3000kg -5000kg
48
37
79
41,5
171,5
20,5
18
20,5
95,2
38,1
19
