GATE 2 - 24V PLUS
GENERAL INFORMATION
GENERAL CHARACTERISTICS

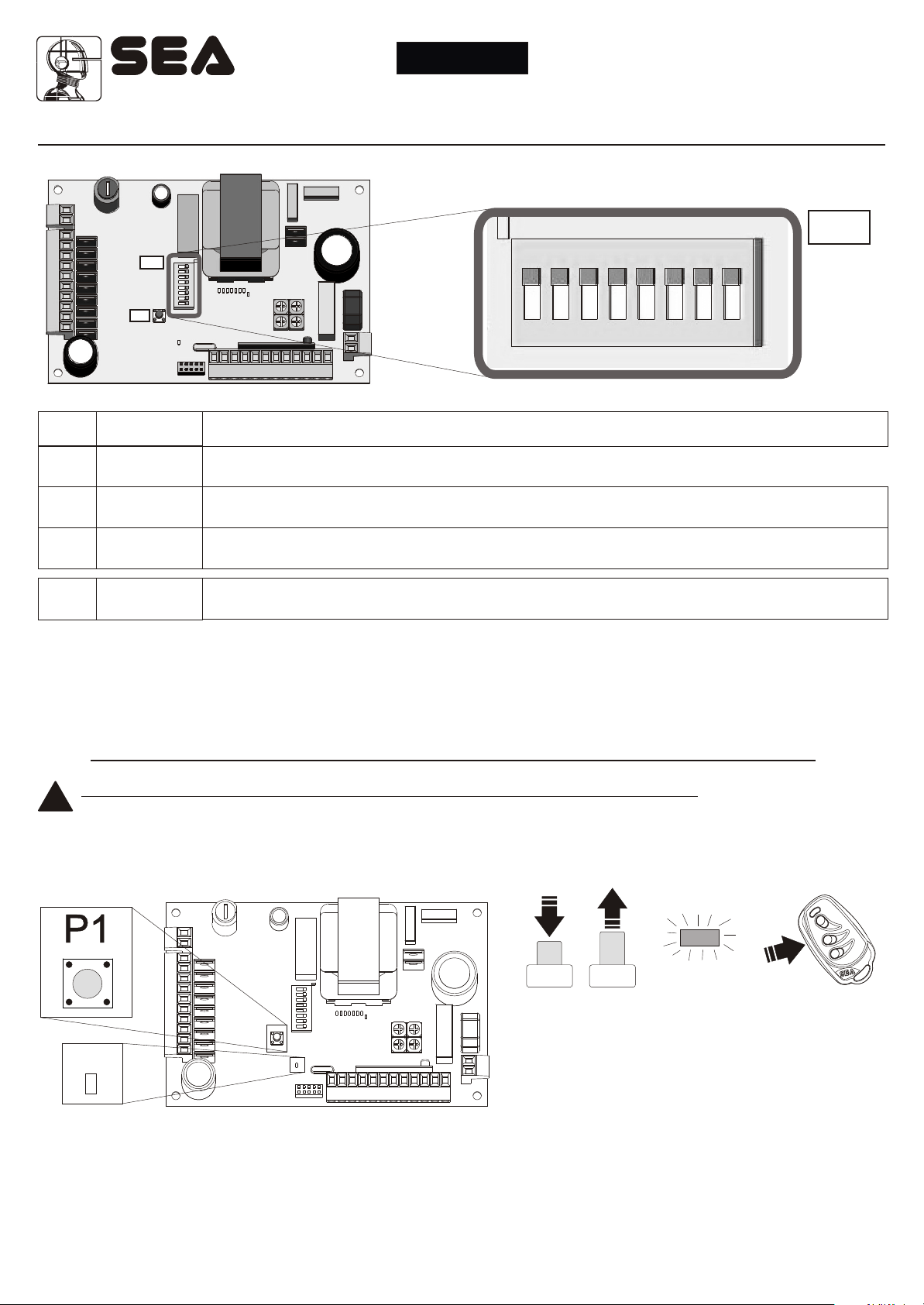

The GATE 2 24V control unit has been designed to manage one or two low voltage swing gate operators with or
without electronic limit switches.
Its dimensions are very small and as well as the classic functions refered to the dip-switch it has several other
features such as motor speed adjustment, amperometric sensitivity for the anti crush, the adjustment of the leaf
delay in closing and alteration of pause time.
The self- learning of working time can be done automatically.
TECHNICAL CHARACTERISTICS
Control unit power supply
Absorbt power
Max. motor charge
Max. accessories charge
Max. Flash light charge
Environment temperature
Protection fuse (24V accessories)
Function logic
Opening/closing time
Time of pause
Thrust
Slow down

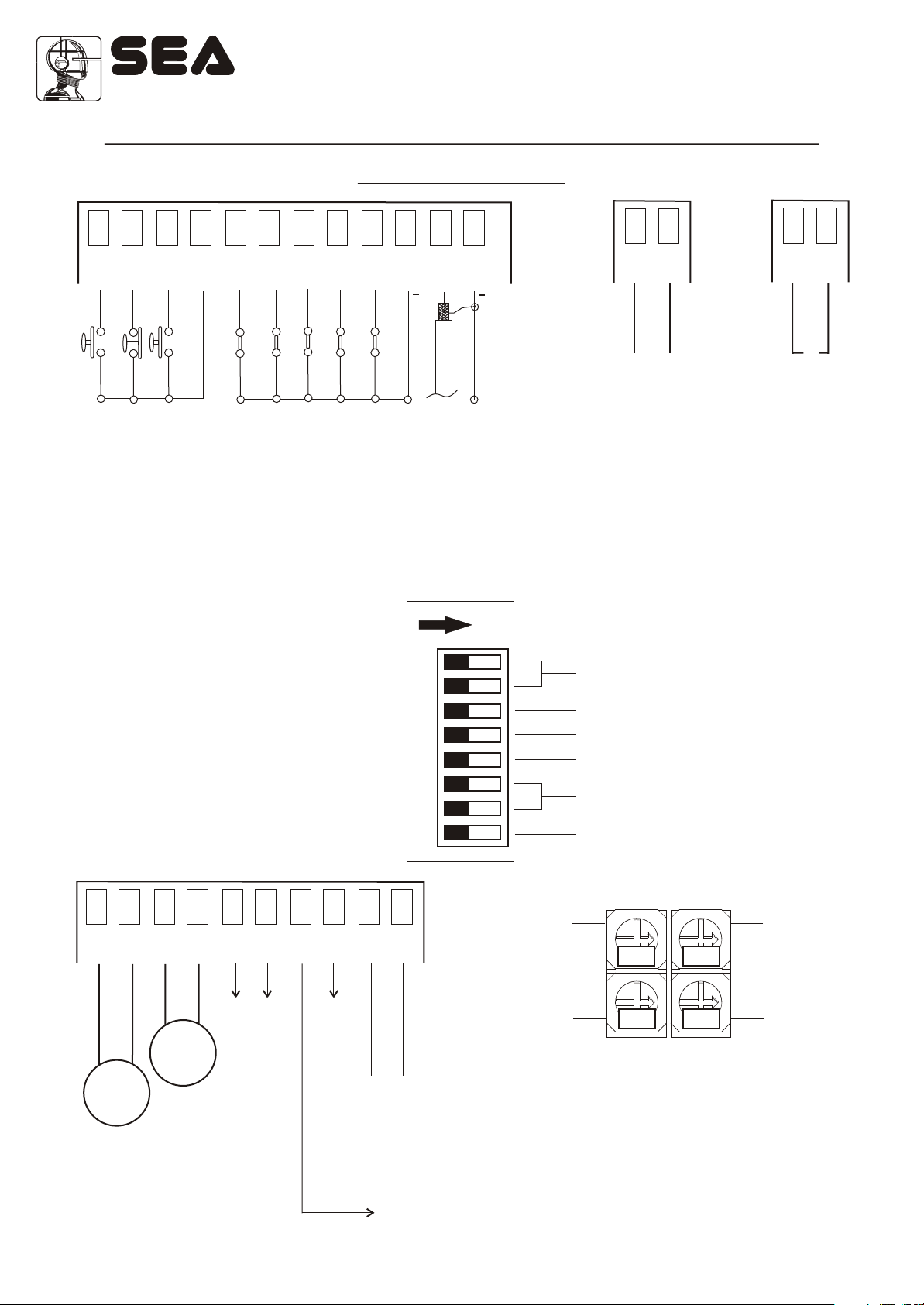

Entries on connecting terminal
Exit on connecting terminal
Board dimensions
Characteristics optional batteries
Characteristics of external enclosure
230V ~ (+6 -10%) - 50/60 Hz
10 W
70 W x 2
24Vdc 15W max.
-20°C +50°C
1 (250mA)
Automatic / Manual / Security / Dead man
In selflearning in programming phase
Adjustable with trimmer
Adjustable with trimmer
In selflearning in programming phase
Battery power supply / Total opening /
Pedestrian opening / Security /
Stop / limit switch opening and closing
Power supply accessories 24Vdc / Motors 24Vdc /
Flashing lamp 24Vdc / Electric lock 12Vdc /
Power supply TX photocell
156 x 100 mm
24V Pb 2Ah min.
305 x 225 x 125 mm - Ip55
24Vdc 200mA
ARRANGEMENTS
For the security of persons it is important to follow with attention all the advises and instructions in this
manual.Awrong installation or a wrong use of the product can cause sever dammages to persons.
Make sure that the installation has an adeguate differential switch as prescribed by the law in force and local isolation
at the control panel.
For the installation of the electric cables use adequate rigid and/or flexible ducts.
Always separate the connection cables of low voltage accessoires from those of 115/230V~ power supply. To avoid
any interference use separate casings.
2
Max. Length of the power supply cable between control unit and motors is 10m, using cables with 2,5 mm
section.
Where the respect of the normative in terms of electromagnetic compatibility is required it is necessary to
install a EMC filter on the power supply line.
