ADDENDUM TO OWNERS MANUAL

MANUAL ADDENDUM: 999-0900

1st Printing: Feb 6, 2000

SEGA ENTERPRISES, INC. USA

Warranty

Your new Sega Product is covered for a period of 90 days from the date of shipment. This certifies

that the Printed Circuit Boards, Power Supplies and Monitor are to be free of defects in workman-

ship or materials under normal operating conditions. This also certifies that all Interactive Control

Assemblies are to be free from defects in workmanship and materials under normal operating condi-

tions. No other product in this machine is hereby covered.

Sellers sole liability in the event a warranted part described above fails shall be, at its option, to

replace or repair the defective part during the warranty period. For Warranty claims, contact your

Sega Distributor.

Should the Seller determine, by inspection that the product was caused by Accident, Misuse, Ne-

glect, Alteration, Improper Repair, Installation or Testing, the warranty offered will be null and void.

Under no circumstances is the Seller responsible for any loss of profits, loss of use, or other dam-

ages.

This shall be the exclusive written Warranty of the original purchaser expressed in lieu of all other

warranties expressed or implied. Under no circumstance shall it extend beyond the period of time

listed above.

OPTIONAL DOLLAR BILL ACCEPTOR

THE COIN DOOR ASSEMBLY USED ON 18 WHEELER COMES

EQUIPPED TO ACCEPT A DOLLAR BILL ACCEPTOR. ALL NEEDED

WIRING CONNECTIONS ARE CONVIENENTLY LOCATED INSIDE THE

GAME FOR THIS APPLICATION.

THE COIN DOOR CAN ACCCOMMODATE THE FOLLOWING

VALIDATORS:

HOLE POSITION#1 Mars 2000 series

(UNIVERSAL MOUNTING POSITION) Cash Code DBV

The frame and cashbox enclosure on this coindoor has been modified to accomodate a Mars 2000 series

upstacker. A 2000 series stacker can be added by simply removing the DBA entry plate and replacing it with Mars

stacker. This two entry door can be ordered through Happ Controls or one of Happ Controls authorized distributors. The

part number is 40-3000-00. The Mars stacker can be obtained through an autherized Mars distibutor.

10 - 2 VOLUME ADJUSTMENT/REPLACEMENT

Volume adjustment/replacement should be performed after the HANDLE MECHA has been

removed as per 10 -1.

ADJUSTMENT

In order to turn the HANDLE SHAFT, insert the STEERING HANDLE to the HANDLE

SHAFT.

Secure the HANDLE at the centering position.

Loosen the 2 screws which secure the VOLUME BRACKET to push the gear out of mesh.

With the HANDLE SHAFT being the centering position, bring the gear into mesh so that the

status of the volume’s shaft is as shown in the Fig below.

Fasten the screws securing the VOLUME BRACKET.

After work is finished, perform volume setting in the Test Mode.

“D” CUT FACE (HANDLE SHAFT)

“D” CUT FACE (VOLUME)

SCREW (2)

M4x14, w/flat &

spring washers

REPLACE THIS PAGE (PAGE#56 in the ORIGINAL MAUAL)

MODIFICATIONS TO THE DESIGN RELATED PARTS

MODIFICATIONS TO THE PARTS LIST

For all US modified parts you will notice that on the corresponding

table it calls out LOCAL PURCHASE.

This is to mean that these items cannot be purchased through SEGA’ S SERVICE DEPARTMENT

and can be obtained at a local hardware store or a specialty store.

MODIFICATIONS TO PARTS ASSY #PTR-2500 (ASSY CHANGED TO PTR1-2500)

PART NOT LISTED OR SHOWN IN DRAWING #999-0901 Base Handle Reinforcement Brkt

Attached to Item #3 (Part No. PTR-2504 BASE HANDLE MECHA/NEW Part No. PTR1-2504)

IN ADDITION

Item #19 (Part No. SPG-2109 STOPPER RUBBER has been modified/

NEW Part No. SPG1-2109

)

These parts are used for extra support and are included in all US manufactured games.

PART NO. 999-0901

Base Handle reinforcement brkt.

MODIFICATIONS TO PARTS ASSY #PTR-1000 (ASSY CHANGED TO PTR1-1000)

PART NOT LISTED OR SHOWN IN DRAWING #999-0902 (2) Steering Reinforcement Brkt

Attached to a portion of the wooden cabinet, these brackets (one for each side) ensure that

force excerted upon the Steering Assy does not damage the wooden frame.

This part is used for extra support and is included in all US manufactured games.

PART NO. 999-0902 (qty. 2)

Steering reinforcement brkt.

(one for each side)

MODIFICATIONS TO PARTS ASSY #PTR-1000 (ASSY CHANGED TO PTR1-1000)

PART NOT LISTED OR SHOWN IN DRAWING #999-0903 (3) Steering Spoke Cover Upper

PART NOT LISTED OR SHOWN IN DRAWING #999-0904 (3) Steering Spoke Cover Lower

Attached to Item #32 (Part No. PTR-2501 STEERING HANDLE)

These parts are used for extra support/safety and are included in all US manufactured games.

Location of Spoke Covers

Steering Handle

MODIFICATIONS TO PARTS ASSY #PTR-1200 COIN DOOR ASSY

(ASSY CHANGED TO PTR1-1200)

OLD NUMBERS

ITEM NO. PART NO. DESCRIPTION

101 220-5237-91~ ASSY C.C. 2DR

220-5482-91~ ASSY C.C. 2DR

NEW NUMBERS

ITEM NO. PART NO. DESCRIPTION

101 40-3000-00 ASSY C.C. 2DR*

*See coin door insert on the following page for an exploded view of coor door assy.

(Prior to Part list Modifications.)

*This part can only be ordered through Happ Controls or a Happ Controls Distributor.

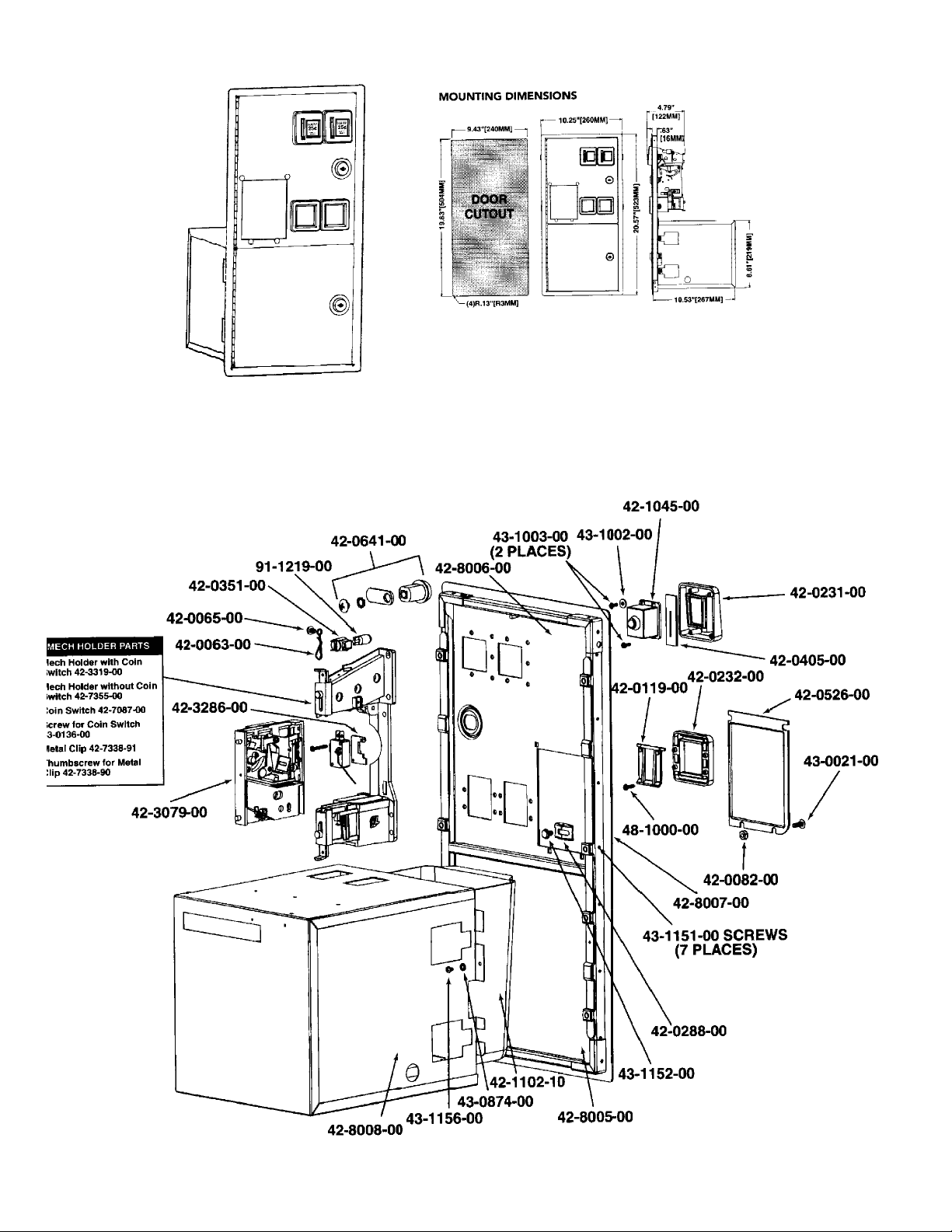

EXPLODED VIEW OF US COIN DOOR ASSY

MODIFICATIONS TO THE PARTS LIST

(cont’d)

REPLACED HARDWARE COMPONENTS (screws, nuts, etc..)

SEAT COVER -TOP REAR

SCREW MS B0 M4X16 SC BT TMP (TOP)

SCREW MS CHM M4X20 SC BT TMP (BOTTOM)

CONTROL PANEL COVER

SCREW MS B0 M4X16 SC BT TMP

S/A REAR DOOR (W/LOCK)

VENT

SCREW MS B0 M4X16 SC BT TMP

VENT (SEAT CAB)

SCREW MS B0 M4X16 SC BT TMP

S/A MUFFLER PANEL (TO CAB)

SCREW MS B0 M6X30 SC BT TMP

S/A MUFFLER

SCREW MS CRM M4X12 SC BT TMP

(TOP / BOTTOM OF MUFFLER [4] )

(MUFFLER PNL [6] )

STEERING WHEEL

SCREW MS B0 SCREW M4X25 SC BT TMP

SEAT CUSHIONS

SCREW MS B0 M6X30 SC BT TMP

START BUTTON PLATE

SCREW MS CRM M4X12 SC BT TMP

HORN BUTTON PLATE

SCREW MS CRM M4X12 SC BT TMP

GRILLE-SEAT ACCESS SIDE

SCREW MS B0 M4X20 SC BT TMP

AC UNIT

SCREW MS B0 M4X20 SC BT TMP

GRILLE (BACK OF SEAT)

SCREW MS CRM M4X20 SWC BT TMP

COVER TOP-FRONT

SCREW MS B0 M4X20 SC BT TMP

COIN BOX MTG BRACKET

SCREW MS B0 M4X20 SC BT TMP

MARQUEE TO CABINET

SCREW MS B0 M5X55 SC BT TMP

CABINET FRONT TO MONITOR CAB

SCREW MS CRM M5X45 SC BT TMP

VENT

SCREW MS B0 M4X16 SC BT TP

MARQUEE COVER

SCREW MS CRM M4X20 SC BT TP

[1]

[3]

[1]

[11]

[1]

[2]

[8]

[2]

[8]

[2]

[18]

[2]

[20]

[1]

[4]

[2]

[10]

[1]

[4]

[1]

[4]

[2]

[8]

[1]

[4]

[1]

[12]

[4]

[1]

[4]

[1]

[4]

[1]

[4]

[1]

[4]

[1]

[5]

ITEM DESCRIPTION QTY.

NOTE: with regards to the items

detailed at left. Those that are

underlined are the assemblies that

the screws pertain to. The quanti-

ties of both the assemblies and the

screws are listed to the right of

each item in brackets.

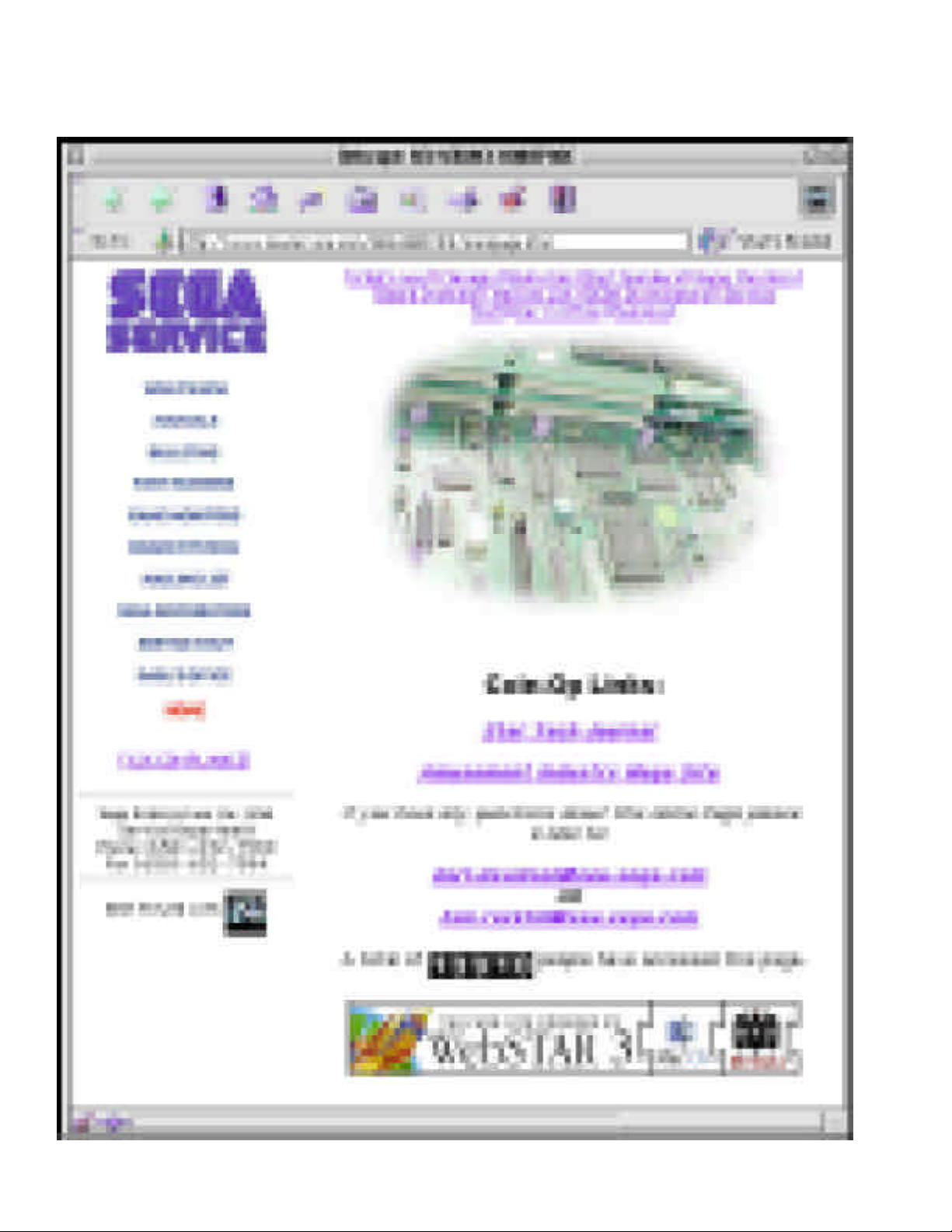

VISIT OUR WEBSITE!
