Siemens DESIGO RX QAX33.1 Manuale utente

CA2N1642en_02

30 Jun 2009 Building Technologies

1642

DESIGO™ RX

Room unit with PPS2

interface

QAX33.1

for use with: – devices of the ranges DESIGO RXC, RXB, RXL, and RXA (PPS2)

– DESIGO PX Automation stations 1)

– devices with a PPS2 interface

Room temperature measurement

Room temperature setpoint adjuster

Rocker switch for control mode selection ( / Auto) and manual control of

the fan in fan-coil systems (up to 3 speeds)

PPS2 interface to controller

Socket for commissioning and service tool or service terminal

Use

The room unit is used in rooms controlled by an individual room control system, to mea-

sure the room temperature and for operation of a room controller. The QAX33.1 is typi-

cally used in conjunction with a fan-coil system (for fan control).

It can also be used in conjunction with a DESIGO PXC… automation station 1).

The room unit incorporates a socket for a commissioning and service tool or service

terminal. This tool socket provides access via the PPS2 interface or via a bus system

(e.g. LONWORKS® bus) to the connected individual room controller.

1) If room units QAX32.1, QAX33.1, QAX34.1 or QAX84.1 are used in conjunction with a PXC auto-

mation station, the room unit will show the request of the user and not the effective state.

2/6

Siemens QAX33.1 – Room unit with PPS2 interface CA2N1642en_02

Building Technologies 30 Jun 2009

Ordering

When ordering, please specify the quantity, product name and type code.

Example:

30 Room units QAX33.1

Equipment combinations

The room unit is suitable for use in conjunction with all controllers which incorporate a

PPS2 room unit interface (e.g. DESIGO RX, DESIGO PX).

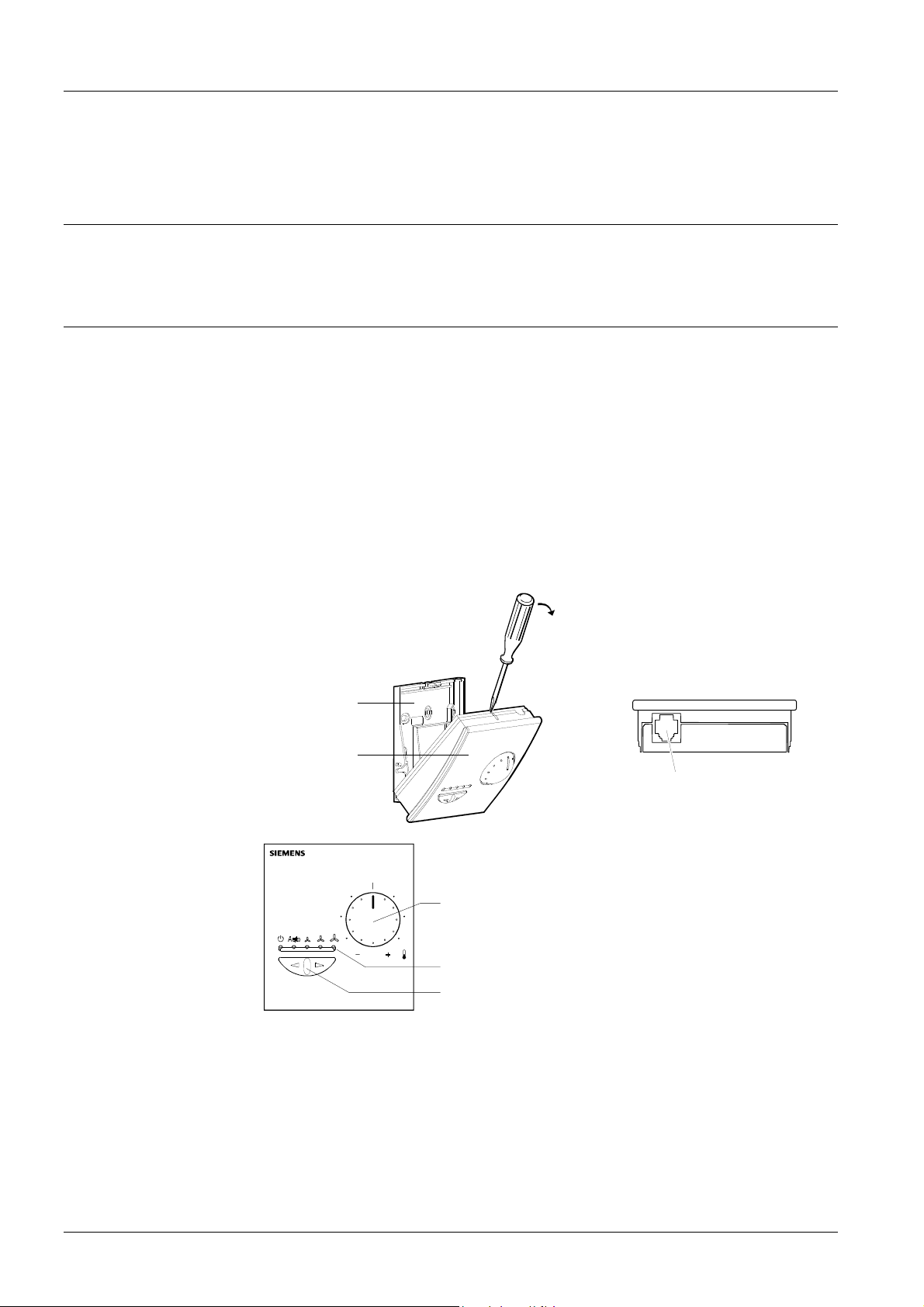

Mechanical design

The room unit is designed for surface mounting (with knock-outs for cable entry from

the top or bottom) or for mounting on a recessed conduit box with the cables connected

from the rear.

The unit comprises a housing and base unit, connected by releasable snap-fittings.

The base unit accommodates the screw terminals which have an integrated terminal

strip.

The housing accommodates a printed circuit board, room temperature sensor element,

setpoint adjuster, rocker switch for mode selection and fan speed selection, plug-in

connectors and a socket for the commissioning and service tool or service terminal.

Both the housing and base are made of plastic.

Base unit

Housing

80082

80084

Socket for the commissioning

and service tool or service

terminal

80168A

Dial for stepless adjustment of the setpoint

LEDs to indicate control mode and fan speed

Rocker switch for mode selection and fan speed

The controller control mode can be selected on the basis of occupancy, using the

rocker switch on the room unit. The same switch can also be used for manual selection

of up to three fan speeds.

Pressing once in the direction of the left arrow switches one stage to the left, and press-

ing once in the direction of the right arrow switches one stage to the right. The current

control mode or the manually selected fan speed is indicated by LED.

Operator controls

and indication

Rocker switch for selec-

tion of mode and fan

speeds

3/6

Siemens QAX33.1 – Room unit with PPS2 interface CA2N1642en_02

Building Technologies 30 Jun 2009

Position Fan control

1) Control mode

Fan controlled automati-

cally by controller

The controller operates at the “setback”

setpoints (at night, or when room is un-

occupied or occupied intermittently)

Auto Fan controlled automati-

cally by controller

Comfort mode (room occupied)

Manual, fan speed 1

Manual, fan speed 2

Manual, fan speed 3

1) For details of these functions, refer to the application description for the relevant controller range.

01884

Address plugs inside the housing

They allow setting the address in cases where several

room units are connected to one controller.

The room units are delivered with address 1.

Disposal

The device is classified as waste electronic equipment in terms of the European Direc-

tive 2002/96/EC (WEEE) and should not be disposed of as unsorted municipal waste.

The relevant national legal rules are to be adhered to.

Regarding disposal, use the systems setup for collecting electronic waste.

Observe all local and applicable laws.

Engineering notes

The device receives its power from the connected controller via the PPS2 interface

(extra low voltage). Only one room unit may be connected to a RX… room controller.

A maximum of 5 room units may be connected to a PXC… automation station (they are

identified by different settings of their address plugs)

A twisted-pair cable is required for the connection to the controller.

DESIGO RX uses four-core cables, DESIGO PX uses two-core cables (see the respec-

tive installation guides). Screening is not required.

Mounting

The room unit is suitable for wall-mounting and for mounting on a recessed conduit

box.

Do not mount in recesses, shelves, behind curtains or doors, or above or near heat

sources.

Avoid exposure to direct sunlight or draughts.

The electrical wiring conduit must be sealed where it joins the room unit, to prevent

the occurrence of draughts in the conduit which could affect the sensor.

The specified ambient conditions must be complied with.

Mounting instructions are printed on the room unit packaging.

A mounting kit is included with the unit.

ddress plugs

4/6

Siemens QAX33.1 – Room unit with PPS2 interface CA2N1642en_02

Building Technologies 30 Jun 2009

Installation notes

Local installation regulations must be observed.

The room unit is not protected against connection to AC 230 V.

Commissioning notes

After an interrupt of the PPS2 interface the communication will only be re-established

when the connected controller polls the PPS2 addresses. The duration of the corre-

sponding cycle is:

RXA: 10 sec; RXB, RXL and RXC: 3 min; PX: 30 sec.

The following routine occurs in the room unit when the power supply is connected (via

the PPS2 interface) or after a reset via the controller:

Step Function Description

1 LED test The LEDs are operated in sequence for 1 s each

2 Device

ready

After a delay of 1 s the device will be ready for PPS2 communi-

cation. The actual control mode is displayed after a further delay

of 5 s.

Technical data

Supply voltage Operating voltage range SELV / PELV DC 12 ... 15 V

The room unit receives its power from the connected controller, via the PPS2 interface

Power consumption (from controller) Max. 0.10 VA

Function data Temperature sensor

Measuring element NTC resistor

Measuring range 0 ... 40 °C

Response time 8 min

Accuracy (5 ... 30 °C) 0.5 K

Accuracy (25 °C) 0.25 K

Setpoint correction

Correction range (determined by controller) max. 12 K (default 3 K)

Accuracy over full correction range 10 %

Indication (control mode) 2 LEDs, yellow

Interfaces Type of interface between controller and

room unit

PPS2

(point-to-point interface, Version 2)

Baud rate 4.8 kbit/s

Cable connections Connection terminals (screw terminals) Stranded or solid conductors

0.8 ... 2.5 mm2

Single cable length controller – Room unit See Installation guidelines:

DESIGO RXC: CA110334,

DESIGO RXB & RXL: CM110381

DESIGO RXA: CA2Z3884

DESIGO PX: CA110396

Cable type 2-core or 4-core, twisted pairs,

unscreened

Connecting cable for service tool Off-the-shelf, max. 3 m

Housing protection standard Protection standard to EN 60529 IP 30

Protection class Insulation protection class III

STOP Note!

Response on start-up

5/6

Siemens QAX33.1 – Room unit with PPS2 interface CA2N1642en_02

Building Technologies 30 Jun 2009

Ambient conditions IEC 721 Operation Transport

Ambient air conditions Class 3K5 Class 2K3

Temperature 0 ... 50 °C – 25 ... 70 °C

Humidity < 85 %rH < 95 %rH

Mechanical conditions Class 3M2 Class 2M2

Standards and directives Product standard Automatic electronic controls

for household and similar use

EN 60730-1

Electromagnetic compatibility

Immunity (industrial & domestic) EN 60730-1

Emissions (domestic) EN 60730-1

compliance

Meets requirements of EMC directive 2004/108/EC

UL compliance UL916

C-Tick conformity (EMC) AS/NZS 61000-6-3

Environmental compatibility The product environmental declaration

CA2E1641 contains data on RoHS compli-

ance, materials composition, packaging,

environmental benefit, disposal

ISO 14001 (Environment)

ISO 9001 (Quality)

2002/95/EC (RoHS)

Dimensions See “Dimensions”

Color Housing front, dial NCS S 0502-G, RAL 9003 signal white

Housing, base unit, rocker switch RAL 7035 light grey

Weight Excluding packaging 0.12 kg

Connection terminals

The tool socket on the room unit provides access to the connected individual room

controller via the commissioning and service tool or the service terminal.

The bus cable (Terminals 3 and 4) is therefore looped to the tool socket (Pins 1 and 2).

The bus cable is not affected by the room unit.

For connection of a service terminal, the PPS2 interface (Terminals 1 and 2) is also

connected to the tool socket.

87654321

C–

C+

CP–

CP+

80085

PPS2 interface, supply voltage

CP+ 1 Device supply, Data PPS2 (pos.)

CP– 2 Device supply, Data PPS2 (neg.)

Bus connection (looped to tool socket)

C+ 3 With LONWORKS® bus (DESIGO RXC): CLA

C– 4 With LONWORKS® bus (DESIGO RXC): CLB

5 ... 8 Not used

Standard type RJ45 tool socket.

3206Z01

2345678

1. With LONWORKS® bus (DESIGO RXC): CLA

2. With LONWORKS® bus (DESIGO RXC): CLB

3. Not used

4. Not used

5. Not used

6. Not used

7. CP+ Data PPS2

8. CP– Data PPS2

Terminal layout

Tool socket

6/6

Siemens QAX33.1 – Room unit with PPS2 interface CA2N1642en_02

Building Technologies 30 Jun 2009

Connection diagram (Example: RXC)

The following example shows the room unit connected to a DESIGO RXC room

controller:

1741 A03

PPS2

Tool

7812

4321

C–

C+

CP–

CP+

CP–

CLA

CLB

PPS2

LonWorks® Bus

= Twisted pair

R1 Room unit QAX33.1

N1 Room controller RXC...

A Connection for RXT10 commissioning and service tool

B Connection for service terminal with PPS2 interface

Dimensions

9,5

4,2

80087

100

ll dimensions in mm

2000 - 2009 Siemens Switzerland Ltd. Sub

ect to chan

Indice

Altri manuali Siemens Sistema di controllo

Siemens

Siemens SINUMERIK 840D sl Manuale utente

Siemens

Siemens SINUMERIK 840D sl Guida rapida

Siemens

Siemens sitrans LU10 Manuale utente

Siemens

Siemens SINUMERIK 840D sl Guida rapida

Siemens

Siemens SIRIUS 3TK2820 Manuale utente

Siemens

Siemens SIMATIC PCS 7 Manuale elenco delle parti

Siemens

Siemens SINUMERIK 840D sl Guida utente

Siemens

Siemens PCS 7 Manuale utente

Siemens

Siemens SIPLUS HCS3200 Manuale utente

Siemens

Siemens SIMATIC PCS 7 BOX Manuale utente

Siemens

Siemens SINUMERIK 840D sl Guida rapida

Siemens

Siemens SINUMERIK ONE MCP 1500 Documento tecnico

Siemens

Siemens SIMATIC PCS 7 Manuale elenco delle parti

Siemens

Siemens Climatix Series Come usare

Siemens

Siemens SINUMERIK ONE MCP 2200c Documento tecnico

Siemens

Siemens DMS8000 Manuale utente

Siemens

Siemens SIMATIC C7-613 Manuale utente

Siemens

Siemens SINUMERIK 840D sl Manuale del proprietario

Siemens

Siemens SINUMERIK ONE MCP 2400.c Documento tecnico

Siemens

Siemens SINUMERIK 828D PPU Series Manuale utente

Siemens

Siemens QAX850 Manuale utente

Siemens

Siemens SINUMERIK 840D sl Manuale utente

Siemens

Siemens SINUMERIK 828D Turning Manuale elenco delle parti

Siemens

Siemens SINUMERIK 808D Manuale utente

Manuali Sistema di controllo popolari di altre marche

Pentair Pool Products

Pentair Pool Products Compool Manuale utente

ComfortNET

ComfortNET CTK04 Manuale utente

Fireye

Fireye InSight II 95DSS3 Manuale utente

CAME

CAME G3000 Manuale utente

Idemia

Idemia MorphoAccess VP MD Manuale utente

Axis

Axis P1445-LE-3 Manuale utente

HEIDENHAIN

HEIDENHAIN TNC 150 B Manuale utente

CNC-Step

CNC-Step High-Z T-Series Manuale utente

Doosan

Doosan DVF Series Manuale utente

Honeywell

Honeywell KAP 140 Manuale utente

Honeywell

Honeywell vk41 series Manuale utente

AirBench

AirBench FPW Guida all'installazione

Cypress

Cypress HHR-3160 Manuale utente

CAME

CAME GLT40AOS Manuale utente

Zonex

Zonex GEN II -VVT Guida utente

Altronics

Altronics K 9650 Manuale utente

micro-trak

micro-trak RoadMaster Manuale utente

micro-trak

micro-trak Calc-An-Acre II Manuale utente
