SMC Networks 8505T - annexe 1 Manuale utente

EZ Switch 10/100/1000

User Guide

From SMC’s EZ line of low-cost workgroup LAN solutions

September 2003

Pub. # 150000005200H R01

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Front Panel RJ-45 Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Front Panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

SMC8505T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

SMC8508T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Installing the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Selecting a Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Diagnosing Switch Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Cable Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

10BASE-T/100BASE-TX Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . 11

1000BASE-T Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1000BASE-T Cable Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Cable Testing for Existing Category 5 Cable . . . . . . . . . . . . . . . 13

Adjusting Existing Category 5 Cabling . . . . . . . . . . . . . . . . . . . 13

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 15

EZ Switch 10/100/1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

EMC/Safety Compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i

Legal Information and Contacts . . . . . . . . . . . . . . . . . . v

NTRODUCTION

The EZ Switch 10/100/1000, SMC8505T and SMC8508T, are

high-performance Gigabit Ethernet switches designed for delivering

Gigabit connectivity to the desktop. They provide 5/8 full-duplex

1000BASE-T ports that significantly improve network performance

and boost throughput for high-bandwidth applications. With 10/16

Gigabits of aggregate bandwidth, these switches provide the quickest

solution to meeting the growing demands on your network’s limited

resources.

Features and Benefits

• Auto-negotiation supported on all ports.

• Automatic MDI/MDI-X operation.

• IEEE 802.3ab, 802.3u, and 802.3 compliance ensures compatibility

with standards-based hubs, switches and cards from any vendor.

• Store-and-forward switching ensures error-free transmission.

• Half- and full-duplex flow control prevents packets from being

dropped under heavy loading.

• Plug-and-play—nothing to configure.

• “At-a-glance” LEDs for port and system status monitoring.

• Desktop or rack installation.

NTRODUCTION

Front Panel RJ-45 Ports

These EZ Switch 10/100 models feature 5/8 1000BASE-T ports with RJ-45

connectors located on the front panel of the switch. Because all ports

support automatic MDI/MDI-X operation, you can use straight- through

cables for all network connections to PCs or servers, or to

other switches or hubs.

Front Panel LEDs

The front panel of the switch provides status LEDs for “at-a-glance”

system monitoring. The following table details the functions of the

various indicators.

Port and System Status LEDs

LED Condition Status

Power On The switch is receiving power.

Off The switch is not receiving power.

Ports

Link/Act On The port has established a valid network

connection.

Off The port has not established a network

connection.

Flashing Traffic is passing through the port.

1000M On Indicates the port is operating at 1000 Mbps.

Off Indicates the port is not operating at

1000 Mbps.

10/100M On Indicates the port is operating at 100 Mbps.

Off Indicates the port is operating at 10 Mbps.

EAR

ANEL

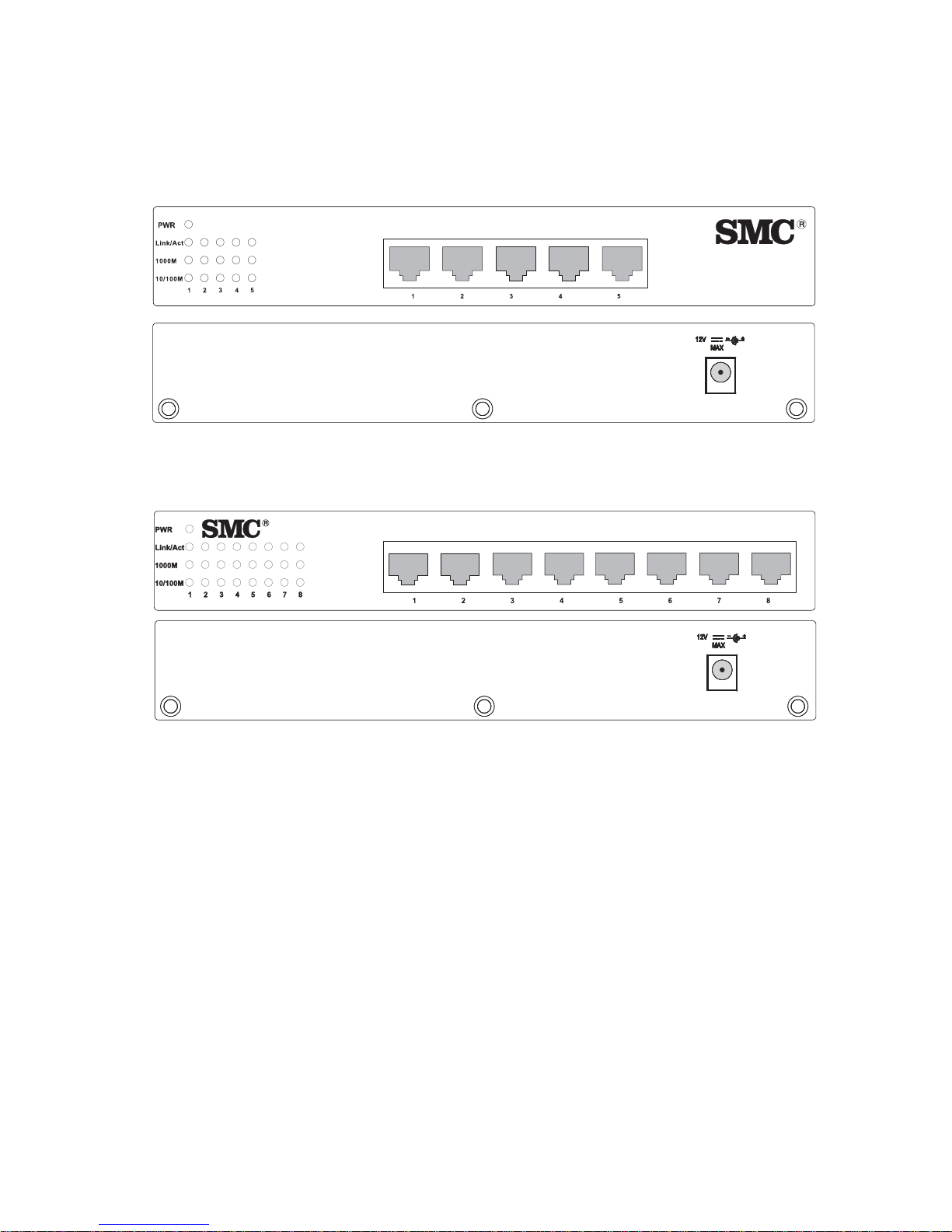

SMC8505T

SMC8508T

Rear Panel

The DC power receptacle is located on the rear panel of the switch.

EZSwitch 10/100/1000

8505T

EZSwitch 10/100/1000

8505T

EZSwitch 10/100/1000

8508T

EZSwitch 10/100/1000

8508T

1.25A

NSTALLING

THE

WITCH

Before installing the switch, verify that you have all the items listed under

“Package Contents.” Note that the switch can be installed on any suitably

large flat surface or in a standard EIA 19-inch rack.

Package Contents

The EZ Switch 10/100/1000 includes:

Selecting a Site

Be sure to follow the site selection guidelines below when choosing a

location:

• Select a suitable location for the switch:

• It should be accessible for installing, cabling and maintaining the

switch.

• The temperature and humidity should be within the ranges listed

in the specifications.

• The status LEDs should be clearly visible.

• EZ Switch 10/100/1000 (SMC8505T or SMC8508T).

• Four rubber foot pads.

• Rack-mount bracket kit.

• Appropriate DC power adapter.

NSTALLING

THE

WITCH

• There should be adequate space (approximately two inches) on

all sides for proper air flow.

• Make sure twisted-pair cable is always routed away from power lines,

fluorescent lighting fixtures and other sources of electrical

interference such as radios, transmitters, etc.

• Make sure that a properly grounded power outlet is within 2.44

meters (8 feet) of the switch and is powered from an independent

circuit breaker. As with any equipment, using a filter or surge

suppressor is recommended.

Instructions

1. Positioning the Switch: For desktop or shelf mounting, attach

the four adhesive foot pads to the bottom of the switch. For rack

mounting, install into a standard EIA 19-inch rack using the included

brackets.

2. Applying Power: Plug one end of the power adapter into the socket

on the switch’s rear panel, and the other end into an appropriate

electrical outlet. Check the Power LED to be sure power is on.

Note: It is not necessary to power off the switch before connecting or

disconnecting any UTP cables, as these actions will not disrupt

the operation of other devices attached to the switch.

3. Connecting PCs: Connect each PC to an RJ-45 port on the switch

using Category 5, 5e, or 6 shielded or unshielded twisted-pair (UTP

or STP) cable, maximum length 100 meters (328 ft). The EZ Switch

10/100/1000 will support up to 5/8 PCs. All ports on the switch

support automatic MDI/MDI-X operation, so you can use

straight-through cables for all network connections to PCs or servers,

or to other switches or hubs.

Note: If an attached device does not support auto-negotiation, the

data rate will be sensed automatically and the communication

mode will default to half duplex.

NSTRUCTIONS

4. Cascading Switches and Other Network Devices: All the ports on

the switch support automatic MDI/MDI-X configuration for cable

connections. This allows you to use straight-through cable to connect

to other switches or hubs from any port on the switch. No crossover

cables or other device settings are needed. See the “Cable

Specifications” on page 11 of this guide for further information.

Caution: Do not plug a phone jack connector into any RJ-45 port. This

may damage the switch. Instead, use only twisted-pair cables

with RJ-45 connectors that conform with FCC standards.

NSTALLING

THE

WITCH

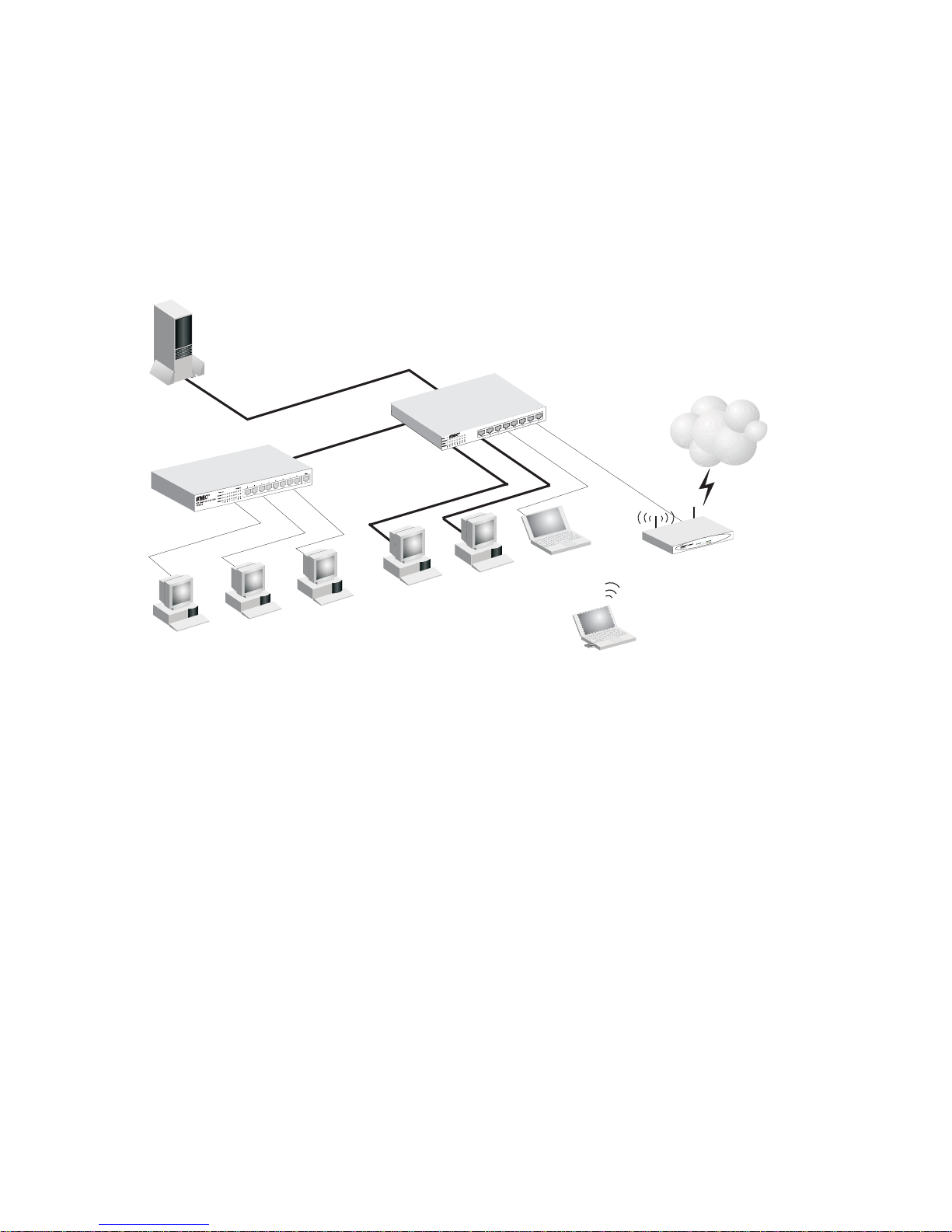

Application Example

A typical application for the SMC8505T/SMC8508T is illustrated below.

EZ Switch 10/100/1000

SMC8508T

Server

SMC-EZ109DT

Workstations

LAN1

PWRWLAN WAN23

Link

Activity

Notebook

EZSwitch10/100/1000

8508T

EZSwitch 10/100/1000

8508T

Internet

Notebook with

SMC2835W

Wireless PC Card

SMC2804WBR Wireless

Broadband Router

Workstations With

SMC9452TX Gigabit

PCI Cards
