SOLTEK SL-65F+ Manuale utente

This User‘s Guide & Technical Reference is for assisting system

manufacturers and end-users in setting up and installing the

mainboard.

Everyefforthasbeenmadetoensurethattheinformationinthismanual

is accurate. Soltek Computer Inc. is not responsible for printing or

clericalerrors.Informationinthisdocumentissubjecttochangewith-

outnoticeanddoesnotrepresentacommitmentonthepartofSoltek

ComputerInc.

No part of this manual may be reproduced, transmitted, translated

into any language in any form or by any means, electronic or

mechanical, including photocopying and recording, for any purpose

without the express written permission of Soltek Computer Inc.

Companies and products mentioned in this manual are for identifica-

tion purpose only. Product names appearing in this manual may or

may not be registered trademarks or copyrights of their respective

companies.

Soltek computer inc. Provides this manual “As is “ without war

ranty of any kind, either express or implied, including but not lim-

ited to the implied warranties or conditions of merchantability or fit-

ness for a particular purpose. In no event shall Soltek computer inc.

Be liable for any loss or profits, loss of business, loss of use or data,

interruption of business, or for indirect, special, incidental, or conse-

quentialdamages of any kind, evenif Soltek computer inc. Hasbeen

advised of the possibility of such damages arising from any defect or

error in this manual or product.

http://www.soltek.com.tw

e-mail:[email protected]

Model : SL-65F+

Edition : March 2000

Version : 2.0

65F+

CONTENT

FEATURES ............................................................................... 4

JUMPER SETTING .................................................................. 9

STANDARD CMOS SETUP.................................................... 13

BIOS FEATURES SETUP ...................................................... 15

CHIPSET FEATURES SETUP ............................................... 19

POWER MANAGEMENT SETUP........................................... 23

PnP/PCI CONFIGURATION SETUP ...................................... 27

LOAD SETUP DEFAULTS ..................................................... 29

INTEGRATED PERIPHERALS............................................... 30

SUPERVISOR/USER PASSWORD........................................ 34

IDE HDD AUTO DETECTION ................................................ 35

SAVE & EXIT SETUP............................................................. 35

EXIT WITHOUT SAVING........................................................ 35

Appendix A

Flash Memory Update Installation ....................................... 36

Appendix B

Driver installation .................................................................. 37

65F+

Appendix C

Thermal Sensor Connector.................................................. 39

65F+

SL-65F+

INTEL 82440ZX SOCKET-370

3x 3.3V DIMM sockets.

8MB to 256MB DRAM size.

SYSTEM MEMORY

2x Ultra ATA/33 Bus Master IDE ports.

2x USB ports.

1x PS/2 mouse connector and 1x PS/2 keyboard connector.

1x 2.88MB Floppy port, 2x High Speed 16550A UART ports

and 1x IrDA TX / RX Header.

ONBOARD I/O

ATX power supply connector.

Power-On by LAN(WOL), RTC Alarm, Modem Ring.

POWER

2MB FLASH BIOS.

Licensed AWARD BIOS, supports SCSI / ZIP / LS-120 / CD-

ROM boot and ACPI Power Management.

BIOS

1x AGP slot supports 1x / 2x mode bus; 3x PCI Bus Master

slots; 1x PCI Slave slot; 2x ISA slots.

SLOT

ATX, 4 layers PCB, 17.0cm x 30.5cm size.

FORM FACTOR / PCB

F E A T U R E

CHIPSET

Intel 82440ZX chipset.

Supports Intel PPGA Celeron 370 CPUs 300 ~ 533MHz or

higher.

Supports Intel FC-PGA Pentium III (Coppermine) CPUs 500E

~ 750 MHz or higher.

Supports Cyrix Joshua CPUs.

Supports 66/ 75*/ 83*/ 100/ 103*/ 112*/ 124*/ 133*/ 140*/

150*MHz system bus speeds.

Clock multipliers up to 8x.

PROCESSOR

65F+

Default setting: Intel Celeron 300A/66MHz.

NOTE: For 100MHz/133MHz CPU environment, the SDRAM sepc must comply

with PC-100/PC-133 spec.

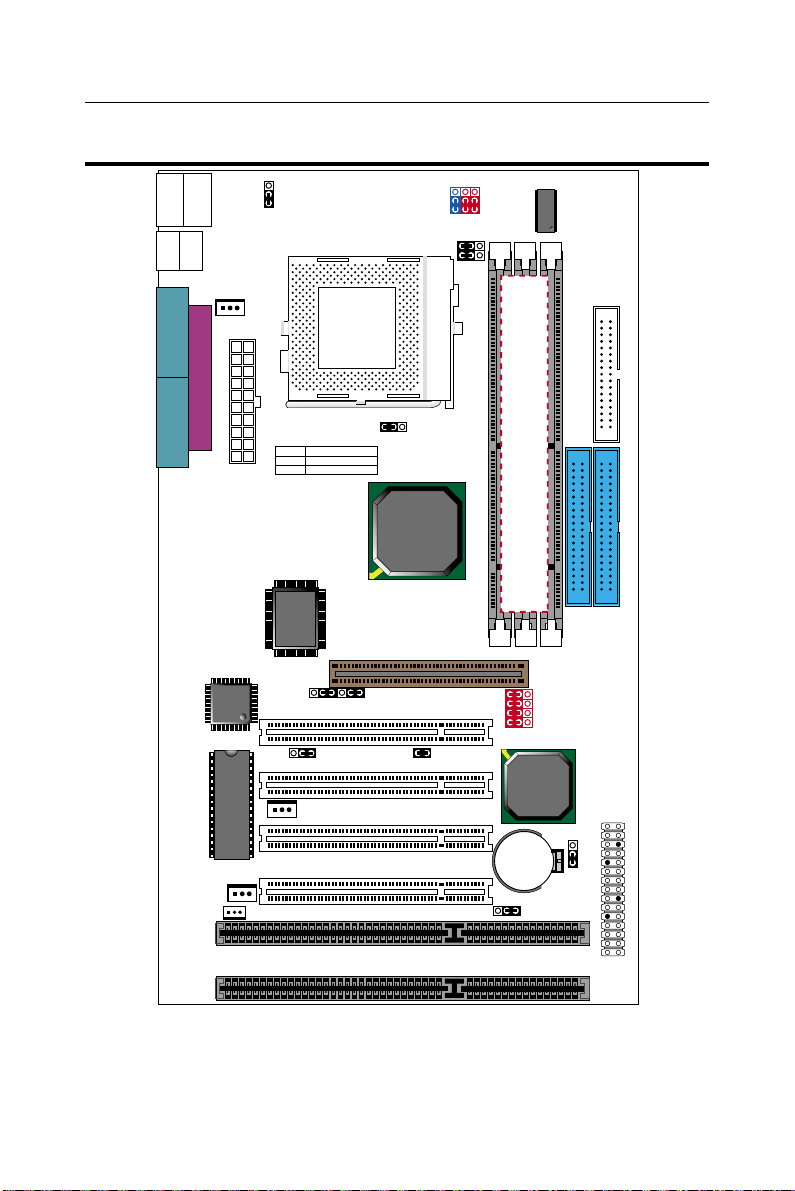

M O T H E R B O A R D D I A G R A M

1 3

1 1 1 3

1 3

JP12

JP13

JP14

JP15

1 3

JP21

JP22

1 3

JP3

JP4

JP5

JP16

JP11JP10

1 3

JVGA1

JP20

1 3

JP17

JBAT1

JP2

FAN2

FAN1

FAN3

SPK RST PWR/LED SUSLED

HD/LED IR PWR SUSPEND

JWOL1

AGP

PCI 1

PCI 2

PCI 3

PCI 4 Slave PCI)

FDC

DIMM1

DIMM2

DIMM3

IDE2

IDE1

SOCKET 370

ATX POWER

ISA1

ISA2

FLASH BIOS

Battery

Clock

Generator

LPT1

COM2 COM1 PS/2

MOUSE

PS/2

K/B

upper

lower

USB1

USB0

upper

lower

ES1938S

I/O

Controller

Intel

Cyrix

1-2 SHORT

JP20/JP21/JP22

2-3 SHORT

Intel

82440ZX

Intel

82371

PIIX4

Please refer to next page for the precise

arrangement of DIMM module.

65F+

The 82440ZX motherboard supports 168 pins DIMM of 4MB, 8MB,

16MB, 32MB, 64MB, 128MB and 256MB to form a memory sie between

8MB to 256MB(SDRAM).

82440ZX chipset provides “Table-Free” function, but do remember

that the DRAM must be 3.3V Unbuffered and 4 clock type. User can

use two DIMMs without any limit but if uses three DIMMs then must

follow the rules below:

NOTE: ONLY SINGLE SIDE SDRAM CAN BE PLUGGED WHEN DIMM2/DIMM3

SIMULTANEOUSLY USED.

SYSTEM MEMORY CONFIGURATION

DIMM1

DIMM2

DIMM3

Double or single side SDRAM

EMPTY

DIMM1

DIMM2

DIMM3

Double or single side SDRAM

Single side SDRAM

DIMM1

DIMM2

DIMM3

Double or single side SDRAM

EMPTY

Double or single side SDRAM

65F+

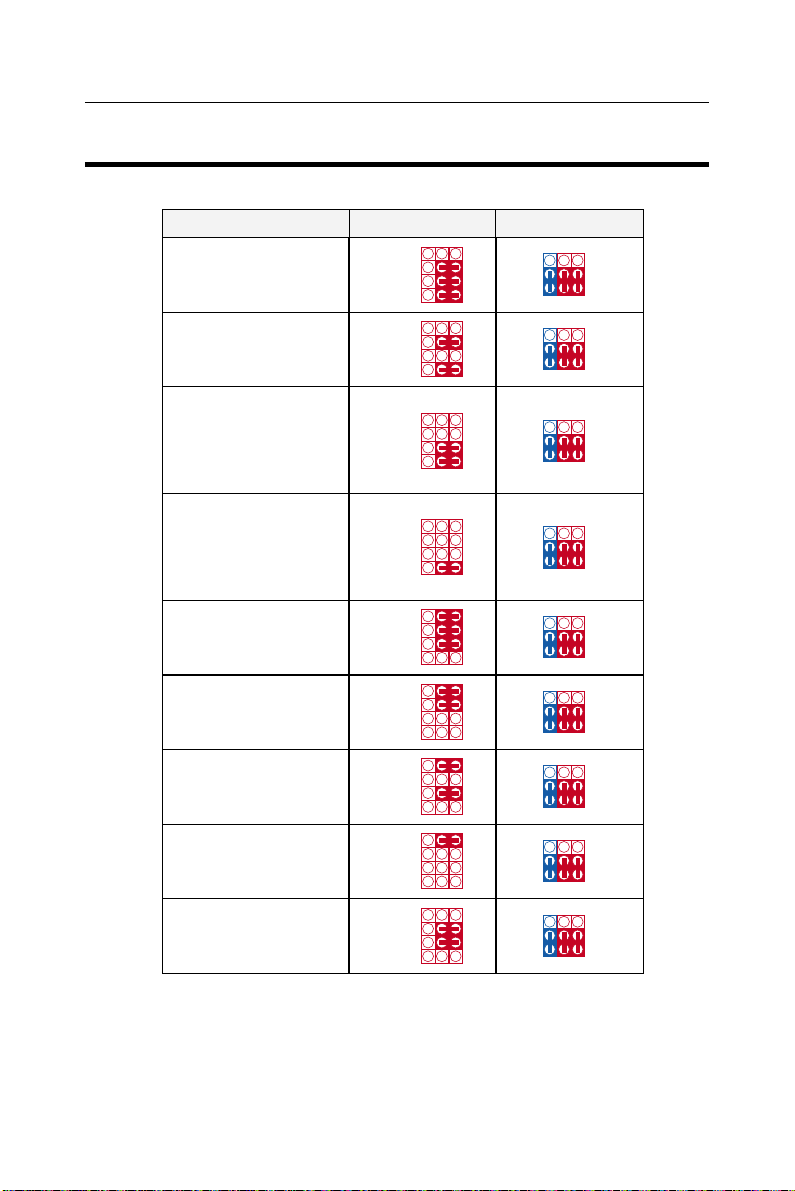

C P U C L O C K S E T T I N G

CPU Type Configuration

CPU MODEL BUS RATIO BUS CLOCK

NOTE: #) Pentium III Coppermin FC-PGA CPUs.

Celeron 300/66

66MHz * 4.5x)

Pentium III 600EB/133

133MHz * 4.5x)

JP12

JP13

JP14

JP15

1 3

JP3

JP4

JP5

Pentium III 533EB/133

133MHz * 4.0x)

JP12

JP13

JP14

JP15

1 3

JP3

JP4

JP5

Celeron 333/66

66MHz * 5.0x)

Pentium III 500E/100

100MHz * 5.0x)

Pentium III 667B/133

133MHz * 5.0x)

JP12

JP13

JP14

JP15

1 3

JP3

JP4

JP5

Celeron 366/66

66MHz * 5.5x)

Pentium III 550E/100

100MHz * 5.5x)

Pentium III 733B/133

133MHz * 5.5x)

JP12

JP13

JP14

JP15

1 3

JP3

JP4

JP5

Celeron 400/66

66MHz * 6.0x)

Pentium III 600E/100

100MHz * 6.0x)

JP12

JP13

JP14

JP15

1 3

JP3

JP4

JP5

Celeron 433/66

66MHz * 6.5x)

Pentium III 650/100

100MHz * 6.5x)

JP12

JP13

JP14

JP15

1 3

JP3

JP4

JP5

Celeron 466/66

66MHz * 7.0x)

Pentium III 700/100

100MHz * 7.0x)

JP12

JP13

JP14

JP15

1 3

JP3

JP4

JP5

Celeron 500/66

66MHz * 7.5x)

Pentium III 750/100

100MHz * 7.5x)

JP12

JP13

JP14

JP15

1 3

JP3

JP4

JP5

Celeron 533/66

66MHz * 8.0x)

JP12

JP13

JP14

JP15

1 3

JP3

JP4

JP5

65F+

J U M P E R S E T T I N G

FAN# FUNCTION

FAN1 CPU FAN

FAN2 POWER FAN

FAN3 CHASSIS FAN

FAN#: Onboard FAN (12V) Connector

Keyboard Power On JP2

JP2: Keyboard Power On

Disabled (default) 1 3

Enabled 1 3

NOTE 1: If motherboard does not support keyboard power on function, the JP2

will be fixed by jumperwire.

NOTE 2: When the keyboard power on function shows any compatible problem,

choose Disabled and report the keyboard model to your vender/maker.

NOTE 3: Keyboard power on function must be set from the BIOS. Refer to the

“Integrated Peripherals” sector.

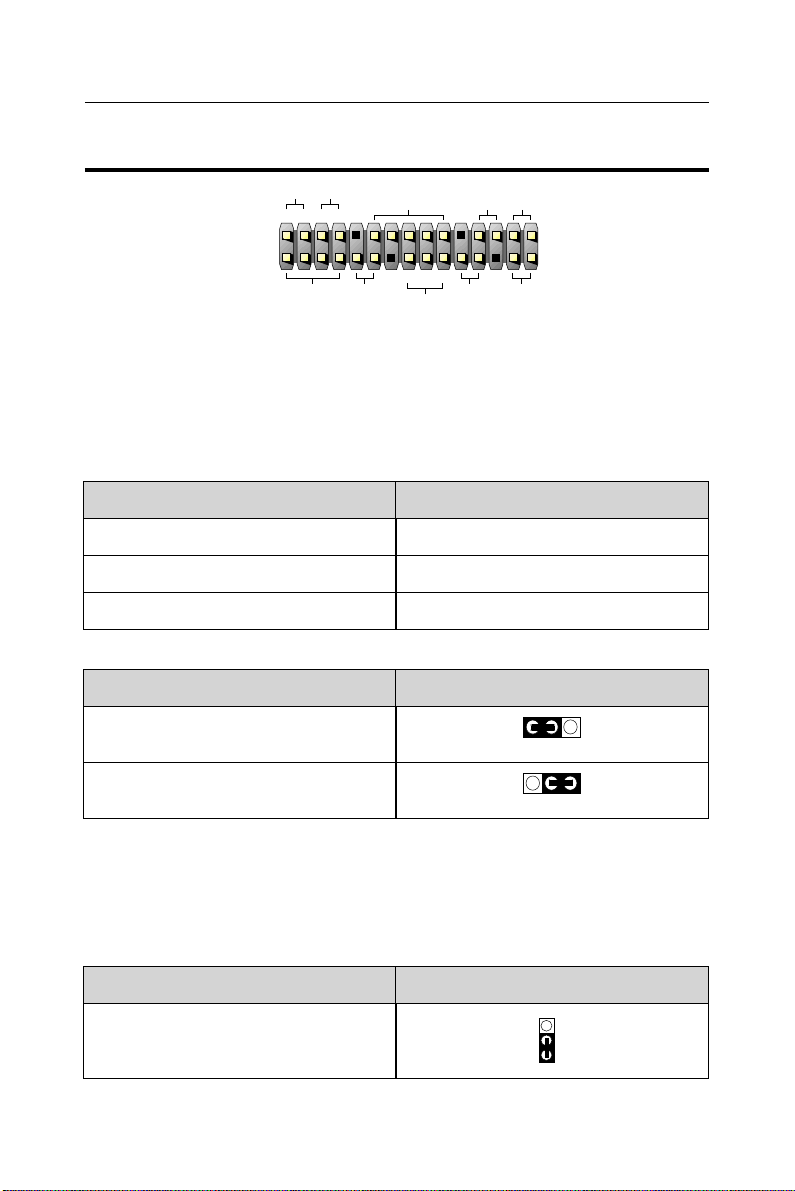

Signal Level Shift Control JP3

JP3: Signal Level Shift Control

Factory default setting

(default) 3

EF G

H I

A1 A2 B

A1: 1st HDD LED

B. : INFRARED (IR)

D. : SUSPEND CONNECTOR

F. : RESET SWITCH

H. : KEYLOCK

A2: 2nd HDD LED

C. : POWER SWITCH

E. : SPEAKER

G. : POWER LED

I. : SUSPEND LED

65F+

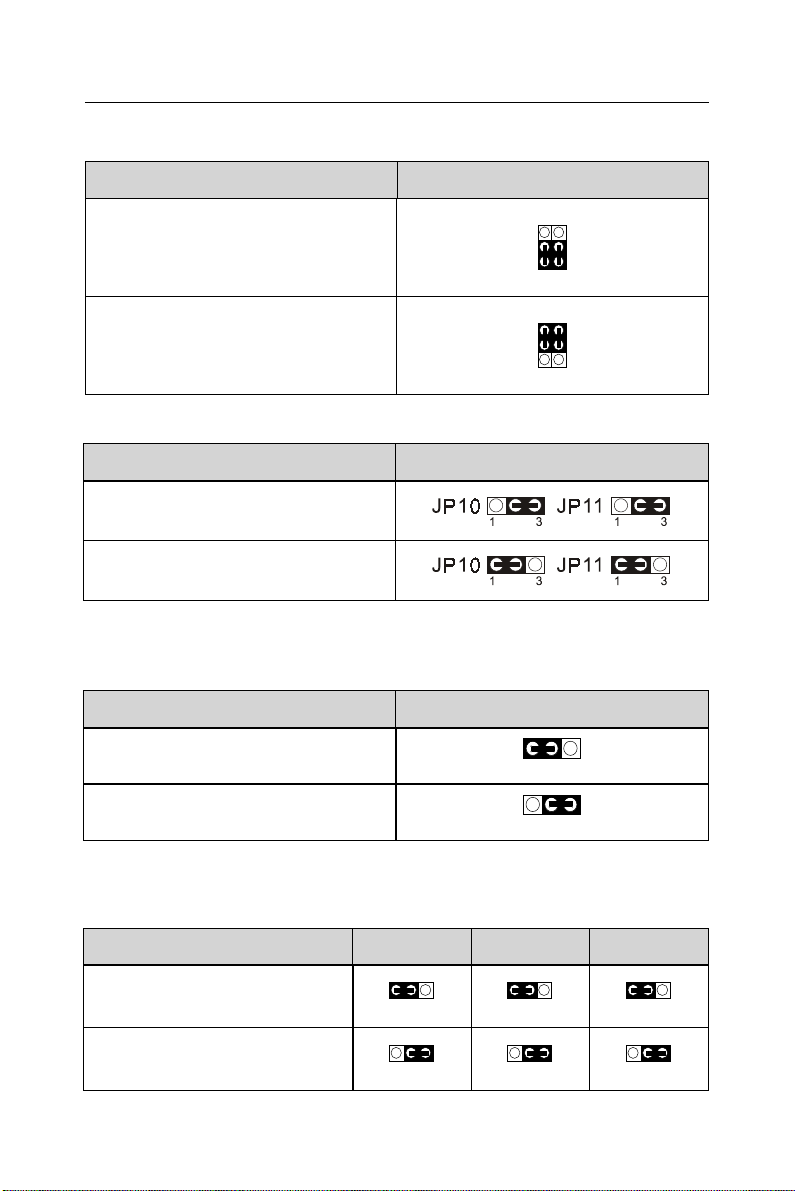

JP10 / JP11: USB Port Select JP10 / JP11USB Port

Redirect USB port1 to USB

connector (default)

Redirect USB port1 to AGP

JP4 / JP5: CPU Host Clock Select JP4 / JP5

CPU Host Clock

Auto (default) 3

JP4 JP5

100MHz (overlock) 3

JP4 JP5

JP17: Power Lost Resume

This jumper allows user to use the switch of ATX power supply to control ON/

OFF switch directly instead of using the power switch on the motherboard.

NOTE: This feature must work with BIOS. Please refer to the BIOS “Power On

After PWR-Fail” sector.

Power Lost Resume JP17

Enabled 1 3

Normal (default) 1 3

JP20 / JP21 / JP22: Intel / Cyrix CPU Select

CPU TYPE

Intel CPU (Default)

Cyrix Joshua CPU

JP22

1 3

JP21

1 3

JP20

1 3

65F+

JBAT1: Clear CMOS data

Clear the CMOS memory by shorting this jumper 2 & 3 momentarily, and then

remove the cap back to 1 & 2 to retain original CMOS setting.

JBAT1

Clear CMOS Data

Retain Data (default)

JBAT1

JVGA1: VGA Use

This jumper is set for the PCI VGA card only. Open this jumper when the system

is not able to boot up. If you use AGP card, it is important to set default with

JVGA1. JVGA1

For PCI VGA card

Normal (default)

JWOL1: Wake On LAN (WOL) Connector

This jumper is designed to use LAN to boot up the system. Connect the wake

on signal from LAN card to this connector.

***For support WOL, the ATX power supply has to have at least 5V/720mA

standby current.***
