SOLTEK SL-B8E-FG Manuale utente
4
SL-B8E-FG / B8E-FGR
Contents
Chapter 1 Specification ............................................. 8
1-1 SL-B8E-FG/FGR Mainboard Layout ...................................9
1-2 Mainboard Specifications .................................................... 10
1-2.1 CPU Socket ................................................................................... 10
1-2.2 System Chipsets ........................................................................... 10
1-2.3 AMI BIOS ..................................................................................... 10
1-2.4 Memory ......................................................................................... 11
1-2.5 Integrated Multiplexed AGP and DVO Interface .................. 11
1-2.6 Multi-I/O Functions .................................................................... 11
1-2.7 Advanced System Power Management .................................... 12
1-2.8 Gigabit LAN on board ................................................................ 12
1-2.9 Hardware Monitor on board ..................................................... 12
1-2.10 8-channel AC’97 Audio Codec ALC850 on board .............. 12
1-2.11 Front Audio-out Connector...................................................... 12
1-2.12 1394A-- high performance serial bus..................................... 13
1-2.13 Form Factor................................................................................ 13
1-3 Mainboard Specification Table ........................................... 14
1-4 Chipset System Block Diagram........................................... 15
Chapter 2 Hardware Setup ..................................... 16
2-1 CPU Installation with Socket 478B .................................... 17
2-1.1 To Identify a Pentium 4 CPU..................................................... 17
2-1.2 CPU Installation with Socket 478B .......................................... 18
2-2 Pentium 4 CPU Fan Installation ......................................... 19
2-3 Memory Installation ............................................................. 20
2-3.1 Dual-Channel DIMM Installation ............................................ 20
2-3.2 To Remove a DIMM .................................................................... 20
2-4 VGA / AGP 8X/4X Slot Installation.................................... 21
5
Contents
2-5 IDE Connector Installation ................................................. 23
2-6 Floppy Drive Connector Installation ................................. 24
2-7 Serial ATA Connectors Installation .................................... 25
2-8 ATX V2.03 Power Supply Installation ............................... 26
2-9 Jumper Settings ..................................................................... 27
2-9.1 JFSB1 & JFSB2: CPU Frequency Select................................. 28
2-9.2 JBAT1: Clear CMOS .................................................................. 29
2-9.3 JKB1: KB / Mouse Wake Up ..................................................... 29
2-10 Other Connectors Configuration...................................... 30
2-10.1 On Board Fan Connectors ....................................................... 30
2-10.2 USB Ports and USB Pin-headers ............................................ 31
2-10.3 Complex Pin-header (Front Panel Connectors)................... 32
2-10.4 Back Panel Connectors............................................................. 33
2-10.5 RJ45 LAN Connector................................................................ 33
2-10.6 PS/2 Mouse And PS/2 Keyboard............................................. 34
2-10.7 CD-ROM Audio Connectors.................................................... 34
2-10.8 System Buzzer: BZ1 .................................................................. 35
2-10.9 JAUD1: Front Panel Audio Connector .................................. 35
2-10.10 RT1: Thermal Resistor ........................................................... 36
2-10.11 1394A Front Connector : IEEE1........................................... 36
2-10.12 Printer Port: JPNT1 (optional)............................................. 37
Chapter 3 Software Setup ....................................... 38
3-1 To Open up the Support CD ................................................ 39
3-2 Intel Chipset Software Installation Utility........................ 40
3-3 Graphics Driver Installation ............................................... 41
3-4 AC’97 Audio Driver Installation......................................... 42
3-4.1 Installing AC’97 6-channel Audio Driver ............................... 42
3-4.2 Verifying 6-channel Audio ........................................................ 43
3-5 To Install RTL8110S Gigabit Ethernet Drivers ............... 45
6
SL-B8E-FG / B8E-FGR
3-6 IAA RAID Driver (for Win2000/XP only) ......................... 46
3-7 To Install Hardware Monitor Utility.................................. 47
3-7.1 Installation ................................................................................... 47
3-7.2 Verification .................................................................................. 48
3-8 To Install USB 2.0 Driver for Windows 2000/XP............. 49
Chapter 4 AMI BIOS Setup.................................... 50
4-1 About BIOS Setup ................................................................. 51
4-2 To Run BIOS Setup ............................................................... 51
4-3 About CMOS .......................................................................... 51
4-4 The POST ( Power On Self Test ) ....................................... 51
4-5 To Update BIOS ..................................................................... 52
4-6 BIOS SETUP --- CMOS Setup Utility................................ 53
4-6.1 CMOS Setup Utility .................................................................... 53
4-6.2 Standard BIOS Features ............................................................ 55
4-6.3 Advanced BIOS Features ........................................................... 56
4-6.3.1 CPU Configuration................................................................... 57
4-6.3.2 IDE Configuration.................................................................... 58
4-6.3.3 Floppy Configuration ............................................................... 60
4-6.3.4 Super IO Configuration ........................................................... 61
4-6.3.5 Hardware Health Configuration............................................. 62
4-6.3.6 ACPI Configuration ................................................................. 63
4-6.3.7. Power Management ................................................................. 64
4-6.3.8. USB Configuration .................................................................. 65
4-6.3.9 Frequency/Voltage Control ...................................................... 66
4-6.3.10 B8E Onboard Device .............................................................. 66
4-6.4 Advanced Chipset Features ....................................................... 67
4-6.4.1 NorthBridge Configuration ..................................................... 67
4-6.4.2 SouthBridge Configuration ..................................................... 69
4-6.5 PCI/PNP Resource Management .............................................. 69
4-6.5 PCI/PNP Resource Management .............................................. 70
4-6.6 Boot Configuration Features ..................................................... 72
7
Contents
4-6.6.1 Boot Settings Configuration .................................................... 72
4-6.6.2 Boot Device Priority/Removable Drives/CD/DVD Drives .... 73
4-6.7. Boot Security Features .............................................................. 74
4-6.7.1. Supervisor Password ............................................................... 74
4-6.7.2. User Password.......................................................................... 74
4-6.7.3 Change Supervisor Password .................................................. 74
4-6.7.4 Change User Password ............................................................ 75
4-6.7.5. Clear User Password ............................................................... 76
4-6.7.6 Boot Sector Virus Protection ................................................... 76
4-6.8 Load Optimal Defaults ............................................................... 77
4-6.9 Discard Changes .......................................................................... 77
4-6.10 Discard Changes ( and Exit )................................................... 77
4-6.11 Save Changes and Exit.............................................................. 77
Chapter 5 SATA RAID Setup ................................. 78
5-0 About Disk Array................................................................... 79
5-0-1 Disk Array Interpretation.......................................................... 79
5-0-2 Disk Array Member .................................................................... 79
5-0-3 Disk Array Types Supported by ICH5R ................................. 79
5-1 Enable SATA RAID in System BIOS ................................. 80
5-2 To Enter Intel RAID BIOS Utility Setup........................... 81
5-3 To Create Disk Array ............................................................ 82
5-4 To Install SATA RAID Driver.............................................. 85
5-4-1 To Install SATA RAID Driver on Windows 2000/XP ............ 85
5-4-2 To run Windows 98SE/ME without ICH5R RAID driver ..88
8
SL-B8E-FG / B8E-FGR
Topics incl ded in this chapter are:
1-1 Mainboard Layo t
1-2 Mainboard Specifications**
1-3 Mainboard Specification Table
1-4 Chipset Diagram
Introd ction
Chapter 1 Specification
This series of mainboards features an integration of the powerful pro-
cessor Intel Pentium 4 and the North Bridge Intel 865G. The Intel P4
processor is a rapid execution engine supporting 800/533/400MHz sys-
tem bus, while North Bridge Intel 865G is a high performance integrated
chipset providing Dual Channel DDR 400/333/266 SDRAM memory
interface, Hub interface, AGP interface as well as an integrated Graph-
ics Port for VGA display.
Integrated with i865G, South Bridge Intel ICH5/ICH5R supports the
LPC I/O, upstream Hub interface, PCI interface, IDE interface, Serial-
ATA /SATA RAID, USB 2.0 interface, and interrupt control. (The differ-
ence between ICH5 and ICH5R is the RAID interface support). And the
8-channel Audio support is also integrated via the on-board chip ALC850.
This chapter is to introduce to users every advanced function of this
high performance integration.
** If any difference is fo nd between the mainboard description
and the Mainboard yo are sing, please look p the Errata/
Update Slip enclosed inside for the correction or pdated
information, or else contact the mainboard Dealer or visit o r
Web Site for the latest man al pdate.
9
Chapter 1 Specification

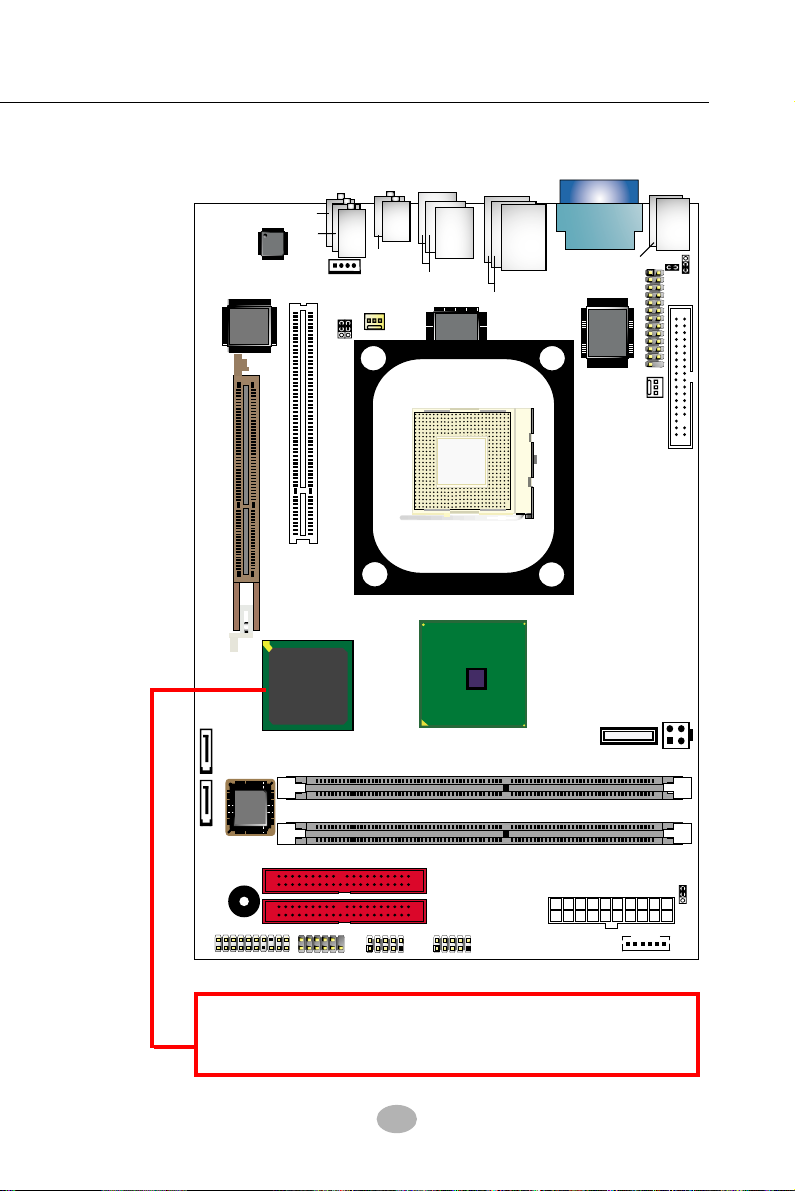

1-1 SL-B8E-FG/FGR Mainboard Layo t
RTL
PCI 1
DIMM1
FDC1
IDE1
IDE2
PW2
PW1 (Main Power)
BIOS
DIMM2
DDR 400/333/266/200 MHz
AGP1 ( 8X/4X)
mPGA478B
VIA
VT6307S
Intel RG82845
i865G
Intel
BZ1
Battery
NJ1
SPK RST
PWLED
HDD IR PWR
1
2
+
-
+
-
LED
RTL
ALC850
AC'97
CD-IN1
USB3
Fan1
Fan2
1
JFSB2
USB4
ATA1ATA2
1
JFSB1
1
JBAT1
1
JKB1
W83627THF
Winbond
PS/2
PS/2 K/B
(underside)
VGA
JPNT1
1
Line In
Line Out
Side
(on top)
(underside)
(Middle)
RJ45
USB1(2 ports)
(on top)
VCOM1
(on top)
RT1
(on top)
Mouse
8110S
(+12V Power)
ICH5R
Intel
1
1
USB2 (2 ports)
(on top)
JAUD1
1
1
2
Rear
Speaker
Center/
Subwoofer
1394A
1
IEEE1
ICH5
or
So th Bridge Option:
ICH5 for SATA interface in SL-B8E-FG;
ICH5R forSATA RAID interface in SL-B8E-FGR
10
SL-B8E-FG / B8E-FGR
1-2 Mainboard Specifications
1-2.1 CPU Socket
CPU Socket 478B on board, supporting Intel® Pentium 4 processors
(including Hyper-Threading and Prescott CPUs) in 478-pin package :
(Willamette 1.75V and Celeron 1.75V CPUs not supported)
-- 800/533/400MHz System Bus;Hyper-pipelined technology;
-- Advanced dynamic execution;Advanced transfer cache;
1-2.2 System Chipsets
North Bridge Intel 865G:
• A high performance integrated chipset providing P4 processor interface
(including Hyper-threading Technology), 800/533/400MHz FSB, Dual
-channel DDR 400/333/266 SDRAM memory, Hub interface, AGP in-
terface as well as another integrated VGA interface with one on-board
display port.
• Showing Hyper-Threading Logo when booting with Hyper-threading
CPU
South Bridge Intel ICH5 for SL-B8E-FG:
• Supporting the LPC I/O, upstream Hub interface, PCI interface, IDE
interface, Serial ATA interface, USB 2.0 interface, the 8-channel AC’97
V2.3 Audio interface (with ALC850) and the interrupt control
South Bridge Intel ICH5R for SL-B8E-FGR:
• Supporting the LPC I/O, upstream Hub interface, PCI interface, IDE
interface, Serial ATA/SATA RAID interface, USB 2.0 interface, 8-chan-
nel AC’97 2.3 (with ALC850) Audio interface and the interrupt control
1-2.3 AMI BIOS
Flash Memory for easy upgrade, supporting BIOS Writing Protection,
Year 2000 compliant, and supporting various hardware configuration
during booting system (See Chapter 4 BIOS Setup):
• Standard BIOS Features(Times, Date, System Information etc.)
• Advanced BIOS Features (CPU,IDE, Floppy, SuperIO, Hardware
Health, ACPI, USB, and Frequency/Voltage Control)
• Advanced Chipset Features (NorthBridge, SouthBridge Configuration)
• PCI/PNP Resource Management (IRQ Settings, Latency Timers etc.)
• Boot Configuration Setup (Boot Settings, Boot Device Priority etc.)
• BIOS Security Features (Supervisor Password, User Password)
11
Chapter 1 Specification
1-2.6 M lti-I/O F nctions
• Serial ATA Controller integrated in ICH5, supporting:
-- 2 Serial ATA connectors supporting up to 150MByte/s transfer rate
• Serial ATA RAID Controller integrated in ICH5R, supporting:
-- 2 SATA/SATA RAID connectors supporting up to 150MByte/s transfer rate
• PCI EIDE Controller, supporting:
-- 2 UATA100/66/33 IDE connectors supporting up to 4 IDE devices
• Dedicated IR Functions:
-- Third serial port dedicated to IR function either through the two
complete serial ports or the third dedicated port Infrared-IrDA (HPSIR)
and ASK (Amplitude Shift Keyed) IR
• Multi-mode Parallel Data Transfer:
-- Standard mode, high speed mode ECP and enhanced mode EPP
• Floppy Disk Connector:
-- 1 FDD connector supporting 2 floppy drives with drive swap support
• Universal Serial Bus Transfer Mode:
-- USB V2.0 compliant; 480Mb/s USB Bus, supporting Windows 2000 or
later operating systems (no support for Win 9X/Me)
-- 4 built-in USB Ports and 2 USB Headers which require 2 additional
USB cables to provide 4 more optional USB ports
• PS/2 Keyboard and PS/2 Mouse
• UARTs (Universal Asynchronous Receiver / Transmitter):
-- 1 serial ports on board
1-2.5 Integrated M ltiplexed AGP and DVO Interface
Integrated multiplexed AGP and DVO interface in Springdale-G,sup-
porting AGP performance and analog/Digital display:
• One AGP slot on board, supporting both Digital Video Out card or
AGP8x/4x card for analog/digital display (TMDS,LVDS and TV-out)
(See AGP Installation in Chapter 2 of this manual)
• One 15-pin VGA connector on board, supporting analog display
• Hardware motion compensation for software MPEG/DVD decode
• Integrated 2D/3D graphics accelerator
• VGA Driver enclosed in Support CD for user’s installation
1-2.4 Memory
2 DDR DIMM 184-pin slots on board :
• Supporting unregistered, non-ECC Dual-channel DDR 400/333/266
SDRAM to 2GBs
• DIMMs to be populated in identical pairs for Dual-channel operation
• SPD (Serial Presence Detect) Scheme for DIMM Detection supported
12
SL-B8E-FG / B8E-FGR
1-2.10 8-channel AC’97 A dio Codec ALC850 on board
ALC850 on board for AC’97 audio
• Supporting 8-channel display of PCM audio output
• 8 channel audio consists of Front Left, Front Right, Back Left, Back
Right, Rear Left, Rear Right, Center and Subwoofer for complete
surround sound effect
• AC’97 Audio Codec Driver enclosed in Support CD for user’s
installation
1-2.11 Front A dio-o t Connector
• 1 Front Audio-out connector supporting Front Panel S/PDIF Output,
Front Panel Mic-In and Front Panel Line-out
• This Front Audio-out distinguishing itself from the Back Panel Audio
Connectors
1-2.8 Gigabit LAN on board
PCI local bus Gigabit Fast Ethernet Controller RTL8110S on board:
• Supporting 10/100/1000Mb data transfer
• Supporting Wake On LAN function through the on-board RJ45 LAN
Connector
• LAN Driver enclosed in Support CD for user’s installation.
1-2.9 Hardware Monitor on board
• Hardware Monitor supported by W83627THF, providing monitoring
and alarm for flexible desktop management of hardware voltage, tem-
peratures and fan speeds.
• Utility Software Soltek Hardware Monitor for displaying system status
is enclosed in Support CD for user’s installation.
1-2.7 Advanced System Power Management
• ACPI 1.0B compliant (Advanced Configuration and Power Interface),
including ACPI suspend mode support (See ACPI Configuration of
Advanced BIOS Features in BIOS Setup)
• APM V1.2 compliant (Legacy Power Management)
• Keyboard / Mouse Power On/Wake Up (See ACPI Configuration of
Advanced BIOS features in BIOS Setup)
• Supporting Wake-on-LAN
• Supporting Real Time Clock (RTC) for date alarm, month alarm, and
century field configuration
13
Chapter 1 Specification
1-2.13 Form Factor
• Soltek Mini Form Factor, ATX Power Supply, version 2.03 compliant,
supported by 1x Main Power Connector, 1x +12V Power Connector.
• Mainboard size: 180mm x 270mm
1-2.12 1394A-- high performance serial b s
1394A Interface, via VT6307 PCI PHY/Link Open Host Controller:
• PCI-bus based open host controller, compliant with IEEE 1394A-2000
standard for high performance serial bus
• supporting 2x 1394A ports, each supporting 400/200/100 Mbits transfer
rate
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali SOLTEK Scheda madre
SOLTEK
SOLTEK SL-845GVI Manuale utente
SOLTEK
SOLTEK SL-53D5-S Manuale per l'uso e la cura
SOLTEK
SOLTEK SL-KT880E-GR Manuale utente
SOLTEK
SOLTEK SL-54A2 Manuale utente
SOLTEK
SOLTEK SL-85SD-C Manuale utente
SOLTEK
SOLTEK 85ERV Manuale utente
SOLTEK
SOLTEK SL-65MIV Manuale utente
SOLTEK
SOLTEK SL-75DRV-X Manuale utente
SOLTEK
SOLTEK SL-75KAV Manuale utente
SOLTEK
SOLTEK SL-65ME Manuale utente
SOLTEK
SOLTEK 86SP3 Manuale utente
SOLTEK
SOLTEK SL-54A2-S Manuale utente
SOLTEK
SOLTEK 85DR2-DC Manuale utente
SOLTEK
SOLTEK 75FRN2 Series Manuale utente
SOLTEK
SOLTEK SL-85MIR3 Manuale utente
SOLTEK
SOLTEK SL-85DRV+ Manuale utente
SOLTEK
SOLTEK KT400-R Manuale utente
SOLTEK
SOLTEK SL-PM800I Manuale utente
SOLTEK
SOLTEK SL-65MIV-C Manuale utente
SOLTEK
SOLTEK SL-65KIV Manuale utente
Manuali Scheda madre popolari di altre marche
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuale utente
Gigabyte
Gigabyte GA-9IVDT Manuale utente
Texas Instruments
Texas Instruments ADS8372EVM Manuale utente
Commell
Commell MS-C73 Manuale utente
IBT Technologies
IBT Technologies MB860 Manuale utente
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuale utente
