SOYO SY-6BB Manuale utente
SY-6BB
Mainboard
**************************************
Pentium®
II processor (66&100MHz) supported
82440 BX AGP Set Mainboard
AT Form Factor
**************************************
User's Guide
&
Technical Reference
SOYO™
i
SY-6BB
About This Guide
This User's Guide is for assisting system manufacturers and end users in setting up
and installing the mainboard. Information in this guide has been carefully checked for
reliability; however, no guarantee is given as to the correctness of the contents. The
information in this document is subject to change without notice.
Copyright Notice
Copyright 1998, Soyo Computer Inc. All rights reserved. This manual is copyrighted
by Soyo Computer Inc. You may not reproduce, transmit, transcribe, store in a
retrieval system, or translate into any language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of
this publication without express written permission of Soyo Computer Inc.
Trademarks
Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property
of their owners.
Disclaimer
Soyo Computer Inc. makes no representations or warranties regarding the contents
of this manual. We reserve the right to revise the manual or make changes in the
specifications of the product described within it at any time without notice and without
obligation to notify any person of such revision or change. The information contained
in this manual is provided for general use by our customers. Our customers should be
aware that the personal computer field is the subject of many patents. Our customers
should ensure that their use of our products does not infringe upon any patents. It is
the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and
not to infringe upon or assist others to infringe upon such rights.
Restricted Rights Legend
Use, duplication, or disclosure by the Government is subject to restrictions set forth in
subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause
at 252.277-7013.
Product Rights
Products mentioned in this manual are mentioned for identification purpose only.
Product names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies.
If you need any further information, please come to our home page on the Internet.
The address is "http://www.soyo.com.tw".
Edition: May 1998
Version 1.0
6BB SERIAL
FC
CTested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
POST CONSUMER
RECYCLED PAPER
100%
Table of Contents
ii
SY-6BB
Table of Contents
SY-6BB MOTHERBOARD LAYOUT........................................................1
MOTHERBOARD FEATURES.................................................................2
DEFAULT SETTINGS..............................................................................3
QUICK INSTALLATION GUIDE...............................................................4
CHAPTER 1 INTRODUCTION............................................................24
1-1 KEY FEATURES.............................................................24
1-2 UNPACKING THE MOTHERBOARD...............................26
1-3 HANDLING THE MOTHERBOARD.................................26
1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS............27
CHAPTER 2 HARDWARE SETUP......................................................28
2-1 CMOS CLEAR JUMPER JP5..........................................28
2-2 POWER-ON BY KEYBOARD FUNCTION JUMPER JP5029
2-3 AUTO DETECT CPU VOLTAGE......................................29
2-4 CPU TYPE CONFIGURATION........................................30
2-5 MEMORY CONFIGURATION .........................................32
2-6 MULTI I/O ADDRESSES.................................................33
2-7 MAKING CONNECTIONS...............................................33
CHAPTER 3 BIOS SETUP UTILITY....................................................34
3-1 STANDARD CMOS SETUP............................................36
3-2 BIOS FEATURES SETUP...............................................39
3-3 CHIPSET FEATURES SETUP ........................................44
3-4 POWER MANAGEMENT SETUP....................................49
3-5 PNP/PCI CONFIGURATION SETUP...............................53
3-6 LOAD SETUP DEFAULTS ..............................................56
3-7 LOAD BIOS DEFAULTS .................................................56
3-8 INTEGRATED PERIPHERALS........................................57
3-9 SUPERVISOR PASSWORD ...........................................62
3-10 USER PASSWORD........................................................63
3-11 IDE HDD AUTO DETECTION.........................................64
APPENDIX QUICK START GUIDE......................................................65
Motherboard Layout
1
SY-6BB

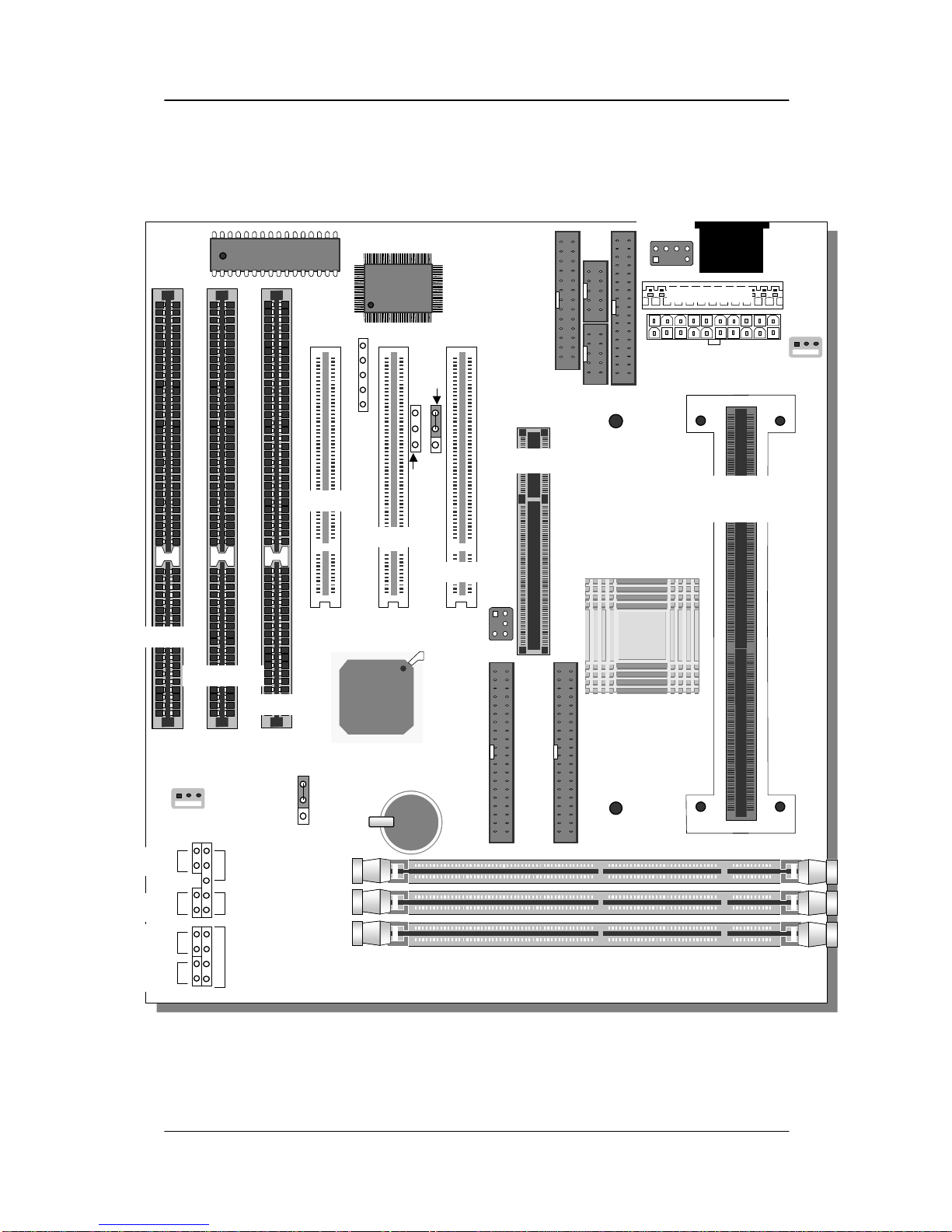

SY-6BB MOTHERBOARD LAYOUT
Layout with Default Settings
Flash BIOS
JP44
1
3
IR1
5
1
JP5
1
3
3V Lithium
Battery
CHAFAN
SB-LINK™
Intel®
82371 EB
Intel®
82443 BX
AGP Slot
CPUFAN
PCI Slot #1
PCI Slot #2
PCI Slot #3
ISA Slot #1
ISA Slot #2
ISA Slot #3
DIMM 1
DIMM 2
DIMM 3
IDE 1IDE 2
Slot 1 for
Pentium®
II Processor
PRT 1
COM 1
COM 2 FDC
ITE8671
KB
Connector
PS/2 Mouse
Connector
ATX Power
AT Power
Speaker
Keylock
Power
LED
Reset
PWRBT
Turbo
LED
HDD LED
_
+
11
1
1
1
11
JP50
Motherboard Features & Default Settings
2
SY-6BB
MOTHERBOARD FEATURES
Board Size 4-layer PCB, 22.x25. cm, AT Form Factor
Slot 1 Slot 1 for Pentium®
II Processor; supports:
ØPentium®
II Processors up to 100 MHz host bus frequency
(233-550MHz)
ØAuto detection of CPU voltage
Chipset 82440 BX AGP Set
AT Power 12-pin Male Connector
ATX Power 20-pin Male Connector
Memory DIMM Bank 1~3
Ø168-pin Unbuffered SDRAM DIMM Module
ØSupport 8~128MB DIMM in each Bank
ØSupports ECC configuration
BIOS System BIOS built-in, Award BIOS
Ø"Plug-and-Play" function
PCI Slots (3x) 3 x 32-bit Bus Mastering Slots
AGP Slot (1x) 1 x 32-bit AGP Slot
ISA Slots (3x) 3 x 16-bit ISA Slots
IDE1, IDE2 2 x 40-pin Bus Mastering E-IDE/ATAPI Ports
ØIDE1: Primary IDE Device Connector
ØIDE2: Secondary IDE Device Connector
FDC 1 Floppy Disk Drive (FDD) Port
(Supports 1.2MB/1.44MB/2.88MB and LS120/3-mode FDD)
IR1 5-pin Infrared Device Connector
PRT1 1 x 26-pin Female Parallel Printer Port
COM1, COM2 2 x RS-232 Serial Ports
KB 1 x PS/2 Keyboard Connector
Motherboard Features & Default Settings
3
SY-6BB
MOTHERBOARD FEATURES (CONTINUED)
PS/2 Mouse 1 x PS/2 Mouse Connector
USB1, USB2 2 x USB (Universal Serial Bus) Connectors
Keylock 5-pin KeyLock Connector
Reset 2-pin Reset Switch Connector
Speaker 4-pin PC Speaker Connector
TB_LED 2-pin Turbo LED Connector
HDD_LED 2-pin IDE Device LED Connector
JP5 CMOS Clear Jumper
JP44 WOL (Wake-On-LAN) 3-pin Connector
JP50 Power-On by Keyboard Function Jumper
SBLINK PCI Audio Card Connector
DEFAULT SETTINGS
CPU Pentium®
II 233/350 MHz Processor
CPU Voltage Auto Detect CPU Voltage
2 IDE Ports PCI E-IDE Ports
1 Parallel Port LPT1: EPP/ECP Printer Port
ØLPT1: I/O Address 378H, IRQ 7, Status ECP+EPP
2 Serial Ports COM1 & COM2: 2 x RS-232 high-speed
UARTs (w/ 16550 FIFO)
ØCOM1: I/O Address 3F8H, IRQ 4
ØCOM2: I/O Address 2F8H, IRQ 3
2 USB Ports 2 Onboard USB (Universal Serial Bus) Ports
PS/2 Mouse
Dual AT or ATX Power Supply
Quick Installation Guide
4
SY-6BB
QUICK INSTALLATION GUIDE
Congratulations on your purchase of SY-6BB Motherboard. You are
about to install and connect your motherboard.
Note: Do not unpack the motherboard from its protective
anti-static packaging until you have made the following
preparations.
PREPARATIONS
Gather and prepare all the hardware equipment to complete the
installation successfully:
1. Pentium®
II processor with built-in CPU cooling fan (boxed
type).
Note: This motherboard supports non-boxed type CPUs. The
heavier CPU cooling fan requires the installation of a CPU
support stand included in this motherboard package.
2. DRAM module
3. Computer case and chassis with adequate power supply unit
4. Monitor
5. Keyboard
6. Pointing Device (PS/2 mouse)
7. VGA Card
8. Sound Card (optional)
9. Speaker(s) (optional)
10. Disk Drives: HDD, CD-ROM, Floppy drive…
11. External Peripherals: Printer, Plotter, and Modem (optional)
12. Internet Card (optional)
Quick Installation Guide
5
SY-6BB
UNPACKING THE MOTHERBOARD
Like most electronic equipment, your motherboard may be damaged
by electrostatic discharge. To avoid permanent damage to
components ground yourself while working by using a grounding
strap. Otherwise ground yourself frequently by touching the
unpainted portion of the computer chassis to drain the static
charges.
Handle the motherboard carefully, holding it by the edges.
You are now ready to start the installation.
INSTALLATION GUIDE
We will now begin the installation of the motherboard. Please follow
the step-by-step procedure designed to lead you to a complete and
correct installation.
Step 1. CPU Installation
Your SY-6BB motherboard comes with a CPU retention set kit. The
retention set is used to hold the Pentium®
II processor attached to
the Slot 1 CPU connector on the motherboard.
Follow these instructions to install your Pentium®
II processor
correctly.

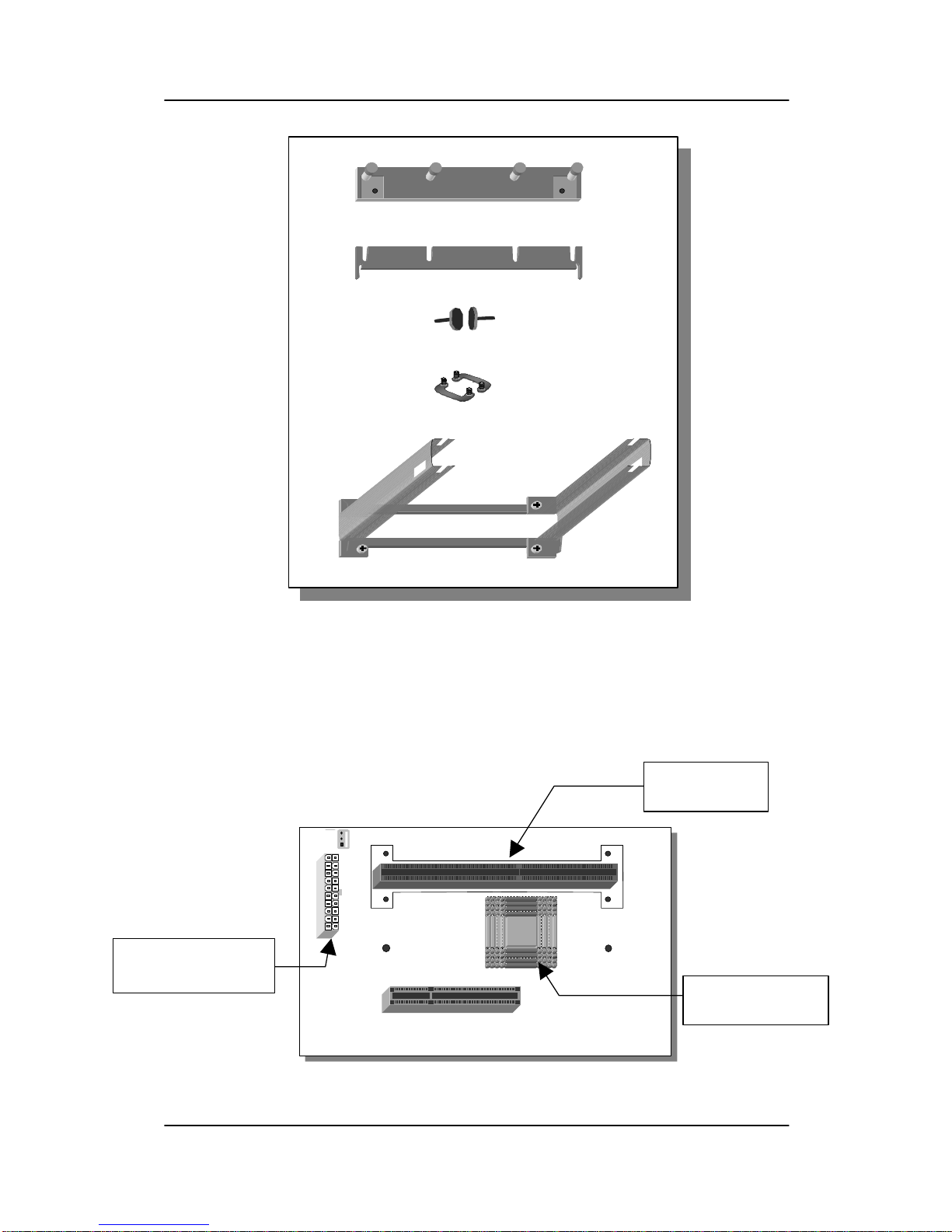

1. Unpack the Retention Set Kit
Gather the following items included in the retention set kit, as shown
in the following figure:
ØSupporting Base
ØSupport Clip
ØLatches (x2)
ØScrews (x2) used to set the retention clip
ØRetention Clip
Quick Installation Guide
6
SY-6BB
2. Position the Motherboard
Locate Slot 1 on the motherboard and position the board in the
direction as shown in the following figure:
Supporting Base
Support Clip
Screws (x2)
Retention Clip
Latches (x2)
Slot 1
ATX Power
Heat Sink
Quick Installation Guide
7
SY-6BB

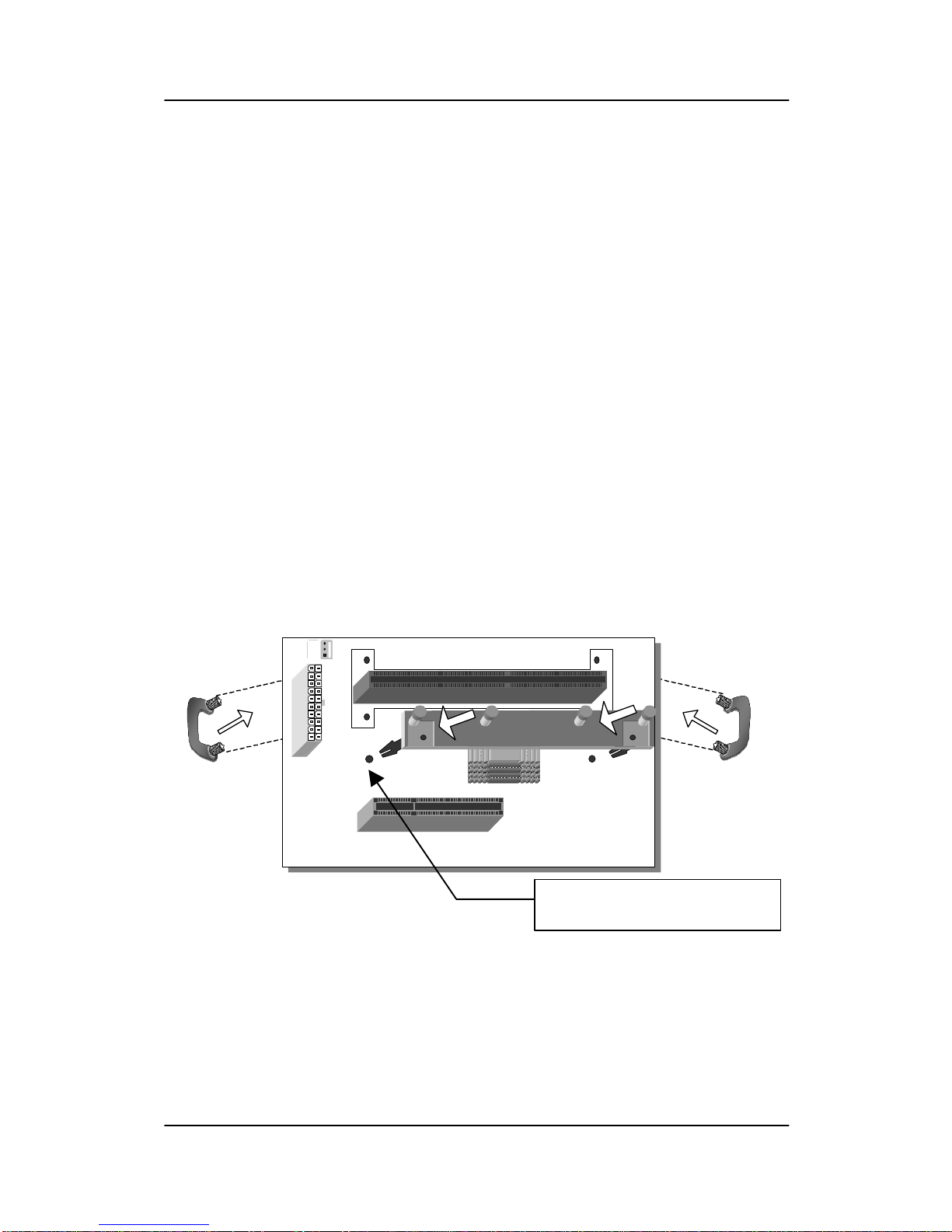

3. Insert the Screws
Install the two pairs of screws used to set the retention clip in the two
pairs of holes at both ends of Slot 1. Insert the screws from below
the motherboard upward, as shown in the figure below.
4. Install the Supporting Base
Insert the supporting base into the two holes adjacent to the two
sets of screws previously installed.
Pay special attention to the directionality provided by the larger
pinhole on the AGP port side. Do not apply excessive force when
inserting the supporting base. If the supporting base does not go in,
check the orientation with the following figure and position the
supporting base so as to match the larger pinhole.
Larger Pinhole
Indice
Altri manuali SOYO Scheda madre
SOYO
SOYO 6KME Manuale per l'uso e la cura
SOYO
SOYO SY-6VZA Manuale utente
SOYO
SOYO SY-K7V DRAGON Plus Manuale utente
SOYO
SOYO 5EAS5 Manuale per l'uso e la cura
SOYO
SOYO SY-P4VGM V1.0 Manuale utente
SOYO
SOYO SY-7ISA+ Manuale utente
SOYO
SOYO SY-D6IBA Manuale per l'uso e la cura
SOYO
SOYO SY-7IWM Manuale utente
SOYO
SOYO 6KM Series Manuale per l'uso e la cura
SOYO
SOYO SY-P4ISR Manuale utente
SOYO
SOYO SY-7IWM-X Manuale utente
SOYO
SOYO TechAID Manuale utente
SOYO
SOYO SY-K7VTA-B Manuale utente
SOYO
SOYO Motherboard SY-6BA+ IV Manuale utente
SOYO
SOYO SY-P4I845PEISA Manuale utente
SOYO
SOYO SY-6BA+100 Manuale utente
SOYO
SOYO SY-5EH5 Manuale per l'uso e la cura
SOYO
SOYO SY-P4S DRAGON Ultra Manuale utente
SOYO
SOYO SY-7IZM Manuale per l'uso e la cura
SOYO
SOYO SY-7SBB Manuale utente
Manuali Scheda madre popolari di altre marche
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuale utente
Gigabyte
Gigabyte GA-9IVDT Manuale utente
Texas Instruments
Texas Instruments ADS8372EVM Manuale utente
Commell
Commell MS-C73 Manuale utente
IBT Technologies
IBT Technologies MB860 Manuale utente
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuale utente
