Sper scientific DS-2013SD Manuale utente

SD card real time datalogger, RS232/USB

Frequency weighting and Time weighting

meet IEC 61672 class 2 ,

Personal sound exposure meet IEC 61252

Noise Dosimeter

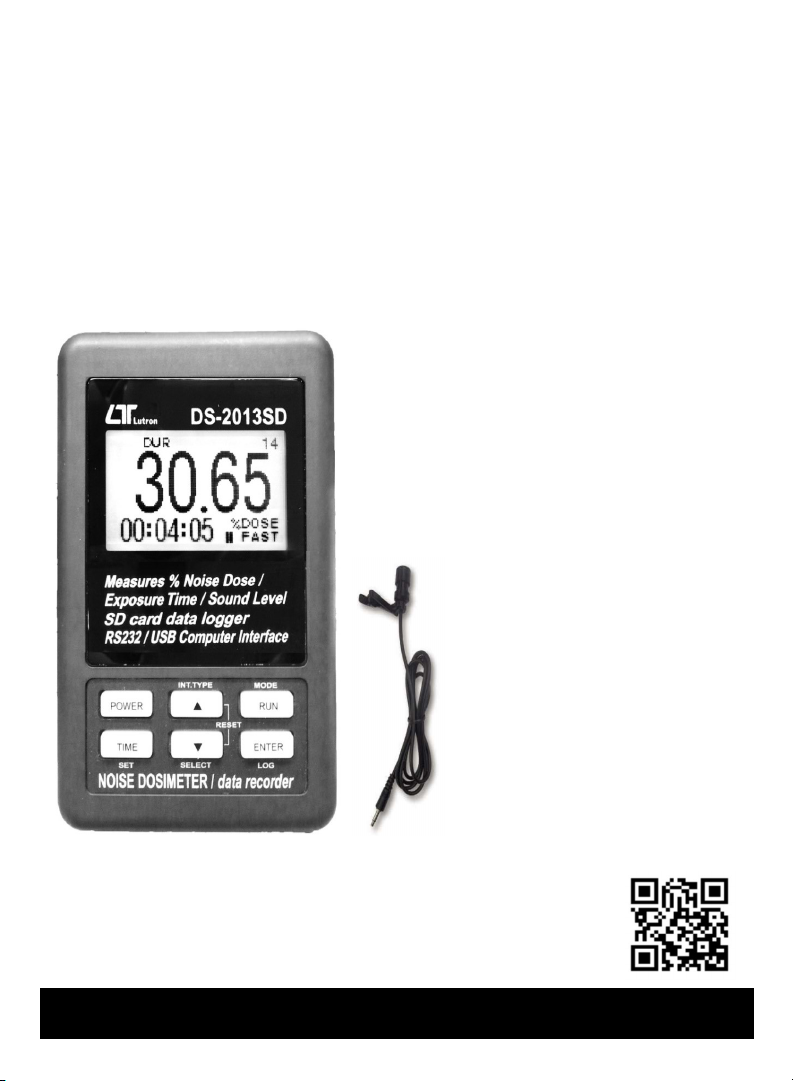

Model : DS-2013SD

Your purchase of this

Personal sound exposure

Noise Dosimeter

with SD CARD

DATALOGGER marks a

step forward for you

into the field of

precision measurement.

Although this METER is

a complex and delicate

instrument, its durable

structure will allow

many years of use if

proper operating

techniques are

developed. Please read

the following

instructions carefully

and always keep this

manual within easy

reach.

OPERATION MANUAL

850028 | DS-2013SD

TABLE OF CONTENTS

1. FEATURES...................................................................................................................

2. SPECIFICATIONS..........................................................................................................

3. FRONT PANEL DESCRIPTION..........................................................................

4. MEASURING PROCEDURE...........................................................................................

4-1 Sound Pressure Level

Measurements (SPL).................................

4-2 Running the Dose Meter Noise Survey (DOSE %)…………………..

4-3 Data Hold..........................................................................................................

4-4 Data Record ( Max., Min. reading )................................................................................................................

4-5 LCD Backlight ON/OFF…………………………………………………………………

5. DATALOGGER...................................................................................................................

5-1 Preparation before execute datalogger function...........................................................................

5-2 Auto Datalogger ( Set sampling time ≧

1 second )........................................................

5-3 Manual Datalogger ( Set sampling time = 0 second )................................................................

5-4 Check time and sampling time information................................................................................................................

5-5 SD Card Data structure.....................................................................................................

6. Saving data from the SD card to the computer.....................................................

7. ADVANCED SETTING........................................................................................................

7-1 Set clock time ( Year/Month/Date, Hour/Minute/ Second ).....................................

7-2 Set sampling time ............................................................................................

7-3 Auto power OFF management ........................................................................

7-4 Set beeper Sound ON/OFF...........................................................................................

7-5 Decimal point of SD card setting........................................................

7-6 SD memory card format...................................................................................

7-7 Frequency weighting to A or C setting...................................................................................

8. POWER SUPPLY FROM

DC ADAPTER........................................................................

9. SYSTEM RESET...........................................................................................

10. BATTERY REPLACEMENT...............................................................................................

11. RS232 PC SERIAL INTERFACE

....................................................................................................

12. FREQUENCY WEIGHTING CHARACTERISTICS

CALIBRATION ..............................................................................................................

13. FREQUENCY WEIGHTING CHARACTERISTICS

OF A & C NETWORKS..............................................................................................................

14. TIME WEIGHTING (FAST & SLOW)

CHARACTERISTICS..........................................................................................................

15. PATENT................................................................................................................................

1. FEATURES

* Personal sound exposure meet IEC 61252

* Frequency and Time weighting are designed to meet IEC 61672 class 2.

* A & C weighting networks comply with standards.

* LCD is dot-matrix with backlight and easy reading.

* Combination Dose meter, Data-logger and Sound level meter.

* 0.5" standard microphone head.

* Time weighting (Fast & Slow) dynamic characteristic modes.

* Build External calibration VR.

* User-defined measurement configurations. Selectable Criterion Level,

* Exchange Rate, Threshold, Frequency Weighting, and Response Time setting.

* Condenser microphone for high accuracy & long-term stability.

* Memory function to store the Max. & Min. value.

* Hold functions.

* Real time Datalogger

Records device of internal memory device (EEPROM) and an external

memory device (SD memory card ) ,Real time Datalogger, it Built-in

Clock and Calendar, real time data recorder, sampling time set

from 1 second to 3600 seconds.

* Manual datalogger is available ( set the sampling

time to 0 second ).

* Innovation and easy operation, computer is not need to

setup extra software, after execute datalogger, just take

away the SD card from the meter and plug in the SD card

into the computer, it can download the all the measured

value with the time information ( year/month/date/

hour/minute/second ) to the Excel directly, then user can

make the further data or graphic analysis by themselves.

* SD card capacity : 1 GB to 16 GB.

* Can default auto power off or manual power off.

* Noise Dose %，SPL measurements.

* Microcomputer circuit, high accuracy.

* Power by UM4/AAA ( 1.5 V ) x 6 batteries or DC 9V adapter.

* RS232/USB PC COMPUTER interface.

* Heavy duty & compact housing case.

2. SPECIFICATIONS

Circuit Custom one-chip of microprocessor LSI

circuit.

Display LCD size : 50 mm x 30 mm

LCD with green backlight ( ON/OFF ).

Measurement SPL : Sound pressure level

Type Dose：

：

test noise exposure

Measurement SPL：Auto 30 - 130 dB.

Range Dose：70～130dB

Resolution 0.1 dB.

Function dB ( A & C frequency weighting ),

Time weighting ( Fast, Slow ),

Data hold

Record ( Max., Min. ).

Accuracy Characteristics of " A " frequency weighting

(23 ±5 ℃) network meet IEC 61672-1-2013 class 2.

Under 94 dB input signal, the accuracy

are :

31.5 Hz reading ±3.0 dB

63 Hz reading ±2.0 dB

125 Hz reading ±1.5 dB

250 Hz reading ±1.5 dB

500 Hz reading ±1.5 dB

1 K Hz reading ±1.0 dB

2 K Hz reading ±2.0 dB

4 K Hz reading ±3.0 dB

8 K Hz reading ±5.0 dB

Remark :

The above spec. are tested under the

environment RF Field Strength less

than 3 V/M & frequency less than 30

MHz only.

Frequency Characteristics of A & C.

Weighting

Network A weighting :

The characteristic is simulated as "Human

Ear Listing" response. Typical, if making

the environmental sound level

measurement, always select to A

weighting.

C weighting

The characteristic is near the "FLAT"

response. Typical, it is suitable for

checking the noise of machinery (Q.C.

check) & knowing the sound pressure

level of the tested equipment.

Time Fast - t = 125 ms

weighting * "Fast" range is simulated the human ear

(Fast & Slow) response time weighting.

Slow - t = 1 s

* "Slow" range is easy to get the average

values of vibration sound level.

Data hold To freeze the measurement value.

Function selector

SPL Auto range：30～130dB.

DOSE Threshold Level(Thr)：70～90dB in 1dB steps.

Criterion Level(Crit)：80、84、85、87、90dB.

Exchange Rate ：3, 4, 5 or 6 dB

Frequency 31.5 to 8,000 Hz.

Microphone Electric condenser microphone.

type

Microphone Out size, 12.7 mm DIA. ( 1/2 inch).

size

Calibration VR Build in external calibration VR, easy to

calibrate on 94 dB level by screw driver.

Calibrated via external SOUND

CALIBRATOR ( SC-942, optional ).

Calibrator B & K (Bruel & kjaer), MULTIFUNCTION

ACOUSTIC CALIBRATOR Type 4226.

Datalogger Auto 1 second to 3600 seconds

Sampling Time @ Sampling time can set to 1 second,

Setting range but memory data may loss.

Manual Push the data logger button

once will save data one time.

@ Set the sampling time to

0 second.

Memory device internal memory device :

EEPROM can be record 16,000 items.

external memory device.

SD memory card. 1 GB to 16 GB.

Data error no. ≦0.1% no. of total saved data typically.

Advanced * Set clock time ( Year/Month/Date,Hour/Minute/ Second )

setting * Set sampling time

* Auto power OFF management

* Set beep Sound ON/OFF

* Decimal point of SD card setting

* SD memory card Format

* Frequency weighting to A or C setting

Over Indication Show " - - - - ".

Memory Recall Maximum & Minimum value.

Sampling Time Approx. 1 second.

of Display

Data Output RS 232/USB PC computer interface.

Connect the optional RS232 cable

UPCB-02 will get the RS232 plug.

Connect the optional USB cable

USB-01 will get the USB plug.

Power off Manual off by push button or

Auto shut off (Approx.10 minute) to save battery life.

(when there is not any operating & measurement)

Operating 0 to 50 ℃.

Temperature

Operating Less than 85% R.H.

Humidity

Power Supply

* AC/DC power adapter is optional.

Alkaline or heavy duty DC 1.5 V battery

( UM4, AAA ) x 6 PCs, or equivalent.

* AC/DC power adapter is optional.

DC 9V adapter input. ( AC/DC power

adapter ).

Power Current Normal operation ( w/o SD card save

data and LCD Backlight is OFF) :

Approx. DC 16 mA.

When " SD " save the data but and

LCD Backlight is OFF) :

Approx. DC 35 mA.

* AC/DC power adapter is optional.

If LCD backlight on, the power

consumption will increase approx.

DC 3 mA.

Weight 220 g/ 0.48 LB. (without battery)

Dimension 132 x 80 x 32 mm.

( 5.2 x 3.1 x 1.3 inch ).

Accessories

Instruction manual.........................................

1 PC

Included

Soft carrying case, CA-05A…………………………....

1 PC

Microphone with clip…………………………....

1 PC

Hanging unit ( with sticker ).............................

1 PC

AC to DC 9V adapter............................. 1 PC

Optional

Sound calibrator ( 94 dB ), SC-941.

Accessories

Sound calibrator ( 94/114 dB ), SC-942.

Sound wind shield ball, SB-01

SD Card.

USB cable, USB-01.

RS232 cable, UPCB-02.

* Sound calibrator (94/114) - 850016

* Sound wind screen - 840091

* SD Card - 840059

* USB cable - LUT-USB-01

* RS232 cable - 840057

* AC to DC 9V adapter - 840097

Optional

Accessories

* Instruction manual

* Soft carrying case - CA-05A

* Microphone with clip

* Hanging unit ( with sticker )

* 4GB SD Card

* 6 AAA batteries

Accessories

Included

optional AC/DC power

3. FRONT PANEL DESCRIPTION

Fig. 1

3-1 Display 3-11 Microphone input jack

3-2 Power Button( Backlight Button ) 3-12 External 94dB CAL. VR

3-3 ▲Button ( Hold only for SPL )3-13 Reset Switch

3-4 RUN Button ( REC only for SPL) 3-14 RS232 Output

3-5 TIME Button (Set) 3-15 SD card socket

3-6 ▼Button 3-16 Hanging holes

3-7 ENTER Button (Fast / Slow) 3-17 Stand

3-8 Microphone 3-18 Battery compartment and

3-9 Microphone plug

Screw of the battery cover

3-10 DC 9V adapter socket 3-19 Hanging unit ( with sticker)

4. MEASURING PROCEDURE

4-1 Sound Pressure Level Measurements (SPL)

In SPL mode the display shows readings of

the sound pressure level.

1) Power ON the meter by pressing and holding the " Power

Button " ( 3-2, Fig. 1 )for at least 1.5 seconds,

the meter's default function is " A"( frequency weighting) ,

" Fast"( time weighting) " Auto range ". The

LCD display will show the Symbol " A, FAST , xx.x dB , 0 ".

2) Frequency weighting select

How to select the frequency weighting ( A or C), the

procedures please refer to chapter 7-7 page 20 .

Note :

a. The characteristic table of A,C weighting, please

ref. page 24.

b. The characteristic of A weighting is simulated as the

b. The characteristic of A weighting is simulated as

" Human Ear Listening " response.

the " Human Ear Listening " response.

Typically always select the A weighting when makes

Typically always select the A weighting module when

environmental sound level measurement.

makes environmental sound level measurement.

c. The C weighting characteristic is near the " FLAT "

response. Typically it is suitable for checking the

noise of machinery ( Q.C. check ) & knowing the

real sound level of the tested equipment.

3) According to various measuring sound source, select the

Time Weighting ( Fast or Slow ) by pressing " ENTER

Button " ( 3-7 , Fig. 1 ).

Note :

a. If select the function of " Fast " time weighting, the

display will show the unit of " FAST".

b. If select the function of " Slow " time weighting, the

display will show the unit of " SLOW ".

4-2 Running the Dose Meter Noise Survey

1) In " SPL" mode to select the " Dose " mode by

pressing and holding the" RUN button" ( 3-4 Fig 1 )

into the DOSE mode .

2) In "DOSE" mode, display will show DUR(duration) ,

0.00(cumulative dose) , 00 : 00 :00(current time) ,

0(record sampling time counter) , %DOSE(Dose mode) ,

FAST(Time weighting).

3) In Dose mode , Pressing and holding the " Time Button "

into setting , SET" DATE→SP-T→POFF→BEEP→DEC

→SD-F→A→Crit→Thr→ER→CLRM→DATE".

Note :

a:Crit(Criterion Level) : 80、84、85、87、90dB.

b:Thr(Threshold Level) : 70 to 90dB in 1 dB steps.

c:ER(Exchange Rate) : 3, 4, 5, or 6 db.

d:pressing the " Power Button" to leave the set mode.

e:Factory default settings : Crit→90 , Thr→70 , ER→3.

4) According to various measuring sound source, select the

Time Weighting ( Fast or Slow ) by pressing the "ENTER

Button " ( 3-7, Fig. 1 ).

5) In DOSE mode , pressing and holding the ▼button ,

display is shown and DUR , xx : xx : xx(h : m : s) ,

pressing the ▲or ▼button adjustment measurement

time, pressing Enter button to save the setting and leave setting .

24 Hr 12 Hr 10 Hr 8 Hr 4 Hr

2 Hr 1 Hr 30 minutes 15 minutes 10 minutes

5 minutes 1 minute

6) In DOSE mode ,Setting current date or current time surely.

(please refer to chapter 7-1 page 17)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sper scientific Strumento di misura

Sper scientific

Sper scientific 840010 Manuale utente

Sper scientific

Sper scientific 850070 Manuale utente

Sper scientific

Sper scientific 850071 Manuale utente

Sper scientific

Sper scientific 800021 Manuale utente

Sper scientific

Sper scientific 850004 Manuale utente

Sper scientific

Sper scientific 840020 Manuale utente

Sper scientific

Sper scientific 840065 Manuale utente

Sper scientific

Sper scientific 850023 Manuale utente

Sper scientific

Sper scientific 800100 Manuale utente

Sper scientific

Sper scientific 850024 Manuale utente

Sper scientific

Sper scientific 840020 Manuale utente

Sper scientific

Sper scientific 850015 Manuale utente

Sper scientific

Sper scientific 840021 Manuale utente

Sper scientific

Sper scientific 840005 Manuale utente

Sper scientific

Sper scientific 800034 Manuale utente

Sper scientific

Sper scientific 850001 Manuale utente

Sper scientific

Sper scientific 800012 Manuale utente

Sper scientific

Sper scientific 850006 Manuale di installazione e d'uso

Sper scientific

Sper scientific 850026 Manuale utente

Sper scientific

Sper scientific 850011 Manuale utente

Sper scientific

Sper scientific 300003 Manuale utente

Sper scientific

Sper scientific 850051 Manuale utente

Sper scientific

Sper scientific 300033 Manuale utente

Sper scientific

Sper scientific 800052 Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
