SRM High Performance Ergometer Come usare

Short Manual

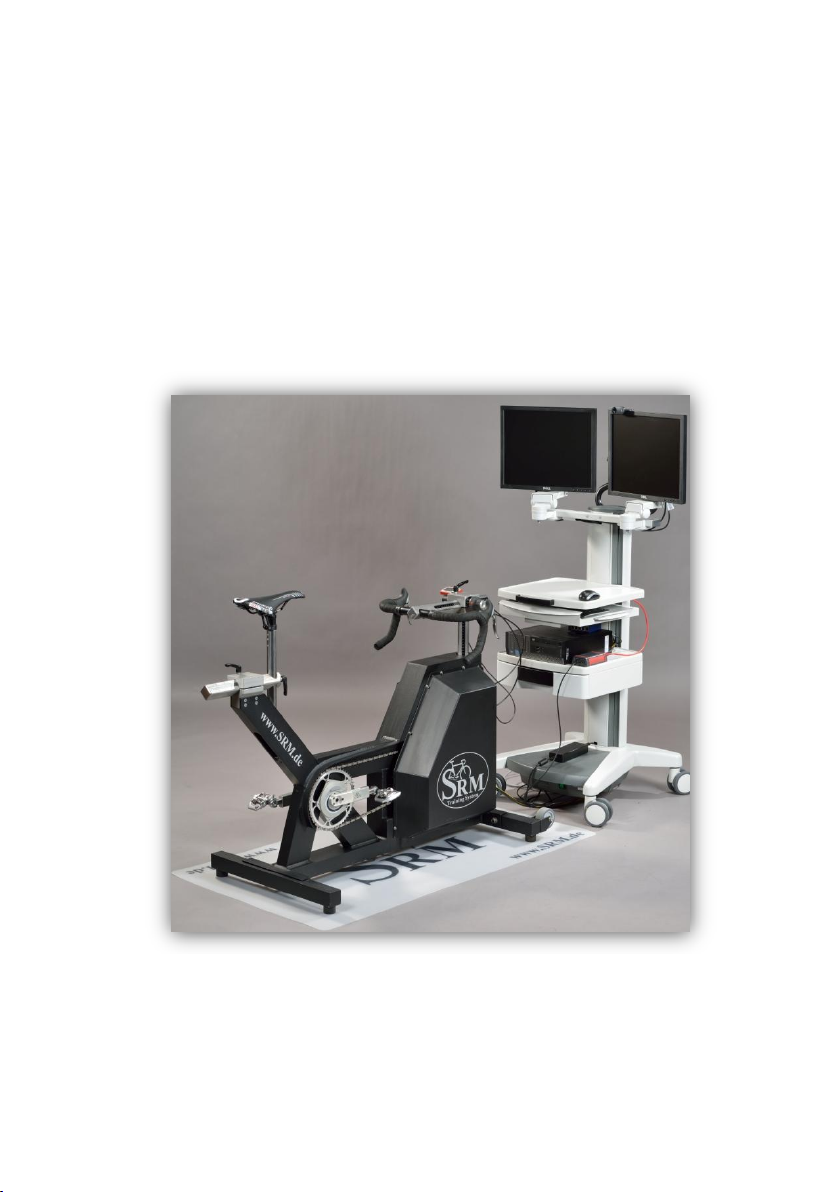

SRM - Ergometer

Short Manual SRM –Ergometer

Table of Contents

1General preparation ........................................ 3

2Einstellung USB/Seriell Adapter im Active Port............. 3

3Settings Powercontrol IV ................................. 5

SRMWin-Software: On menu bar choose PC IV (Drop-

down)....................................................................................... 5

SRMWin-Software: Powercontrol –Setup ...................... 5

Verify slope (Slope of PowerMeter) ................................ 7

Verify Zero Offset ............................................................ 8

4SRM Online-Mode ......................................... 10

5Client / Test person ...................................... 11

6Settings SRM - Ergometer ............................. 12

Bike fitting: transfer settings of client’s own bike to the

sitting position....................................................................... 13

7Warm-up..................................................... 14

8Setup of test protocol ................................... 15

9Start performance diagnostics........................ 16

10 End of the test ............................................. 17

11 Service........................................................ 18

12 FAQ ............................................................ 18

Short Manual SRM –Ergometer

1 General preparation

•Power-on spiroergometry (30min before

beginning of test)

•Power-on ergometer’s power supply

•Preparation diagnostic devices (Lactate

analysis, etc.) 30min beginning of test

•Room temperature (18 –24°C) should

measured

•Relative air humidity should measure (30 –

60%) in room

•Check position of ventilator

2 Settings USB/Serial Converter

The installation of the of USB/Serial Converter

is mandatory for the data recording

Check the activation of the USB/Serial

Converter at the Active port ("SRM

Downloadcable USB")

We recommend the use of the following

USB/Serial Converter:

ATEN USB-to-Serial-(RS 232)Converter,

(Model: UC-232A), (Windows 7)

Plugable USB to RS-232 D89 Serial Adatper,

(Windows 8)

Short Manual SRM –Ergometer

3 Settings Powercontrol IV

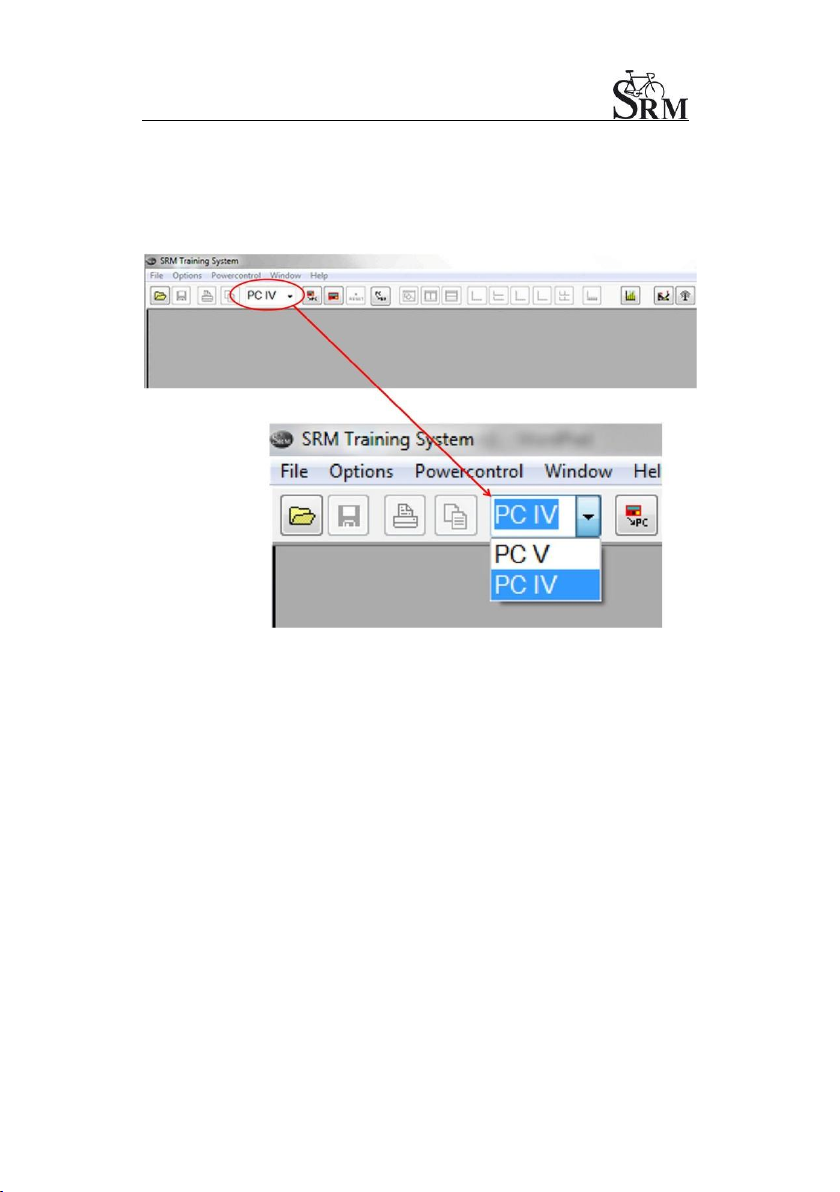

SRMWin-Software: On menu bar choose PC IV

(Drop-down)

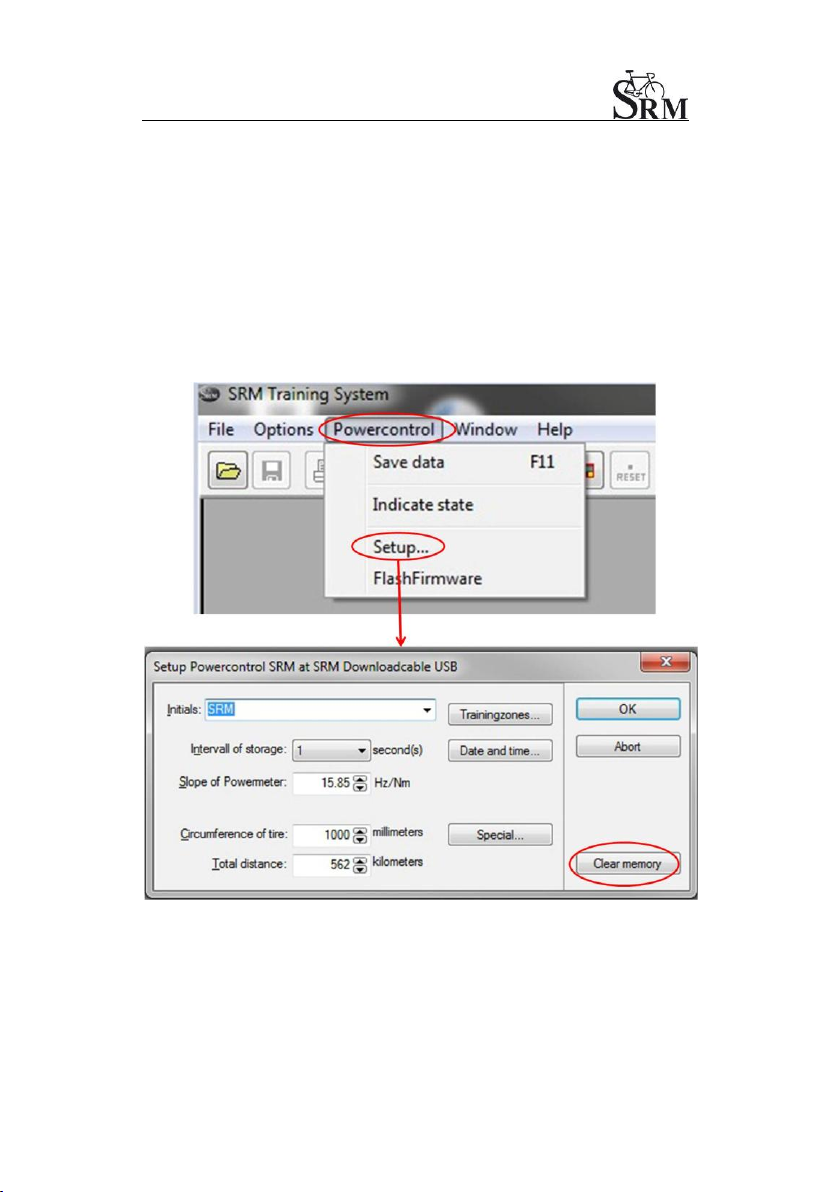

SRMWin-Software: Powercontrol –Setup

Short Manual SRM –Ergometer

Interval of storage: 1 second

Slope of Powermeter: see ,,Verify Slop”

(page 5)

Circumference of tire: 1000 mm

Short Manual SRM –Ergometer

Verify slope (Slope of PowerMeter)

Verify the slope before every test-day.

The slope in the PowerControl and in the

SRMWin-Software should correspond to the slope

of the PowerMeter.

You can find the correct PowerMeter slope

located-at:

1. little sticker at the rear of the PowerMeter

2. on the handlebar or on the front of the

ergometer

Short Manual SRM –Ergometer

Verify Zero Offset

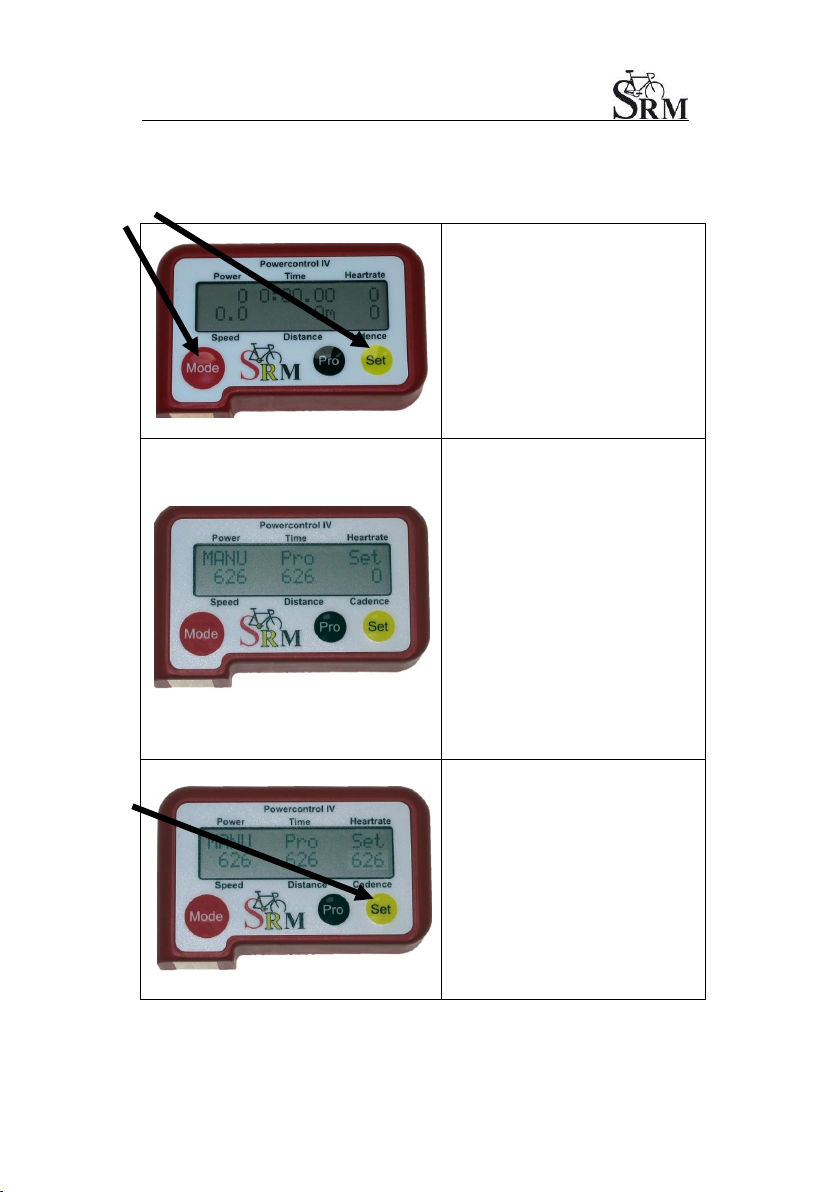

Push, simultaneously,

MODE and SET to

switch the

PowerMeter’s display

to calibration mode

For a manual

comparison turn the

unloaded crank in a

clockwise direction to

switch the PowerMeter

on.

Wait a few seconds

until the value

stabilizes on the right

side of the display.

Press SET to apply

the Zero Offset.

(MANU) Value of Pro

will be taken

automatically and is

important for the

measurement.

Short Manual SRM –Ergometer

Verify memory capacity and charge of

battery of the PowerControl

PowerControl: Push simultaneously MODE

and PRO

If the memory capacity is full clear

memory by:

SRMWin-Software –Powercontrol –

Setup –Clear memory

Short Manual SRM –Ergometer

4 SRM Online-Mode

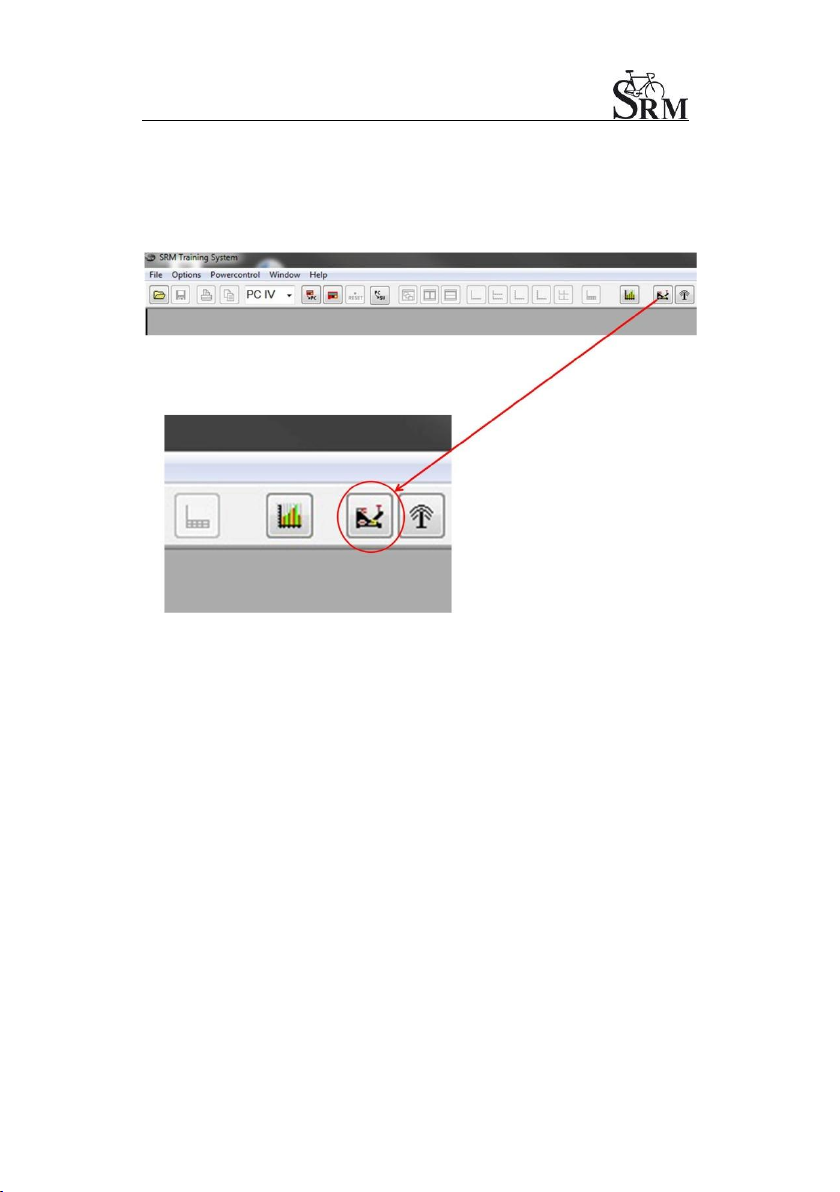

Change to the online mode by clicking on

the icon ergometer
