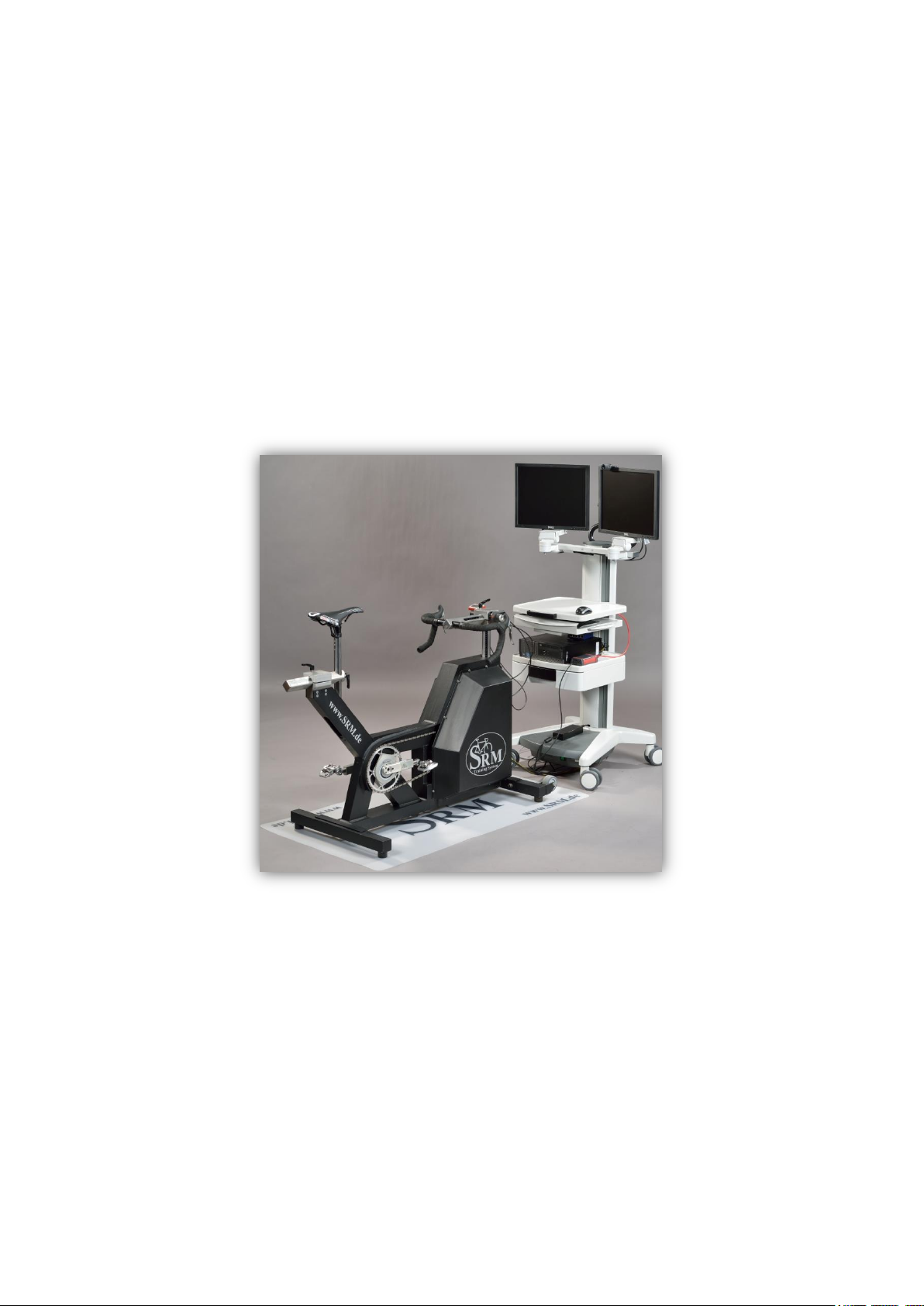

SRM High Performance Ergometer Manuale utente

Manual

SRM –High Performance Ergometer

SRM Ergometer Manual

Table of Contents

1. General preparation for performance diagnostics ........................... 3

2. Connecting the Ergometer (Ports)................................................ 3

3. Installation and Landing Page of the SRM Ergometer Software ........ 4

4. Settings SRM Ergometer Software ............................................... 5

Network .................................................................................... 5

Network settings in windows ........................................................ 6

Network settings in OSX .............................................................12

Chart .......................................................................................15

Test .........................................................................................16

Ergometer ................................................................................17

5. Athletes...................................................................................20

6. Ergometer preparation for testing & training ................................21

Settings the Crank length ...........................................................21

Mechanical adjustment & positioning of the athlete ........................23

Bike fitting ................................................................................25

Rohloff gear check .....................................................................26

Warm-up ......................................................................................27

7. Workouts.................................................................................27

8. Test ........................................................................................28

Start and Stop performance diagnostics .......................................28

Next steps ................................................................................29

9. Activities .................................................................................29

10. File Transfer.............................................................................30

11. Service....................................................................................31

12. FAQ ........................................................................................31

SRM Ergometer Manual

1. General preparation for performance diagnostics

•Power-on spiroergometry (30min before beginning of test)

•Power-on ergometer’s power supply

•Preparation diagnostic devices (Lactate analysis, etc.) 30min beginning

of test

•Room temperature (18 –24°C) should measured

•Relative air humidity should measure (30 –60%) in room

•Check position of ventilator

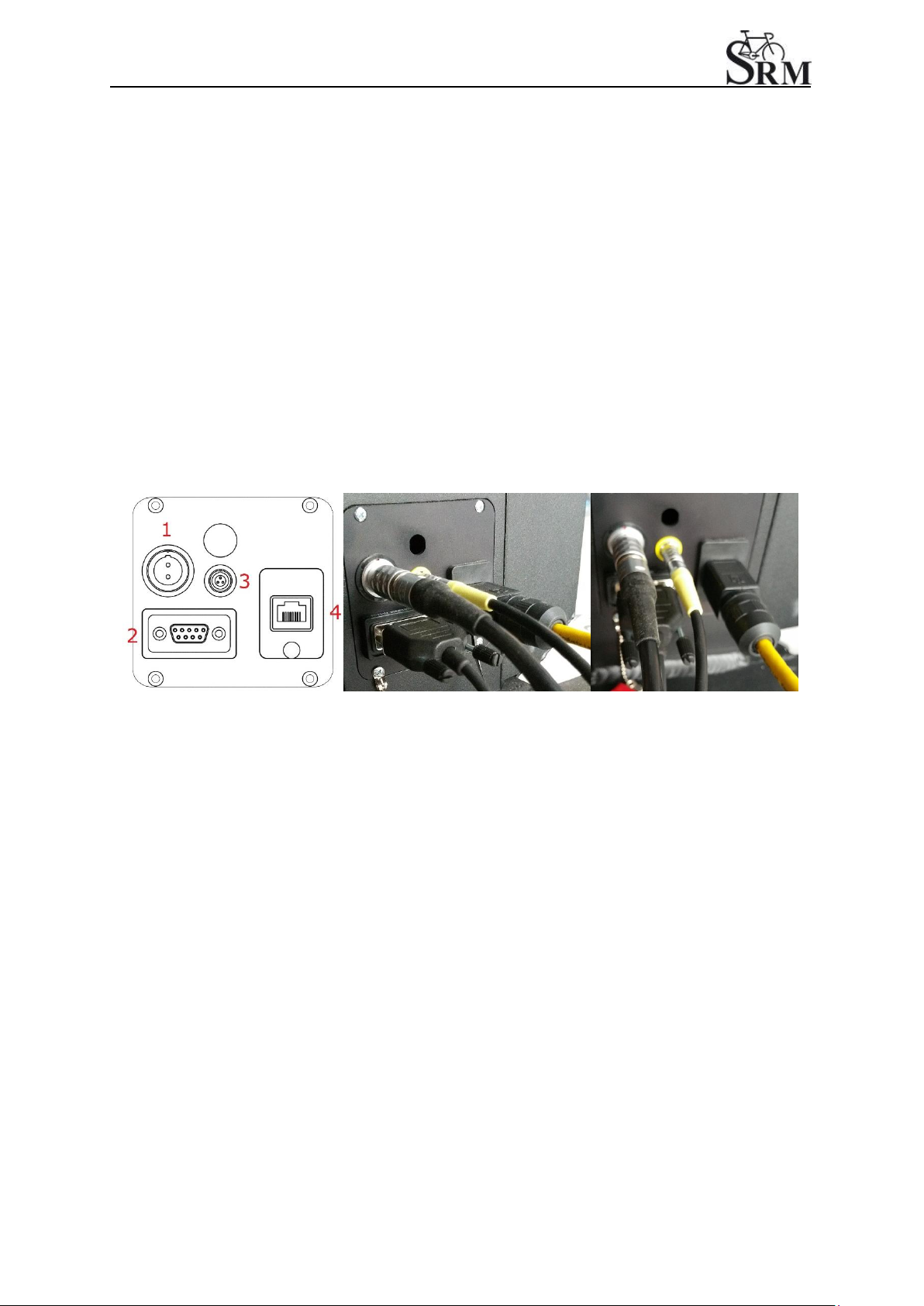

2. Connecting the Ergometer (Ports)

1- Power Supply

2- Serial Port

The serial port is only for the external control by CPX/CPET, EKG

or other medical devices by the so called “ergoline” protocol. The

idea is to specify the protocols in the CPX/CPET or EKG software

to be independend of the SRM Ergometer software.

Please connect the SRM ergometer via the serial port and the

USB-to-Serial Adapter to the controlling computer.

Please note: If you like to control the protocol by an external

device don’t start the performance diagnostics in the SRM

ergometer software.

3- Torque Analysis

4- Ethernet Ergometer

SRM Ergometer Manual

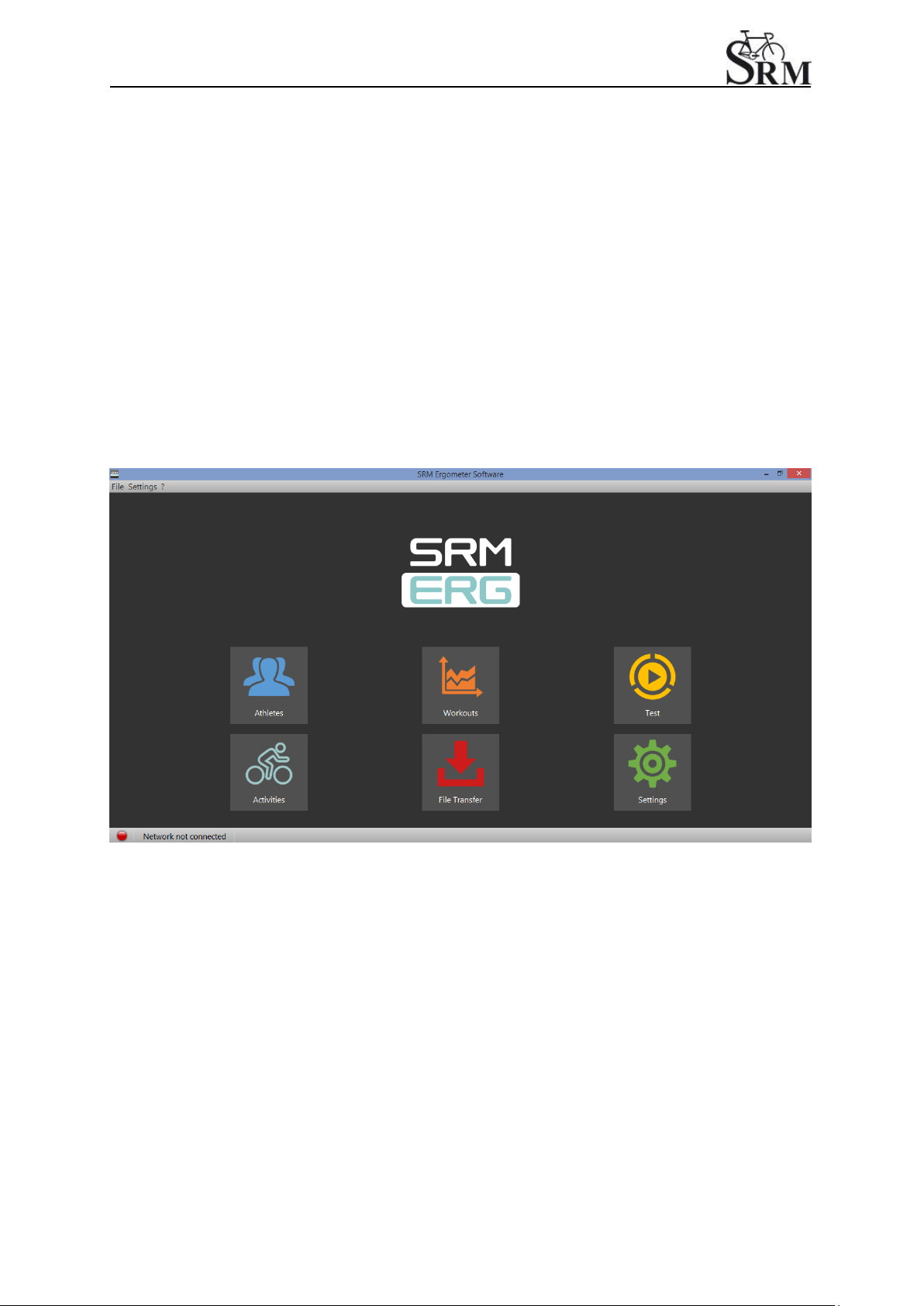

3. Installation and Landing Page of the SRM Ergometer

Software

Please install the SRM ergometer software first on your controlling

computer.

It´s possible to choose one of the shown options directly. But before

starting with the test procedure we recommend to check the settings first.

Please start pedaling and check the connection indicator on the lower left

corner of the screen: this indicator should be green, if not go to log tab

and check the messages and the settings again.

SRM Ergometer Manual

4. Settings SRM Ergometer Software

Network

Choose a free and valid IP address (192.168.0.x) for your computer in the

same sub network as the SRM Ethernet Torque Analysis Box (To install

the Torque Analysis Box see the manual of the Torque Analysis).

If you are using MS Windows: Press “Start“ button, open “Control Panel“,

open “Network and Internet”, select “Network and Sharing Center“, click

“View Network Connections“, click on the connection you need to change

(i.e. LAN), open “Properties“, double click on “Internet Protocol Version 4

(TCP/IPV4)“ and insert the chosen IP address.

Please insert a different IP address than that of the Torque Box. Just

change the last or the last two numbers of the Torque Box IP (e.g.

192.168.0.89). Otherwise there will be a conflict of the IP addresses.

SRM Ergometer Manual

Network settings in windows

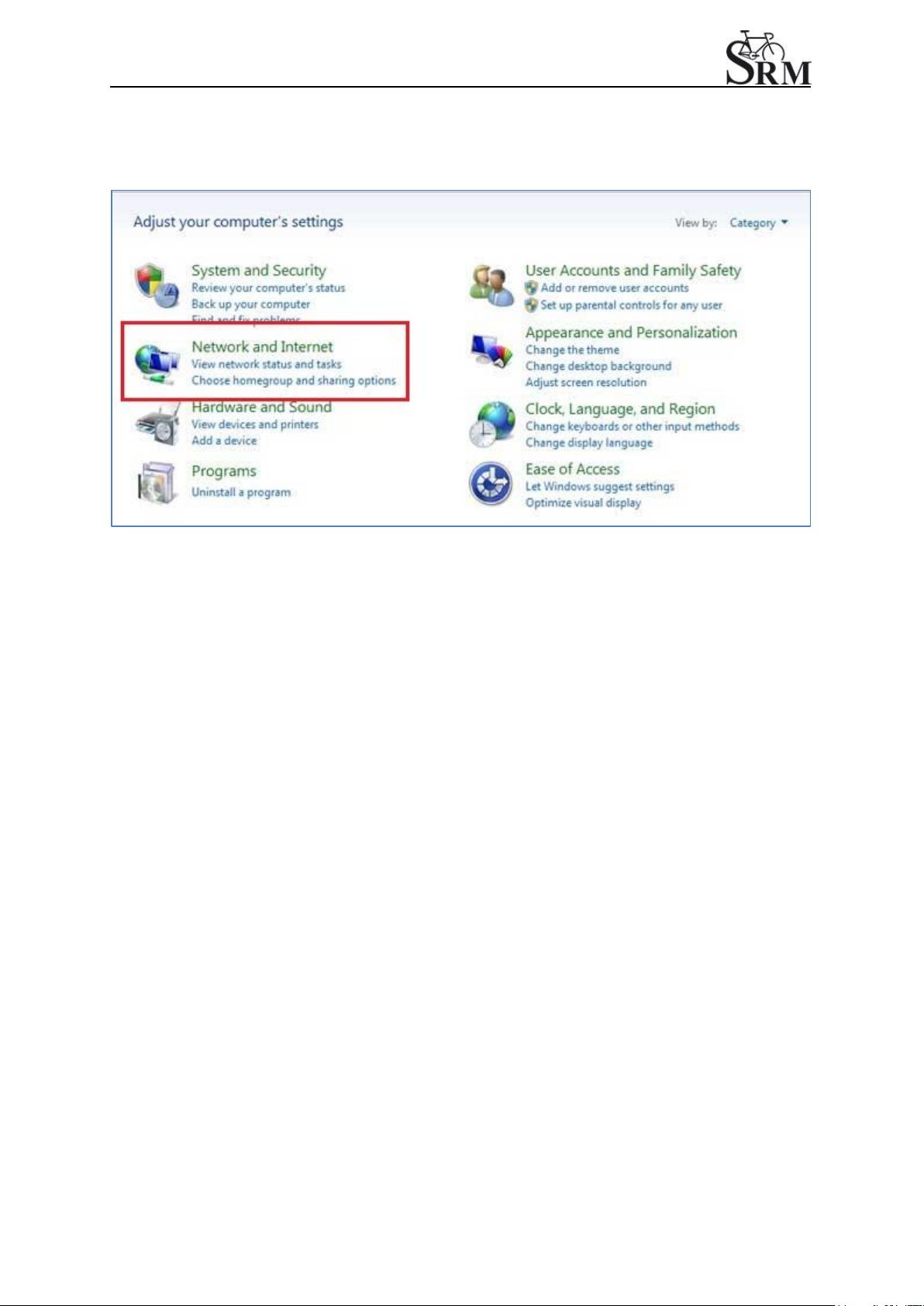

1. Network and Internet

SRM Ergometer Manual

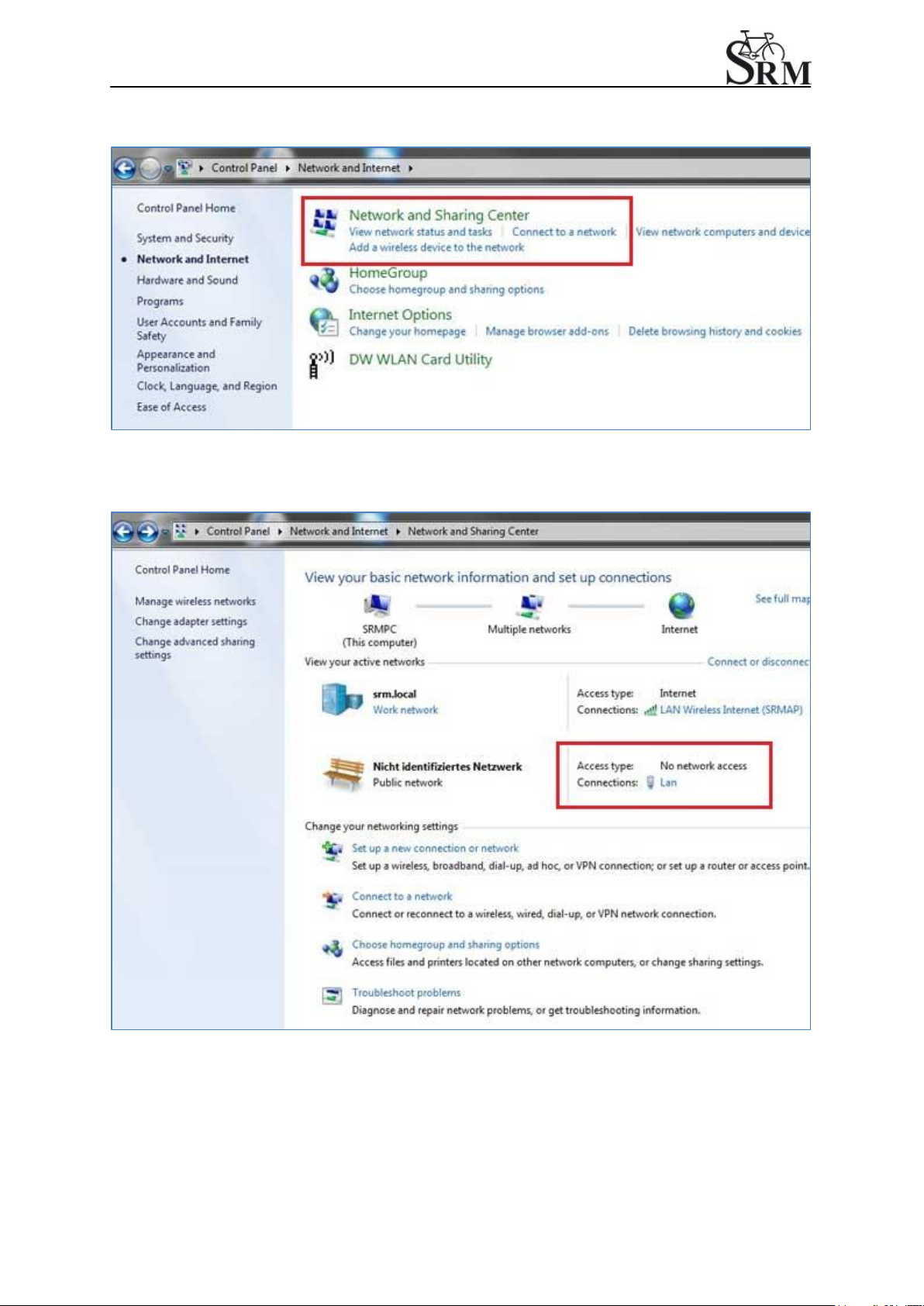

2. Network and Sharing Center

3. View Network Connections

SRM Ergometer Manual

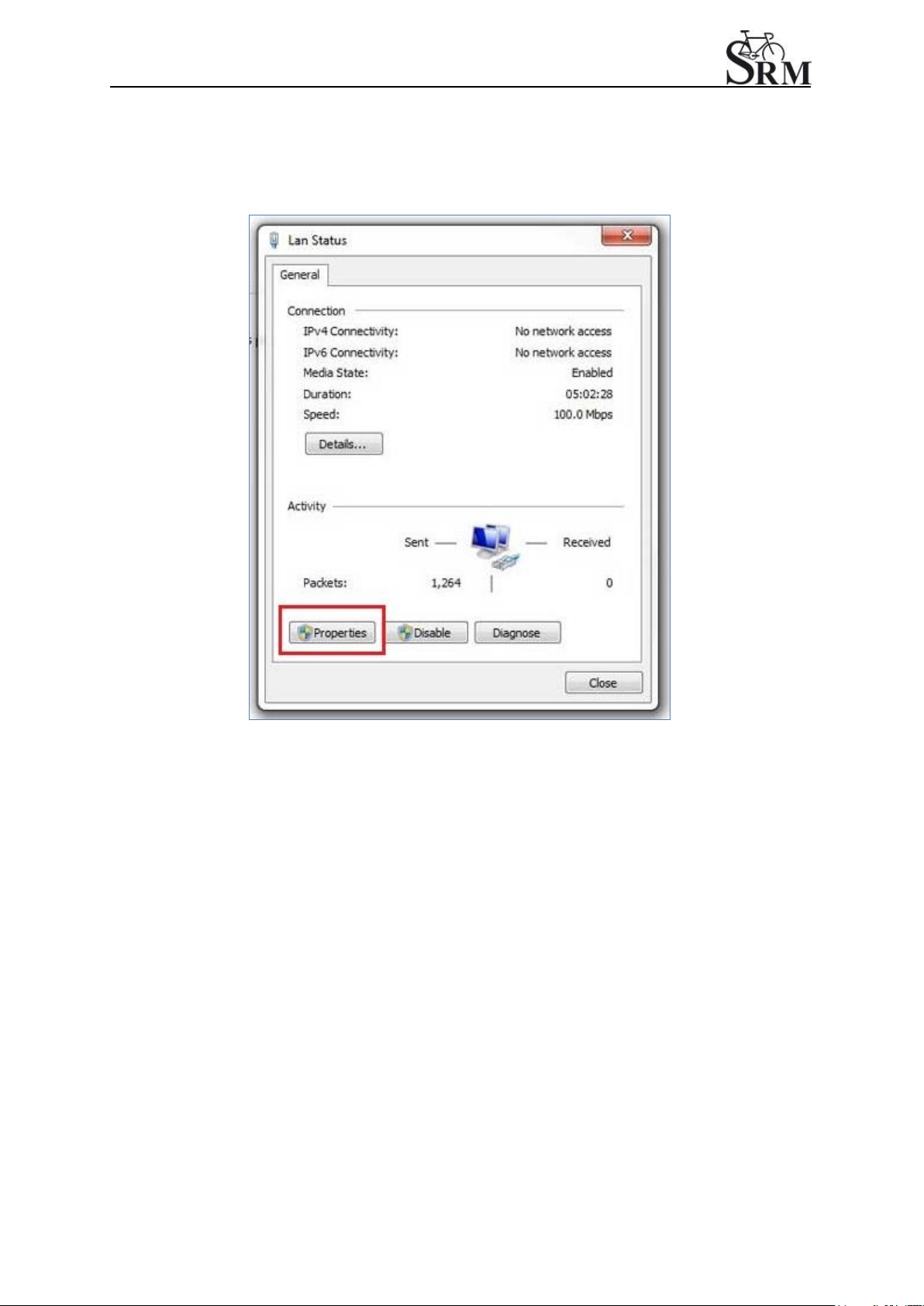

4. Properties

SRM Ergometer Manual

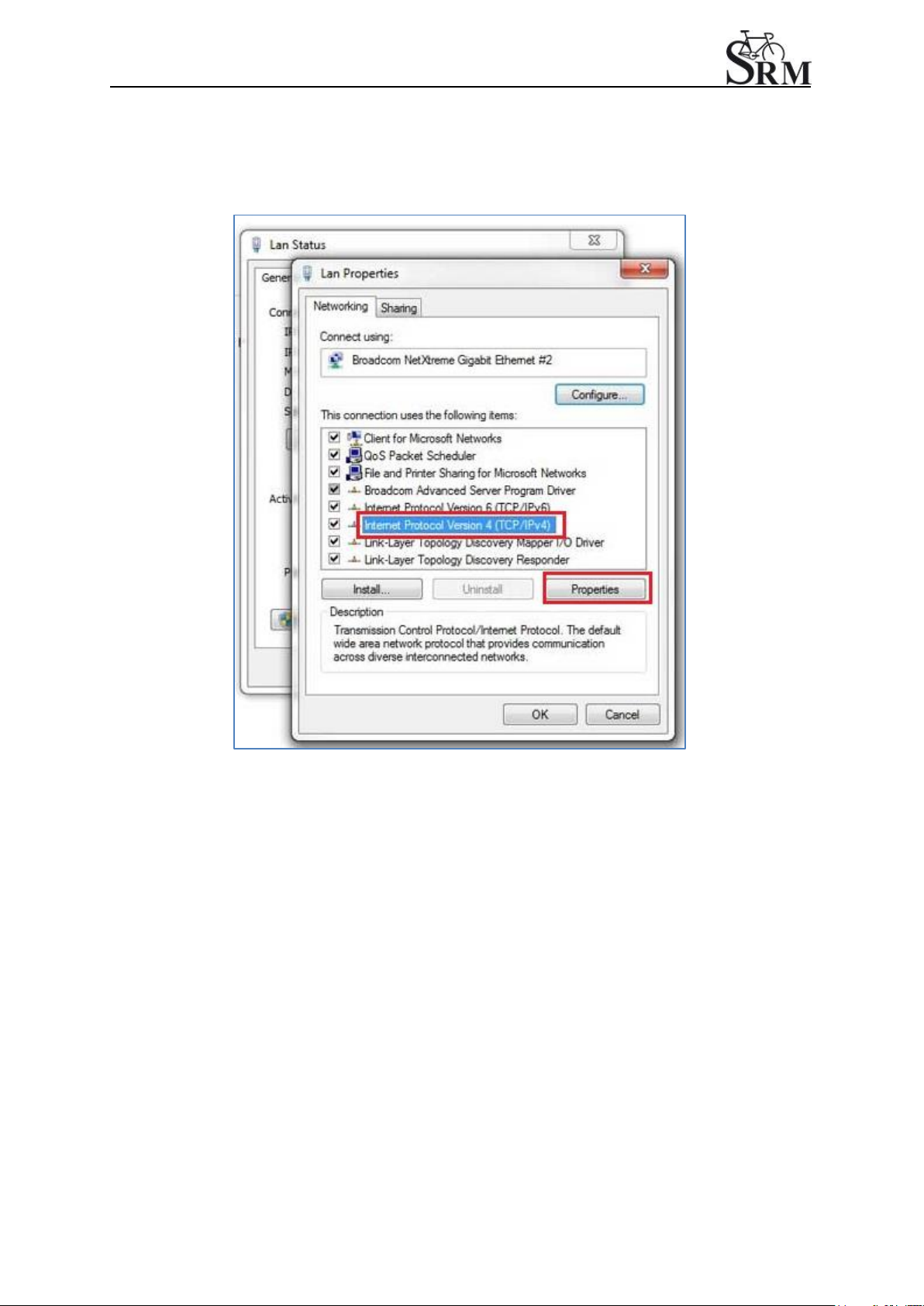

5. Internet Protocol Version 4 (TCP/Ipv4)

SRM Ergometer Manual

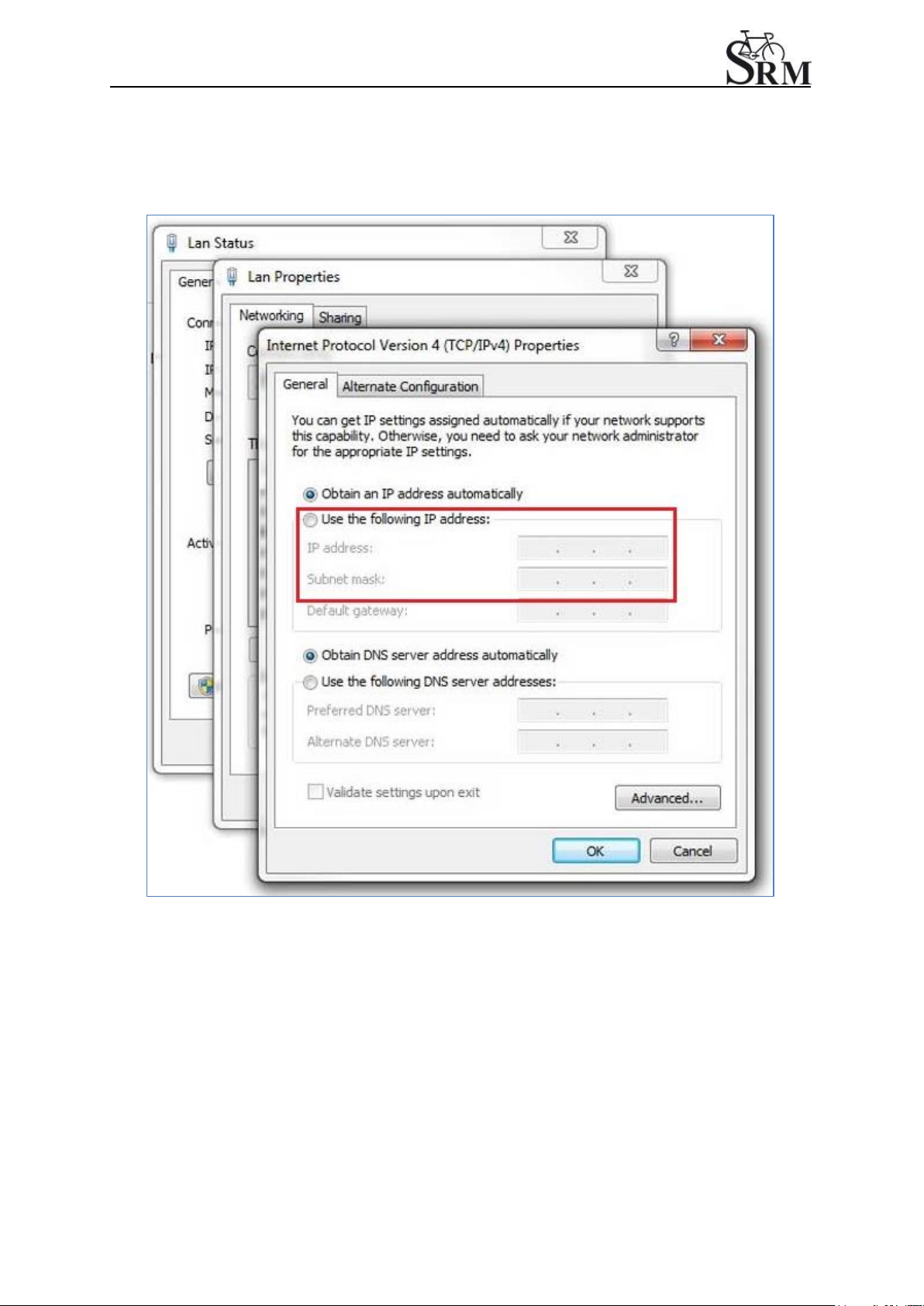

6. Use the following IP address
