Star Micronics FVP-10U Manuale utente

Software

Installation Manual

Rev. 1.0

‘unied, multi-model driver and conguration suite’

Contents

1. Installation ................................................................................................................. 1

2. Uninstallation ............................................................................................................ 5

3. Printer Utility ............................................................................................................. 7

3.1 Starting the Printer Utility ............................................................................................................7

4. Revision History ........................................................................................................ 9

Appendix 1. FVP10 Sample Sounds ............................................................................... i

Company and product names that appear in this document are trademarks or registered trademarks of their

respective owners.

Installation Manual

− 1 −

Introduction

This software runs on Windows XP (SP2 or later), Windows Vista, and Windows 7.

Important: Administrator privilege is required to run the installation.

1. Installation

Follow the instructions below to install the software.

Note: If you are connecting to the printer by USB, carry out the instructions in chapter 1, "Installation,"

and then turn the printer on.

1Insert the CD-ROM that came with the printer into the CD-ROM drive.

If the following window appears, click 'Run Autorun.exe'.

2The software installation CD window opens. Click 'Install'.

Installation Manual

− 2 −

4If you are using Windows Vista or Windows 7, the 'User Account Control' dialog appeards.

Click 'Continue' or 'Yes'.

5If components that are necessary for using the software are not found on your PC, those components

are installed rst. On the following conrmation dialog box, click 'OK'.

Depending on your PC environment, this process may take a long time.

6Click 'Next'.

3The software license agreement for using the contents of the CD appears. Read the agreement. If you

agree with the terms, select 'I AGREE', and then click 'NEXT'.

If you click on any of the items on the software installation CD window, the soft-

ware license agreement for using the contents of the CD will appear and will

remain until you agree with its terms.

Installation Manual

− 3 −

8Choose the setup type.

Click 'Typical' to install the most common, necessary program features.

Click 'Custom' to install only the program features that you will need.

7The End-User License Agreement, an agreement for installing the software, appears. Read the agree-

ment. If you agree with the terms, select the 'I accept the terms in the License Agreement' check box,

and then click 'Next'.

9Click 'Install' to start the installation.

Installation Manual

− 4 −

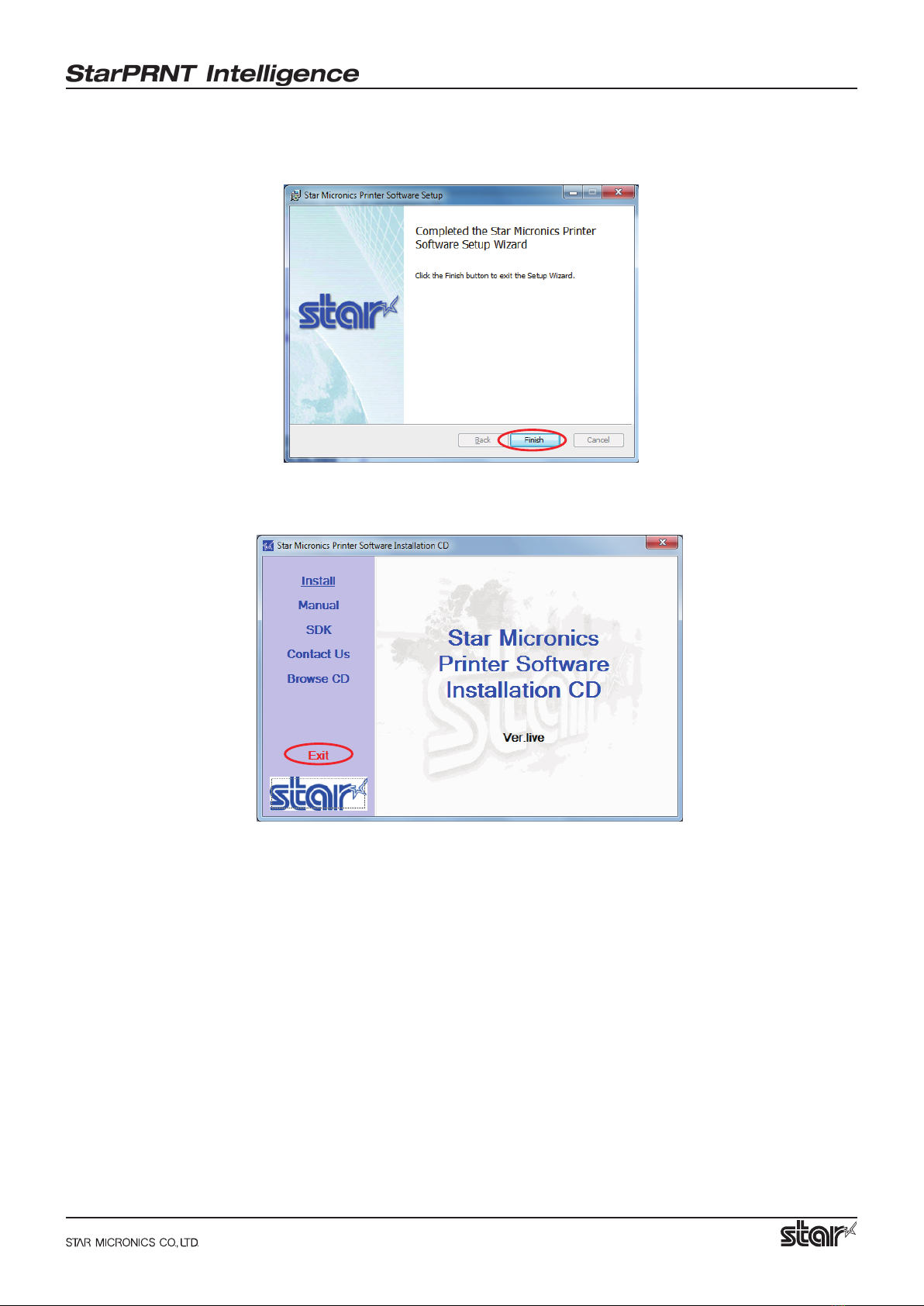

0When the software installation completes, the following window appears.

Click 'Finish' to close the wizard.

AClick 'Exit' to close the software installation CD window.

Installation Manual

− 5 −

3If you are using Windows Vista or Windows 7, the 'User Account Control' dialog appeards.

Click 'Continue' or 'Yes'.

4The following window appears. To continue, click 'Yes'.

If you are using a USB vendor class driver, read the 'Readme_En.txt' le on the CD-ROM.

2. Uninstallation

Follow the procedure below to uninstall the software.

1

Turn the printer power switch o.

2

On the Windows taskbar, click 'Start', and then click 'All Programs' > 'Star Micronics' > 'Printer

Software' > 'Uninstall Printer Software'.

Installation Manual

− 6 −

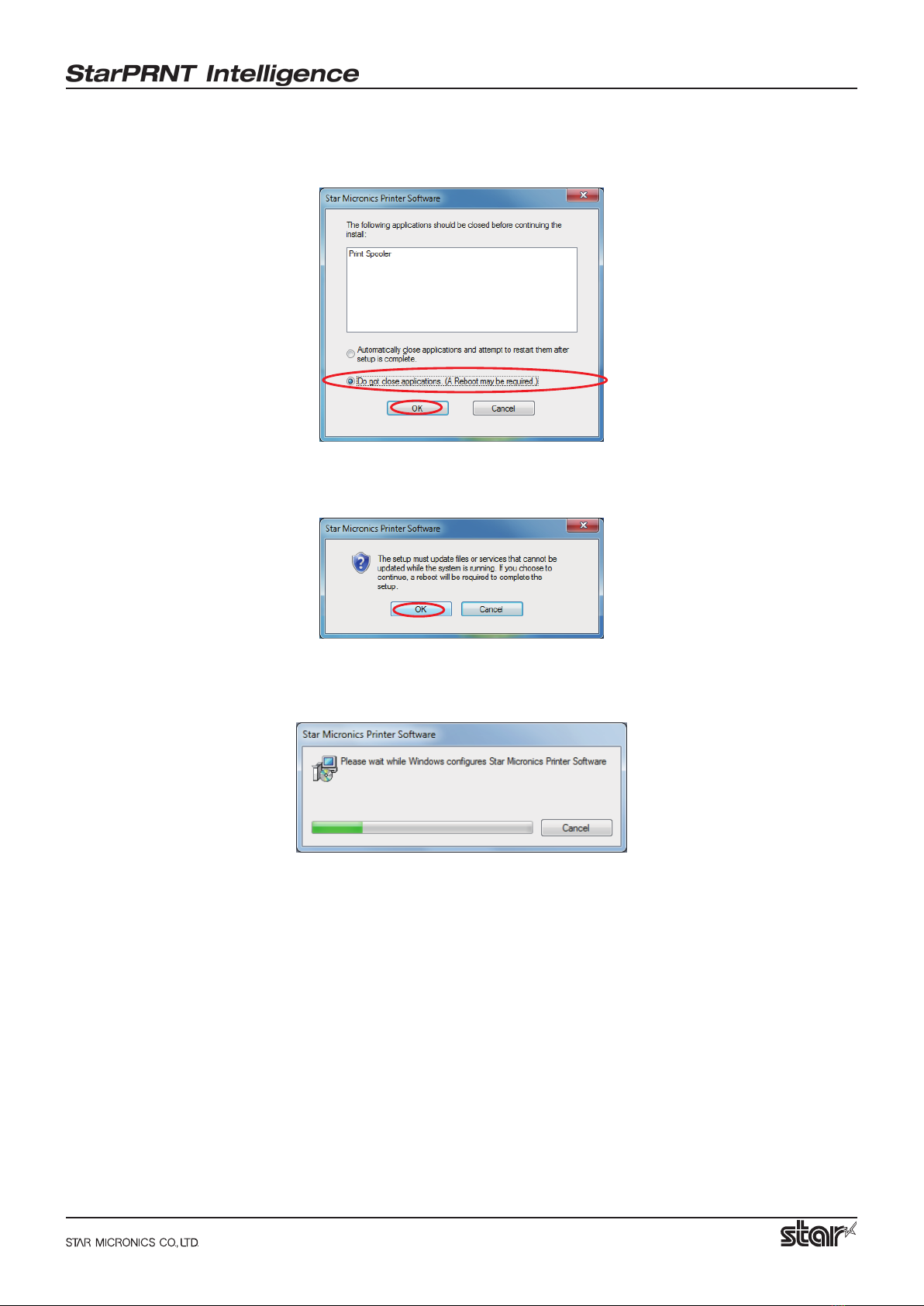

5If the following conrmation dialog box appears, select the 'Do not close applications' option, and

then click 'OK'.

6If the following conrmation window appears, click 'OK'.

7The uninstallation program starts and removes all the relevant software components.

Installation Manual

− 7 −

3. Printer Utility

The printer utility connects to the printer and provides various functions. It includes a function that you

can use to install the printer driver easily. The printer utility connects to the printer according to the set-

tings specied under 'Connection'. The utility functions that you can use vary depending on the printer

model and the connection settings.

For details on how to congure the connection and the utility functions that you can use, see the 'Printer

Utility Help'. You can start the 'Printer Utility Help' by clicking the link at the lower left of the window that

appears when you start the printer utility.

3.1 Starting the Printer Utility

Follow the procedure below to start the Printer Utility.

1On the Windows taskbar, click 'Start', and then click 'All Programs' > 'StarMicronics' > 'Printer

Software' > 'Printer Utility'.

2If you are using Windows Vista or Windows 7, the 'User Account Control' dialog appeards.

Click 'Continue' or 'Yes'.

Installation Manual

− 8 −

3The printer utility window opens.

When you start the printer utility for the rst time, the 'Printer Connection Wizard' appears. Specify

settings such as the printer model that you are using, the command emulation, and the interface to

create a connection. You will be able to use the printer utility functions through the connection that

you created.

Starting the Printer Utility Help Printer Connection Wizard

When Using a Printer Driver:

When you have set 'Connection Setting' to anything other than 'USB Printer Class'

and want to use the printer driver, install the driver from 'Windows Printer Queue

Management' of the printer utility.
