StarTech.com SATSASBAY425 Manuale utente

SATA Hard Drive Backplane

4-Drive Removable 2.5” SAS/

SATA Mobile Rack Backplane

SATSASBAY425

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Front View....................................................................................2

Rear View ....................................................................................2

Installation....................................................................... 3

Hardware Installation...................................................................3

Driver Installation.........................................................................5

Speciﬁcations.................................................................. 6

Technical Support........................................................... 7

Warranty Information...................................................... 7

Introduction

This StarTech.com SATSASBAY425 4-Drive Removable SAS/SATA

Backplane/Mobile Rack offers a convenient and efﬁcient way to

maximize the storage density of your PC or Server. The backplane can

hold up to four 2.5” SAS and/or SATA hard drives (9.5mm, 12.5mm, or

14.8mm thick) in a single 5.25in drive bay.

Packaging Contents

1 x SATSASBAY425 backplane•

4 x Hard Drive Caddy•

4 x SATA cable•

1 x Screw kit•

1 x Instruction Manual•

System Requirements

Available 5.25” external bay•

Existing SAS/SATA controller•

Front View

Rear View

7-pin SAS/SATA

connectors

Cooling Fans

LP4 Power

connector

Power/Activity

LED

Tray Release

Latch

LED On/Off switch

Installation

WARNING: Hard drives require careful handling, especially when

being transported. If you are not careful with your hard disk, lost data

may result. Always handle your hard drive and storage device with

caution.

Hardware Installation

Turn your computer off and any peripherals connected to the1.

computer (i.e. Printers, external hard drives, etc.). Unplug the power

cable from the rear of the power supply on the back of the computer.

Remove the cover from the computer case. Refer to documentation2.

for your computer system for details.

Open an unused 5.25” external bay in the computer case.3.

Slide the SATSASBAY425 into the 5.25” bay, per the installation4.

instructions for the computer system/case and secure to the frame.

Connect an LP4 molex power connector from the computer power5.

supply to the power connector on the rear of the backplane.

Connect 7-pin SAS/SATA cables from the host SATA or SAS6.

controller to each connector on the rear of the backplane.

NOTE: SAS controller can operate both SAS and SATA drives,

however SATA controllers can only operate SATA drives.

Place the cover back onto the computer case.7.

Insert the power cable into the socket on the power supply and8.

reconnect all other connectors removed in Step 1.

Remove the drive trays from the backplane by pressing the colored9.

tray release latch to the left and swing it open. Pull the drive trays

out of the backplane.

If using a 9.5mm height drive, then the top of the drive tray does10.

not need to be removed. Just slide the drive into the tray from the

sides, then fasten the drive to the tray from the bottom side with 4

screws (included).

If using a drive taller than 9.5mm, then the top of the drive tray

needs to be removed. Release the screw located near of the rear

of the tray, then pull the top of the tray off. Place the drive onto the

tray and fasten from the bottom using 4 screws (included).

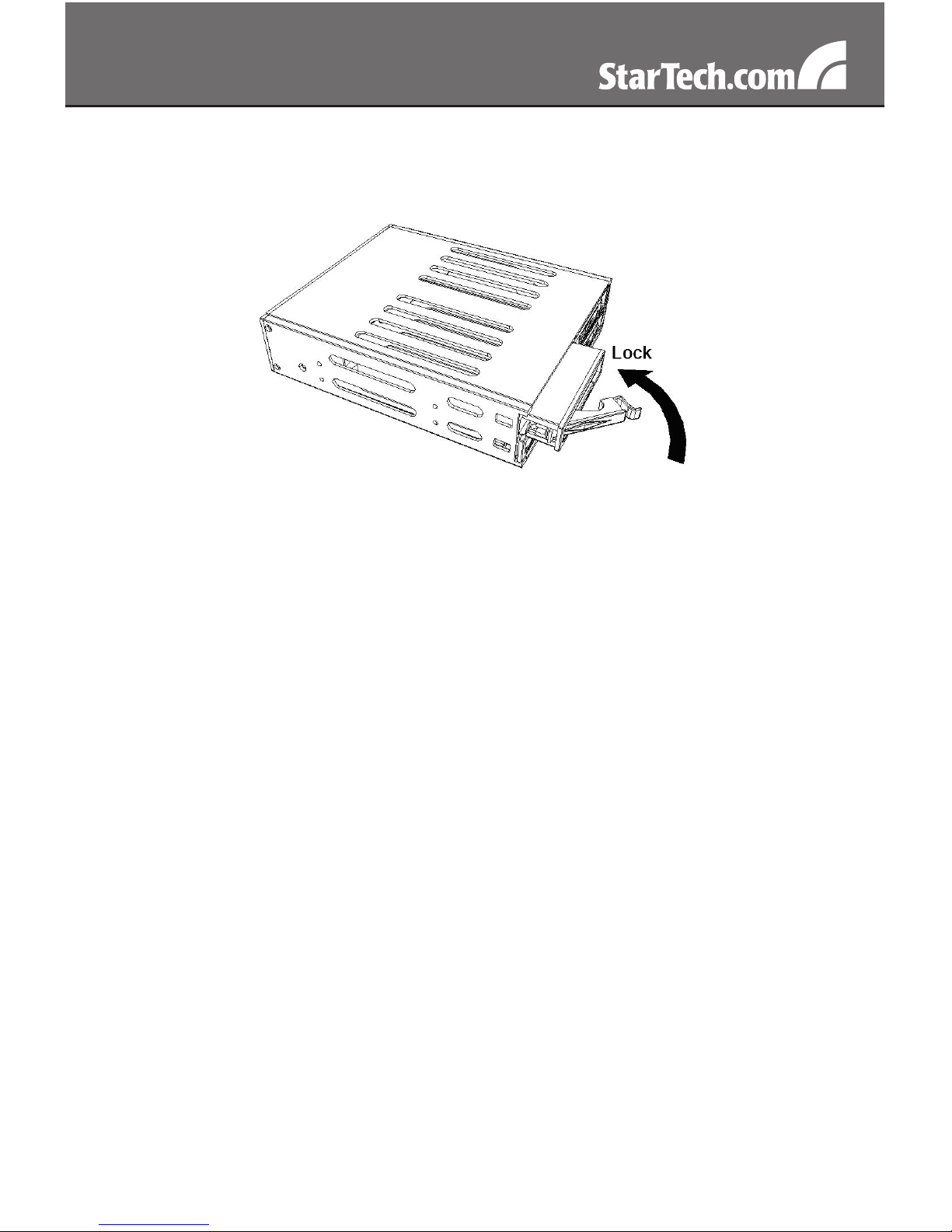

Slide the drive trays back into the backplane and lock the trays in11.

place by closing the swing handle and making sure the latch locks

properly.

Driver Installation

No driver installation is required for any operating system, as a

backplane is a pass-through device, so will not visible to the computer

system.

Specications

Bus Interface SATA

SAS

Maximum Number of Hard

Drives 4

Connectors 4 x 7-pin SATA/SAS

1 x LP4 Power

LEDs 4 x Power/Activity

Fan 2 x 40mm

Insertion Rating 25,000 cycles

Compatible Hard Drives 2.5” SATA, 9.5/12.5mm height

2.5” SAS, 14.8mm height

Operating Temperature -10°C to 70°C (14°F to 158°F)

Storage Temperature -20°C to 75°C (-4°F to 167°F)

Humidity 5~90% RH

Dimensions 175.0mm x 146.0mm x 42.0mm

Weight 790g

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.
