StarTech.com PEXUSB3S22 Manuale utente

Manual Revision: 01/17/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

PEXUSB3S22

PEXUSB3S4

2 Port PCI Express USB 3.0 Card with SATA Power

4 Port PCI Express USB 3.0 Card with SATA Power

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

PEXUSB3S22 View..................................................................................................................................... 2

PEXUSB3S4 View........................................................................................................................................ 2

Installation ..............................................................................................3

Hardware Installation .............................................................................................................................. 3

Driver Installation...................................................................................................................................... 4

Verifying Installation................................................................................................................................ 5

Specications..........................................................................................6

Technical Support ..................................................................................7

Warranty Information............................................................................7

Instruction Manual

Introduction

The PEXUSB3S22 and PEXUSB3S4 PCI Express SuperSpeed USB 3.0 Card with SATA

Power provides two or four USB 3.0 ports respectively to any PCI Express enabled

computer system. With SuperSpeed USB 3.0, you can reach data transfer speeds up

to 5 Gbps, while still being backwards compatible with existing USB 2.0 devices at

480Mbps.

With a built-in SATA power connector, each USB port can provide up to 900mA of

power to USB 3.0 devices (500mA for USB 2.0) by connecting to your computers power

supply. Compatible with both Low prole or Full prole computer cases, this card is

backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaging Contents

• 1 x PCI Express USB 3.0 card

• 1 x Low Prole Bracket

• 1 x Driver CD

• 1 x Instruction Manual

System Requirements

• PCI Express enabled computer system with available PCI Express slot

• Microsoft® Windows® XP/ Server 2003/ Vista/ Server 2008 R2/ 7 (32/64-bit)

Instruction Manual

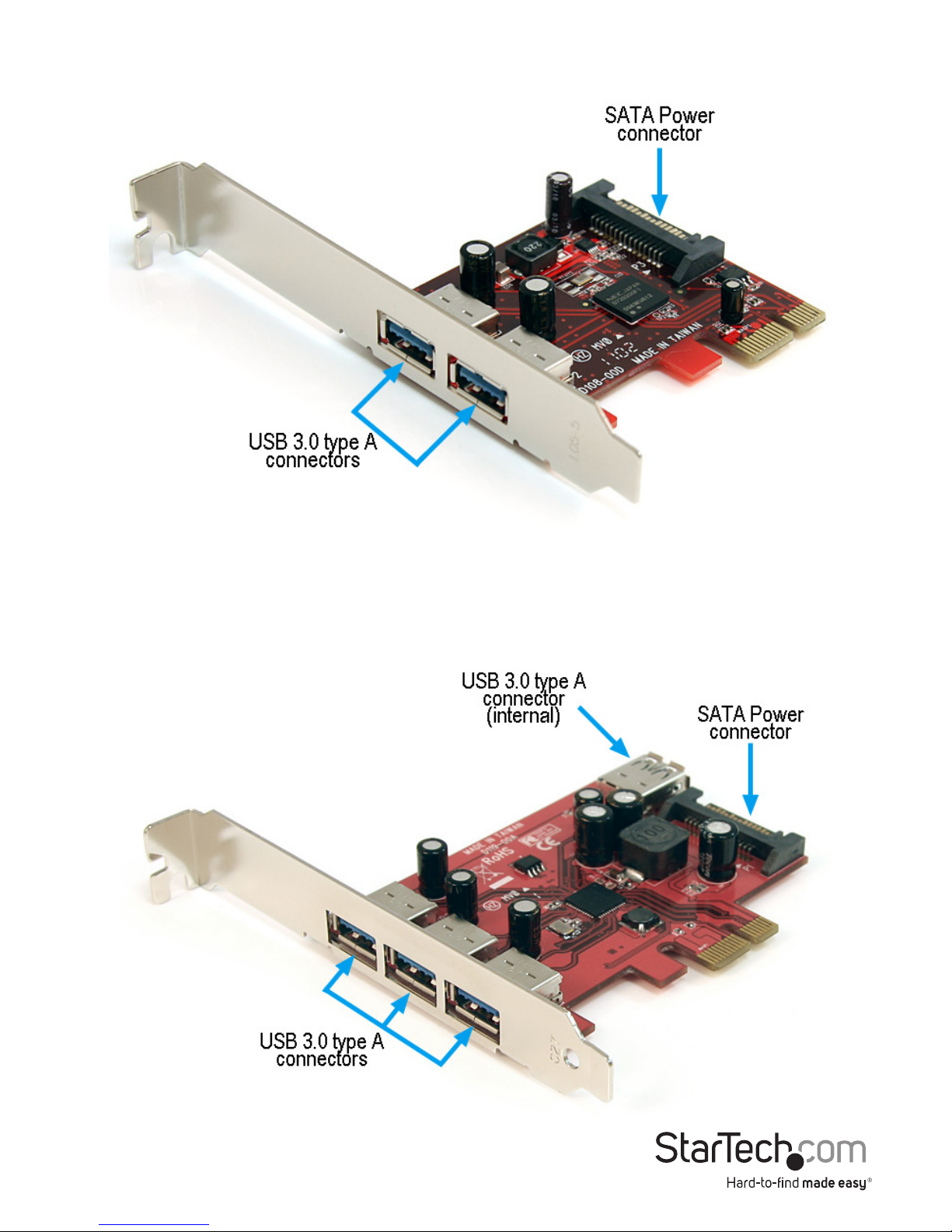

PEXUSB3S22 View

PEXUSB3S4 View

Instruction Manual

Installation

WARNING! PCI Express cards, like all computer equipment, can be

severely damaged by static electricity. Be sure that you are properly

grounded before opening your computer case or touching your PCI

Express card. StarTech.com recommends that you wear an anti-static

strap when installing any computer component. If an anti-static strap

is unavailable, discharge yourself of any static electricity build-up by

touching a large grounded metal surface (such as the computer case)

for several seconds. Also be careful to handle the PCI Express card by its

edges and not the gold connectors.

Hardware Installation

1. Turn your computer o and any peripherals connected to the computer (i.e. Printers,

external hard drives, etc.). Unplug the power cable from the rear of the power

supply on the back of the computer and disconnect all peripheral devices.

2. Remove the cover from the computer case. See documentation for your computer

system for details.

3. Locate an open PCI Express slot and remove the metal cover plate on the rear of the

computer case (Refer to documentation for your computer system for details.). Note

that this card will work in PCI Express slots of additional lanes (i.e. x4, x8 or x16 slots).

4. Insert the card into the open PCI Express slot and fasten the bracket to the rear of

the case.

NOTE: If installing the card into a small form factor/low prole system, replacing the

pre-installed full prole bracket with the included low prole installation bracket may

be necessary.

5. OPTIONAL: Connect a 15-pin SATA power connector from the computer’s power

supply to the SATA power connector on the card. This is only required if using the

ports with bus-powered USB devices (no external power adapter) or if experiencing

connectivity issues.

6. Place the cover back onto the computer case.

7. Insert the power cable into the socket on the power supply and reconnect all other

connectors removed in Step 1.

Instruction Manual

Driver Installation

Windows XP/Server 2003/Vista/7

1. Once the computer has started and the operating system is fully loaded, insert the

provided Driver CD into the computer’s CD/DVD drive.

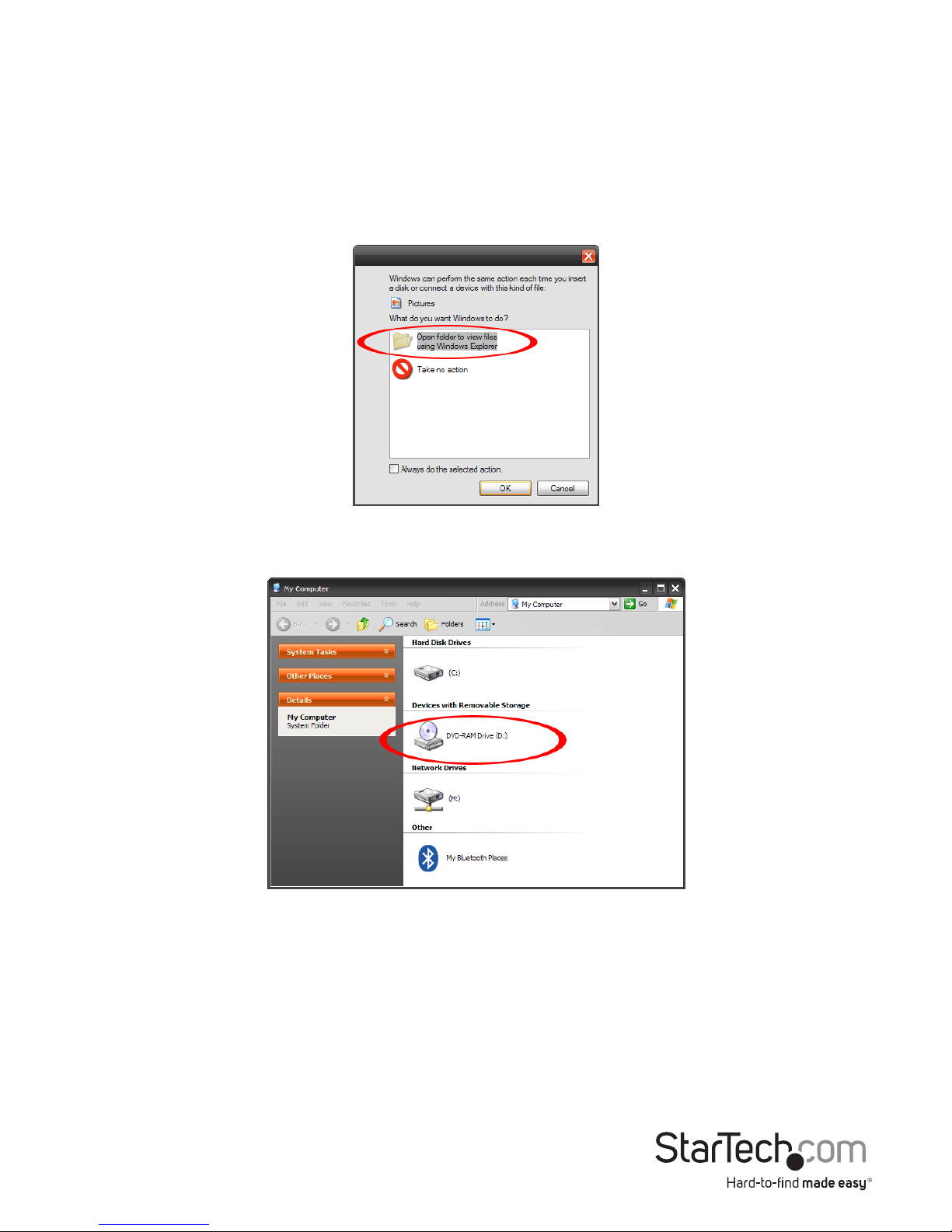

2. Autorun should give you the option to browse the les on the CD or automatically

open the CD.

If Autorun does not start, Go into“My Computer” and access the CD/DVD drive that

the CD is in.

3. PEXUSB3S22: Run the “setup.exe” le located in “USB3.0 Host \ NEC”. Follow the

onscreen instructions to complete the driver installation.

PEXUSB3S4: Run the “setup.exe” le located in “USB3.0 Host \ TI”. Follow the

onscreen instructions to complete the driver installation.

Instruction Manual

Verifying Installation

Windows XP/Server 2003/Vista/7

From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then

select Manage. In the new Computer Management window, select Device Manager

from the left window panel.

In the Device Manager, under the Universal Serial Bus Controllers category, you should

see the new entries for the USB 3.0 controller card.

Instruction Manual

Specications

PEXUSB3S22 PEXUSB3S4

Number of Ports 2 4

Host Interface PCI Express 2.0 (x1 slot connector)

USB 3.0 revision 1.0

Form Factor Low/Full Prole

Chipset ID NEC uPD720200 Texas Instruments

TUSB7340

External Connectors 2 x USB 3.0 type A female 3 x UBS 3.0 type A female

Internal Connectors 1 x SATA power (15-pin)

male

1 x USB 3.0 type A female

1 x SATA power (15-pin)

male

Maximum Data

Transfer Rate USB 3.0: 5 Gbps

Operating Temperature 5°C ~ 50°C (41°F ~ 122°F)

Storage Temperature -25°C ~ 70°C (-13°F ~ 158°F)

Humidity 20% ~ 80% RH

Dimensions (LxWxH) 65.0mm x 60.0mm x

22.0mm

90.0mm x 70.0mm x

22.0mm

Weight 56g 60g

Compatible Operating

Systems

Windows XP/ Server 2003/ Vista/ Server 2008 R2/ 7

(32/64-bit)

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.
