TO THE INSTALLER: BE SURE TO LEAVE THIS MANUAL WITH THE OWNER.

LXSR-0903

Luxus A / SR-1

Electriscreen

To the Owner

Installation Instructions

Operating the Screen

Maintenance

OWNER’S MANUAL

Printed in U.S.A.

Contents

To The Owner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Preparing The Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Step 1. Hanging The Case . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Step 2. Electrical Hook-up . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Adjusting The Screen Extension . . . . . . . . . . . . . . . . . . . . .14

Operating The Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Screen Care And Cleaning . . . . . . . . . . . . . . . . . . . . . . . . .16

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Luxus A/SR-1 Electriscreen: Owner’s Manual 1

Luxus A / SR-1

Electriscreen

OWNER’S MANUAL

Congratulations on your purchase of the finest optical viewing screen

available anywhere in the world!

Please take a moment to review this manual, it will help ensure you many

years of trouble-free service from your new Stewart Filmscreen product.

About your Luxus A Series Electriscreen

This is Stewart’s most popular electric roll up unit because it can

accommodate screen sizes up to 66” x 122” (LX138W). Typically, the

screen housing is hidden above the ceiling, and the screen descends

through a slot in the ceiling.

About your Luxus SR-1 Series Electriscreen

The SR-1 electric roll-up screen is identical to the Luxus A Series with the

exception that its housing is more styled and can be installed with minimal

architectural changes to your room.

The installation, operation, and care are the same for the Luxus A Series

and the Luxus SR-1 Series Electriscreens.

The size and weight of the various Luxus Electriscreen models are listed in

the charts in Figure 1.

Figure 1: Luxus Electriscreen models – sizes and weights

2Stewart Filmscreen Corporation

TOTHE OWNER

Video Format (4:3/1.33:1 Aspect Ratio)

Luxus A

Model #

Luxus SR-

1 Model #


Diagonal


Height


Width

Weight

LX060V- SR060V- 60” 36” 48” 35 lbs.

LX072V- SR072V- 72” 43” 57” 40 lbs.

LX084V- SR084V- 84” 50” 67” 45 lbs.

LX090V- SR090V- 90” 54” 72” 50 lbs.

LX100V- SR100V- 100” 60” 80” 55 lbs.

LX120V- SR120V- 120” 72” 96” 65 lbs.

Luxus A/SR-1 Electriscreen: Owner’s Manual 3

HDTV Format (16:9/1.78:1 Aspect Ratio)

Luxus A

Model #

Luxus SR-

1 Model #


Diagonal


Height


Width

Weight

LX082H- SR082H- 82” 40 1/2” 72” 50 lbs.

LX092H- SR092H- 92” 45” 80” 55 lbs.

LX100H- SR100H- 100” 49” 87” 60 lbs.

LX110H- SR110H- 110” 54” 96” 65 lbs.

LX123H- SR123H- 123” 60” 107” 70 lbs.

LX135H- 135” 66” 118” 70 lbs.

Wide Screen Format (1.85:1 Aspect Ratio)

Luxus A

Model #

Luxus SR-

1 Model #


Diagonal


Height


Width

Weight

LX082W- SR082W- 82” 39” 72” 50 lbs.

LX091W- SR091W- 91” 43” 80” 55 lbs.

LX100W- SR100W- 100” 48” 89” 60 lbs.

LX114W- SR114W- 114” 54” 100” 70 lbs.

LX126W- SR126W- 126” 60” 111” 75 lbs.

LX138W- 138” 66” 122” 70 lbs.

A/V Format (1:1 Aspect Ratio)

Luxus A

Model #

Luxus SR-

1 Model #


Diagonal


Height


Width

Weight

LX050A- SR050A- 71” 50” 50” 40 lbs.

LX060A- SR060A- 85” 60” 60” 45 lbs.

LX070A- SR070A- 99” 70” 70” 50 lbs.

LX084A- SR084A- 119” 84” 84” 60 lbs.

Preparation

Specifications regarding the individual screen dimensions, weight, mounting

type, and controls are provided by the factory when the unit is ordered.

Before beginning the installation:

Check the specifications for the type of mounting and switch

control to be used.

Ensure that the mounting area and electrical connection are

prepared.

Check the size and weight of the screen to be installed so that

you can plan for the number of people required for the mounting

procedure. You need at least two people to mount the smaller

screens; more are needed for larger, heavier screens.

You will need:

Enough ladders for the personnel supporting the screen during

the mounting process

A level

Fasteners appropriate for the surface on which the screen is

being mounted (See instructions for the type of mount for

recommendations.)

4Stewart Filmscreen Corporation

PREPARING THE INSTALLATION

Before proceeding with the installation of this screen,

be sure to read and understand all the installation and

operating instructions thoroughly.

All electrical wiring installations must conform to local

and national codes and should be performed by

qualified service personnel.

There are no user-serviceable parts contained within the

unit.

Caution

During installation, do not place the unit on an unstable cart,

stand, table, or ladder. The unit may fall, causing injury to a

child or adult and damage to the unit.

Unpacking

1. Remove the outer plastic covering and white wrapping paper

surrounding the screen case.

2. Do not remove the wrapping paper surrounding the screen roller.

You should remove it only after the unit is hung and all electrical

connections have been made.

3. Remove the batten lock-down screws located on the back side of

the case.

Luxus A/SR-1 Electriscreen: Owner’s Manual 5

Warning!

Failure to remove the batten lock-down screws can result in

permanent damage to the screen.

Professional mounting techniques should be adhered to. Stewart

Filmscreen Corporation cannot be liable for substandard or faulty

installations.

Make sure that you mount the screen so that the electrical box is on the left

side (audience left).

Wall installation

1. Mount screen through the holes in the wall mount brackets. Refer

to Figure 2.

– If mounting onto a wood substructure, #12 screws may be used.

– If the unit is to be mounted to plaster, drywall, masonry, or other-

type of surface, use an appropriate fastener. (These might include

toggle or molly bolts or similar fasteners.)

2. Make sure the unit is level.

Ceiling or top mount installation

The Luxus Electriscreen can be installed into the ceiling or soffit. A false

ceiling is not intended to support the weight of a Luxus Electriscreen.

Make sure that you mount the screen so that the electrical box is on the left

side (audience left). Refer to Figure 3.

If the unit is to be mounted to plaster, drywall, masonry, or other type of

surface, use an appropriate fastener. (These might include toggle or molly

bolts or similar fasteners.)

There are two types of ceiling or top mount: recessed or suspended. Follow

the procedure for the specified type of mounting.

6Stewart Filmscreen Corporation

Figure 3: Ceiling or top mount

STEP 1. HANGING THE CASE

Figure 2: Wall mount using

optional brackets

Electrical Connection

Box (behind end plate)

Electrical

Knockout

(optional)

Socket

Cap

Screws

Recessed or concealed mount

You can install the screen so that the motor is recessed and the bottom is

flush with dry wall or a suspended ceiling. Refer to Figure 4.

1. Attach the supplied ceiling mount brackets to the top of the

screen unit.

2. Install the unit onto the support structure making sure that the

bottom of the case is flush with the finished ceiling.

3. Make sure the unit is level.

Suspended installation

When suspended installation is desired, use the eyebolts that are provided

with the screen.

1. Remove the screw farthest from the end plate. Install the eyebolt

at that central pivot location. Repeat on the opposite end.

2. Suspend the unit from the eye bolts on the unit using chains,

cables, or turnbuckles. Refer to Figure 5.

3. Make sure the unit is level.

Luxus A/SR-1 Electriscreen: Owner’s Manual 7

Figure 4: Recessed or

concealed mount

Figure 5: Suspended

installation

Support Structure

Drywall or

suspended

ceiling

The motor requires standard 120V 60 Hz input (unless an alternate voltage

has been specified). All connections are made to the electrical box on the

side of the Luxus unit (audience left).

In addition to the standard high-voltage 3-position switch, there are optional

switch controls available for the Luxus Electriscreen. Follow the installation

procedure for the type of switch control you will install.

General suggestions for wiring:

Soldering is recommended.

The use of wire nuts is acceptable.

On models not provided with armored whip, a romex connector

should be installed in the appropriate electrical KO (Knock Out).

To open the electrical box, remove the two socket cap screws that attach

the end plate to the unit’s case.

Refer to Figure 6 for an illustration of the electrical connection box on the

side of the screen unit.

The standard electrical hook up is through the large black electrical

grommet located on the back side of the case adjacent to the end plate.

An optional electrical knockout has been provided should the particular

installation require that the electrical connection be made through the side

end plate.

8Stewart Filmscreen Corporation

STEP 2. ELECTRICAL HOOK-UP

Caution

Professional techniques need to be adhered to when making

any electrical connection. A qualified electrician should

perform these procedures.

Be sure to follow all standard safety procedures for installing

electrical devices.

Do not disassemble or alter the configuration of the motor or

the unit's electrical connections. This may cause injury to you

or damage to the product.

The electrical connection should be made only to the type of

power source indicated on the marking label.

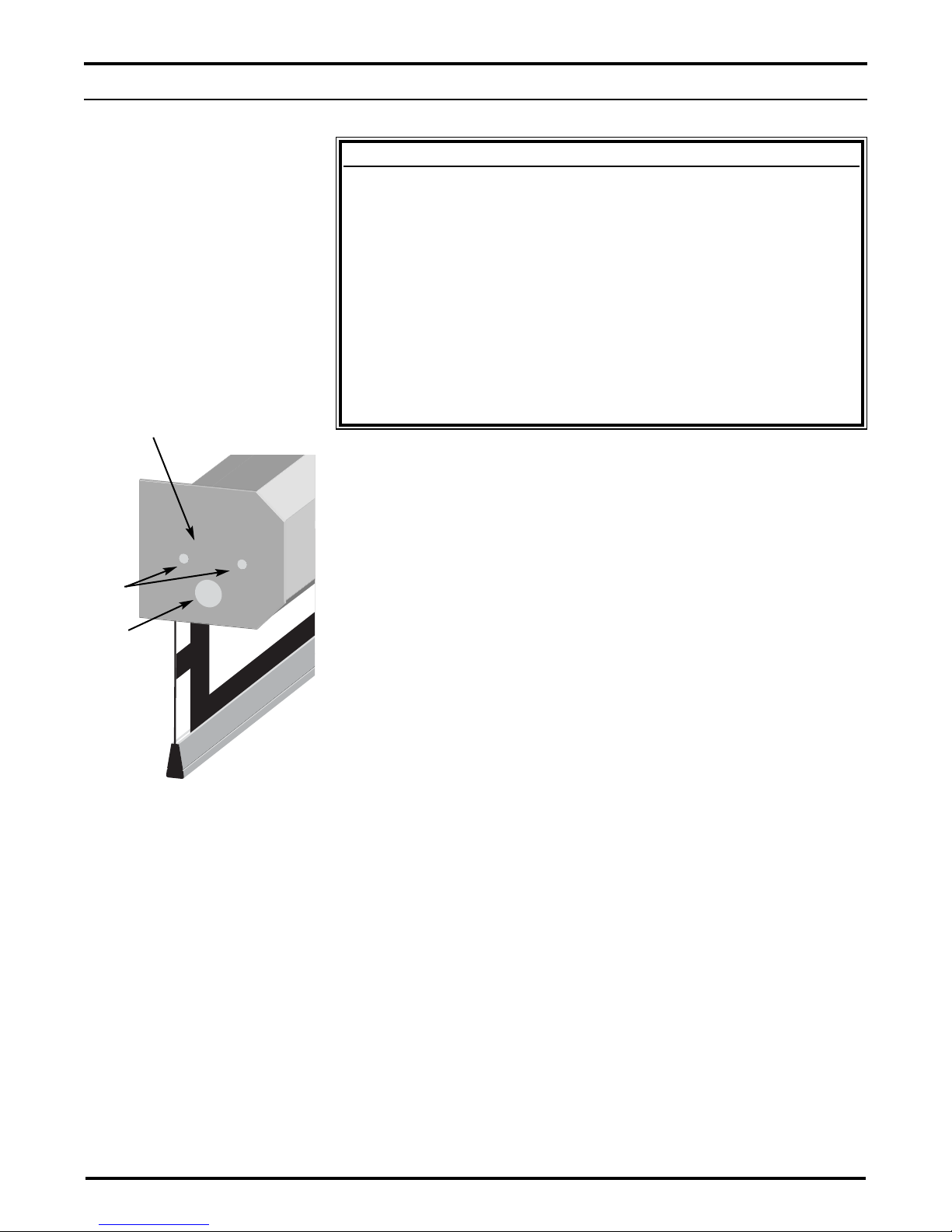

Figure 6: Electrical connection

box

Electrical Connection

Box (behind end plate)

Electrical

Knockout

(optional)

Socket

Cap

Screws

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Stewart Filmscreen Schermo di proiezione

Stewart Filmscreen

Stewart Filmscreen Balon Series Manuale utente

Stewart Filmscreen

Stewart Filmscreen Luxus Grande S6 Manuale utente

Stewart Filmscreen

Stewart Filmscreen Fixed Frame Screen Manuale utente

Stewart Filmscreen

Stewart Filmscreen Vertical ES EM Manuale utente

Stewart Filmscreen

Stewart Filmscreen Visionary Electriscreen Manuale utente

Stewart Filmscreen

Stewart Filmscreen Balon Series Manuale utente

Stewart Filmscreen

Stewart Filmscreen B Manuale utente

Stewart Filmscreen

Stewart Filmscreen Cima Istruzioni originali

Stewart Filmscreen

Stewart Filmscreen WallScreen 2.5 Manuale utente

Stewart Filmscreen

Stewart Filmscreen VistaScope Manuale utente

Stewart Filmscreen

Stewart Filmscreen RP-1013 Manuale utente

Stewart Filmscreen

Stewart Filmscreen Cabaret Manuale utente

Stewart Filmscreen

Stewart Filmscreen Luxus Manuale utente

Stewart Filmscreen

Stewart Filmscreen ABT Trapdoor Electriscreen Manuale utente

Stewart Filmscreen

Stewart Filmscreen Stealth Trapdoor Electriscreen Manuale utente

Stewart Filmscreen

Stewart Filmscreen Cine-W Manuale utente

Stewart Filmscreen

Stewart Filmscreen AT 1.5 Manuale utente

Stewart Filmscreen

Stewart Filmscreen Visionary Medio Manuale utente

Stewart Filmscreen

Stewart Filmscreen 4-Way ScreenWall ElectriMask Manuale utente

Stewart Filmscreen

Stewart Filmscreen Balon Series Manuale utente

Stewart Filmscreen

Stewart Filmscreen Visionary Manuale utente

Stewart Filmscreen

Stewart Filmscreen CM-1005 Manuale utente

Stewart Filmscreen

Stewart Filmscreen Luxus ScreenWall Series Manuale utente

Stewart Filmscreen

Stewart Filmscreen LCD Rear-Projection TV Manuale utente

Manuali Schermo di proiezione popolari di altre marche

FART PRODUKT

FART PRODUKT Standard SCREEN Manuale utente

Draper

Draper E Series Manuale

Elite Screens

Elite Screens Elite Tripod Series Manuale utente

Laarhoven

Laarhoven Companion II Manuale utente

Renogy

Renogy RMS-LFPS-US Manuale utente

Da-Lite

Da-Lite ExecutiveElectrol Manuale utente

Samsung

Samsung S*H65* Manuale utente

FONESTAR

FONESTAR PPTR-43100-FA Manuale utente

Slide Clear

Slide Clear Varro XL Manuale utente

Elite Screens

Elite Screens M85XWS1-SRM Manuale utente

OS РХ-090Н Manuale utente

Niko

Niko 10-845 Manuale utente

Speaka Professional

Speaka Professional 2357532 Manuale operativo

Sima

Sima XL-72 Manuale utente

Jasic

Jasic EVO 2.0 ET-200P Manuale utente

Elite Screens

Elite Screens Starling 2 Series Manuale utente

InFocus

InFocus SC-WALL GRY-92H Manuale

Barco

Barco OverView MVL-615 Manuale utente
