Stewart Filmscreen Cabaret Manuale utente

1 Stewart Filmscreen

Cabaret

Retractable, Below Ceiling Screen System

Stewart Filmscreen –Cabaret 2

Stewart Filmscreen reserves the right to make changes to the product specified in this document.

Sizes and specifications subject to change without notice at the manufacturer’s discretion. From time to time,

this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at:

www.StewartFilmscreen.com

Date: 08/02/2021

Revision # 1.02.03

Stewart Filmscreen –Cabaret 3

Cabaret

O W N E R ’ S M A N U A L

Contents

To The Owner..........................................................................................................................................4

About Cabaret..........................................................................................................................................5

Preparing The Install................................................................................................................................6

Wall Mount.............................................................................................................................................10

Plasma Mount........................................................................................................................................12

Ceiling Mount.........................................................................................................................................14

Electrical ................................................................................................................................................16

IR Receiver and Remote (Standard)......................................................................................................17

12 Volt Projector Trigger (Standard) ......................................................................................................19

IR Wall Switch and Remote (If Equipped)..............................................................................................20

Decora Paddle Wall Switch (Standard)..................................................................................................21

IBT-100 for Serial (RS-232C) Connectivity (If Equipped).......................................................................22

LED Control System (If Equipped).........................................................................................................23

IR Wall Switch and Remote for LED (If Equipped).................................................................................24

Operating the Screen.............................................................................................................................25

Intelligent Motor Controller (IMC) Wiring................................................................................................26

IMC Specifications .................................................................................................................................28

Intelligent Lighting Control (ILC) Wiring..................................................................................................29

Limit Switch Adjustment.........................................................................................................................30

Fascia Removal .....................................................................................................................................32

Caring for and Cleaning the Screen.......................................................................................................33

Troubleshooting.....................................................................................................................................34

One (1) Year Limited Warranty..............................................................................................................36

Stewart Filmscreen –Cabaret 4

TO THE OWNER

Congratulations on purchasing the finest optical viewing screen in the world.

Your handcrafted Cabaret projection screen has been carefully inspected to ensure your optimal

viewing experience will last for many years. Please take a moment to review this manual. It will

guide you through the installation and the operation of your screen and will also provide you with

detailed instructions on how to care for your screen’s viewing surface.

From all of us at Stewart Filmscreen, we would like to thank you for choosing Cabaret. Should

you have any questions, please don’t hesitate to contact our customer service department at 1

(310) 784-5300, or toll free at 1 (800) 762-4999. We’re here to help.

Mary Stewart Jose Garcia

CEO and Owner Small Electric Screen Craftsman

Stewart Filmscreen –Cabaret 5

ABOUT CABARET

The Stewart Filmscreen Cabaret offers a premium below ceiling viewing experience. With optional

bracketing, the stylish contemporary case allows the screen to deploy either close to the wall or

away from the wall, in front of your wall décor. With your choice of control options, LED lighting,

paint color, and mounting options —along with Stewart’s world-renowned premium screen

materials —the Cabaret is one of our most advanced screen systems ever.

IMPORTANT SAFETY INFORMATION

Carefully read the instructions.

This screen must be installed by a qualified electrician.

For supply connections, use wires rated for at least 75 C.

Use copper or aluminum conductors.

For indoor use only.

Do not connect low voltage to line voltage power.

Earth ground terminal connection must be made as shown in wiring diagrams.

Proper short circuit and overload protection must be provided at the circuit breaker distribution

panel. You may use up to a 20 amp maximum circuit breaker with adequate short circuit breaking

capacity for your installation.

USING THIS MANUAL FOR INSTALLATION

If you are using this manual to install the Cabaret screen, you should be aware that it describes

procedures for two types of mounting options. Youmust refer to the section for the type of mounting

system you are utilizing.

For the instructions related to your specific mount type, refer to the appropriate page:

Wall Mount (Page 10)

Plasma Mount (Page 12)

Ceiling Mount (Page 14)

For the instructions related to your specific controls, refer to the appropriate page:

IR remote and receiver (Page 17)

12 volt projector trigger (Page 19)

IR wall switch and receiver (Page 20)

Decora paddle wall switch (Page 21)

IBT-100 for RS-232C interface (Page 22)

For the instructions related to the optional LED system, refer to (Page 23).

⚠

NOTE

This owner’s manual may describe options and features not equipped to the specific screen you

have purchased.

Stewart Filmscreen –Cabaret 6

PREPARING THE INSTALLATION

Before proceeding with the installation of this screen, take time to thoroughly read and understand

these installation instructions. Failure to comply with the instructions contained in this manual

may result in voiding your warranty.

SPECIFICATIONS

Specifications regarding the individual screen dimensions, weight, etc., are provided by the

factory when the unit is ordered.

Before beginning the installation

Check the size and weight of the screen to be installed so that you can plan for the number of

people required for installation.

Youwillneed at least two people to mount the smaller screens. More are needed for larger,

heavier screens.

What’s inside the box?

Inside your Cabaret unit box, you will find everything needed to get started enjoying your

Stewart screen:

Cabaret unit, preassembled and prewired

Two wall mounts or plasma mounts or ceiling mounts (depends on what was ordered)

Packing material

IR remote and IR receiver (standard control)

Cabaret Quick Start Guide

You will need

A level

A drill

A drop cloth

Tools for tightening fasteners

Ladders for the personnel supporting the screen during the mounting process

Fasteners appropriate for the surface on which the screen is being mounted

We suggest a self-leveling laser due to the dual mounting of the wall or ceiling mounts. Both

mounts will need to be accurately leveled to each other.

Stewart Filmscreen –Cabaret 7

PREPARING THE INSTALLATION (CONTINUED)

Note: Bolts and other fasteners for the screen are standard gauges and sizes used in the U.S.,

regardless of the installation country. For this reason, sizes are expressed in inches rather than

metric measurements.

Unpacking

Be sure to unpack carefully in a clean area. Use

special care when handling the screen so that it does

not become soiled or damaged. If you plan to repack

your screen and hardware for transportation to another

location, you may want to photograph or make a note

of how it was packed. Retain the packing material for

future use, if desired.

The Cabaret screen may have special retainers for

the batten. These items may be left in place until

after the screen has been mounted (see Figure 1).

IMPORTANT: Remove all batten retainers prior to

activating the unit. Failure to do so will cause damage to

the screen material. There will be one batten retainer on

each end of the unit. Larger units come with an

additional batten retainer on the middle of the unit. A

single screw holds each batten retainer in place (see

Figure 2).

Batten retainer

Figure 1: Cabaret bottom

view with batten retainer

installed

Figure 2: Cabaret bottom

view with batten retainer

removed

One

screw on

bottom of

batten

retainer

⚠

CAUTION

Do not stand on the screen case or store it on its end. This will cause screen damage. If

you are not going to install the screen immediately, make sure it remains horizontal

during storage. Note: Failure to comply with the instructions and guidance

contained in this manual may result in voiding your warranty.

Stewart Filmscreen –Cabaret 8

PREPARING THE INSTALLATION (CONTINUED)

When installing your Cabaret using any of the three mounts, there are a couple things to consider to

make the installation a smooth and easy operation.

Wall Mount

If the selected mounting option during purchase was wall

mount, then you will receive two wall mounts. Each mount

has one hole pre-drilled to ensure that at least two studs are

utilized for mounting (see Figure 3).

Wall Plasma Mount

If the selected mounting option

during purchase was wall plasma

mount, then you will receive two

wall plasma mounts. Each mount

has one hole in the middle of the

mount to push any wiring through

and into the wall. The rear of the

mount also has four holes to

ensure that at least two holes on

each mount are utilized for

mounting onto a wall stud (see

Figure 4).

Ceiling Mount

If the selected mounting option during purchase was ceiling

mount, then you will receive two ceiling mounts. Each mount

has two holes pre-drilled on top to ensure that at least two

screws go into a ceiling stud (see Figure 5).

Figure 3: Cabaret wall mount

(Front and back)

Figure 4: Cabaret plasma mount

(Front and back)

Figure 5: Cabaret ceiling mount

Stewart Filmscreen –Cabaret 9

PREPARING THE INSTALLATION (CONTINUED)

Fasteners

The type of fasteners used for

mounting is critical. This screen is

too heavy to be mounted with molly or

any other type of expanding wall

anchors. They will pull away and fall if

mounted to drywall. Additionally, if

other weak fasteners are used, the

Cabaret unit may fall. Be sure to use a

total of two No. 10, 3 ½ inch deck

screws on each mount (see Figure 6).

Figure 6: No. 10, 3 ½ inch

screw

Stewart Filmscreen –Cabaret 10

WALL MOUNT

Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for

substandard or faulty installations. Failure to comply with the instructions and guidance

contained in this manual may result in voiding your warranty.

1. Identify the location of wall studs where you can

secure the wall mounts.

2. Use a level to accurately position the wall mounts

on the wall (see Figure 7), and make certain that

both wall mounts are within 12 inches from either

edge of the case. This will prevent the case from

tilting to either side.

3. Drill holes through the wall mounts into the studs.

4. Use 3 ½” screws to secure the wall mounts to the

wall studs.

a. Note: These are heavy units. This screen

must be mounted to studs or onto a wall

with a continuous plywood sheath below the

surface treatment (see Figure 7).

Check to make sure the wall mount is level.

5. Carefully lift and hook the channels on the back of the

housing onto the wall mounts (see Figure 8).

6. For the minimum clearance dimensions, (see figure 9).

⚠

CAUTION

Be careful not to touch or scratch the viewing surface.

Ensure that the wall surface is level and free of undulations. Use shimming if

necessary.

This screen is too heavy to be mounted with molly or any other type of expanding

wall anchors. They will pull away and fall if mounted to drywall.

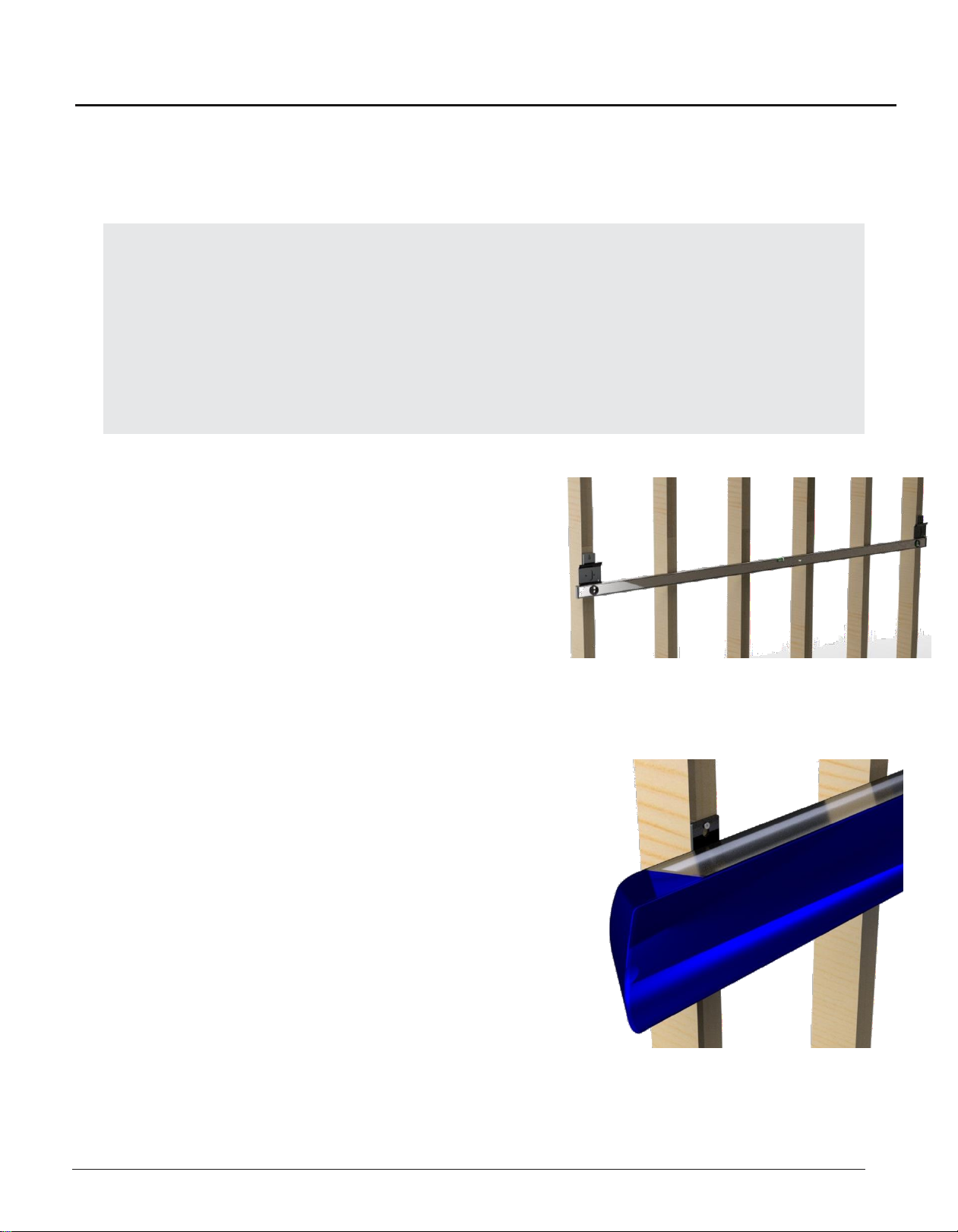

Figure 7: Wall mounts leveled

and attached to two or more wall

studs

Figure 8: Back part of case

hanging off wall mount

Indice

Altri manuali Stewart Filmscreen Schermo di proiezione

Stewart Filmscreen

Stewart Filmscreen 4-Way ScreenWall ElectriMask Manuale utente

Stewart Filmscreen

Stewart Filmscreen Cima Istruzioni originali

Stewart Filmscreen

Stewart Filmscreen A Electriscreen Manuale utente

Stewart Filmscreen

Stewart Filmscreen RP-1013 Manuale utente

Stewart Filmscreen

Stewart Filmscreen C Manuale utente

Stewart Filmscreen

Stewart Filmscreen Balon Series Manuale utente

Stewart Filmscreen

Stewart Filmscreen CM-1005 Manuale utente

Stewart Filmscreen

Stewart Filmscreen ABT Trapdoor Electriscreen Manuale utente

Stewart Filmscreen

Stewart Filmscreen Visionary Manuale utente

Stewart Filmscreen

Stewart Filmscreen Luxus Deluxe ScreenWall Manuale utente

Stewart Filmscreen

Stewart Filmscreen B Manuale utente

Stewart Filmscreen

Stewart Filmscreen Visionary Medio Manuale utente

Stewart Filmscreen

Stewart Filmscreen Fixed Frame Screen Manuale utente

Stewart Filmscreen

Stewart Filmscreen AB Electriscree Manuale utente

Stewart Filmscreen

Stewart Filmscreen WallScreen 2.5 Manuale utente

Stewart Filmscreen

Stewart Filmscreen Luxus Manuale utente

Stewart Filmscreen

Stewart Filmscreen Stealth Trapdoor Electriscreen Manuale utente

Stewart Filmscreen

Stewart Filmscreen Vertical ES EM Manuale utente

Stewart Filmscreen

Stewart Filmscreen Luxus Manuale utente

Stewart Filmscreen

Stewart Filmscreen LCD Rear-Projection TV Manuale utente

Stewart Filmscreen

Stewart Filmscreen Balon Series Manuale utente

Stewart Filmscreen

Stewart Filmscreen Balon Series Manuale utente

Stewart Filmscreen

Stewart Filmscreen Luxus ScreenWall Series Manuale utente

Stewart Filmscreen

Stewart Filmscreen Cine-W Manuale utente

Manuali Schermo di proiezione popolari di altre marche

FART PRODUKT

FART PRODUKT Standard SCREEN Manuale utente

Draper

Draper E Series Manuale

Elite Screens

Elite Screens Elite Tripod Series Manuale utente

Laarhoven

Laarhoven Companion II Manuale utente

Renogy

Renogy RMS-LFPS-US Manuale utente

Da-Lite

Da-Lite ExecutiveElectrol Manuale utente

Samsung

Samsung S*H65* Manuale utente

FONESTAR

FONESTAR PPTR-43100-FA Manuale utente

Slide Clear

Slide Clear Varro XL Manuale utente

Elite Screens

Elite Screens M85XWS1-SRM Manuale utente

OS РХ-090Н Manuale utente

Niko

Niko 10-845 Manuale utente

Speaka Professional

Speaka Professional 2357532 Manuale operativo

Sima

Sima XL-72 Manuale utente

Jasic

Jasic EVO 2.0 ET-200P Manuale utente

Elite Screens

Elite Screens Starling 2 Series Manuale utente

InFocus

InFocus SC-WALL GRY-92H Manuale

Barco

Barco OverView MVL-615 Manuale utente
