Sunnydaze Decor ATN-378 Istruzioni operative
Purchase Date: / / Order/Customer Reference Number:
Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell.
Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with
the date of purchase as well as photos of the merchandise defect, must be provided. Photos are used to determine
the cause of defects and for future quality control. Register your warranty at https://tiny.cc/SunnydazeWarranty
If you have any questions, comments or concerns, feel free to contact us by phone at 888-881-4668, by email:
STAINLESS STEEL WINE COOLER
WITH WOODEN SHELVES
ATN-378
Page 1 / 11JCF-88
NOTE: Shelves, door frame, handle and other accessories styles may vary by model and conguration.
All drawings in this manual are for reference.
Phillips Screwdriver
06/2020
Main Cabinet 1
Door Handle 1
Shelves 5
M4 x 40 mm Bolt 2
Top Left Hinge 1
Bottom Left Hinge 1
Inspect packaging to ensure all
parts are accounted for before
disposing of packing materials.
Page 2 / 11
Table of Contents
Safety Instructions ................................................................................................................... 3
Electrical Connection ............................................................................................................... 4
Technical Data ......................................................................................................................... 4
Appliance Features .................................................................................................................. 5
Handle Installation ................................................................................................................5-6
Installation Requirements......................................................................................................... 7
Operation ..............................................................................................................................8-9
Maintenance & Cleaning ........................................................................................................ 10
Troubleshooting ......................................................................................................................11
General Operating Instructions
06/2020JCF-88
Remove all packaging and labels from your wine cellar. Be sure that all parts have been included before
discarding any packaging materials. You may want to keep the box and packing materials for use at a later date.
Please read and follow all safety instructions
and operating instructions before using.
─ SAVE THESE INSTRUCTIONS ─
To register your product, visit:
https://tiny.cc/SunnydazeWarranty
Please retain your proof of purchase for warranty services.
Page 3 / 11
Important Safety Instructions
• Do not operate this or any other appliance with a damaged cord.
• Do not operate if housing is removed or damaged.
• Exercise caution and use reasonable supervision when appliance is used near children. Never allow children
to operate, play with or crawl inside the appliance. Keep packing materials away from children.
• Do not use this appliance for anything other than its intended purpose. For freestanding, indoor, household
use only. Any other use will void the warranty.
• Before performing any maintenance or cleaning, ensure that the unit is unplugged.
• Never unplug the appliance by pulling on the power cord. Always grasp the plug firmly and pull straight out
from the outlet.
• Do not clean appliance with flammable fluids. Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed.
Choose a well-ventilated area with temperatures above 60°F and below 90°F.
• Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc).This unit is
intended for indoor use only and must be installed in an area protected from the elements.
• Place the appliance on a solid, level surface.
• Do not place any other objects on top of the wine cooler.
• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this
manual. All other servicing should be referred to a qualified technician.
• Connect to properly polarized outlets only. It is recommended that a separate circuit, serving only your
appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Be sure that the plug is fully inserted into the receptacle.
• Use of an extension cord for the wine cooler is not recommended. Directly connect the wine cooler to an
electrical outlet.
• To protect against electric shock, do not immerse appliance, plug or cord in water or other liquids.
• Avoid installing the unit in high-moisture areas.
• This appliance is designed to be freestanding only.
• Do not operate the unit with wet hands, while standing on a wet surface, or while standing in water.
• Do not use solvent-based cleaning agents or abrasives on the interior of the cooler. These cleaners may
damage or discolor the interior.
• Keep fingers out of pinch point areas and be careful when closing doors.
• This appliance is designed for storing and cooling wines. Do not store perishable food or medical products
within the unit.
• To ensure proper internal air circulation, do not overfill the wine cooler.
• When disposing of refrigeration appliances, special handling is often required. It is the consumer’s
responsibility to comply with federal and local regulations when disposing of this product.
Risk of child entrapment and suffocation. Before you throw away this or an old unit, remove the
door. Leave the shelves in place, so that children may not easily climb inside.
To reduce the risk of re, electrical shock or injury when using your appliance,
follow these basic precautions:
06/2020JCF-88
Page 4 / 11

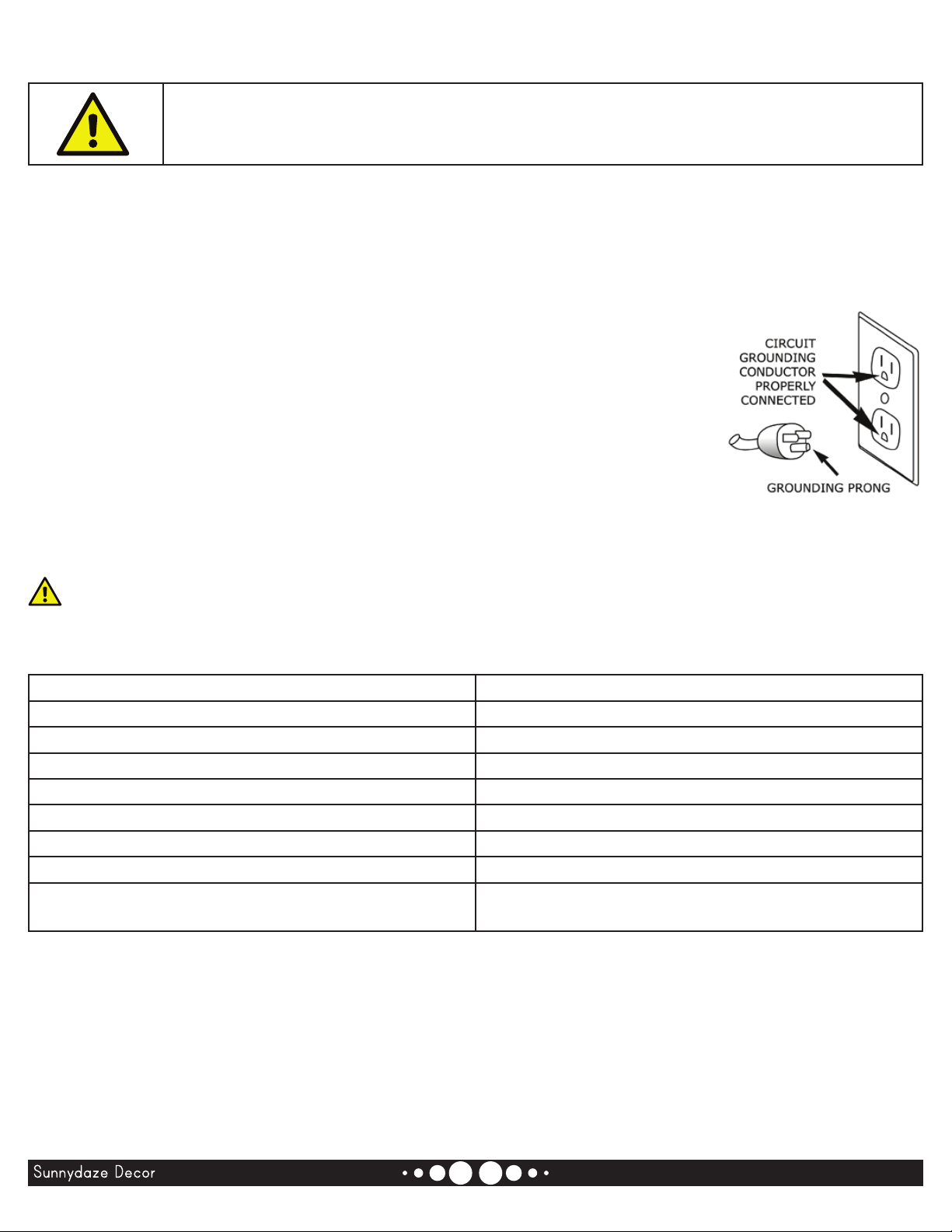

Electrical Connection
Improper use of the grounded plug can result in the risk of electrical shock.
If the power cord is damaged, frayed or shows cracks or abrasions across its
length, have it replaced at an authorized service center.
For your protection, this unit is equipped with a 3-conductor cord set that has a molded 3-prong grounding-
type plug, and should be used in combination with a properly connected grounding-type outlet. A ground fault
circuit interrupter (GFCI) type is not recommended because it may cause interruption of operation.
• Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For
personal safety, this appliance must be properly grounded.
• The cord should be secured behind the unit and not left exposed or dangling to
prevent accidental injury.
• A standard electrical supply (110V AC only, 60Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is
required.
• Do not connect to a circuit that is turned on and off by a switch.
• Never unplug the unit by pulling the power cord. To disconnect the appliance,
always grip the plug firmly and pull straight out from the wall outlet. When moving
the unit, be careful not to damage the power cord.
• The unit should always be plugged into its own individual electrical outlet with a voltage rating that matches
the rating label on the unit.
CAUTION:
Do not use an adapter or an extension cord with this unit.
Technical Data

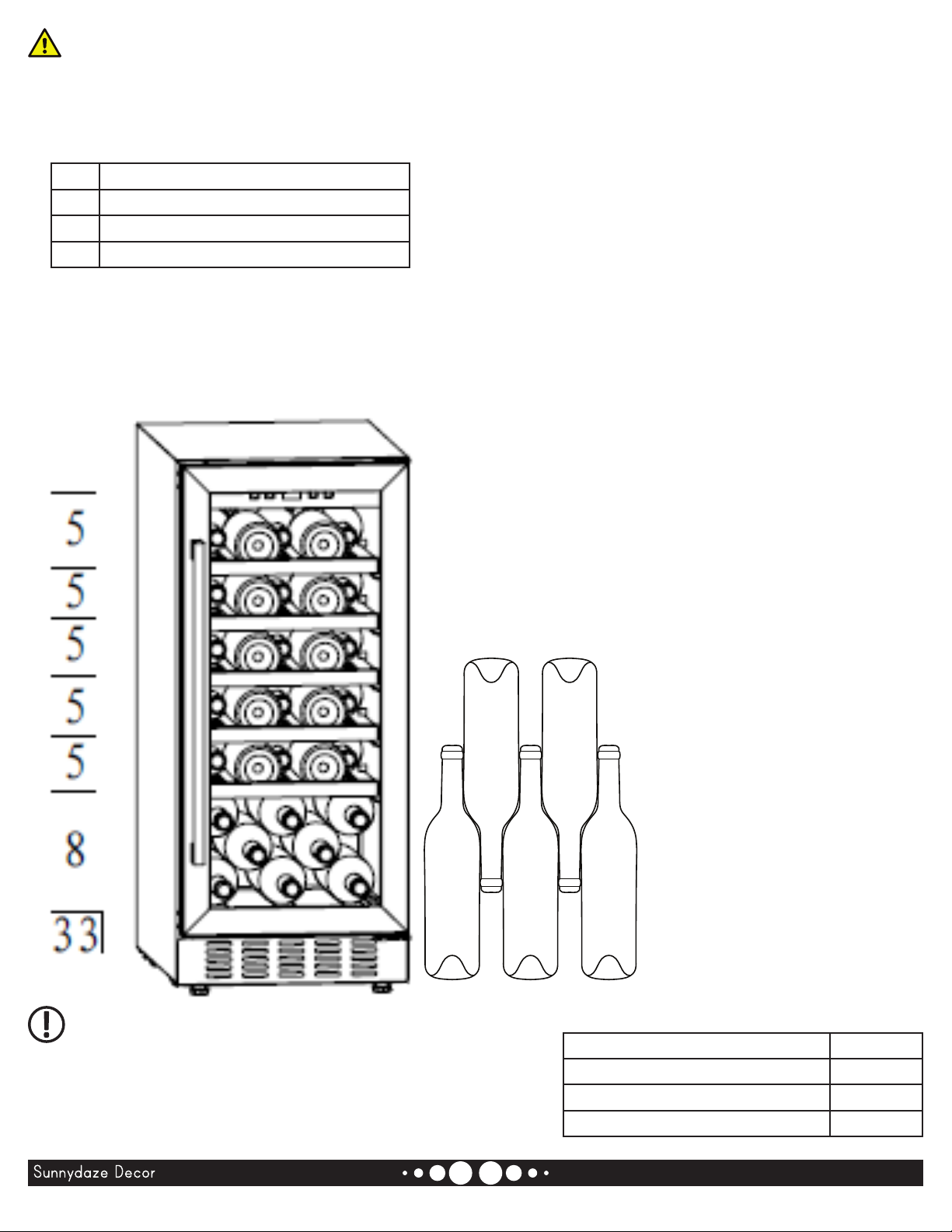

1. The Approx. Net Weight includes shelves, and the Unit Dimension is without handle on the door.
2. Loading capacity will vary in terms of dierent way of bottle arrangement or dierent bottle sizes (standard
Bordeaux with 750ml is applied here).
3. The product height could be adjusted from 870 to 890 mm by 4 plastic feet.
4. Power consumption is calculated when the ambient temperature is 32.2°C and the inner temperature is set
to 12.8°C.
Product Model JCF-88
Capacity 33 bottles/750 ml
Voltage/Frequency 115V~
Frequency 60Hz
Power Consumption (kWh/24h) 0.880 (32.2°C ambient temp and 12.8°C inner temp)
Refrigerant/Weight R600a/0.64oz
Total Volume 3.04 cu.ft
Approx. Net Weight 66.1 lbs (30 kg)
Unit Dimensions (WxDxH) 14.96" x 22.4" x 34.06"
380 x 570 x 865 mm
06/2020JCF-88
Page 5 / 11

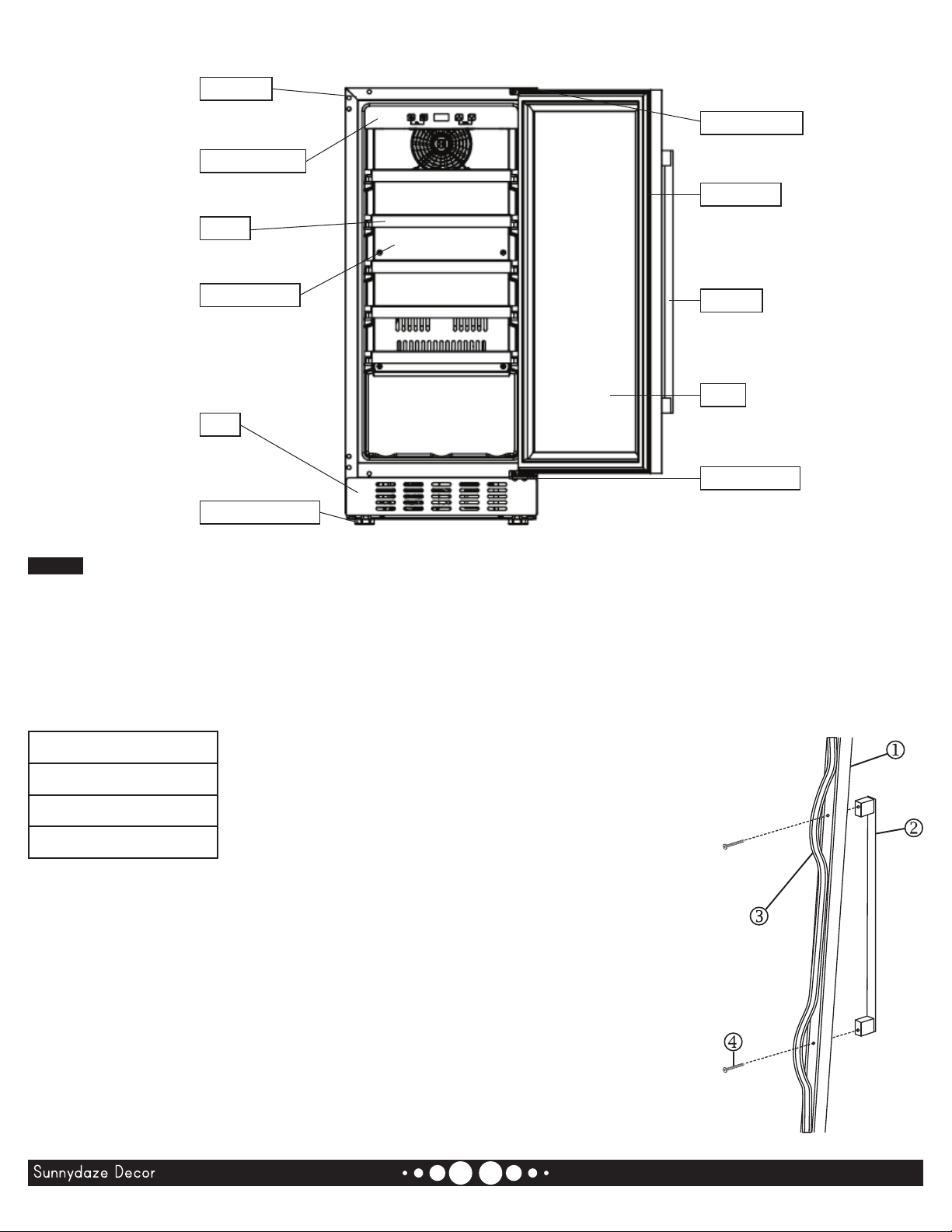

Appliance Features
Cover Board
Grill
Housing
Control Panel
Adjustable Foot
Shelf
Upper Hinge
Door Seal
Handle
Door
Lower Hinge
NOTE: Shelves, door frame, handle and other accessories styles may vary by model and conguration.
All drawings in this manual are for reference.
Handle Installation
1. On the door interior, gently and carefully pull the door seal out to expose the two
small holes where the handle will be mounted.
2. Align the handle with the holes on the outside of the door.
3. Insert the included bolts into the small holes on the inside of the door, use a
screwdriver (not included) to tightly fasten the handle.
4. Press the door seal back into place to cover the bolts, ensuring that the seal is
in full contact with the door.
jDoor
kHandle
lDoor Seal
mBolts
06/2020JCF-88
Page 6 / 11
The wine cooler door is installed opening from left to right.
To reverse the opening direction follow the instructions as noted below.
Assistance is recommended when reversing the door.

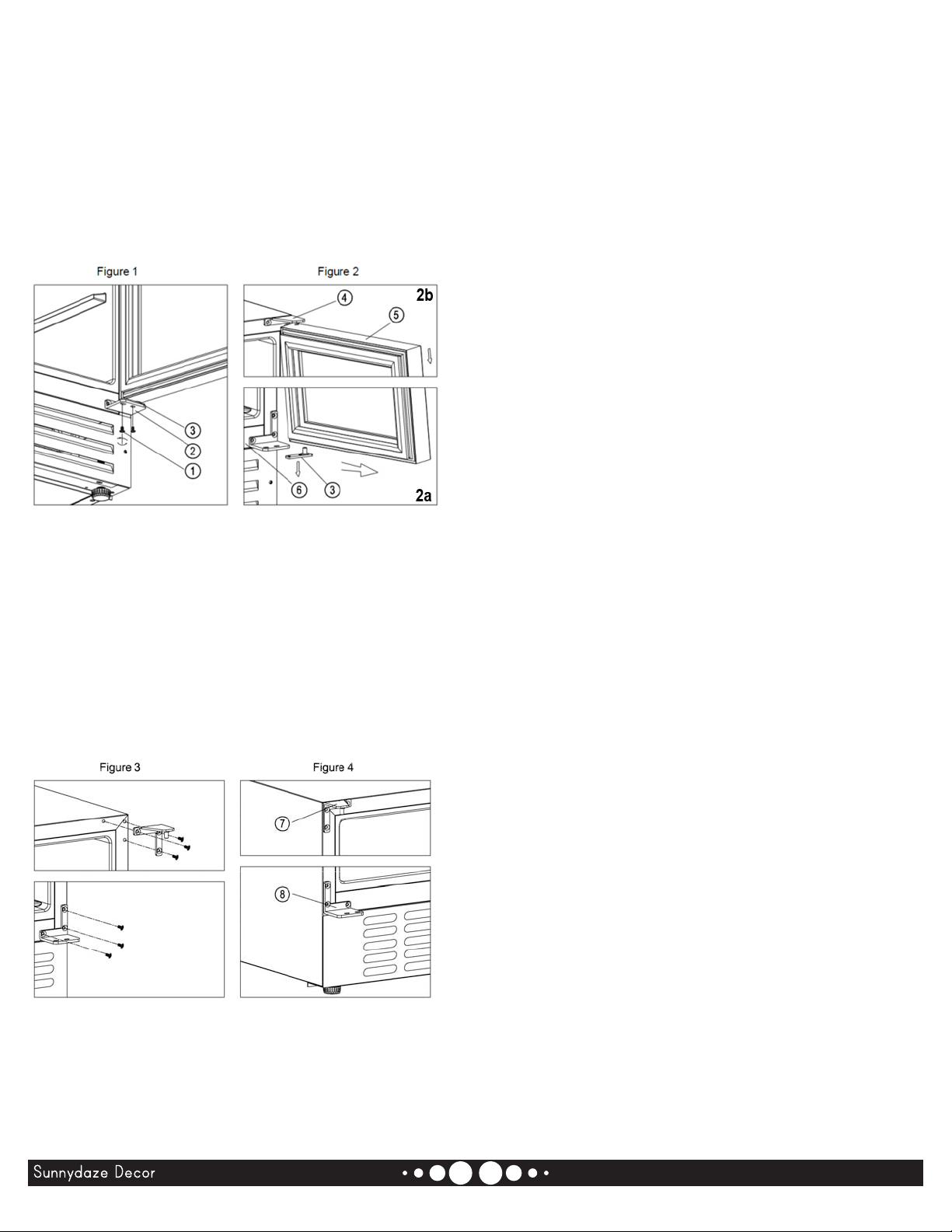

Reversing the Door
j Lower Hinge Screws
k Right Lower Hinge
l Hinge Plate
m Top Right Hinge
nDoor
oCabinet
p Top Left Hinge
q Left Lower Hinge
7. Install the top left hinge and left lower hinge to the left side of the cabinet. [Figure 4]
8. Turn the door 180 degrees and insert the hinge plate into the axis hole on the bottom left side of the door.
9. Holding the door at an slight angle, align the hole on the top left side of the door with the pin on the top left
hinge. Once connected, straighten the door so the hinge plate is aligned with the left lower hinge.
10. Holding the door steady, fasten the door to the hinge using the lower hinge bolts and a screwdriver.
1. Open the door to a 90 degree angle and keep it steady; assistance is recommended.
2. Use a screwdriver to unscrew the two bolts from the right lower hinge. [Figure 1]
3. Slowly pull the bottom of the door outward until it is o the lower right hinge. [Figure 2a]
4. Gently pull the door downwards to remove it from the top right hinge. [Figure 2b]
5. Carefully remove the hinge plate from the bottom door axis hole. [Figure 2a]
6. Use a screwdriver to remove the bolts from the top right hinge and lower right hinge from the cabinet. Save
the hinges, in the event the door needs to be reversed to open from left to right. [Figure 3]
06/2020JCF-88
Page 7 / 11

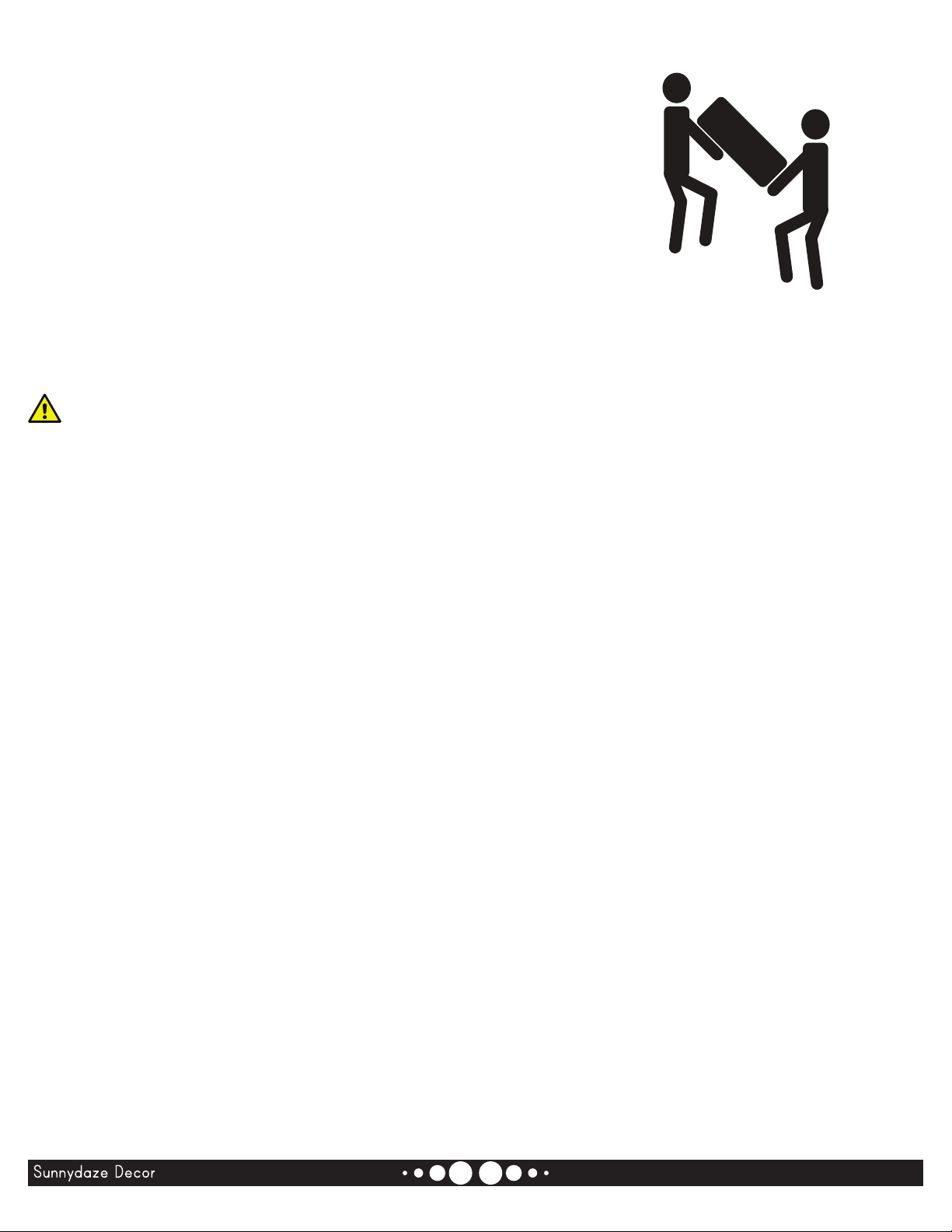

Installation Requirements
Before connecting the appliance to the power source, let it stand upright for approximately 24 hours. This
will reduce the possibility of a malfunction in the cooling system from handling during transportation.
Do not tilt the appliance more than 45° when moving it into position.
The appliance must be on a dry, rm and level surface that is able to support the entire weight of a fully
loaded unit. It is important for the appliance to be level in order to work properly. If needed, adjust the height
by rotating the adjustable feet.
Do not use the appliance in locations that are wet or are exposed to extreme heat or cold.
For indoor, residential use only. Do not install outside or in any location that is not climate controlled. Dry
and/or air-conditioned locations are recommended to avoid condensation on the door.
Keep the appliance away from direct sunlight or other heat sources.
The appliance is designed to for freestanding installation only.
Clean the interior surface with lukewarm water and a soft cloth before the rst use.

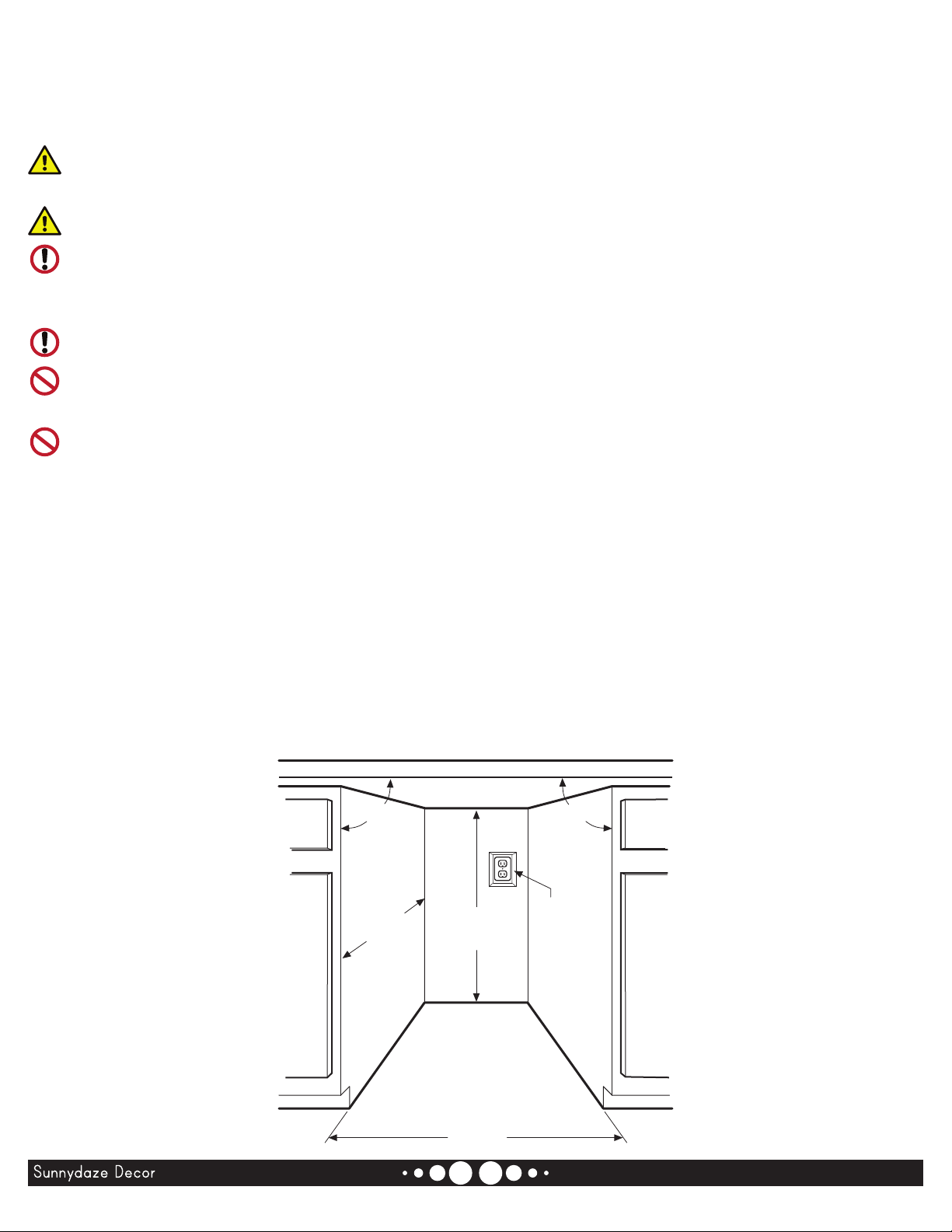

Under-Counter Installaon
Select a location where the unit can be plugged directly into a grounding-type outlet. See Electrical Connection
(page 4) for guidelines.
Place the unit on a non-combustible pad such as a carpet remnant to help protect the oor surface when
sliding the unit into position.
To ensure proper service access, ventilation and optimal performance, allow at least 2-3 inches of clearance
around the back, sides and top of the unit. This unit can NOT be installed behind closed doors; front frill MUST
remain unobstructed.
When installing against cabinet or wall that extends beyond front edge of unit, allow at least 90° door swing
clearance to provide the shelves necessary space to slide out.
17"
24
min.
90° 90°
Recessed
electrical
outlet*
*
Proper built-in,
under-counter
installation requires that
both electrical outlet and plug
be completely recessed to ensure
unit will fit flush against rear wall
36
min.
1/4"
1/2"
min.
06/2020JCF-88
Page 8 / 11
Operation
Before Operaon Checklist
Before power is turned on, make sure the following steps have been taken:
□ PACKING MATERIAL: All packing material and tape have been removed from the interior and exterior of the unit.
□ CLEANING: Clean the appliance and check the drainage pipe to ensure a good connection.
□ STILL AND LEVEL: Ensure the appliance is level on the rm and dry oor and has remained upright and still
for 24 hours.
□ CLEARANCE: The appliance has clearance of 2-3 inches around the back, sides and top of the unit to ensure
proper ventilation.
□ POWER ON: Allow the interior to cool to the desired temperature before storing beverages.

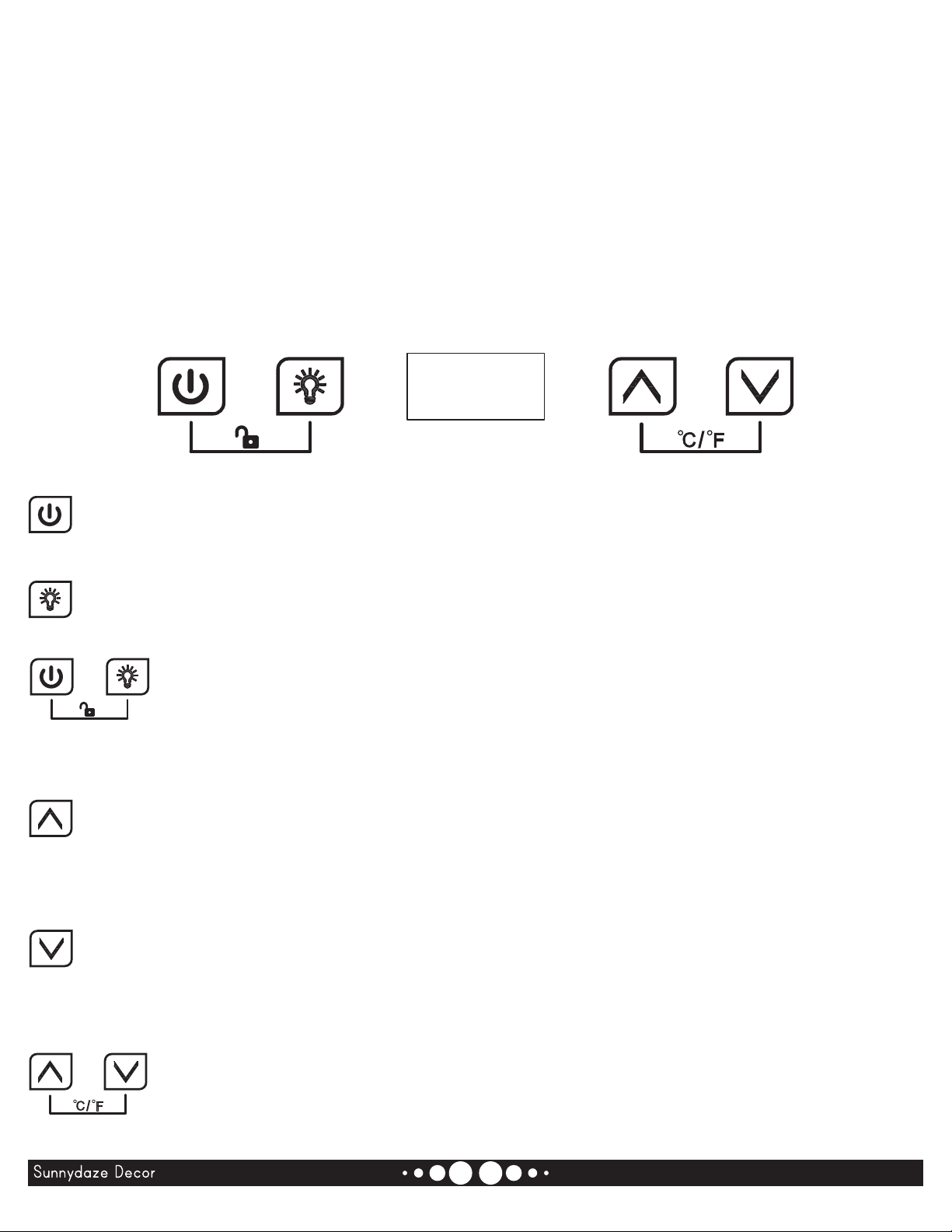

Control Panel
ON/OFF
Turns the unit on and o. Press and hold the button for approximately 3 seconds.
Press the button to turn the inner LED light on or o. The button does not function in stand-by mode.
Press the button once, the LED display will ash and show the current set temperature. Each press of the UP
button will increase the set temperature by 1°F. Flashing will stop after 5 seconds and the temperature setting
will save. The LED display will return to showing the actual temperature inside the unit.
Press the button once, the LED display will ash and show the current set temperature. Each press of the
DOWN button will decrease the set temperature by 1°F. Flashing will stop after 5 seconds and the temperature
setting will save. The LED display will return to showing the actual temperature inside the unit.
Switch between Fahrenheit and Celsius by pressing the UP and DOWN button at the same time.
To lock or unlock the control panel, the ON/OFF and LIGHT button must be pressed at the same time. Press
and hold both buttons for approximately 3 seconds. The unit will beep when the control panel (un)locks.
06/2020JCF-88
Page 9 / 1106/2020
Aenon
1. The cooling temperature can be set from 41°F - 68°F.
2. Alarm sound: when a system malfunction occurs and the alarm sounds, press any key on the control panel to cancel
the alarm sound.
3. Error code: an alarm will be set o when an error occurs. Press any button to turn the alarm o.
Wine Storage
• Five-shelf loading capacity: 33 bottles (standard Bordeaux with 750ml)
• Loading capacity will vary in terms of bottle arrangement and bottle sizes.
• Each shelf is designed to hold 1 or 2 layers of wine bottles. Do not exceed 2 layers of wine bottles on each shelf.
• Open the door far enough to pull the
shelves straight out.
• Each shelf pulls out partly to store
wine bottles easily.
• If the wine cooler will not be used
for an extended period of time, it is
recommended to power it off, clean
it carefully, and open the door for
ventilation.
• Although optimal storage
temperature is generally regarded to
be 53-57°F, different varietals of wine
require different service temperature
settings. The recommended
temperature ranges for serving
different varietals of wine are listed
below.
Red Wine 59-65°F
White Wine 48-57°F
Rose Wine 50-52°F
Champagne & Sparkling Wine 41-47°F
HELPFUL HINTS
Allow the wine cooler to reach the desired temperature before
adding wine bottles.
If the unit has been powered o, wait at least 5 minutes before
powering it back on.
E1 Temperature Sensor - Open circuit
E2 Temperature Sensor - Short Circuit
E3 Defrost Sensor - Open Circuit
E4 Defrost Sensor - Short Circuit
JCF-88
Page 10 / 11
Maintenance and Cleaning
Moving the Appliance
• Unplug the power supply from the electrical outlet.
• Remove all contents from the appliance.
• Defrost and clean the unit before moving.
• Tape the door shut to prevent it from opening.
• Transport the appliance in an upright position.
• When moving the appliance, do not tip the appliance more than 45°.
Power Cut/Power Outage
Avoid opening the door as much as possible. During very long power cuts/outages, take the necessary
measures to protect your wine from becoming too warm or hot.
Wait at least 5 minutes after power is disconnected or a power outage to restart the appliance.
Out of Service for Long Time
Remove all bottles and shelves from the appliance, turn the power o, defrost, clean, and dry all surfaces.
Place the shelves back inside the unit and leave the door open to prevent mold.
Cleaning
• Unplug the appliance and remove all bottles and shelves before cleaning.
• Clean the appliance with warm water and a soft cloth or sponge.
• Do not use organic solvents, alkaline detergent, boiling water, washing powder or acid liquid etc.
• Do not flush the compartment of the appliance.
• Regularly clean surfaces that can come in contact with accessible drainage systems.
use alkaline detergents, solvents, brushes or boiling water to clean the unit.
06/2020
45º
JCF-88
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Sunnydaze Decor Elettrodomestico da cucina
