SAVE CONNECT module

User Manual GB

254977 | v6

E&OE

Systemair UAB reserves the rights to change their products without notice.

This also applies to products already ordered, as long as it does not affect the previously agreed specifications.

Systemair is not liable or bound by the warranty if these instructions are not adhered to during installation or service.

254977 | v6

Contents

1 About the SAVE CONNECT module ......................1

2 Installation and configuration .............................1

2.1 Connection to Internet with Ethernet

cable...................................................2

2.2 Wireless connection using WPS

function ...............................................2

2.3 Wi-Fi connection setup using a control

panel...................................................3

2.4 Wi-Fi connection setup using a mobile

application............................................3

3 Resetting to default settings ..............................5

4 LED indicator codes..........................................5

5 First login to SAVE CONNECT application ...............5

6 Setting the SAVE CONNECT module to Modbus

TCP converter mode ........................................5

7 Declaration of Conformity .................................8

8 USER AGREEMENT ...........................................9

About the SAVE CONNECT module | 1

1 About the SAVE CONNECT module

SAVE CONNECT module is a device that allows to control SAVE ventilation unit with a mo-

bile application or any internet browser. The SAVE CONNECT module also provides addi-

tional features: software updates, Local Modbus TCP to RTU conversion mode,

configuration file storing/import and export functions and remote technical service

possibilities.

Note:

SAVE CONNECT module uses TCP/IP port 8989 for outgoing connections.

The package contains: SAVE CONNECT module, power supply cable and adapter (230 V),

Modbus cable RJ10, CE/CD-diverting plug, Ethernet cable and 4 adhesive magnets for

easy installation.

2 Installation and configuration

Units with external control panel need a CE/CD diverting plug since both external control

panel and SAVE CONNECT module use the same socket in the connection box and on the

main circuit board.

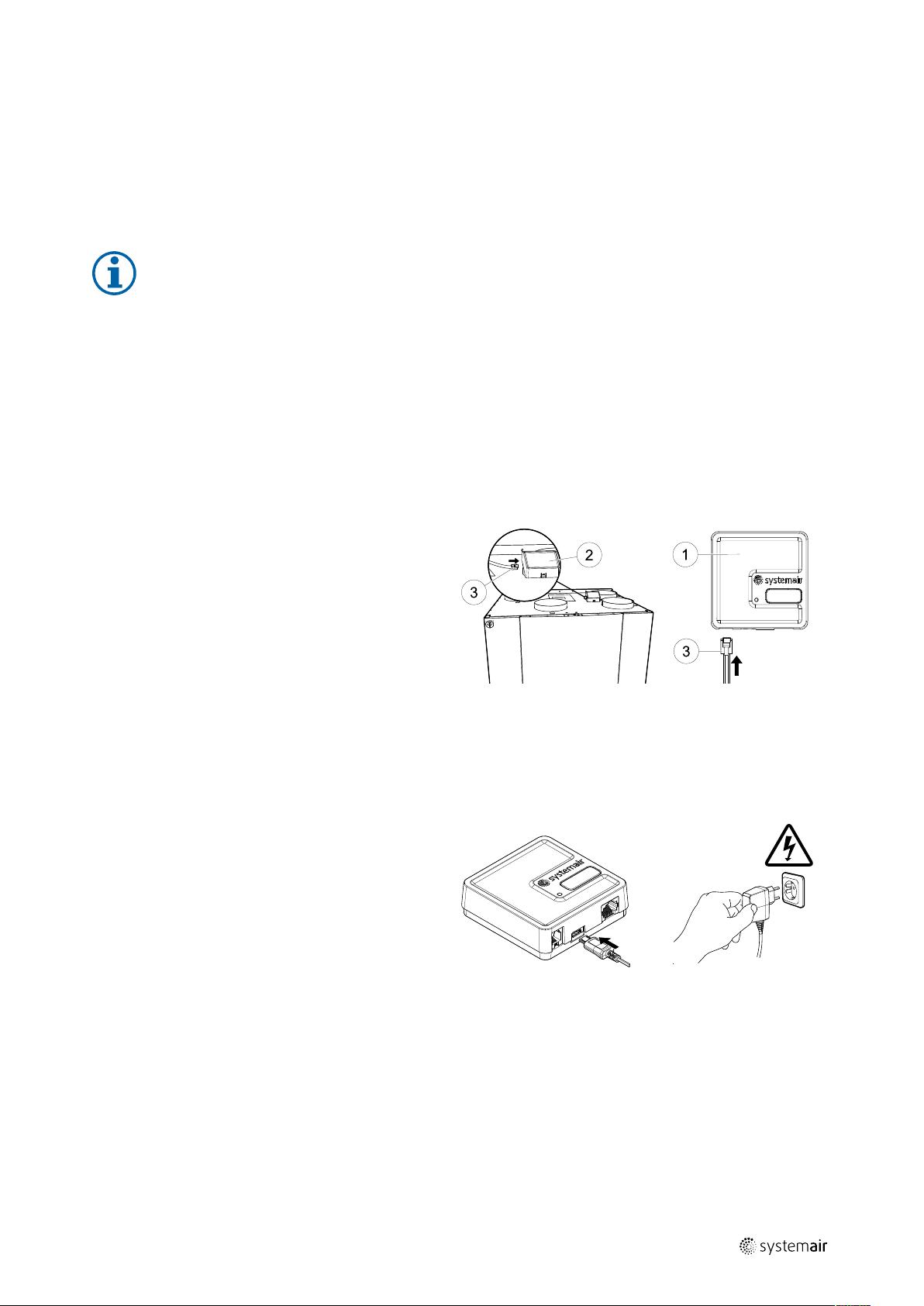

1 Connect the SAVE CONNECT module

(pos. 1 ) to the connection box (pos. 2)

with a cable RJ10 (pos. 3).

If the unit has more than one control

panel, disconnect one of the control

panels from the connection box.

Connect the control panel and SAVE

CONNECT module to CE/CD-diverting

plug. Then connect CE/DC-diverting plug

to the connection box using a cable

(RJ10).

2 Connect power to the SAVE CONNECT

module (micro USB port).

After connection to power supply, green

LED will start blinking fast.

Fast blinking indicates that the SAVE

CONNECT module is trying to connect to

the internet.

Different options are available for connection to the internet:

• Ethernet cable connection. See 2.1 Connection to Internet with Ethernet cable, page 2.

If Wired connection is an option (recommended).

• Wireless connection using WPS function. See 2.2 Wireless connection using WPS func-

tion, page 2.

If wired connection is not an option and home router supports WPS function.

• Wi-Fi connection setup using control panel. See 2.3 Wi-Fi connection setup using a

control panel, page 3.

254977 | v6

2| Installation and configuration

If wired connection is not an option and a home router does not support WPS function.

• Wi-Fi connection setup using a mobile application. See 2.4 Wi-Fi connection setup us-

ing a mobile application, page 3.

If wired connection is not an option and a home router does not support WPS function

and control panel is not available.

2.1 Connection to Internet with Ethernet cable

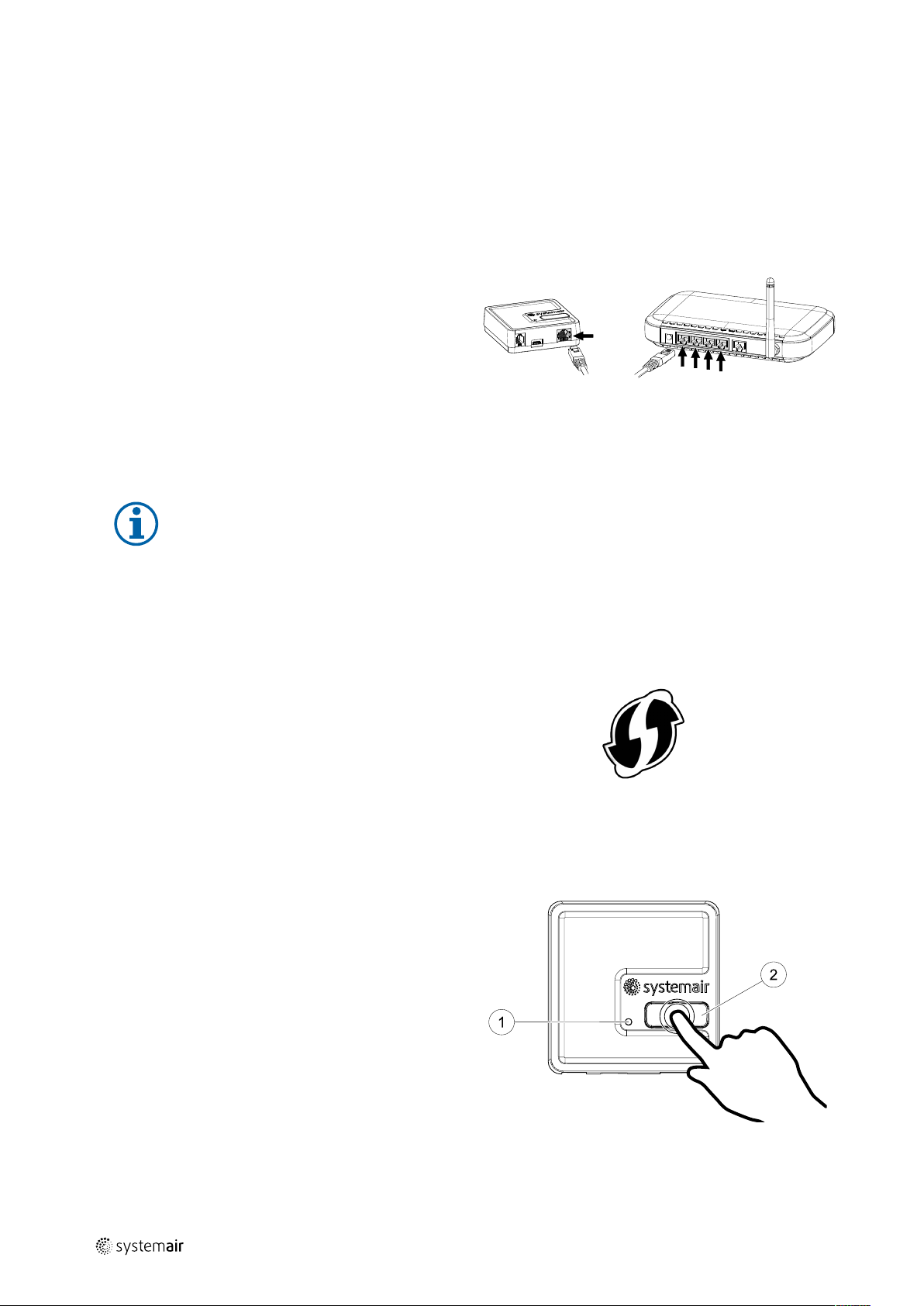

1 Plug the Ethernet cable to the SAVE

CONNECT module and the other end to

the cable to any free Ethernet socket on

your router.

2 The SAVE CONNECT module will auto-

matically try to establish connection to

the Cloud server. When connection is

successful, green LED on the SAVE CON-

NECT module will start blinking slow.

Note:

Green LED blinking twice per second indicates failure to connect to the Cloud

server. Check the Ethernet cable or Internet connection.

Proceed to chapter 5 First login to SAVE CONNECT application for login

instructions.

2.2 Wireless connection using WPS function

1 Start WPS (Wi-Fi Protected Setup) on your wireless

router (see your router manual for WPS activation).

Make sure your wireless router supports WPS function.

If your router does not support WPS function, see chap-

ter 2.3 Wi-Fi connection setup using a control panel,

page 3 for detailed information how to set up Wi–Fi

connection using control panel.

2 Once WPS is activated, press and hold

activation button (pos. 2) on the SAVE

CONNECT module for 5 seconds until the

red LED starts blinking twice per second

and then release activation button.

3 When the SAVE CONNECT module suc-

cessfully connects to the router (should

not take longer than 1 minute), LED on

the SAVE CONNECT module will start

blinking once per second in green

colour.

If LED continues to blink fast in red col-

our, it means Wi-Fi connection was not

254977 | v6

Installation and configuration | 3

established. Reset the SAVE CONNECT

module to default settings and try again.

See chapter 3 Resetting to default set-

tings, page 5.

4 Once the SAVE CONNECT module is connected to the

wireless router, it will automatically establish connec-

tion with the Cloud server (it should not take longer

than 1 minute). The LED will continue blinking once per

second in green colour.

Proceed to chapter 5 First login to SAVE CONNECT ap-

plication for login instructions.

2.3 Wi-Fi connection setup using a control panel

If your wireless router does not support WPS, Wi-Fi connection should be set up manually.

Therefore you need to find Wi-Fi name and add password using control panel.

1. In control panel go to Service -> Communication -> WLAN settings menu.

2. Press Scan for networks button. The SAVE CONNECT module will search for avail-

able Wi-Fi networks (should not take longer than one minute).

3. After search is complete, find the network name to which the SAVE CONNECT module

should connect and select it. Wi-Fi network must be password protected.

4. After required Wi-Fi name selection, password pop-up window appears in control panel

screen. Insert your Wi-Fi network password.

5. If password is correct and connection to Wi-Fi network is successful, the SAVE CON-

NECT module will establish connection to Cloud server automatically. The SAVE CON-

NECT module LED will start blinking slowly in green colour.

Proceed to chapter 5 First login to SAVE CONNECT application for login instructions.

2.4 Wi-Fi connection setup using a mobile application

Note:

Location and Storage permissions have to be enabled for SAVE CONNECT

application.

If previously described connection methods are not available – Wi-Fi settings can be set

up using the Mobile Application.

254977 | v6

4| Installation and configuration

1. Activate a hotspot mode by pressing a

button on the SAVE CONNECT module 3

times in 3 seconds. Orange colour LED

(1) should start blinking.

The SAVE CONNECT module will reboot

and switch to the hotspot mode – broad-

casting its own Wireless Local Area Net-

work (WLAN). Name of the broadcasted

WLAN matches the IAM ID (IAM_

2480000xxxxx).

2. Connect to the broadcasted WLAN

(IAM_2480000xxxxx). The ID is printed

on the backside of the SAVE CONNECT

module.

This network is open and no password is

required to connect to it. The SAVE CON-

NECT WLAN will be broadcasted for 5

minutes or until the configuration is

completed.

3. Launch the SAVE CONNECT application

once connected to the SAVE CONNECT

WLAN (for application download and set-

tings instructions refer to 5 First login to

SAVE CONNECT application).

Application will automatically scan for

available Wi-Fi networks, this process

can take up to 20 seconds. Choose de-

sired network and enter the security

password. Press SAVE.

This will enable the SAVE CONNECT mod-

ule to connect to your home network.

254977 | v6

Resetting to default settings | 5

Note:

The SAVE CONNECT module is not allowed to connect to unprotected networks!

Make sure your selected Wi-Fi network has a password.

If the Wi-Fi network list do not appear or application shows an error, check

application permissions in the device settings.

4. Quit the mobile application and connect to your usual Wi-Fi.

5. Proceed to chapter 5 First login to SAVE CONNECT application for login instructions.

3 Resetting to default settings

In case of connection failure, the SAVE CONNECT module have to be reset. Disconnect the

power supply cable, press and hold the activation button and while it is pressed, recon-

nect power supply cable. The red LED will start blinking, wait until it stops blinking (~10

seconds) and then release the activation button.

4 LED indicator codes

WLAN Ethernet Cloud RED LED GREEN LED

Connected —Not Connected Blinks fast —

Disconnected —Disconnected Blinks slow —

Connected —Connected —Blinks slow

—Connected Not Connected —Blinks fast

—Disconnected Disconnected —Blinks fast

—Connected Connected —Blinks slow

Fast blinking — every 500 milliseconds. Slow blinking — every 2 seconds.

5 First login to SAVE CONNECT application

Download and install SAVE CONNECT mobile application on your device.

Application is available for both Android and iOS operating systems.

Application also be accessed directly through the website (https://homesolutions.sys-

temair.com) by using any web browser.

• Change language if necessary by pressing the language icon in the top right corner.

• Create new account if you do not have one and follow the steps in the mobile

application.

6 Setting the SAVE CONNECT module to Modbus TCP converter mode

The SAVE CONNECT module is configured to work in a Cloud mode by default – allowing

the customer to connect to the SAVE unit using the mobile application. Alternatively, it

can be switched to a Modbus TCP converter mode. This change can be done in the SAVE

CONNECT module interface.

254977 | v6

6| Setting the SAVE CONNECT module to Modbus TCP converter mode

1 Find the SAVE CONNECT module IP ad-

dress. The IP address is dynamic and will

be different at different installations.

2 Open your internet browser and enter

the IP address of your SAVE CONNECT

module (e.g. http://172.16.10.50).

3 Type in the SAVE CONNECT module in-

terface password in the opened login

screen.

The password can be found on a back la-

bel of the SAVE CONNECT module.

A.Main Board (MB), Control panel (HMI) and language pack (HMI resources) versions

stored in the SAVE CONNECT module. The SAVE CONNECT module can be used to up-

date SAVE units with older firmware versions.

B. Connection status of the SAVE CONNECT module.

C. Connection mode:

• Homesolutions Cloud mode allows the SAVE CONNECT module to connect to Home-

solutions Cloud enabling the user to use the mobile APP (default selection).

254977 | v6

Altri manuali per SAVE CONNECT

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali System air Unità di controllo

System air

System air Villavent Manuale utente

System air

System air SPLIT-AHU Kit 0-10V LNS Manuale utente

System air

System air PKI-C Series Manuale utente

System air

System air SYSCONTROL CWC 02 Manuale utente

System air

System air PCA 1000D Manuale utente

System air

System air fantech ECO-FEEL 414729 Manuale utente

System air

System air TCA 150D2 Manuale utente

System air

System air Topvex Series Manuale utente

System air

System air HHFlex C Manuale utente

System air

System air EC Vent Manuale utente

System air

System air SPI Manuale utente

System air

System air IAM Manuale utente

System air

System air AM-PKI Manuale utente

System air

System air BOR-S Series Manuale utente

System air

System air IAM Manuale utente

System air

System air TControl POD glass 3s white Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
