Tektronix RSA5100B series Manuale utente
RSA5BUP (Options PFR, 50, PFR50)
RSA5100B Series Real-Time Signal Analyzers
Preamp and Precision Frequency Reference Upgrades
ZZZ
Instructions
xx
www.tektronix.com
*P075105901*
075-1059-01
Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries
or suppliers, and are protected by national copyright laws and international treaty provisions.
Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication
supersedes that in all previously published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
Service safety summary
Only qualified personnel should perform service procedures. Read this Service
Safety Summary and the General Safety Summary located in the RSA5100B
Series Real-Time Signal Analyzers Service Manual before performing any service
procedures.
Do not service alone. Do not perform internal service or adjustments of this
product unless another person capable of rendering first aid and resuscitation is
present.
Disconnect power. To avoid electric shock, switch off the instrument power, then
disconnect the power cord from the mains power.
Use care when servicing with power on. Dangerous voltages or currents may exist
in this product. Disconnect power, remove battery (if applicable), and disconnect
test leads before removing protective panels, soldering, or replacing components.
To avoid electric shock, do not touch exposed connections.
Kit description
This kit describes the installation of the following upgrade options:
Option PFR: Precision Frequency Reference for the RSA5100B Series
Option 50: Internal Preamp for the RSA5103B and RSA5106B
Option PFR50: Internal Preamp with the Precision Frequency Reference
for the RSA5103B and RSA5106B
Products
RSA5103B. All serial numbers
RSA5106B. All serial numbers
RSA5115B. All serial numbers
RSA5126B. All serial numbers
RSA5100B Series Options 50, PFR, PFR50 Upgrades 1
Kit description
Option 50 kit parts list
Quantity Part number Description
1 ea 071-2191-xx MANUAL, TECH; SVCPT-UPG; TEKTRONIX
SUPPLEMENTAL INFORMATION SHEET FOR THE
PEOPLES REPUBLIC OF CHINA; CHINA ROHS
1 ea 075-1059-xx INSTRUCTIONS, UPGRADE: RSA5BUP OPTIONS PFR,
50, PFR50
1 ea 850-0296-xx MFG ASSY; RSA5BUP 50
1ea N/A LABEL, MANUFACTURED; OPTION KEY UPGRADE
LABEL 2.100 X 2.700, SAFETY CONTROLLED
1ea N/A LABEL, MANUFACTURED; PRODUCT LABEL, SAFETY
CONTROLLED
Option PFR kit parts list
Quantity Part number Description
1 ea 071-2191-xx MANUAL, TECH; SVCPT-UPG; TEKTRONIX
SUPPLEMENTAL INFORMATION SHEET FOR THE
PEOPLES REPUBLIC OF CHINA; CHINA ROHS
1 ea 075-1059-xx INSTRUCTIONS, UPGRADE: RSA5BUP OPTIONS PFR,
50, PFR50
1 ea 863-0956-xx CKT BD; RSA5BUP PFR
1ea N/A LABEL, MANUFACTURED; OPTION KEY UPGRADE
LABEL 2.100 X 2.700, SAFETY CONTROLLED
1ea N/A LABEL, MANUFACTURED; PRODUCT LABEL, SAFETY
CONTROLLED
Option PFR50 kit parts list
Quantity Part number Description
1 ea 071-2191-xx MANUAL, TECH; SVCPT-UPG; TEKTRONIX
SUPPLEMENTAL INFORMATION SHEET FOR THE
PEOPLES REPUBLIC OF CHINA; CHINA ROHS
1 ea 075-1059-xx INSTRUCTIONS, UPGRADE: RSA5BUP OPTIONS PFR,
50, PFR50
1 ea 850-0296-xx MFG ASSY; RSA5BUP 50
1 ea 863-0956-xx CKT BD; RSA5BUP PFR
2 RSA5100B Series Options 50, PFR, PFR50 Upgrades
Installation instructions
Quantity Part number Description
1ea N/A LABEL, MANUFACTURED; OPTION KEY UPGRADE
LABEL 2.100 X 2.700, SAFETY CONTROLLED
1ea N/A LABEL, MANUFACTURED; PRODUCT LABEL, SAFETY
CONTROLLED
Installation instructions
This section contains all procedures needed to install the required components.
Minimum tool and equipment list
The following tools are required to for installation of this kit. All tools are
standard tools that are readily available.
Item Name Description
1Screwdriver handle (magnetic) Torque driver. Accepts 14 inch
hex-head driver tips
2 No. 2 Phillips or Pozidriv tip Phillips or Pozidriv-driver tip for number
2 size screw heads
3T-15 TORX tip TORX driver tip for T-15 size screw
heads
4T-20 TORX tip TORX driver tip for T-20 size screw
heads
55/16” hex wrench Open end wrench to remove and install
semi-rigid cables
These instructions are for qualified service personnel who are familiar
with servicing the product. If you need further details for disassembling or
reassembling the product, refer to the RSA5100B Series Real-Time Signal
Analyzers Service Manual, Tektronix part number 077-0903-XX.
RSA5100B Series Options 50, PFR, PFR50 Upgrades 3
Installation instructions
Remove covers
NOTE. Right-side or left-side references in these instructions assume you are
viewing the instrument from the front panel.
WARNING. To avoid electric shock, switch off the instrument power, then
disconnect the power cord from the mains power. Failure to do so can cause
injury or death.
1. Remove the power cord.
2. If it is installed, pull the front cover off the instrument.
3. Remove the two T-15 Torx-head screws that attach the plastic carrying handle
to the side of the instrument. (It is not necessary to remove the black metal
handles.) (See Figure 1.)
4. Remove four T15 Torx-head screws along each side that attach the top and
bottom covers to the instrument, and two T20 screws near the front edge of
the top cover (next to the folding handles).
5. Remove the top and bottom covers. Remove the top cover by pulling it
straight back about 1 inch. Pull out on the sides of the top cover, flexing the
sides slightly to clear the instrument chassis, and pull the top cover away
from the instrument.
6. Turn the instrument over so it is resting on its top.
7. Remove the three T-15 Torx-head screws that attach the lower trim panel to
the chassis, and lift the lower trim panel from the instrument.
8. Remove the 18 T15 Torx-head screws that attach the internal bottom cover to
the chassis, and then lift the internal bottom cover away.
4 RSA5100B Series Options 50, PFR, PFR50 Upgrades
Installation instructions

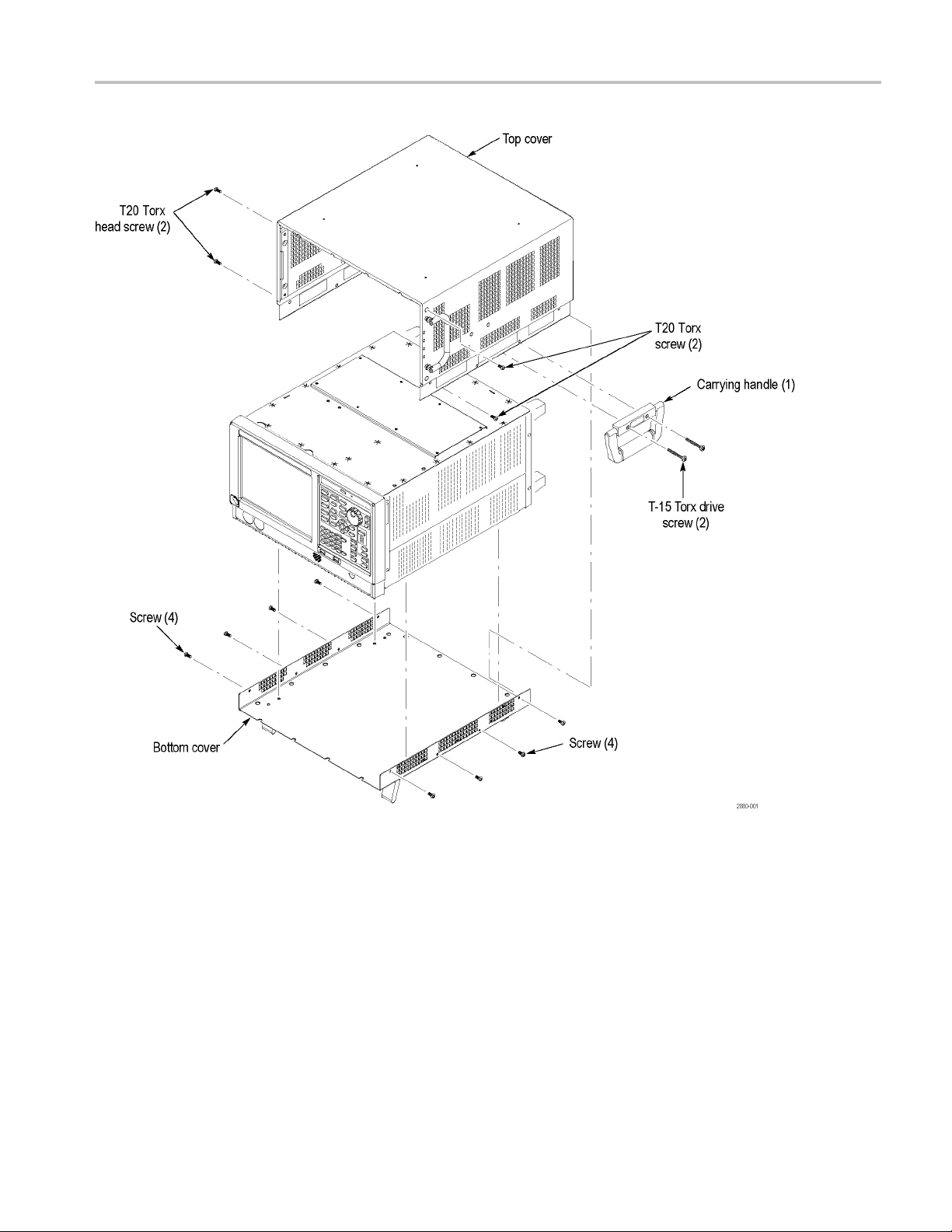

Figure 1: Remove covers
RSA5100B Series Options 50, PFR, PFR50 Upgrades 5
Installation instructions
Install Preamp option board (Options 50 and PFR50)
These options only apply to the RSA5103B and RSA5106B instruments.

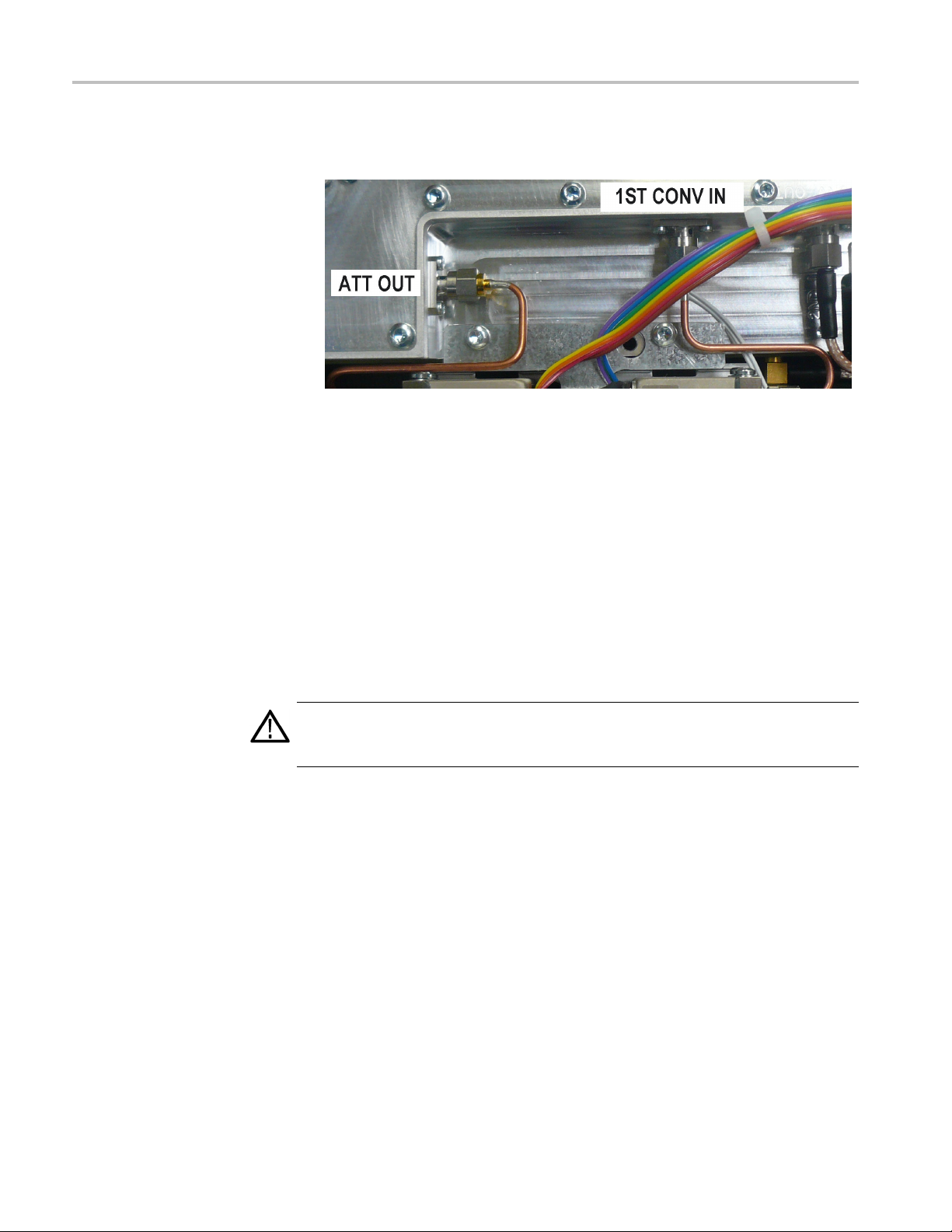

1. Disconnect the semi-rigid cable connecting the ATT OUT connector to the
1ST CONV IN connector:

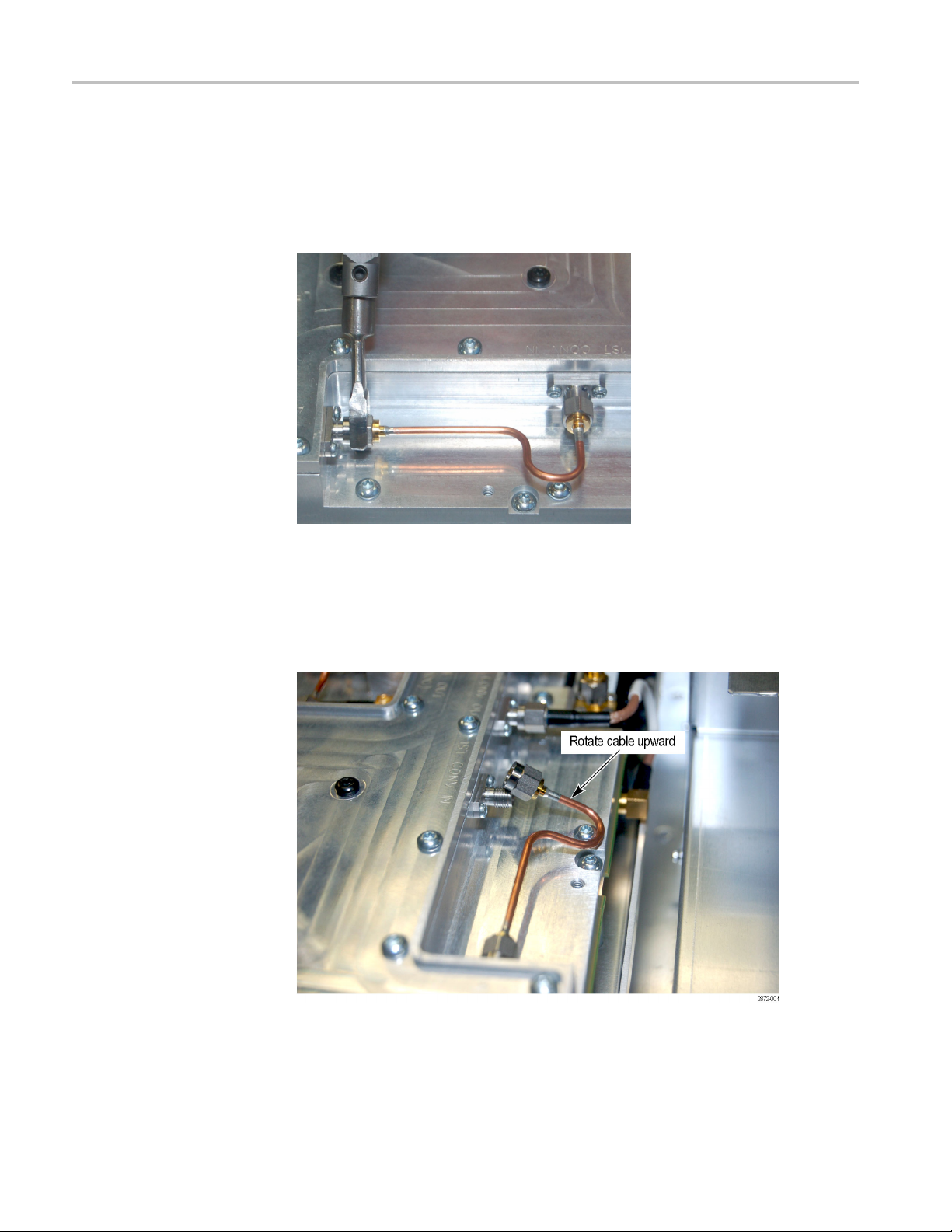

a. Loosen the semi-rigid cable connecting to the ATT OUT connector. Do
not pull the cable connector away from the ATT OUT connector.
b. Loosen the semi–rigid cable connecting to the 1ST CONV IN connector
completely. Rotate the semi-rigid cable upward. Now remove the
semi-rigid cable from the ATT OUT connector.
6 RSA5100B Series Options 50, PFR, PFR50 Upgrades
Installation instructions

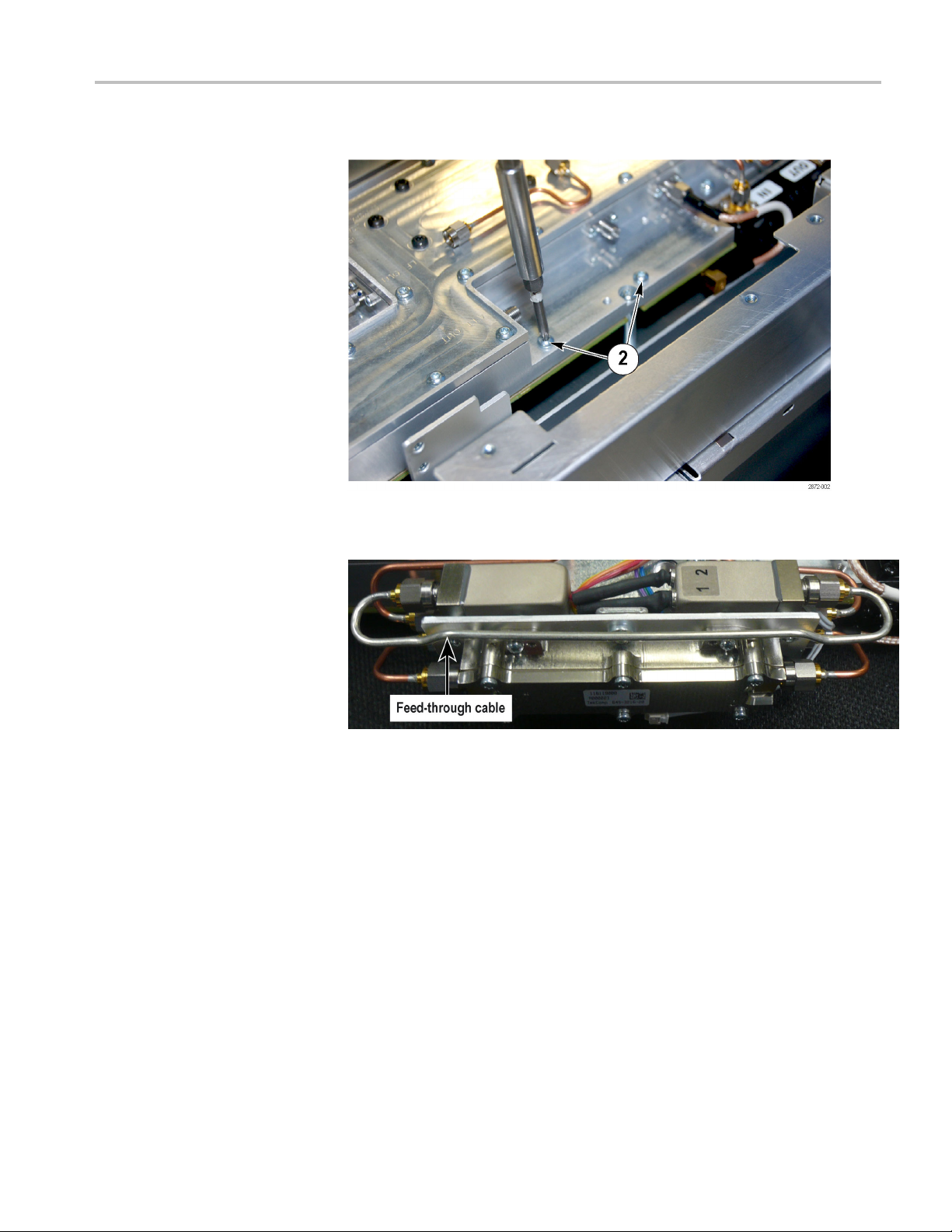

2. Remove the two screws from the chassis and set aside for later reuse.
3. Remove semi-rigid feed-through cable from preamp assembly before
installing assembly. This allows access to the connectors below if needed.
a. Loosen one side (either side is okay) of the semi-rigid feed-through cable
so the nut turns easily.
b. Loosen the nut on the opposite end of the semi-rigid feed-through cable.
c. Pull on one end of the semi-rigid feed-through cable straight out from
the relay until the nut on the semi-rigid feed-through cable clears the
connector on the relay.
d. Loosen the opposite end of the semi-rigid feed-through cable and remove
the semi-rigid feed-through cable from the preamp assembly.
RSA5100B Series Options 50, PFR, PFR50 Upgrades 7
Installation instructions
4. Set the preamp assembly on the 1st Converter. Align the semi-rigid cables
with the ATT OUT and 1ST CONV IN connectors.
5. Use the two screws, previously set aside, to attach the preamp assembly to
the 1st Converter. Do not tighten the screws yet.
6. Screw the nuts on the end of the semi-rigid cables on to the ATT OUT
connector and 1ST CONV IN connector. Finger tighten the nut. If you
encounter any difficulty securing the nut to the connector, loosen the nut from
the connector and try connecting it again. It is critical that the alignment
between the semi-rigid cable and the connector be kept as straight as possible
to avoid possible calibration failure.
7. Tighten the screws securing the preamp assembly to the 1st Converter.
8. Torque the semi-rigid cable nut on the relay for the 1st Converter Out
connection to 10 in-lbs. Do not over-torque the nut. Stop tightening the nut as
soon as the torque wrench first “breaks”.
CAUTION. To avoid damaging the relay connector on the preamp assembly, be
careful not to touch the connector on the relay with the torque wrench while
tightening the nuts.
8 RSA5100B Series Options 50, PFR, PFR50 Upgrades
