testoSaveris 2

User Manual

testo Saveris 2Introduction

testo Saveris 2 system is upgrading product basing on testo Saveris system. In

original system, wireless probes transfer measurement data to Saveris base

through local area network, testo professional software manages data and supply

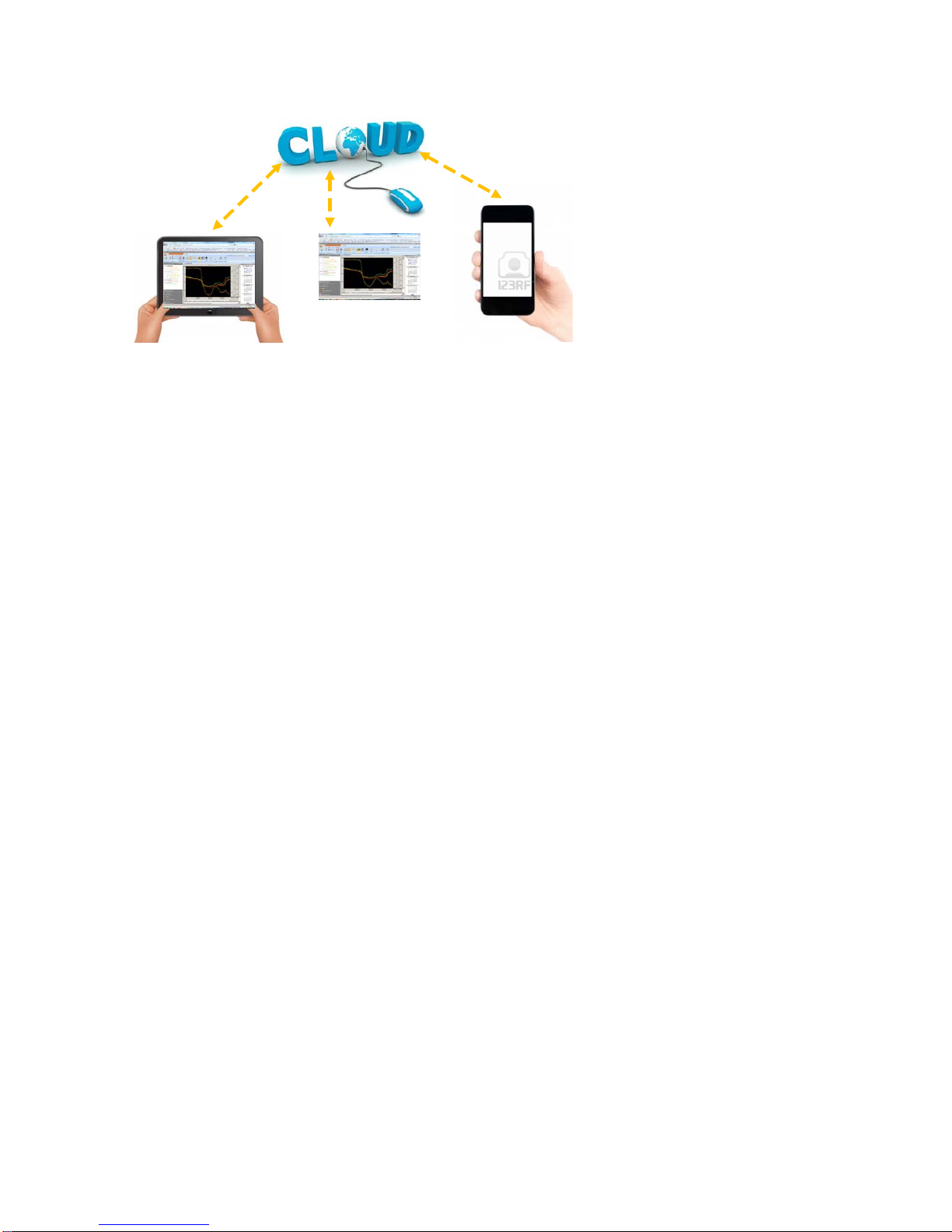

service on data record and monitor. In Saveris 2 system, data transfer from

Internet basing on Qualcomm new Wi-Fitechnology, probes can communicate with

the cloud through wireless router. Customer can visit testo cloud anywhere and

anytime. Check real time measurement data inside his account. And can also

use APP to achieve same functions.

Testo Saveris 2 system include testo cloud and five Wi-Fi probes.

testo Saveris 2 Application

Medicine production, quality inspection and storage monitor

Building surrounding measurement and monitor

Development, laboratory, hospital surrounding measurement and monitor

Food cold chain measurement and monitor

Plant production, transfer and storage measurement and monitor

testoSaveris 2 Probes

Testo Saveris has five Wi-Fi probes: T1, T2, T3, H1 and H2.

Saveris T1 has inside temperature sensor, can continuously measure and record

surrounding temperature and transfer to cloud website. Saveris T1 passed

EN12830 approval can use in food industrial surrounding measurement and

monitor.

w

w

w

w

Saveris T2 can support two channel external temperature probe, can continuously measure

and record surrounding temperature and transfer to cloud website. Saveris T2 passed

EN12830 approval, can use in food industrial surrounding measurement and monitor.

Saveris T3 support two channel TC probes, can continuously measure and record

surrounding temperature and transfer to cloud website.

Saveris H1 has inside temperature sensor and humidity sensor, can continuously measure

and record surrounding temperature and transfer to cloud website

Saveris H2support external testo humidity probe, can continuously measure and record

surrounding temperature and transfer to cloud website.

testo Saveris 2 Probe technical Data：

type Saveris T1 Saveris T2

Saveris T3 Saveris H1 Saveris H2

measurem

ent One inside

NTC

Two

external

NTC

Two external

TC One inside

humidity

One

external

humidity

Measurem

ent range -30…+50°C -50…+150

°C

K type TC:

-195…+1350°

C

humidity“ 0…

100%RH humidity：

0…100%RH

J type TC:

-100…+750°C NTC:

-30…+50°C NTC:

-30…+70°C

T type TC:

-200…+400°C

accuracy ±0,5 °C ±0,5 °C ± (0,5 +

0.5%mv) °C ±2% RH, ±2% RH,

±0,5 °C ±0,5 °C

resolution 0.1°C 0.1°C 0.1°C(-200~99

9.9),

others 1°C

0.1°C, 0.1%,

0.1Ctd °C

0.1°C,

0.1%,

0.1Ctd °C

T90

response

time 40 minutes Up to

external

probe

Up to external

probe 10minutes Up to

external

probe

testo Saveris 2 Probes Specification：

type Saveris T1 Saveris T2

Saveris T3

Saveris H1

Saveris H2

Order

number 0572 2001 0572 2002 0572 2003 0572 2004 0572 2005

Operate

temperate

range

-30 …

+50 °C -30 … +50 °C -30 … +50 °C -30 … +50 °C -30 … +50 °C

Storage

temperatur

e range

-40 …

+70 °C -40 … +70 °C -40 … +70 °C -40 … +70 °C -40 … +70 °C

Measurem

ent cycle

5s ~ 24hour

(default

setting 15

min)

5s ~ 24hour

(default

setting 15

min)

5s ~ 24hour

(default

setting 15

min)

5s ~ 24hour

(default

setting 15

min)

5s ~ 24hour

(default

setting 15

min)

Communic

ation cycle

5s ~ 24hour

(default

setting 15

5s ~ 24hour

(default

setting 15

5s ~ 24hour

(default

setting 15

5s ~ 24hour

(default

setting 15

5s ~ 24hour

(default

setting 15

min) min) min) min) min)

Data

memory 10000 data

per channel 10000 data

per channel 10000 data

per channel 10000 data

per channel 10000 data

per channel

LCD

display yes yes yes yes yes

Battery life 4pcs L91

battery

2 years

4pcs L91

battery

2 years

4pcs L91

battery

2 years

4pcs L91

battery

2 years

4pcs L91

battery

2 years

Norm EN12830 EN12830 ------ ------ ------

accessory

GP AA

battery

Wall holder

lock

USB cable

GP AA

battery

Wall holder

lock

USB cable

GP AA

battery

Wall holder

lock

USB cable

GP AA

battery

Wall holder

lock

USB cable

GP AA

battery

Wall holder

lock

USB cable

Website

configurati

onactive yes yes yes yes yes

testo Saveris 2 Probes Instruction Manual

Product description:

①device

②LED

③QR code（probe serial number, cloud website adderess）

④key

⑤wall holder

⑥USB communication cable

⑦lock

First step

Inserting batteries:

To open the battery compartment, remove two screws on battery cover by

screwdriver.

Insert batteries (4x 1.5 V type AA). Observe the polarity!

To close the battery compartment, tighten screws by screwdriver.

Probe Configuration

Visit website：https://intl.saveris2.net/GoToProbe

Enter log in page and input personal account and password

Click and enter to Wi-Fi connecting page, click “Connect Wifi-logger”，input

wireless router SSID and password to connect into internet。In connect

successfully，icon will displayed on Saveris probe LCD.

Click “Probe” o enter configuration page. Set probe basic configuration, input

probe number, name, location, measurement cycle, communication cycle, start

time and etc.…

Alarm Setting

Click “Alarm” and enter alarm setting page, click“Alarm configuration”，set up

alarm upper and lower limit value one by one。
