TEW-401PCplus/TEW-403PIplus
Version 06.01.04
125Mbps 802.11g Wireless Cards
Quick Installation Guide
Guide d'installation rapide pour le
Cartes Sans Fil 125Mbps de standard 802.11g
Schnell Anleitung
125Mbit/s 801.11g Wirless Karten
Guía de Instalación Rápida para
Tarjetas inalámbricas de 125Mbps 802.11g
Table of Contents
English ......................................................................................................
Troubleshooting .........................................................................................
1
1
2
5
7
10
18
1. Prepare for Installation ......................................................................
2. Install Wireless Configuration Utility ..................................................
3. Install Hardware ................................................................................
4. Install Drivers .....................................................................................
5. Configure Wireless Utility ...................................................................
Thank you for purchasing the TEW-401PCplus/TEW-403PIplus. Your new
wireless network adapter will allow you to connect to 802.11g and 802.11b
networks and begin wirelessly sharing the Internet, files, and other resources.
This guide will help you set up and configure your wireless card. Following this
installation should be quick and easy. If you run into problems, please refer to
the Troubleshooting section or the more detailed installation procedures on the
User's Guide CD-ROM. If you need further technical support, please visit
www.TRENDNET.com or call by phone.
Verify Package Contents
Please make sure you have everything in the box:
1English
1. Prepare for Installation
English QIG
Before installing this PCI Card or PC Card, you should have a:
1. Computer with an available 32-bit CardBus (TEW-401PCplus) or PCI slot
(TEW-403PIplus)
2. 300 MHz processor and 32 MB of memory (Recommended)
3. CD-ROM drive
4. Properly-installed CardBus Controller (TEW-401PCplus only)
5. 802.11g Access Point (Infrastructure Mode) or another 802.11g wireless
adapter (Peer to Peer Mode).
Verify Equipment
TEW-403PIplus
TEW-401PCplus
Utility & Driver CD-ROM Quick Installation Guide
TEW-401PCplus
Utility & Driver CD-ROM Quick Installation Guide
TEW-403PIplus
(with detachable antenna)
NOTE: Do not insert the WLAN Adapter in your computer until you have
finished installing the Utility and Driver.
TRENDnet
TRENDware, USA
What's Next in Networking
TRENDnet
TRENDware, USA
What's Next in Networking
TEW-401PCplus/TEW-403PCplus
TEW-401PCplus/TEW-403PCplus
Version 06.01.04
Version 06.01.04
125Mbps 802.11g Wireless Cards
Quick Installation Guide
Guide d'installation rapide pour le
Cartes Sans Fil 125Mbps de standard 802.11g
Schnell Anleitung
125Mbit/s 801.11g Wirless Karten
Guía de Instalación Rápida para
Tarjetas inalámbricas de 125Mbps 802.11g
125Mbps 802.11g Wireless Cards
Quick Installation Guide
Guide d'installation rapide pour le
Cartes Sans Fil 125Mbps de standard 802.11g
Schnell Anleitung
125Mbit/s 801.11g Wirless Karten
Guía de Instalación Rápida para
Tarjetas inalámbricas de 125Mbps 802.11g
2
2. Install Wireless Configuration Utility
English
Windows 95/98/98SE/ME
1. Insert the TEW-401PCplus/403PIplus CD-ROM into your computer's CD-
ROM drive; the installation menu window will appear automatically. If the
window does not appear automatically, click Start, click Run, and type
E:\Autorun.exe in the text-field. Click OK.
2. On the Installation Menu, Select the Wireless Card and click Install Utility
button.
NOTE: Replace “E” in “E:\Autorun.exe” with whichever letter is assigned
to your CD-ROM drive.
3English

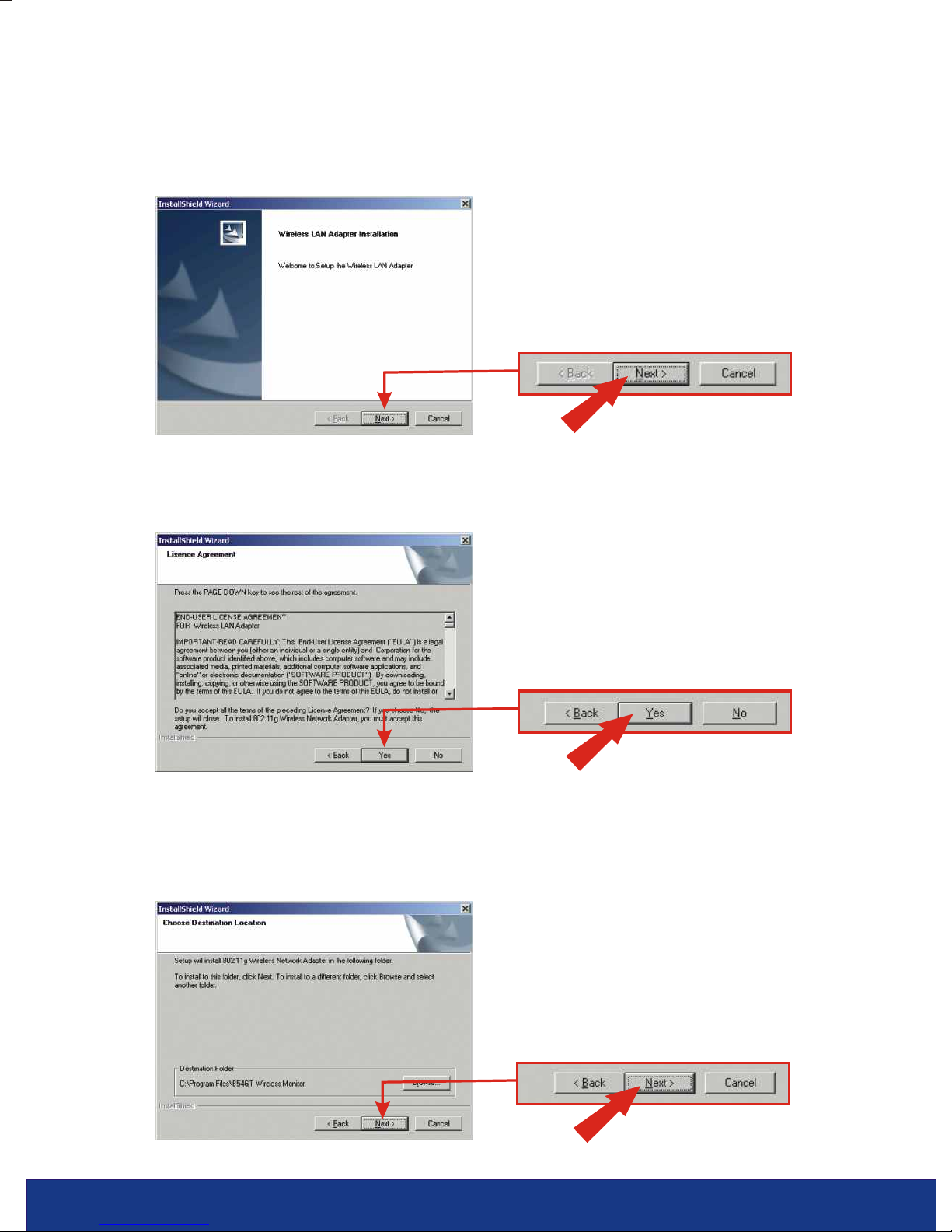

3. Follow the Install Shield Wizard's instructions to install the wireless
configuration utility, click Next to start.
4. Simply go through the License Agreement and then click Yes to proceed.
5. Now the window will load the utility onto your computer, click Next to
continue.
4English
6. During the Utility installation procedures of Windows 2000/XP, a warning
message for the Windows Logo testing verification will appear. Click Yes
for Windows 2000 and Continue Anyway for Windows XP to proceed.
7. The Configuration Utility has been installed; click Finish to complete the
installation.
NOTE: For Windows 98SE/ME, Windows will prompt a message for
restarting the computer, select “No, I will restart my computer later,” and
click Finish.
5English

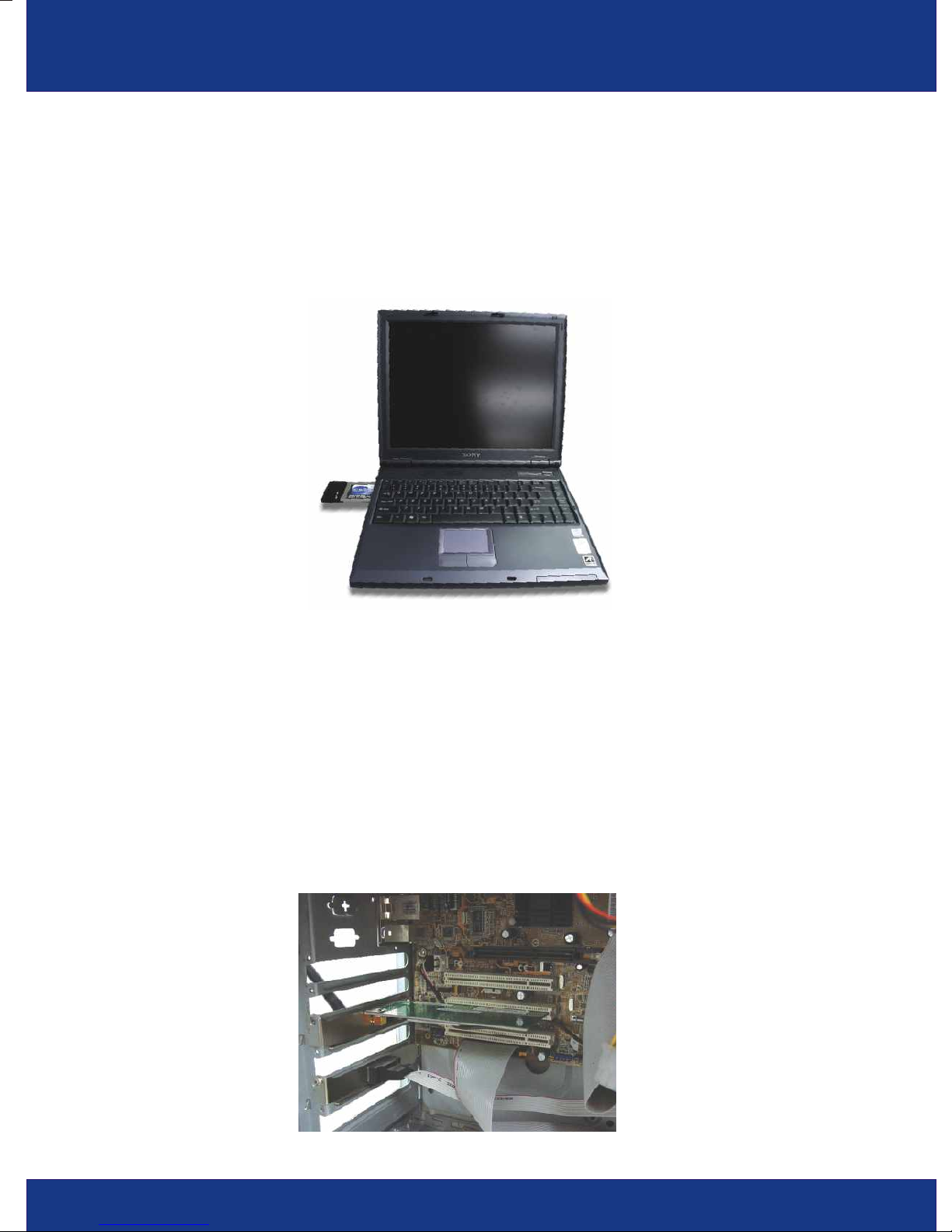

If you are installing the TEW-401PCplus Wireless PC Card:
Proceed only if you have already completed the steps in Section 2
1. Shut down your computer.
2. Insert the PC Card firmly into your notebook PC's open PC Card slot. Only
the plastic end-piece should protrude from the slot.
3. Reboot your computer.
If you are installing the TEW-403PIplus Wireless PCI Card:
Proceed only if you have already completed the steps in Section 2
1. Shut down your computer.
2. Open your computer case to reveal the motherboard and expansion slots.
(Please refer to your computer's user manual if you need help opening the
case)
3. Insert the wireless card into one of motherboard's free PCI slots. Press down
firmly and evenly on the card until it snaps into place.
3. Install Hardware
6English
4. Screw the PCI card's metal bracket into your case with a standard bracket
screw. Attach the included antenna to the connector on the back of your
card.
5. Close your computer case, and reboot your computer.
7English
4. Install Drivers
Windows 98SE/ME
Windows 2000
1. After your computer reboots, window will detect the new hardware and load
the driver automatically.
1. After your computer reboots, window will detect the new hardware and load
the driver automatically.
2. After the driver is installed, windows will prompt the following message, click
Yes to save the changes and restart the computer.
3. Driver installation is now complete.
2. When Digital Signature Not Found Window appears, click Yes to continue.
3. Driver installation is now completed.
NOTE: TRENDnet's Wireless Adapters have been fully tested under all
supported Windows Operating Systems and have been approved for
their functionality.
8English
1. After your computer reboots, the “Found New Hardware Wizard” will appear.
Click Next to load the driver.
2. A warning message will tell you that the device you're installing has not yet
been certified for Windows XP compatibility. Click Continue Anyway.
Windows XP
NOTE: TRENDnet's Wireless Adapters have been fully tested under all
supported Windows Operating Systems and have been approved for
their functionality.
