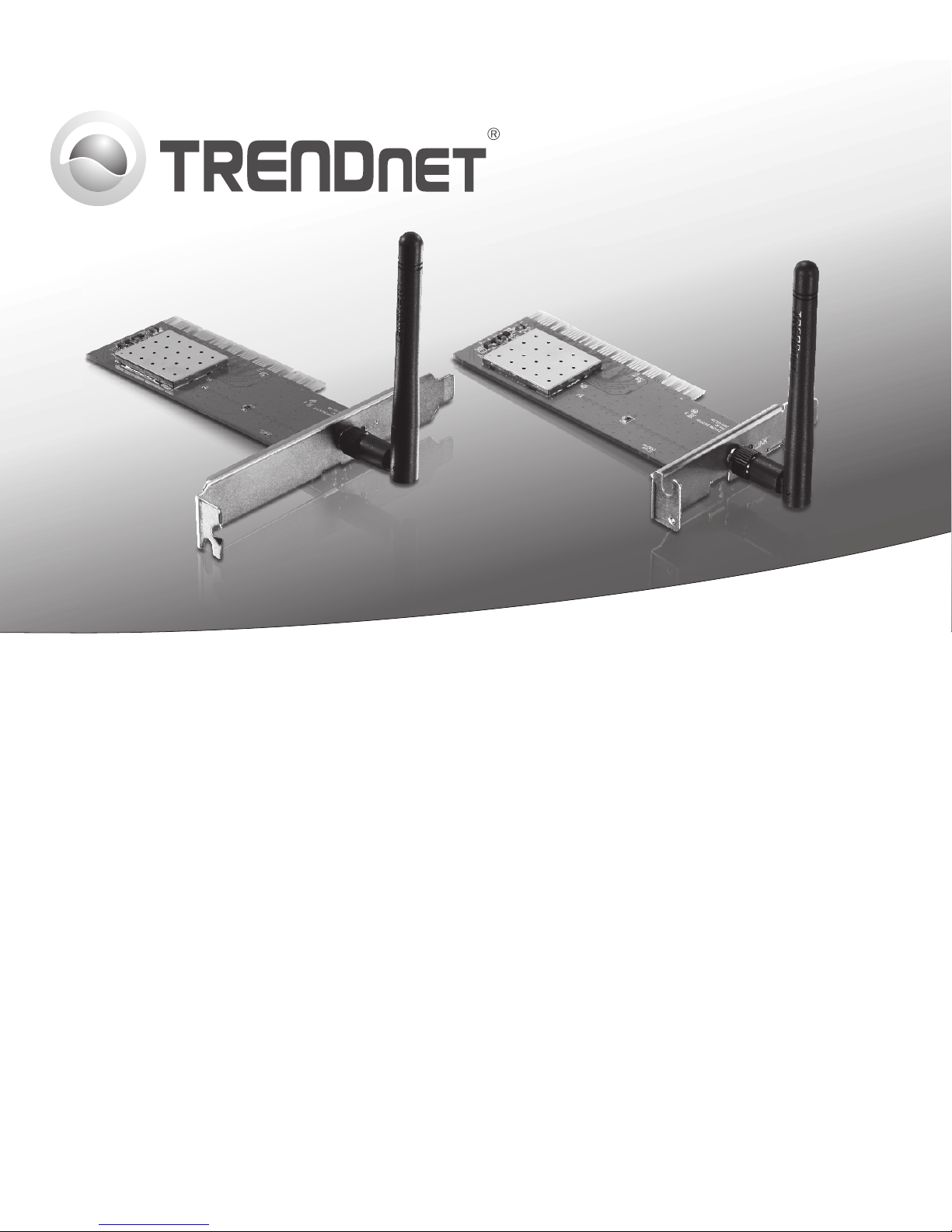

ŸQuick Installation Guide (1)

150Mbps Wireless N PCI Adapter

(TEW-703PI)

150Mbps Low Profile Wireless N PCI Adapter

(TEW-703PIL)

Minimum Requirements

Package Contents

1. Before You Start

1

ŸTEW-703PI/TEW-703PIL

ŸCD-ROM (Utility and User's Guide)

ŸMulti-Language Quick Installation Guide

Ÿ1 detachable antenna

Ÿ32-bit PCI 2.2 slot

ŸCD-ROM Drive

Supported Operating Systems CPU Memory

Windows 7 (32/64-bit)

Windows Vista (32/64-bit)

Windows XP (32/64-bit)

1GHz or above

800MHz or above

300MHz or above

1GB RAM or above

512MB RAM or above

256MB RAM or above

2. How to Install

Important! DO NOT install the TEW-703PI/TEW-703PIL in the computer until instructed to do so.

1. Insert the Utility & Driver CD-ROM into your computer's CD-ROM Drive.

2. Click Run Autorun.exe (Windows 7/Vista only).

3. Click Install Utility & Driver.

2

7. Insert PCI Card firmly into an available PCI Card slot of desktop PC, attach the included

antenna, and then turn ON the computer and wait until the Windows desktop appears.

6. Open your computer's case.

5. Shutdown your computer.

Note: Windows 7/Vista will automatically detect and install the appropriate drivers. For Windows XP,

proceed to 8.

8. Follow the Found New Hardware Wizard

instructions. Then click Finish.

Your installation is now complete

3. Connect to a Wireless Network

1. On the bottom right-hand corner of the screen,

double-click on the Wireless Configuration

Utility icon. On Windows 7, if the icon does not

appear, click the Show hidden icons arrow.

4. Follow the InstallShield Wizard instructions.

Then click Finish.

3

3. Select a SSID and then click Add Profile. The

SSID is the wireless network name of your wireless

network (e.g. wireless router or access point).

4. If Encryption is enabled on your wireless

network (e.g. access point or wireless router),

the correct Network Authentication and Data

Encryption type should be selected. Enter the

Network Key (wireless network password),

confirm the network key and then click OK.

You are now connected to a wireless network

For detailed information regarding the TEW-703PI/TEW-703PIL configuration and advanced

settings, please refer to the User's Guide included on the Utility & Driver CD-ROM or

TRENDnet's website at www.trendnet.com.

2. Click Available Networks.

TRENDnet

20675 Manhattan Place

Torrance, CA 90501. USA

Copyright ©2011. All Rights Reserved. TRENDnet.
