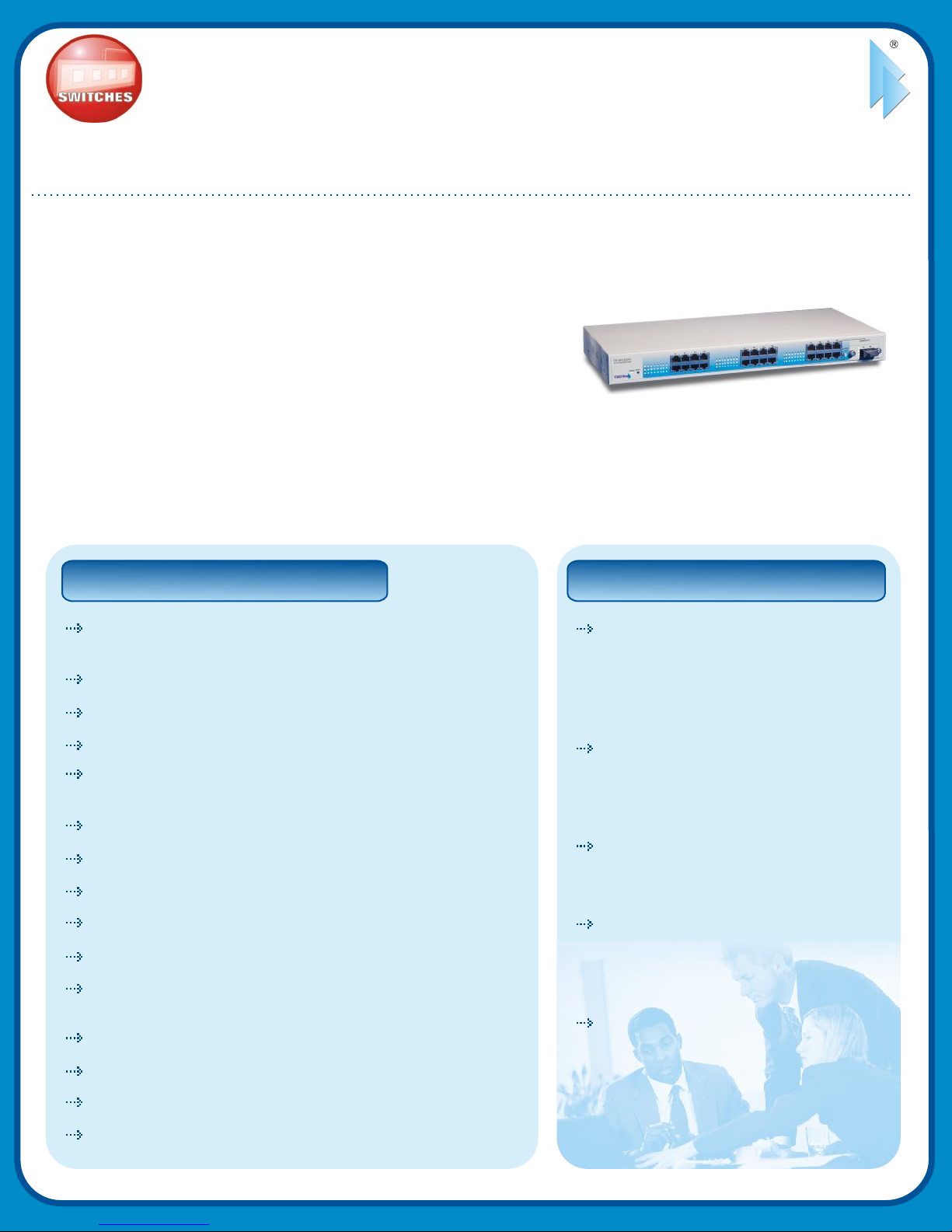

TRENDnet TE100-S2424V Manuale utente
TRENDnet's unique 24-port 10/100Mbps N-way VLAN Switch has
an optional fiber optic and BNC (10Base-2) module that make this
switch flexible enough for mid-sized companies and branch offices
to meet their high bandwidth requirements. The TE100-S2424V
supports both 10/100Mbps speed and half-/full-duplex modes on
the same port. Additionally, it features programmable configuration
for half-duplex and full-duplex modes. By using standard auto-
negotiation, it provides a cost-effective way of integrating 10Mbps
segments with 100Mbps Fast Ethernet networks, ideal for
extending the distance between two 100Mbps network segments.
Supporting Virtual Local Area Net-working (VLAN), the TE100-
S2424V is powerful and easy-to-use in reducing unnecessary
broadcast traffic, segment the network, and enhance network
security.
TE100-S2424V
24-port 10/100Mbps N-way VLAN Switch
Complies with IEEE 802.3 10Base-T, IEEE 802.3µ
100Base-TX/FX standards
24 10/100Mbps auto-negotiating and auto-sensing ports
Supports four "port-based" VLAN
2 or 4 "port-based" trunking
Programmable configuration for 10/100Mbps or half-/full-
duplex modes
Store-and-forward packet switching
Half- and full-duplex operation for all UTP and fiber ports
Supports 2K MAC address
Auto-learning of network configuration
Push button uplink port (shared) for easy expansion
Optional fiber module port (multi-mode SC-type, VF-45, or
10Base-2 BNC module)
Plug and Play
Front panel port status LEDs
EIA-19 rack mountable
5 Year Warranty
FEATURES BENEFITS
Easy Upgrade:
Expandability:
Flexibility:
Performance:
Cost-Effectiveness:
Ethernet workgroups are able to
upgrade to Fast Ethernet by changing
adapters and a hub without changing
switches.
Expand the connection up to 2km with
optional fiber module or optional BNC
module (10Mbps thin coax cable).
Port-based VLAN reduces broadcast
traffic and enhance network security.
Provides non-blocking high
performance with internal switch
controller.
The TE100-S2424V presents
10/100Mbps of Fast Ethernet at an
affordable rate.
TE100-S2424V (11-17-2002)
TRENDnet
TRENDware, USA
What's Next in Networking
PRODUCT INFORMATION
To Order Please Call:
1-888-326-6061
TE100-S2424V: 24-port 10/100Mbs N-way VLAN
Switch
TE100-S1616V: 16-port 10/100Mbs N-way VLAN
Switch
TE100-SVFXM: SC-type Fiber Slide-in Module for
TE100-S1616V/S2424V
TE100-SVBM: BNC Slide-in Module for TE100-
S1616V/S2424V
TE100-SVF45M: VF-45 Fiber Slide-in Module for
TE100-S1616V/S2424V
TE100-S1616: 16-port 10/100Mbps N-way Switch
TE100-S2424: 24-port 10/100Mbps N-way Switch
TE100-SFXM: SC-type Fiber Slide-in Module for
TE100-S1616/S2424
SPECIFICATIONS
NETWORKING SOLUTIONS
Standards:
• IEEE 802.3 10Base-T, IEEE 802.3m 100Base-TX/
100Base-FX, ANSI / IEEE 802.3 N-way
auto-negotiation
Forwarding Rate:
• 14,880pps for 10Mbps, 148,800pps for 100Mbps
Switching Method:
• Store-and-forward
Cabling:
• 10Base-T: 2-pair UTP CAT 3, 4, 5 up to 100m (328ft),
• 100Base-TX: 2-pair UTP CAT 5 up to 100m
(328ft.)
• 100Base-FX: 62.5/125 multi-mode fiber optic
cable up to 2,000m (6,560ft.)
Diagnostic LEDs:
• Per Unit: Power, Uplink, Module Enable (3 LEDs),
• Per Port: LINK/ACT, 100, Full-duplex/Collision (3 LEDs)
Power:
• Internal universal power supply
(100-250VAC, 47-63Hz, 33 Watts max.)
Dimensions:
• 440 x 205 x 45 mm (17.3 x 8.0 x 1.8 inches)
Weight:
• 2.9 kg (6.4 lbs.)
Temperature:
• Operating: 0° to 40° C (32° to 104° F)
• Storage: -25° to 70° C (-13° to 158° F)
Humidity:
• 10 % to 90 % non-condensing
Certifications:
• FCC, UL, CE, VCCI Class A
TE100-S2424V
24-port 10/100Mbps N-way VLAN Switch
TE100-S2424V
24-port 10/100Mbps N-way VLAN Switch
U
L
R
TRENDnet is a registered treademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this
document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit
____________________
http://www.TRENDNET.com.
©
Copyright TRENDware International, Inc. 2004. All Rights Reserved.
TRENDware International, Inc.
3135 Kashiwa Street
Torrance, CA. 90505. USA
Tel: 310-891-1100
Fax: 310-891-1111
Web:
Email: [email protected]
www.TRENDNET.com
ORDERING INFORMATION
TRENDnet
TRENDware, USA
R
