The 8-port 10/100Mbps Layer 2 Managed Switch provides

exceptional performance, ease of use and flexibility for expanding

business networks with fiber connection. Utilizing a robust 3.8Gbps

backplane, your managed switch can easily accommodate multiple

switches and relieve server congestion by using its built-in fiber port.

Advanced management features include SNMP, VLAN, IGMP, and

Port security.

TE100-S810Fi

8-Port 10/100Mbps Layer 2 Managed Switch

with 100Base-FX Port

switch

TE100-S810Fi

rev:06.30.2010

• 8 x 10/100Mbps Auto-MDIX Port

• 1 x 100Base-FX SC type Multi-Mode Fiber Port

• Supports switch Fabric up to 3.8GBps

• Layer 2 Management Switch with Full Software Support

• IGMP Snooping with Query Mode Support for Multi-Media Application

• Supports Broadcast Storm Filtering

• Supports Port Status Control (Status, Auto-Negotiation, Speed, Duplex and Flow Control)

• Supports Port Trunking with Flexible Load Distribution Control and Fail-Over Functions

• Supports Port-Based VLAN and IEEE 802.1Q Tag-Based VLAN

• Supports IP Multicast, Port Mirroring, Spanning Tree, SNMP and RMON

• Supports Port Security and IEEE 802.1p Class of Services

• Store-and-Forward Switching Architecture with Non-Blocking Wire-Speed Performance

• Configuration via RS-232 Console Port, Telnet, and Web Browser (HTTP)

• TFTP Firmware Upgrade via Browser

• Configuration File Save and Restore Feature Support

• 3-Year Limited Warranty

FEATURES

SPECIFICATIONS

8-Port 10/100Mbps Layer 2 Managed Switch with 100Base-FX Port

TE100-S810Fi

LED Display

Interface

Packet Forwarding and Filtering Rate

Cabling

Console Port

Protocol/Topology

Buffer Memory

Power

Power Consumption

Weight

Humidity

Safety Emissions

Dimensions

Temperature

• IEEE 802.3 10Base-T Ethernet; IEEE 802.3u 100Base-TX Fast Ethernet

• Up to 3.8Gbps

• IEEE 802.3x Flow Control; IEEE 802.1D Spanning Tree

• Power, Link/Activity, Full Duplex/Collision

• 250 x 133 x 37mm (9.8 x 5.2 x 1.5 inch) (W x H x D)

• Operating: 0° ~ 45° C (32° ~ 113° F)

• 8 x 10/100Mbps Auto-MDIX RJ45 Fast Ethernet Port

• 1 x 100Base-FX SC type Fiber Port

• 100M Ethernet: 148,800 packets per second per port

• Fast Ethernet: UTP/STP Cat. 5, EIA/TIA-568 100-ohm, 100 meters max

• Fiber: (50/125um, 62.5/125um), 2km max

• RS-232, female 9-Pin Serial Port (M-M serial cable included)

• Input: 100~240VAC, 50/60Hz Internal Power Supply

• (CSMA/CD) / Star

• 2Mbits Data Buffer

• 8K MAC Address Entries

• 1.08 Kg. (2.4 lb.)

• 17 watts

• 10% ~ 90% non-condensing

• FCC, CE

Filtering Address Table

Bandwidth

Standards

Hardware

• IEEE 802.1q Tag-based VLAN; IEEE 802.1p Class of Service

• IEEE 802.3ad Link Aggregation

• 10M Ethernet: 14,880 packets per second per port

• Storage: -40° ~ 70° C (-40° ~ 158° F)

Management

Trunk

Class of Service

QoS

VLAN

IP Multicast

Filter Database

Port Mirror

Broadcast Control

Spanning Tree

RFC Standard

• Web Management, RS-232 Console Management, Telnet

• Max 4 Groups ( up to 4 ports per group)

• Supports High and Low Priority

• Supports 8 Levels of Priority and Mapping to High/Low Priority Queue for Class of Service

• Up to 256 VLAN groups and up to 4094 VLAN ID

• IGMP Snooping up to 256 groups

• Port Static MAC address lock, MAC filter and Port Security

• Up to 8 ports

• None, 5%, 10%, 15%, 20%, 25%

• IEEE 802.1d Support

• RFC1157 SNMP, RFC 1213 MIB II, Bridge MIB, RFC 1643 Ethernet Like, RFC 1493 Bridge MIB, RFC 1757 RMON1,

RFC 1215 Trap, RFC 768 UDP, RFC 783 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 854 TELNET Server/Client, RFC 1112

IGMP, RFC 2068 HTTP, private MIB, RFC 2674 VLAN MIB

Software

• 2 Types of Query Mode: Enable/Disable or Auto Query

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

• Quick Installation Guide

• RS-232 Cable / Power Cord

• TE100-S810i

• CD-ROM (User's Guide)

PACKAGE CONTENTS

TEG-S081Fi

TE100-S810Fi 8-Port 10/100Mbps Layer 2 Managed Switch

with 100Base-FX Port

8-Port 100Base-FX Layer 2 Managed Switch

with GBIC Slot

RELATED PRODUCTS

To Order Please Call:

1-888-326-6061

ORDERING INFORMATION

NETWORKING SOLUTIONS

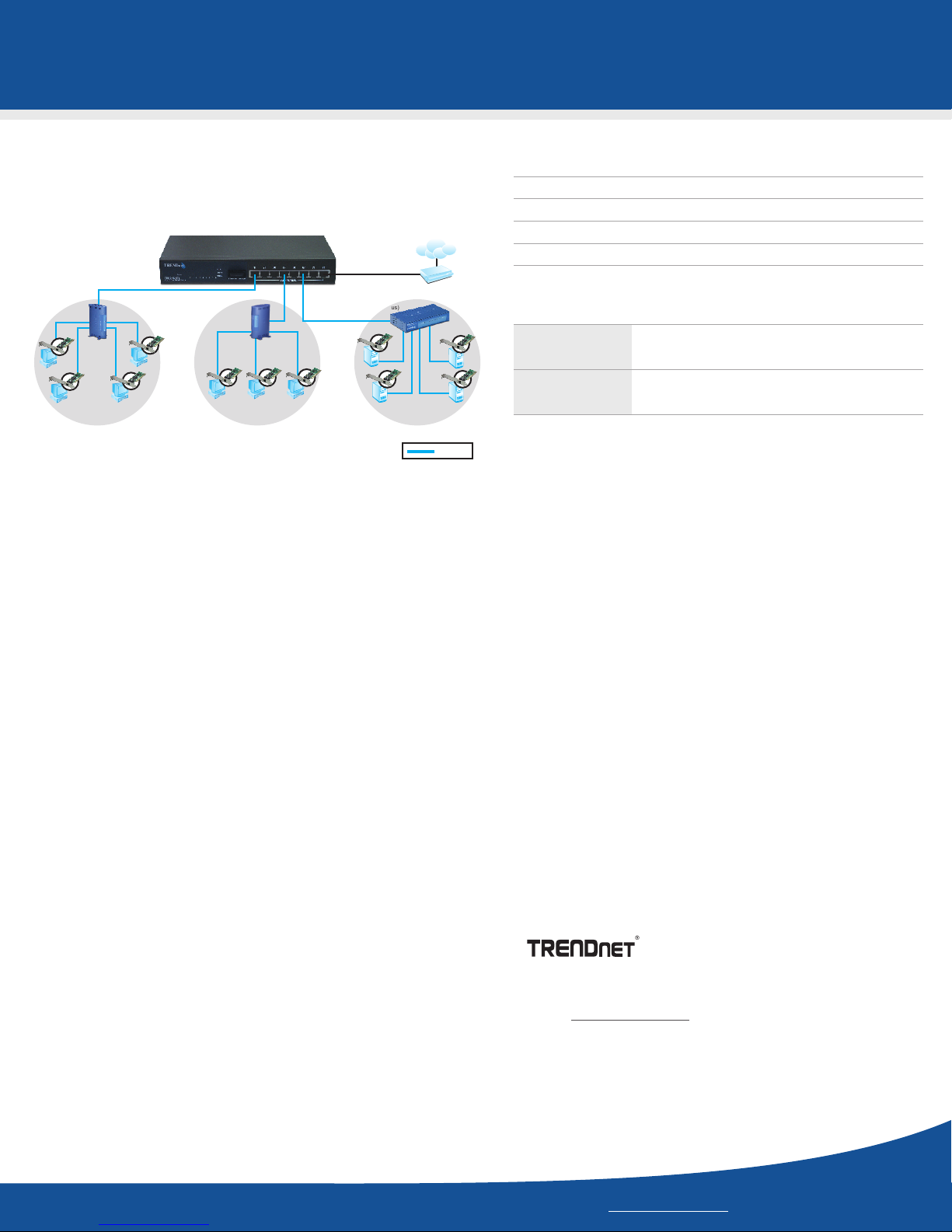

8-Port 100Base-FX Layer 2 Managed Switch with 100Base-FX Port

(TE100-S810Fi)

Servers with 32-bit PCI

Fast Ethernet Card

(TE100-PCIWA)

Accounting Department

Internet

Workstations with 32-bit PCI

Fast Ethernet Card

(TE100-PCIWN)

Workstations with 32-bit PCI

Fast Ethernet Card

(TE100-PCIWN)

Sales Department

8-port 10/100Mbps

Fast Ethernet Mini Switch

(TE100-S88Eplus)

5-port 10/100Mbps

Fast Ethernet Mini Switch

(TE100-S5Pplus)

8-port 10/100Mbps

Fast Ethernet Mini Switch

(TE100-S8P)

MIS Department

100Mbps

8-Port 10/100Mbps Layer 2 Managed Switch with 100Base-FX Port

TE100-S810Fi

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com
