TRENDnet TL2-E284 Manuale utente

TL2-E284

1.01

Quick Installation Guide

English 1

1. Before You Start

2. Hardware Installation 2

3. LEDs 3

4. Configure the Switch 5

Troubleshooting 9

Table of Contents

Version 11.05.2010

1. Before You Start

ŸA computer with a network adapter properly installed

ŸCAT-5e or CAT-6 Network Cable

ŸThe surface must support at least 2 Kg (4.4 lbs) for the Switch

ŸThe power outlet should be within 1.8 meters (5.9 feet) of the Switch

ŸMake sure that there is proper heat dissipation from and adequate ventilation around the

Switch

ŸDo not place heavy objects on the Switch

Web Browser: Internet Explorer (6.0 or higher)

ŸMini-GBIC module (e.g. TEG-MGBSX, TEG-MGBS10, TEG-MGBS40, TEG-MGBS80,

TEG-MGBS10D35, TEG-MGBS40D35) for Mini-GBIC slots

EIA standard 19” rack

Package Contents

ŸMulti-Language Quick Installation Guide

ŸCD-ROM (User's Guide)

ŸRS-232 cable (3 m / 9.8 ft.)

ŸPower Cord (1.8 m / 5.9 ft.)

ŸRack Mount Kit

TL2-E284

Installation Requirements

Optional Equipment

2. Hardware Installation

Note:

Note: The Mini-GBIC slots are shared with port 25 and 26 Gigabit Ethernet ports. When the

Mini-GBIC slots are in use, port 25 and 26 Gigabit Ethernet ports are disabled.

1. Connect the Power Cord to the TL2-E284 and

then to a power outlet.

2. Connect a Cat.5e or Cat.6 RJ-45 network

cable from the computer to an available

Ethernet port on the TL2-E284.

3. Verify that the following panel lights are on:

PWR(Power), SYS(System) and 10M LINK/

ACT, 100M LINK/ACT, 10/100M LINK/ACT or

1000 LINK/ACT.

3. LEDs

PWR (Power)

SYS (System)

1000M LINK/ACT

10/100M LINK/ACT

10M LINK/ACT

N/A

Green

N/A

Green

Amber

Green

Amber

Ethernet LED (RJ-45)

PWR (Power)

SYS (System)

1000M Link/ACT

100/200Mbps (Half/Full Duplex) Connected (per port)

100/200Mbps (Half/Full Duplex) Data

Transmitting/Receiving (per port)

2000Mbps (Full Duplex) Data Transmitting /

Receiving (per port)

10/20Mbps (Half/Full) or no connection to the port

100/200Mbps (Half/Full), 10/20Mbps (Half/Full),

or no connection to the port

10/20Mbps (Half/Full Duplex) Connected (per port)

10/20Mbps (Half/Full Duplex) or 100/200Mbps

(Half/Full Duplex) Connected (per port)

10/20Mbps (Half/Full Duplex)Data

Transmitting/Receiving (per port)

10/20Mbps (Half/Full Duplex) or 100/200Mbps

(Half/Full Duplex) Data Transmitting/Receiving

(per port)

100/200Mbps (Half/Full), or no connection to the port

2000Mbps (Full), or no connection to the port

Device powered On

Device is ready

Solid

Off

Solid

Off

Blinking

Green

Device powered Off

Device is not ready

2000Mbps (Full Duplex) Connected (per port)

100M Link/ACT

10M Link/ACT

10/100M Link/ACT

Device Status LED Color

Color

Sequence

Definition

Combo Gigabit Ethernet

(RJ-45) / Mini-GBIC LED Color Sequence Definition

4. Configure the Switch

Note:

1. Before the Switch can be configured, a Static IP address must be assigned to your computer's

network adapter in the subnet of 192.168.10.x. Since the Switch's default IP address is

192.168.10.200, make sure no other network devices are assigned an IP address of

192.168.10.200. (Refer to Troubleshooting section on how to configure TCP/IP settings on your

PC.)

2. There are three methods of configuring the TL2-E284: Web Browser, Console Port and Telnet.

1. Using Web Browser

1. Open your web browser, type

http://192.168.10.200 in the Address bar, and

then press Enter.

2. Enter the User name and Password, and then

click Login. By default:

User Name: admin

Password: admin

3. Select the desired options for configuring the

switch.

Note:

A terminal program such as HyperTerminal is required to configure the switch via the Console Port.

The instructions shown below demonstrates how to configure the Switch on a Windows PC using

HyperTerminal.

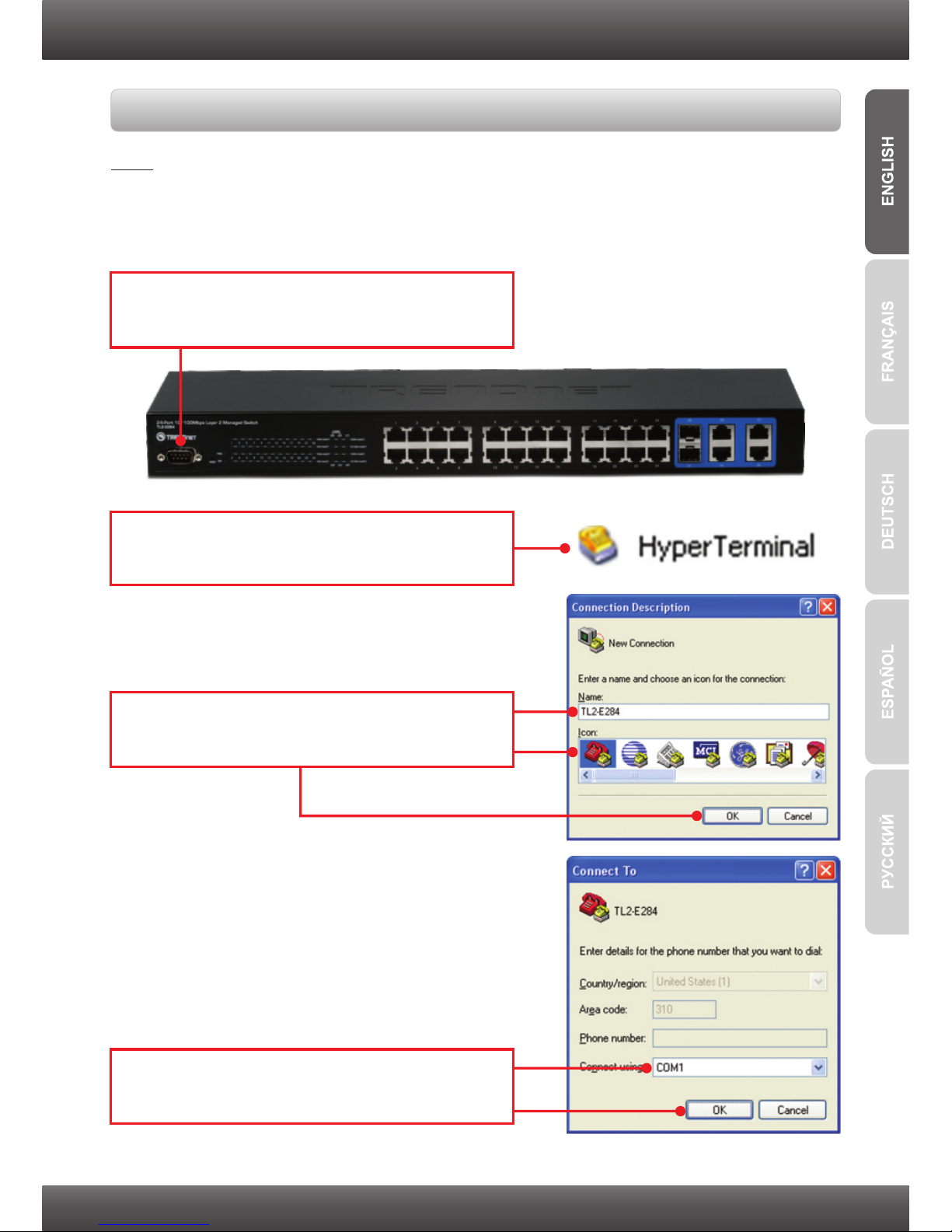

2. Using the Console Port

2. Go to Start Ž Programs Ž Accessories Ž

Communications Ž HyperTerminal

1. Connect the RS-232 cable from a serial port on

your PC to the console port on the switch.

4. Select the correct COM port

(e.g. COM1, COM2) and then click OK.

3. Enter a name, choose an icon and then click

OK.

6. Press the Enter Key.

7. Enter the User Name for login. Then press the

Enter. Then Enter the Password and then

press Enter.

By default

Password: admin

If you do not see the login prompt, please

power cycle the switch by unplugging the

power cord, wait 15 seconds and then plug it

back in.

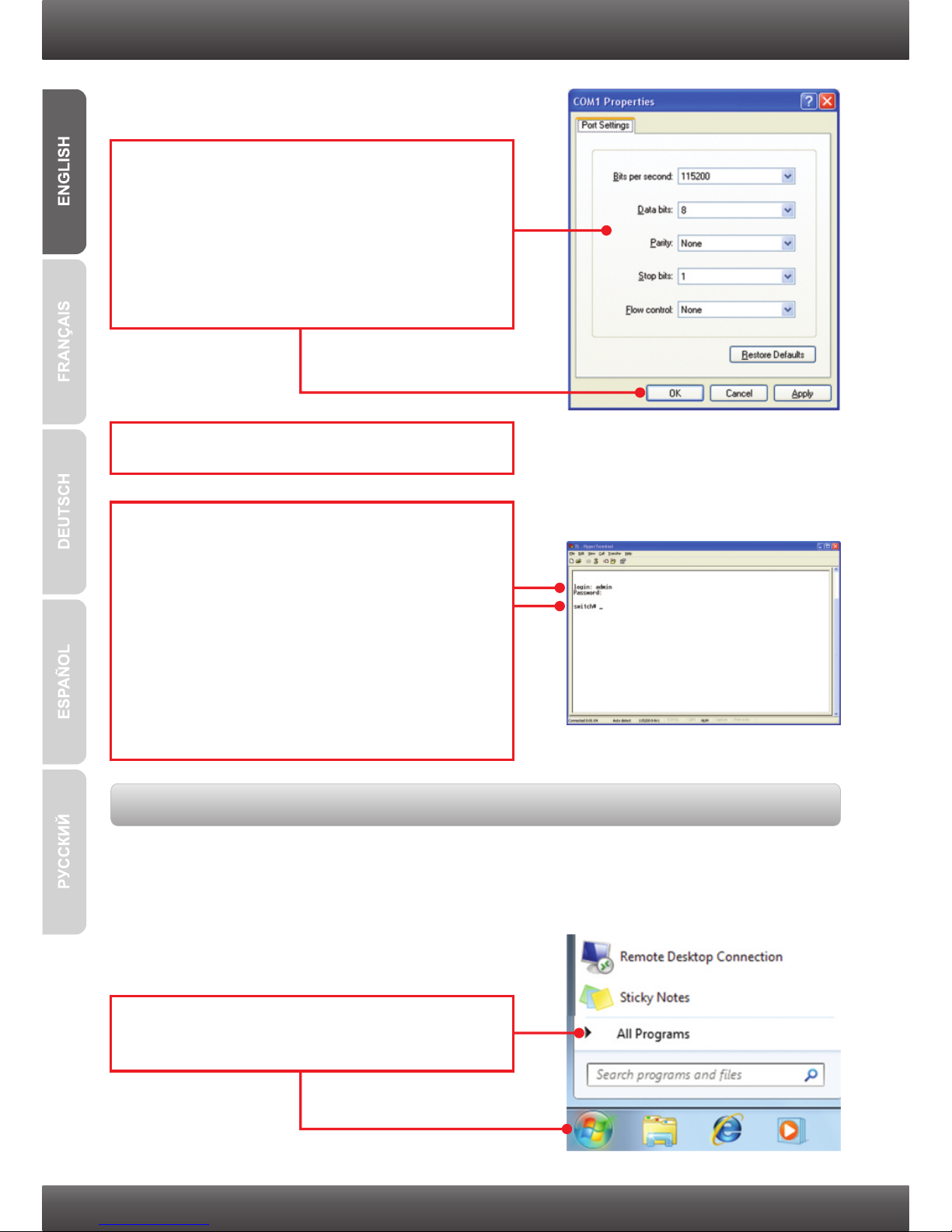

5. Enter the following, click Apply and then

click OK.

Bits per second: 115200

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None

The Telnet function may or may not be included with your computer's operating system. For

instructions on how to enable Telnet in Windows 7/Vista, please refer to the Troubleshooting

section.

3. Using Telnet

1. Click the Windows / Start icon on the bottom

left hand corner and click All Programs.

2. Click Accessories and then click Command

Prompt.

3. Type in telnet 192.168.10.200. Then press the

Enter key.

4. Enter the User Name for login. Then press the

Enter. Then Enter the Password and then

press Enter. By default

Password: admin

If you do not see the login prompt, please

power cycle the switch by unplugging the

power cord, wait 15 seconds and then plug it

back in.

Configuration is now complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

For detailed information regarding the TL2-E284 configuration and advanced settings, please

refer to User's Guide included on the Utility CD-ROM, or TRENDnet's website at

http://www.trendnet.com.
