TRENDnet TPE-S80 Manuale utente

TPE-S80

1.01

Quick Installation Guide

Table of Contents

Version 04.06.2010

English 1

1. Before You Start

2. 1

LEDs 2

3. Hardware Installation 3

echnical Specifications 7

Troubleshooting 8

1. Before You Start

Package Contents

?TPE-S80

?Multi-Language Quick Installation Guide

?Power cord

?Rackmount Kit

?Rubber Feet

System Requirements

?Computer with Network adapter installed

?RJ-45 Network Cable

?The surface must support at least 1.5 Kg for the Switch

?The power outlet should be within 1.82 meters (6 feet) of the Switch

?Make sure that there is proper heat dissipation from and adequate ventilation

around the Switch

?Do not place heavy objects on the Switch

?IEEE 802.3af Powered Device

?TPE-112S (Optional)

?EIAstandard 19” rack (Optional)

Note: TheTPE-S80 only supports Powered Devices that follow the

IEEE 802.3af standard

2. LEDs

Link/ACT

Green(Solid):Linktoanotherdevice

Green(Blinking):Activityisoccurringfromthelink

Not Illuminated: No valid network connection on

the port.

PoE

Amber:LinktoPoEdevice

NotIlluminated:NoPoEdeviceisconnected

Power

Amber:Powerison

NotIlluminated:Powerisoff

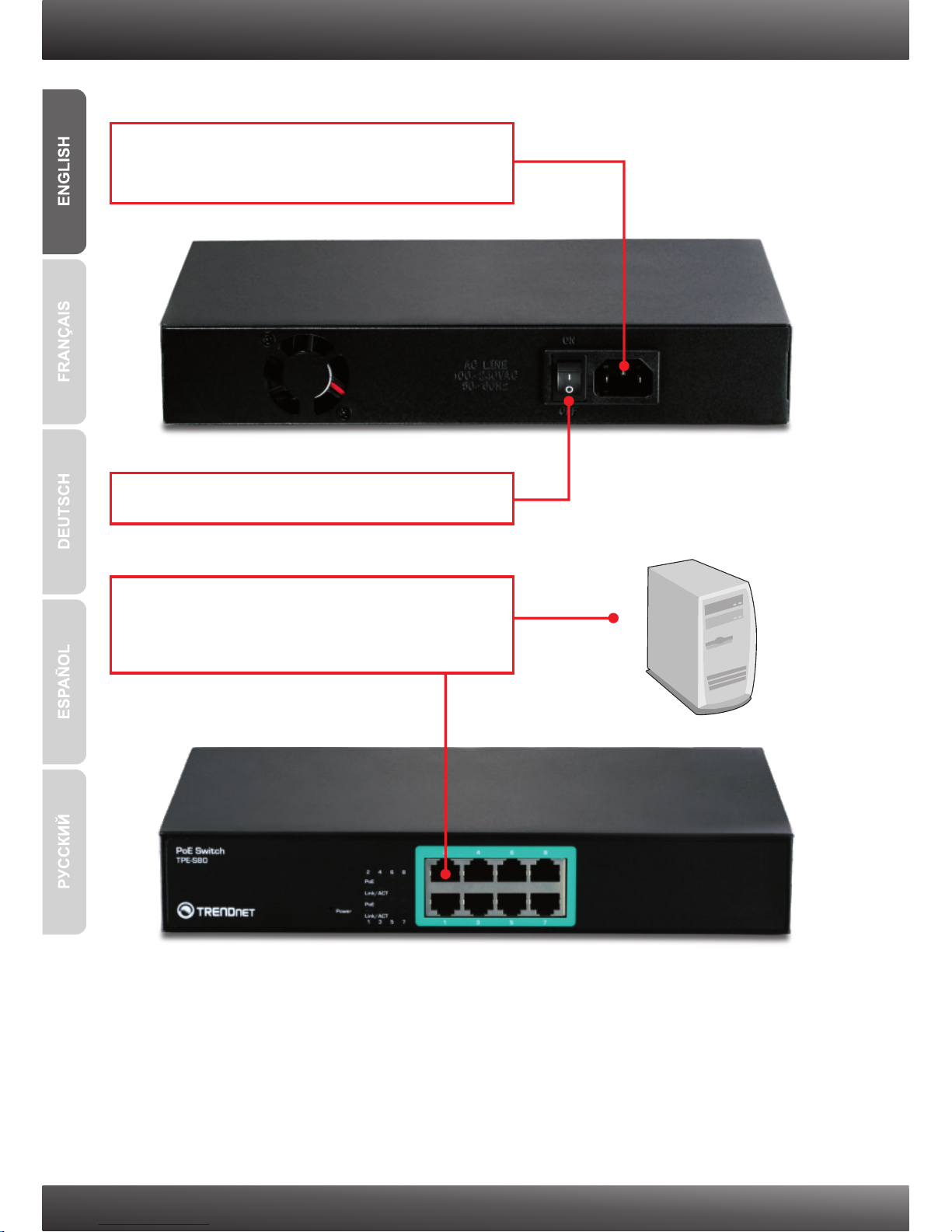

3. Hardware Installation

2. Move the Power switch to the on position.

1. Connect the Power Cord to the TPE-S80 and

then to a power outlet.

3. Connect a RJ-45 network cable from the

computer to an available Ethernet port on the

TPE-S80.

5. Verify that the following panel lights are on:

Power, PoE and Link/ACT.

4. Connect a RJ-45 cable from a PoE port (1~8)

on the TPE-S80 to the LAN port of the PoE

device (e.g. TEW-638PAP)

Note: Take note of the output power for your non-PoE device.The TPE-112GS only

supports non-PoE devices with an out put power of 5V, 7.5V, 9V or 12V.

Using a non-PoE device with the TPE-S80 and the TPE-112GS PoE Splitter

1. Select the proper voltage (5V, 7.5V, 9V or 12V).

2. Connect an Ethernet cable from a PoE port

on the TPE-S80 switch to the PoE IN port on

the TPE-112GS.

4. Connect the provided Jumper cable to the

non-PoE device (e.g. TEW-639GR) and to the

TPE-112GS.

3. Connect the built-in Ethernet cable (Data Out)

on the TPE-112GS to the non-PoE device's

LAN port (e.g. TEW-639GR).

5. Verify that the following panel lights are on:

Power, PoE and Link/ACT.

The Switch can be mounted in an EIAstandard-size, 19-inch rack, which can be placed

in a wiring closet with other equipment.

Rack Mount

1. Attach the mounting brackets to both sides of

the chassis and secure them with the provided

screws.

2. Carefully position the chassis onto the rack.

Align the bracket to the screw holes on the

rack, then use the screws provided with the

equipment rack to mount the chassis.

Technical Specifications

Hardware

Standard

?IEEE 802.3 10Base-T

?IEEE802.3u 100Base-TX

?IEEE 802.3af Power over Ethernet

?IEEE 802.3x Flow Control

8 x 10/100MbpsAuto-MDIX PoE ports

On/Off power switch

?Ethernet: 10/20Mbps (half/full duplex)

?Fast Ethernet: 100/200Mbps (half/full duplex)

512Kbits

1K MAC entries

1.6Gbps

100~240VAC 50/60Hz, internal universal switching power

Power, Link/Activity, PoEAct/Status

?6 Watts max. (no Power Device (PD) connected)

?132 Watts max. (8 x 15.4 watts PoE devices connected)

?Operating: 0°~ 45°C (32°~ 113°F)

?Storage: -10°~ 70°C (14°~ 158°F)

Ports

Power Switch

Data Transfer Rates

Data RAM Buffer

Address Table

Switch Fabric

Power

Diagnostic LEDs

Power Consumption

Temperature

10%- 95% (non-condensing)

266 x 160 x 44 mm (10.5 x 6.3 x 1.73 in.)

1.4 kg (3.1 lb)

CE, FCC

?Up to 15.4 watts per port; PD classification

?Polymer switch for short protection

?PoE: pin 3,6 for power (+) and pin 1,2 for power (-)

Humidity

Dimensions

Certifications

Weight

PoE

Power over Ethernet

Troubleshooting

1.After connecting the Switch to a power outlet, the LEDs do not turn on.

1. Check the connection of the power cord to the TPE-S80 and the power outlet.

2. Verify that the power switch is set to the On position.

3. Check that the power outlet is receiving power.

2.After I connect my PCs to the Switch, I am unable to share files.

1. Check the LEDs on the Switch. Make sure the Link/ACT LED is on.

2. Check the network cable. The minimum length of the cable is 1.5 meters and

the maximum length of the cable is 100 meters.

3. Disable any software firewall program.

4. Verify that you have file sharing enabled. Please contact your Operating

System support for more information.

3.After I connect my PCs to the Switch, I can only get onto the Internet from one

computer.

The Switch was not designed to share Internet between multiple computers. You

need to get an Internet router such as the TW100-S4W1CA.

4. My 802.3af Powered Device does not power on when I plug the device into the

Switch. What should I do?

1. Verify that the PoE device supports IEEE 802.3af protocol.

2. Verify that the power switch is set to the on position.

3. Power cycle the PoE switch. Unplug power to the Switch, wait 15 seconds,

then plug the power back in.

4. Plug the device into a different port on the PoE switch.

5. Try using another RJ-45 network cable.

5. Where is the uplink port located on the Switch?

Since all the ports on the Switch areAuto-MDIX, any of the ports can be used as

an uplink port.

If you still encounter problems or have any questions regarding the TPE-S80 please

contact Trendnet's Technical Support Department.
