TRENDnet TU-700 Manuale utente

7-Port

Universal Serial Bus

User’s Guide

FCC Warning

This equipment has been tested and found to

comply with the regulations for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when the

equipment is operated in a commercial

environment. This equipment generates, uses,

and can radiate radio frequency energy and, if

not installed and used in accordance with this

user’s guide, may cause harmful interference to

radio communications. Operation of this

equipment in a residential area is likely to cause

harmful interference, in which case the user will

be required to correct the interference at his own

expense.

CE Mark Warning

This is a Class B product. In a domestic

environment, this product may cause radio

interference, in which case the user may be

required to take adequate measures.

Table of Contents

INTRODUCTION............................................ 4

TECHNOLOGY OVERVIEW .............................. 4

ABOUT THE 7-PORT USB HUB ....................... 5

PRODUCT FEATURES ...................................... 5

INSTALLATION ............................................. 6

ASPECT DESCRIPTION .................................... 6

HARDWARE INSTALLATION ............................ 7

LED INDICATORS........................................... 7

USB CONNECTOR PIN ASSIGNMENT .............. 8

SPECIFICATIONS.......................................... 9

INTRODUCTION

Congratulations on your purchasing of the 7-Port

USB Hub. This easy plug and play external

device will allow your computer to connect to

USB interfaced monitors, printers, digital

speakers, modems, digital cameras, joysticks and

other USB devices.

Technology Overview

USB stands for Universal Serial Bus. It is a

standard that has been adopted by leading

manufacturers within the computer industry to

define a new type of peripheral connection

scheme. It is designed to replace older parallel

and serial ports, cables, and connectors with

something faster and easier to use. USB is:

 Easier -- Windows 98/MAC OS will

automatically recognize newly installed

devices.

 Quicker -- You won’t have to reboot when

installing.

 Faster -- Top USB data speed is around 100

times faster than a serial connection.

 Greater Expandability -- Using USB hubs

you can connect up to 127 devices to your

computer.

 Hot Swappable -- They just plug and go!

About the 7-Port USB Hub

The 7-Port USB Hub allows a user to connect up

to seven USB peripherals to their USB ready PC

or Mac.

The 7-port USB Hub is designed to provide

quick and easy access to the seven type ‘A’

downstream port for connecting peripherals with

USB support, USB hubs and other devices. A

single type “B” upstream port is provided for

connecting to the host computer, or another USB

hub.

Product Features

 USB 1.1 specification compatibility

 Plug-and-Play

 Supports both OHCI and UHCI.

 Supports Self-power mode.

 Supports 1 upstream and seven downstream

USB ports

 One LED indicator for Self-power mode

 One LED indicator for each downstream

port status

 Connects up to 127 USB devices with

cascading hub.

 Over-current and high-inrush current

protections

INSTALLATION

The 7-Port USB Hub is designed to be simple

and easy to install.

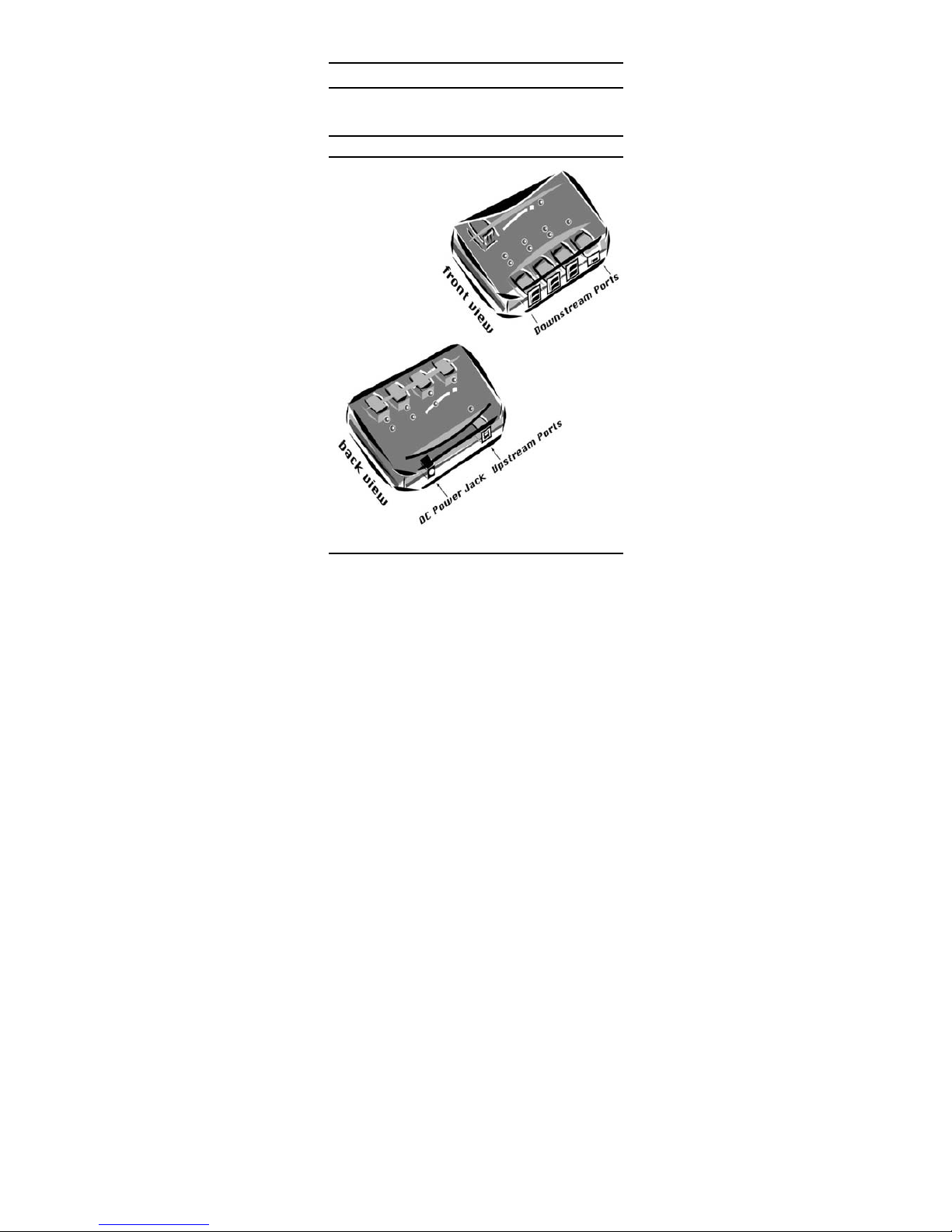

Aspect Description

Hardware Installation

1. Plug the included adapter into the rear of

the 7-Port USB Hub and an available

electrical outlet.

2. Plug the B-type connector into the

“Upstream Port”.

3. Plug the A-type connector into a computer

or USB Hub downstream port.

4. Connect USB devices to the Hub:

Down-stream 1 ~ Downstream 7.

LED Indicators

The 7-Port USB Hub is equipped with LED

indicators:

Self-Power LED Indicator:

This indicator lights green when the USB Hub is

receiving power from external power source,

otherwise, it is off.

Port status LED:

Per port has one status LED. When the LED

lights on, means the downstream port is working

successfully. Otherwise, the LED light is off.

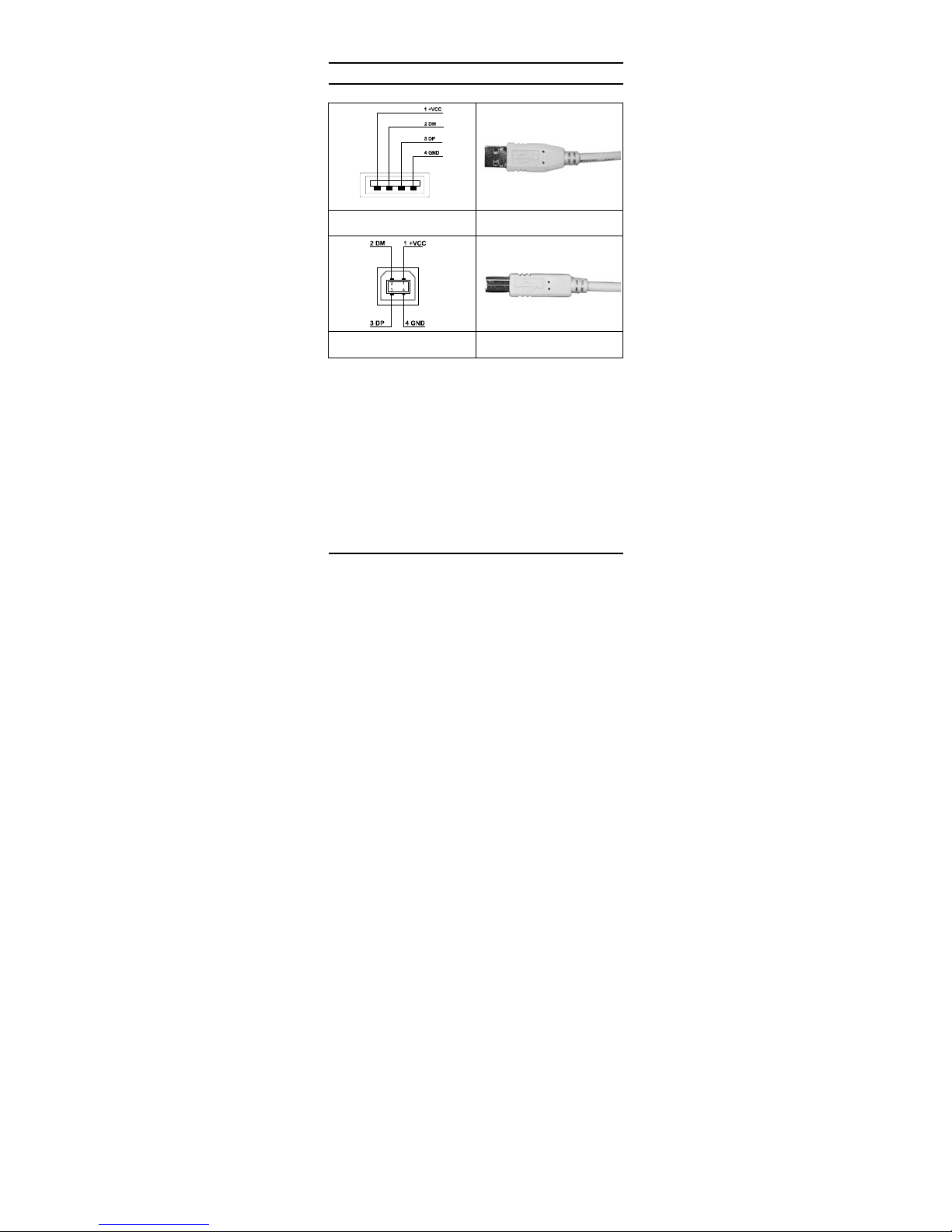

USB Connector Pin Assignment

Receptacle A Series-A Plug

Receptacle B Series-B Plug

SPECIFICATIONS

Standards: USB Specification V.1.1 compatibly

Data Speed: Low:1.5Mbps, High:12Mbps

LED indicators: Power x 1, Port status x 7

Upstream port: Series-B Receptacle x 1

Downstream port: Series-A Receptacle x 7

Output Voltage: Per port DC +5V

Output Current: 7 port total 2.4A

External Power: DC 5V/2.4A switching power adapter

EMI Compatibility: FCC Class B

CE Certification, Class B

VCCI-II

Dimensions: 118 x 67 x 32 mm

Storage Temperature: Storage: -25°C ~ 70°C

Operation: 0°C ~ 50°C

Humidity:

(non-condensing)

Storage: 10% ~ 90%

Operation: 10% ~70%

Power Consumption: 12 Watts (maximum)
