OPERATING AND INSTALLATION INSTRUCTIONS

MODEL NO. CSI 3302

Voltage: 230/240 Volts AC 50Hz

Wattage: 9.8/10.7kW

Height: 900mm

Width: 500mm

Depth: 600mm

This appliance complies with: European Council Directive 73/23/EEC.

EMC Directive 89/336/EEC.

CE Marking Directive 93/68/EEC.

TECHNICAL DETAILS

Technical Details ................................................................................. 2

Contents ......................................................................................... 3

Preface ........................................................................................... 5

Safety ............................................................................................. 6

Before Installation ........................................................................... 6

During Operation ........................................................................... 6

After Use ................................................................................... 7

General .................................................................................... 7

Introduction ...................................................................................... 8

Rating Plate ................................................................................ 8

Installation .................................................................................. 8

Reversible Oven Door ....................................................................... 9

General Notes on Using Your Cooker ........................................................ 9

Control Panel Indicator Neon ................................................................ 9

About Condensation and Steam ............................................................. 9

Grill and Oven Furniture ..................................................................... 9

Getting to know your Cooker .................................................................... 10

The Control Panel ......................................................................... 10

The Sealed Hotplates ............................................................................ 11

Recommended Saucepans ................................................................. 11

Hints and Tips ............................................................................. 11

Deep Fat Frying ........................................................................... 12

Preserving ................................................................................. 12

The Grill ........................................................................................ 13

Uses of the Grill ........................................................................... 13

Selecting the Grill .......................................................................... 13

Things To Note ............................................................................ 13

The Grill Pan and Handle ................................................................... 13

Hints and Tips ............................................................................. 14

Grilling Chart .............................................................................. 14

The Fan Oven ................................................................................... 15

Uses of the Fan Oven ...................................................................... 15

Selecting the Fan Oven .................................................................... 15

Things To Note ............................................................................ 15

To Fit the Oven Shelves ................................................................... 16

Hints and Tips ............................................................................. 16

Oven Cooking Chart ............................................................................. 17

Roasting Chart .................................................................................. 18

CONTENTS

Defrosting ....................................................................................... 19

Uses of Defrost Feature ................................................................... 19

Selecting Defrost .......................................................................... 19

Things to Note ............................................................................ 19

Hints and Tips ............................................................................ 19

Care and Cleaning ............................................................................... 20

Cleaning Materials ........................................................................ 20

Cleaning the Sealed Hotplates and Hotplate trims .......................................... 20

Cleaning the Vitreous Enamel .............................................................. 20

Cleaning the Outside of the Cooker ........................................................ 20

Cleaning the Grill Deflector, Grill Pan, Grill Pan Grid and Oven Shelves ..................... 21

Cleaning Inside the Oven and Grill Compartments .......................................... 21

Hints and Tips ............................................................................ 21

Cleaning between the Outer and Inner Door Glass .......................................... 22

Something not Working? ........................................................................ 23

Service and Spare Parts ......................................................................... 24

Customer Service Centres ....................................................................... 25

Guarantee Conditions ........................................................................... 27

CONTENTS

Dear Customer,

Thank you for buying a Tricity Bendix cooker. With our experience in

developing and manufacturing the very best in U.K. cookers, you can be

assured that you have purchased a hard working, reliable, quality product.

Tricity Bendix cookers comply with British Standard safety and performance

requirements. They have been approved by BEAB (British Electrotechnical

Approvals Board) and are covered by a 12 month parts and labour guarantee.

To get the best from your new Tricity Bendix cooker, we ask that you PLEASE

READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be

made to cooking times and temperatures which may differ from your previous

cooker.

It is most important that this instruction book is retained with the appliance for

future reference. Should the appliance be sold, or if you move house and

leave the appliance, always ensure that the book remains with the appliance.

This will enable the new owner to be acquainted with the functioning of the

appliance and the relevant warnings.

Please read the whole instruction book before attempting to use the appliance

ensuring you follow the recommendations given.

PREFACE

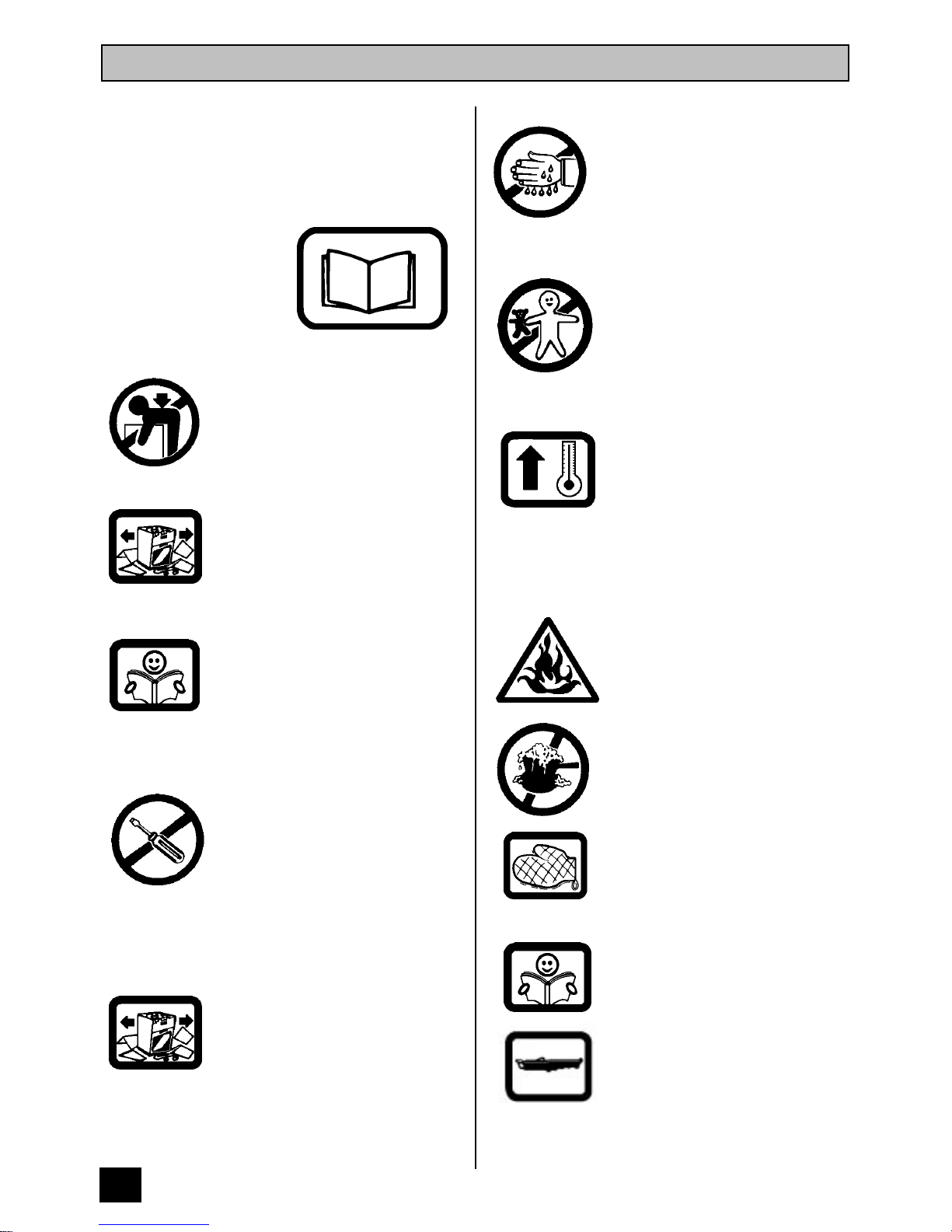

THESE WARNINGS ARE PROVIDED IN

THE INTERESTS OF YOUR SAFETY.

ENSURE THAT YOU UNDERSTAND

THEM ALL BEFORE INSTALLING OR

USING THE COOKER.

PLEASE

READ

CAREFULLY

BEFORE INSTALLATION

This cooker is heavy and care must

be taken when moving it.

Ensure that all packaging, both

inside and outside the cooker has

been removed before the appliance

is used.

Do not try to move the cooker by

pulling the door handles.

The electrical installation work must

be undertaken by a qualified

electrician/ competent person.

It is dangerous to alter or modify

the specifications of the cooker in

any way.

After installation, please dispose of

the packaging with due regard to

safety and the environment.

DURING OPERATION

Do not use this cooker if it is in

contact with water. Never operate it

with wet hands.

This cooker is designed to be

operated by adults. Young children

must not be allowed to tamper with

the cooker or play with the controls.

Accessible parts especially around

the grill area may become hot when

the cooker is in use. Children should

be kept away until it has cooled.

Take great care when heating fats

and oils as they will ignite if they

become too hot.

This cooker has been designed for

cooking edible foodstuffs only, and

must not be used for any other

purposes.

Never place plastic or any other

material which may melt in the oven

or on the hob.

Ensure cooking utensils are large

enough to contain foods to prevent

spillages and boil overs.

The handles of saucepans which are

smaller than the heated area on the

hob will become hot. Ensure your

hand is protected before handling the

pan.

Take care to follow the

recommendations given for tending

the food when grilling.

Do not leave the grill pan handle in

position when grilling as it will

become hot.

SAFETY

Always use oven gloves to remove

and replace the grill pan handle

when grilling. Recommendations

given on page 13.

Ensure that you support the grill pan

when it is in the withdrawn or partially

withdrawn position.

Ensure that all vents are left

unobstructed to ensure ventilation of

the oven.

Ensure that the anti-tilt shelves are

put in place correctly. Refer to

instructions on page 16.

Never line any part of the cooker

with aluminium foil.

Always stand back from the cooker

when opening the oven door to allow

any build up of steam or heat to

release.

Do not place sealed cans or

aerosols inside the oven. They may

explode if they are heated.

Do not leave the hotplates switched

ON for long periods when not

covered by a saucepan. The controls

and cabinets may overheat.

AFTER USE

Ensure that all control knobs are in

the OFF position when not in use.

For hygiene and safety reasons this

cooker should be kept clean at all

times. A build-up of fats or other

foodstuffs could result in a fire,

especially in the grill pan.

Do not leave utensils containing

foodstuffs, e.g. fat or oil in or on the

cooker in case it is inadvertently

switched ON.

Cookers and hobs become very hot,

and retain their heat for a long period

of time after use. Children should be

kept well away from the cooker until it

has cooled.

GENERAL Under no circumstances should

repairs be carried out by

inexperienced persons as this may

cause injury or serious malfunction.

This cooker should be serviced by an

authorised Service Engineer and only

genuine approved spare parts should

be used.

Do not stand on the cooker or on

the open oven door.

Do not hang towels, dishcloths or

clothes from the cooker or its handle.

They are a safety hazard.

Only clean this cooker in accordance

with the instructions given in this

book.

Your safety is of paramount importance.

Therefore, if you are unsure about any of the

meanings of these WARNINGS contact the:

Consumer Care Department

Telephone (01635) 525542

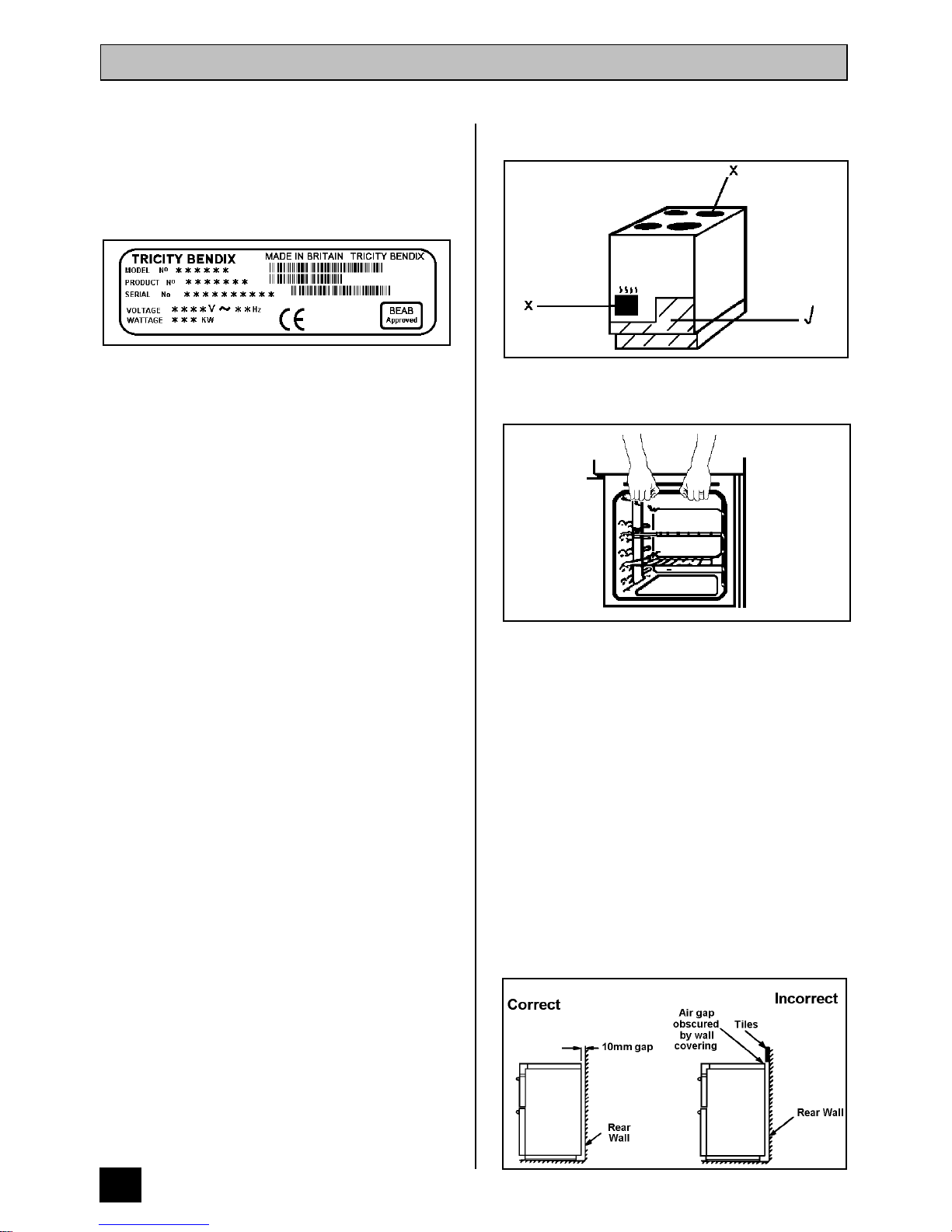

RATING PLATE

Record the model, product and serial numbers on the

back cover from the rating plate. This is situated on

the lower front frame of the cooker and can be seen

upon opening the fan oven door.

The cooker must be protected by a suitably rated

fuse or circuit breaker. The rating of the cooker is

given on the rating plate.

INSTALLATION

If your cooker has been damaged in transit, contact

your supplier immediately. DO NOT attempt to install

it.

Your cooker left the factory fully packaged to protect

it from damage. If it is delivered without packaging

and damage has occurred, the manufacturer cannot

accept responsibility. Contact your supplier for

advice.

Once the packaging has been removed the cooker

should only be moved by hand. DO NOT use a sack

barrow or any other aid to lift the cooker as damage

may occur.

Connection to the electricity supply must be carried

out by a qualified electrician/competent person.

The electrical connection should be made using a

double pole isolating switch (cooker socket) with at

least 3mm contact separation. The cable must have

conductors of sufficiently high cross-sectional area to

prevent overheating and deterioration.

The cable should be routed away from potentially hot

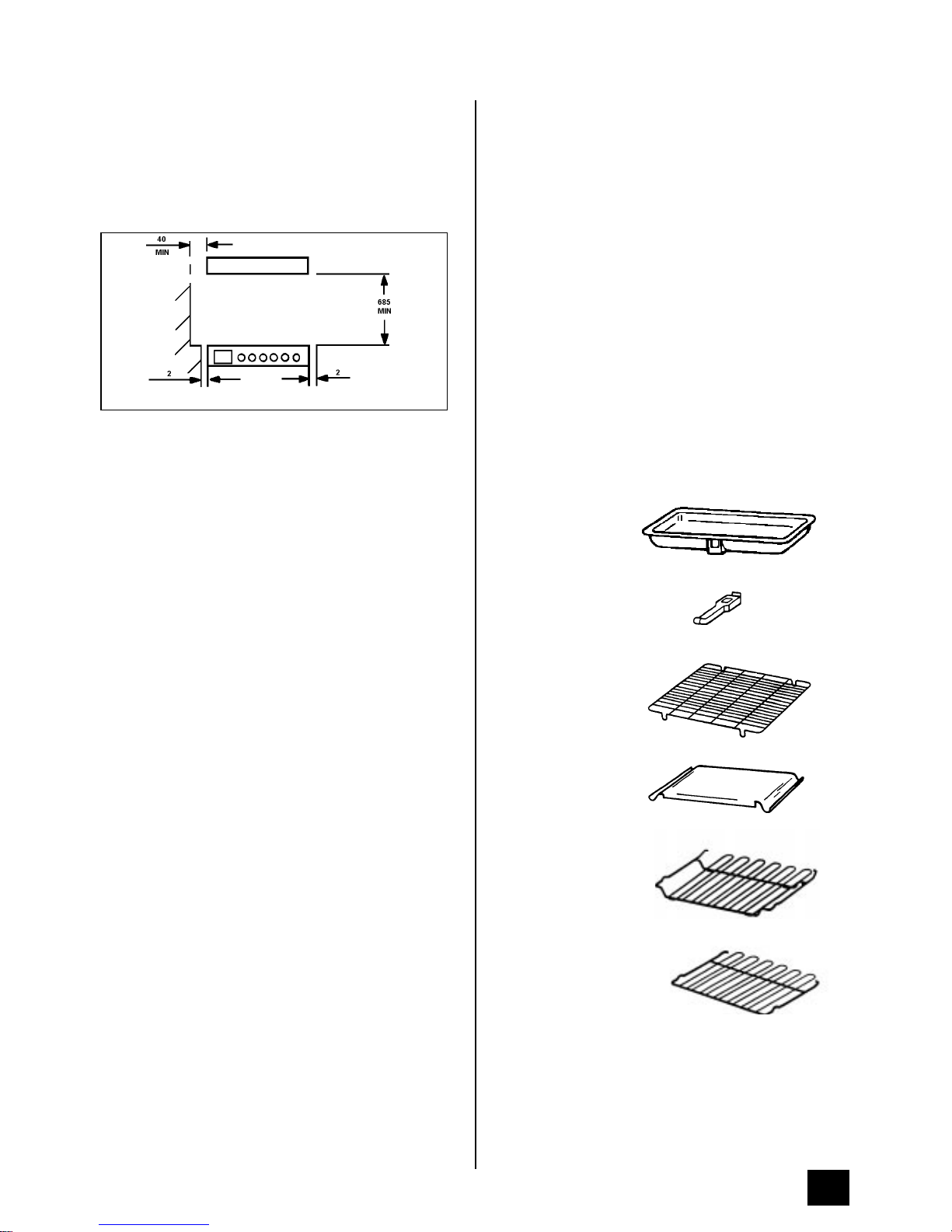

areas marked by X in the diagram below.

To move the cooker, open the fan oven door, and lift

the cooker by holding inside the top of the

compartment.

This is a type X appliance which means it is

free-standing and can be fitted with cabinets on one

or both sides. It may also be fitted in a corner setting.

Ensure that the cooker is standing level.

Side walls which are above hob level should be

protected by heat resistant non-combustible material

and MUST NOT be nearer than 40mm to the hob

side.

A nominal air gap of 2mm all around the cooker is

required to enable the cooker to be moved into

position. It is recommended that proprietary trims are

fitted to protect the worktops of either side of the

appliance. These are available from most DIY stores.

Two spacers have been incorporated into the back of

the appliance to ensure an air gap of 10mm is

maintained at hotplate level. Tiles or other forms of

deep wall covering should not obscure this gap.

WARNING: THIS COOKER MUST BE EARTHED

INTRODUCTION

Six square millimetres (6.00mm²) is the recommended

cross-section area.

Note: Vapours from the oven vent may in time cause

discolouration of wallcoverings behind the cooker.

For ease of cleaning it may be preferable to tile

behind the cooker.

Overhanging surfaces or a cooker hood should be a

minimum of 685mm above the hob.

It is important to ensure that the appliance is level

after installation. Levelling feet are fitted to the front

of the appliance to accommodate uneven floors.

REVERSIBLE MAIN OVEN DOOR

If you require the oven door to be hinged on the

opposite side, you will need to contact a qualified

Service Engineer. See page 25 for your nearest

Service Centre. Please note that a charge will be

made.

GENERAL NOTES ON USING YOUR

COOKER

We suggest that you run all the elements for a short

period to burn off any residue from their surfaces.

To do this, run the oven at 220°C for approximately

45 minutes. The procedure should be repeated with

the grill for approximately 5 - 10 minutes.

During this period an unpleasant odour may be

emitted, it is therefore advisable to open a window

for ventilation.

OVEN INDICATOR NEON

The light will indicate whether the oven is switched

on, the neon also indicates when the set temperature

has been reached. The neon will cycle on and off

during use to show that the temperature is being

maintained.

ABOUT CONDENSATION AND STEAM

When food is heated it produces steam similar to a

boiling kettle. The ovens are vented to allow some of

this steam to escape. However, always stand back

from the cooker when opening the oven door to allow

any build up of steam or heat to release.

If the steam comes into contact with a cool surface

on the outside of the cooker, e.g. a trim, it will

condense and produce water droplets. This is quite

normal and is not caused by a fault on the appliance.

To prevent discolouration, regularly wipe away

condensation and also soilage from surfaces.

GRILL AND OVEN FURNITURE

The following items of grill and oven furniture have

been supplied with the cooker.

1 grill pan

1 grill pan handle

1 grill pan grid

1 grill deflector

1 cranked shelf

for grilling only

2 straight shelves

for main oven cooking

THE CONTROL PANEL

FEATURES

A - Fan Oven Control

B - Fan Oven Indicator Neon

C - Grill Control

D - Hotplate Controls

GETTING TO KNOW YOUR COOKER

A C D

Indice

Altri manuali Tricity Bendix Elettrodomestico da cucina

Tricity Bendix

Tricity Bendix 2156A Manuale utente

Tricity Bendix

Tricity Bendix CSIE317 Manuale utente

Tricity Bendix

Tricity Bendix DSIE 456 Manuale utente

Tricity Bendix

Tricity Bendix SIE 533 Manuale utente

Tricity Bendix

Tricity Bendix SIE326 Manuale utente

Tricity Bendix

Tricity Bendix President 2558 Manuale utente

Tricity Bendix

Tricity Bendix SE326 Manuale utente

Tricity Bendix

Tricity Bendix DSIE 343 Manuale utente

Tricity Bendix

Tricity Bendix Electric Cooker Manuale utente

Tricity Bendix

Tricity Bendix CSIE 452 Manuale utente

Tricity Bendix

Tricity Bendix SIE401 Manuale utente

Tricity Bendix

Tricity Bendix SG210 Guida del prodotto

Tricity Bendix

Tricity Bendix TTC1 Manuale utente

Tricity Bendix

Tricity Bendix SI 255 Manuale utente

Tricity Bendix

Tricity Bendix U020006 SI 255 Manuale utente

Tricity Bendix

Tricity Bendix SE428 Guida del prodotto

Tricity Bendix

Tricity Bendix Electric Cooker Manuale utente

Tricity Bendix

Tricity Bendix CSE500 Guida del prodotto

Tricity Bendix

Tricity Bendix SB462 Manuale utente

Tricity Bendix

Tricity Bendix Si452W Manuale utente

Tricity Bendix

Tricity Bendix CSG500 Manuale utente

Tricity Bendix

Tricity Bendix DSIE328 Manuale utente

Tricity Bendix

Tricity Bendix SIG233 Guida del prodotto

Tricity Bendix

Tricity Bendix SE500/1 Manuale utente

Manuali Elettrodomestico da cucina popolari di altre marche

Tayama

Tayama TYG-35AF Manuale utente

AEG

AEG 43172V-MN Manuale utente

REBER

REBER Professional 40 Guida utente

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuale utente

Presto

Presto fountain popper Manuale utente

Westmark

Westmark 1035 2260 Manuale utente

Zanussi

Zanussi ZCG64396XA Manuale utente

HOFFEN

HOFFEN SM-9302M Manuale utente

Philips

Philips HD3133 Manuale utente

Ronco

Ronco Beef Jerky Manuale utente

Hendi

Hendi 470411 Manuale utente

Livoo

Livoo MEN386 Manuale utente

Vogue

Vogue D446 Manuale utente

croydon

croydon WR-10313-700 Manuale utente

ADE

ADE AUTOMATIC-L Manuale utente

Chefman

Chefman RJ43-SQ Series Manuale utente

Vacmaster

Vacmaster VP680 Manuale utente

Jetmaster

Jetmaster 900HG Manuale utente
