TYAN THUNDER K8WE Manuale utente

http://www.tyan.com

Thunder K8WE /// S2895

Version 1.01

part of this manual may be reproduced or translated without prior written

consent from TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Taro and Thunder K8WE are trademarks of TYAN Computer

Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

Linux is a trademark of Linus Torvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.tyan.com

Table of Contents

Chapter 1: Introduction

1.1 Congratulations Page 3

1.2 Hardware Specifications Page 3

1.3 Software Specifications Page 5

Chapter 2: Board Installation

2.1 Board Image Page 8

2.2Block Diagram Page 9

2.3Board Parts, Jumpers and Connectors Page 10

2.4Installing the Processor(s) Page 18

2.5Heatsink Retention Frame Installation Page 19

2.6Thermal Interface Material Page 20

2.7Heatsink Installation Procedures Page 21

2.8Finishing Installing the Heatsink Page 23

2.9Tips on Installing Motherboard in Chassis Page 24

2.10 Installing the Memory Page 25

2.11 Attaching Drive Cables Page 28

2.12 Installing Add-In Cards Page 30

2.13 Connecting External Devices Page 31

2.14 Installing the Power Supply Page 32

2.15 Finishing Up Page 33

Chapter 3: BIOS

3.1 BIOS Setup Utility Page 35

3.2BIOS Menu Bar Page 36

3.3BIOS Legend Bar Page 36

3.4 Getting Help Page 36

3.5BIOS Main Menu Page 37

3.6BIOS Advanced Menu Page 38

3.7BIOS Memory Menu Page 52

3.8BIOS Boot Menu Page 54

3.9BIOS Exit Menu Page 56

Chapter 4: Diagnostics

4.1 Beep Codes Page 57

4.2 Flash Utility Page 57

4.3 BIOS Post Code Page 58

Glossary Page 61

Technical Support Page 67

http://www.tyan.com

Chapter 1: Introduction

1.1 -Congratulations

You have purchased one of the most powerful workstation mainboard solutions.

The Thunder K8WE (S2895) is a high-end workstation mainboard, based on

Nvidia nForce Professional 2200 Media and Communications Processor (MCP),

Nvidia nForce Professional 2050, and AMD 8131 PCI-X HyperTransport™

Tunnel.

Designed to support up to two AMD Opteron™(Opteron 2xx) processors and

16GB of DDR333 or DDR400 memory, the S2895 is ideal for CPU, memory,

and video intensive applications such as CAD, Graphics Design, High

Bandwidth Video Editing, etc.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can

find information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 -Hardware Specifications

Processor

•Supports one or two AMD

Opteron™2xx processors

•Two onboard 4-phase VRMS

•Three HyperTransportTM links per

CPU, support up to 6.4GB/s data

transfer rate each link

•144-bit DDR interface (128-bit

data + 16 bit ECC)

•Scalable 32bit and 64bit

computing

•Secure computing with Nx register

support

Chipset

•Nvidia nForce Professional 2200

(CK8-04)-connected to CPU1

•Nvidia nForce Professional 2050#

(I/O-4)-connected to CPU2

•AMD 8131™PCI-X Tunnel

•SMsC Super I/O

#Optional

Integrated ATA-133 (from nForce

Professional 2200)

•One ATA-133 IDE Channel for up

to two devices

Integrated SATAII Generation 1

Controllers (from nForce

Professional 2200)

•Two integrated dual port SATA II

controllers

•Four SATA connectors support up

to four drives

•3 Gb/s per direction per channel

•NvRAID v2.0 support

•Supports RAID 0, 1, 5, 0+1 and

JBOD

Integrated Secure Network

Processor

•Two IEEE 802.3 Nvidia MAC

1000/100/10 Ethernet (First from

PRO 2200, Second from PRO

2050)

http://www.tyan.com

Memory

•128-bit dual channel (interleaved)

memory bus

•Total Eight DDR-1 DIMM sockets

(Four per CPU)

•Supports up to 16GB Registered

DDR

•Supports ECC with CHIPKil

technology

•Supports DDR400, DDR333, or

DDR266

Expansion Slots

•Two x16 PCI Express full speed

expansion slots

-Slot 1 PCI-E x16 from nForce

PRO 2200

-Slot 3 PCI-E x16 from nForce

PRO 2050

•Two independent 64-bit PCI-X

buses

-Slot 4 and slot 5 support PCI-X

100MHz max

-Slot 6 supports PCI-X 133MHz

max

•One 32-bit 33Mhz PCI v2.3 (Slot

•Total of six usable slots

Integrated I/O

•One floppy connector

•One serial port connector

•Eight USB 2.0 EHCI ports (four

rear connectors & four pin

headers)

•PS/2 mouse and keyboard

connectors

•Two FireWire (IEEE 1394a) ports

(one rear connector and one

internal pin header)

System Management

•Total six 4-pin fan headers with

PWM and tachometer monitoring

•Watchdog Timer support

•Two Marvell Gigabit PHY

•Supports WOL and PXE

•Supports Ethernet Jumbo Frames

(9018 Bytes)

•Full Duplex Gigabit Ethernet

support

•Nvidia Firewall for secure network

communications

Integrated FireWire (IEEE

1394a) Controller

•TITSB43AB22A IEEE 1394a

PCI controller

•Two FireWire ports (one rear

connector and one internal pin

header)

Integrated Audio

•Enhanced AC’97 2.3 compliant

audio link

•Analog Devices 1981B codec

•16 bit Stereo Full Duplex

•CD-in/Aux-in connectors

Integrated SCSI Controller

(Mfg. Option)

•LSI 53C1030 U320 SCSI

controller

-Two U320 68-pin SCSI

connectors

-Connected to PCI-X Bridge B

Form Factor

•SSI EEB v3.5 Footprint (12”x 13”,

304.8x330.2mm)

•EPS 12V/SSI v3.5 Workstation

(24 + 8) power connectors

(Split Plane design

recommended)

•Serial (one)

•Stacked PS/2 keyboard and

mouse connectors

•Two dual port USB2.0 connectors

(total 4 ports)

•Two RJ-45 LAN connectors with

LEDs

http://www.tyan.com

•Temperature, voltage and fan

monitoring

•Audio Line-in, Line-out, Mic-in

jacks

•One IEEE 1394a port

BIOS

•PhoenixBIOSon 8Mbit LPC

Flash ROM

•ACPI 2.0

•Serial Console Redirect

•USB device boot

•WOL and PXE support

•48-bit LBA support

1.3 -Software Specifications

OS (Operating System) Support

Microsoft Windows XP (32-bit/64-bit)

Microsoft Windows Server 2003 (32-bit/64-bit)

SUSE Professional 9.x and SLES 9 SP2

RHEL3 Update 4

RHEL4 Update 1

TYAN reserves the right to add support or discontinue support for any OS with

or without notice.

http://www.tyan.com

NOTES:

http://www.tyan.com

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of

the Thunder K8WE matches the SSI EEB 3.51 specification. Before continuing

with installation, confirm that your chassis supports anSSI EEB v3.51

motherboard.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE

DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED

http://www.tyan.com

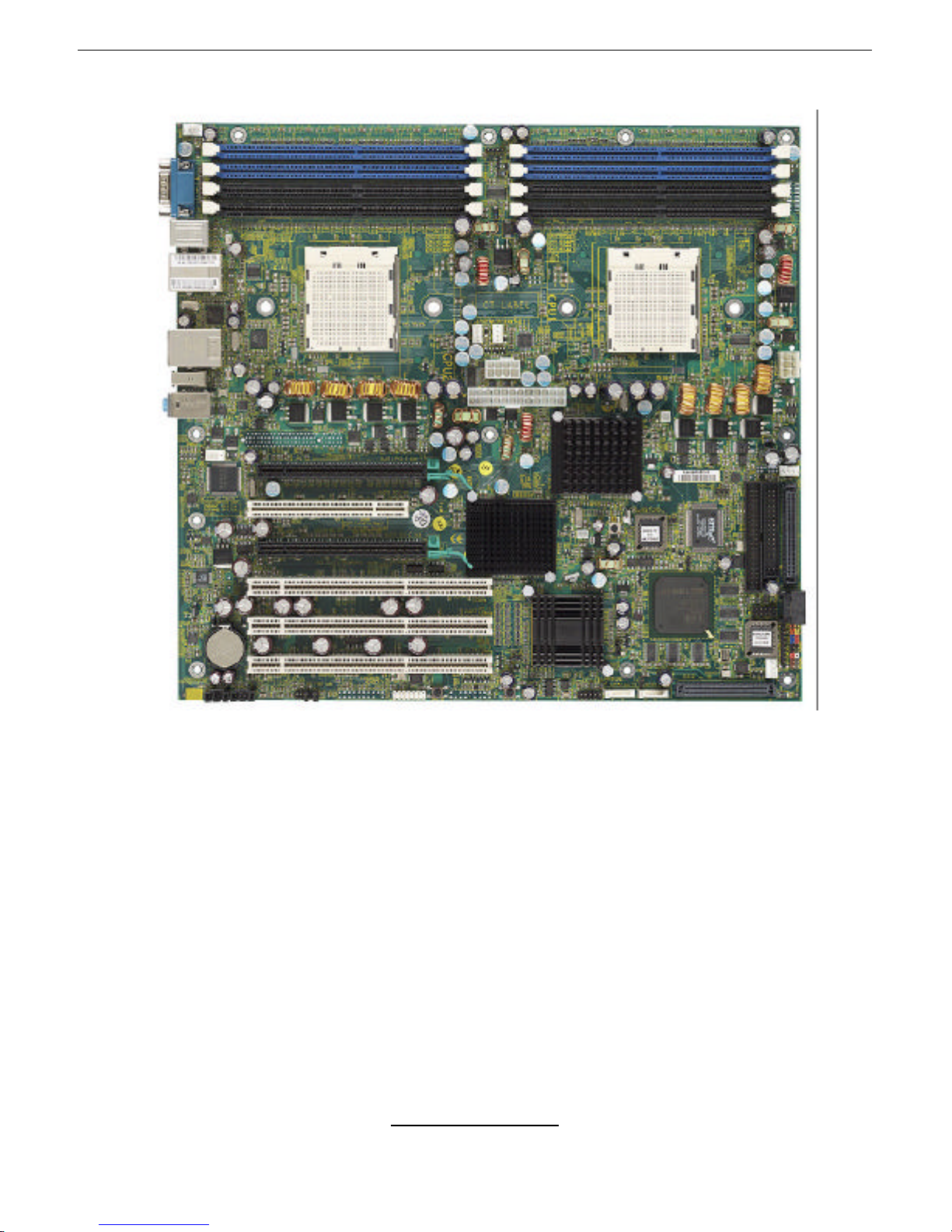

2.1-Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

The following page includes details on the vital components of this

motherboard.

http://www.tyan.com

2.2 -Block Diagram

S2895 Thunder K8WE Block Diagram

http://www.tyan.com

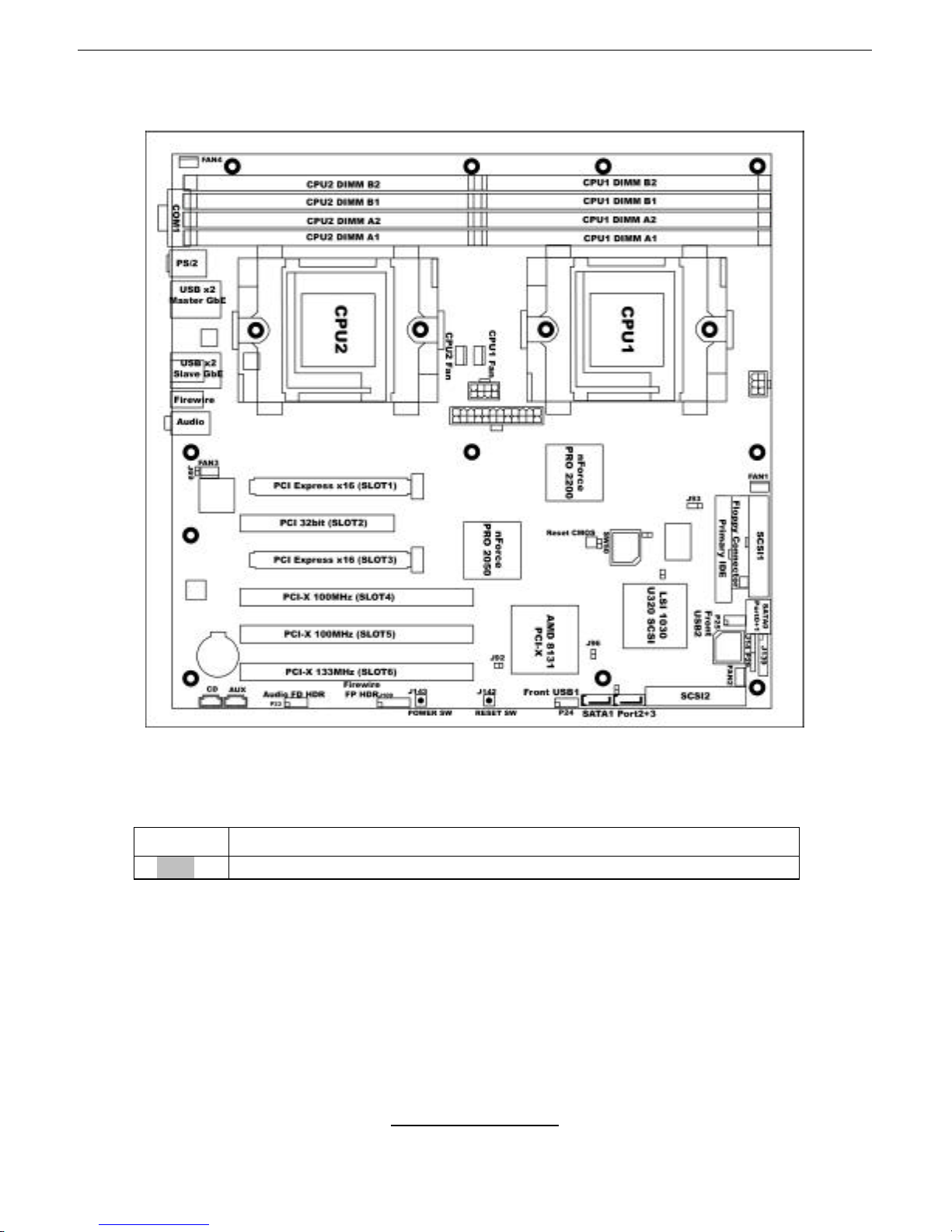

2.3 -Board Parts, Jumpers and Connectors

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

Jumper Legend

©© OPEN -Jumper OFF, without jumper cover

©© CLOSED –Jumper ON, with jumper cover
