TYAN TRINITY I845E Manuale utente

http://www.TYAN.com

Trinity i845E ///

S2099

Revision 1.10

reproduced or translated without prior written consent from TYAN Computer Corp.

All registered and unregistered trademarks and company names contained in this manual are

property of their respective owners including, but not limited to the following.

TYAN, Trinity i845E S2099 are trademarks of TYAN Computer Corporation.

Intel, Xeon, and combinations thereof are trademarks of Intel Corporation.

AwardBIOS are trademarks of Phoenix Technology.

Microsoft, Windows are trademarks of Microsoft Corporation.

IBM, PC, AT, PS/2 are trademarks of IBM Corporation.

Promise is a trademark of Promise Technology.

ATI, ATI RAGE is a trademark of ATI Technologies Incorporated.

Winbond is a trademark of Winbond Electronics Corporation.

Portable Document Format (PDF) is a trademark of Adobe Corporation.

Information contained in this document is furnished by TYAN Computer Corporation and has been

reviewed for accuracy and reliability prior to printing. TYAN assumes no liability whatsoever, and

disclaims any express or implied warranty, relating to sale and/or use of TYAN products including

liability or warranties relating to fitness for a particular purpose or merchantability. TYAN retains the

right to make changes to product descriptions and/or specifications at any time, without notice. In

no event will TYAN be held liable for any direct or indirect, incidental or consequential damage,

loss of use, loss of data or other malady resulting from errors or inaccuracies of information

contained in this document.

http://www.TYAN.com

Tableof Contents

Before you begin…

Chapter 1: Introduction

1.1 Congratulations!

1.2 Hardware Specifications

1.3 Software Specifications

Chapter 2: Board Installation

2.0 Board

2.1 Board Jumpers

2.2 Fan Connectors

2.3 Front Panel Connector (J27)

2.4 CMOS Reset (JP3)

2.5 Promise Controller (JP4)

2.6 Onboard ATI RAGE XL (JP1)

2.7 LAN Controller (JP6)

2.8 Pin Header Definitions

2.9 Secondary USB connector (J20)

2.10 Mounting the Motherboard

2.11 Installing the Memory

2.12 Important Memory Information

2.13 Memory Installation Procedure

2.14 Installing the Processors/Heatsink

2.15 Attaching Drive Cables

2.16 Connecting External Devices

2.17 Installing the Power Supply

2.18 Finishing Up

Chapter 3: BIOS

3.1 Entering Setup

3.2 Standard CMOS Features

3.3 Advanced BIOS Features

3.4 Advanced Chipset Features

3.5 Integrated Peripherals

3.6 Power Management Setup

3.7 PnP/PCI Configuration

3.8 PC Health Status

3.9 Frequency and Voltage Control

Chapter 4: IDE RAID Setup

4.1 Getting Started

4.2 Creating Your Disk Array

4.3 Creating a Security Array With An

Existing Data Drive

4.4 Using FastBuild™

Configuration Utility

Chapter 5: Diagnostics

5.1 Beep Codes

5.2 Flash Utility

……………………………………………..Page 4

……………………………………………..Page 5

……………………………………………..Page 6

……………………………………………..Page 7

……………………………………………..Page 8

……………………………………………..Page 9

……………………………………………Page 10

……………………………………………Page 11

……………………………………………Page 12

……………………………………………Page 13

……………………………………………Page 14

……………………………………………Page 15

……………………………………………Page 16

……………………………………………Page 17

……………………………………………Page 19

……………………………………………Page 20

……………………………………………Page 21

……………………………………………Page 23

……………………………………………Page 25

……………………………………………Page 26

……………………………………………Page 28

……………………………………………Page 29

……………………………………………Page 31

……………………………………………Page 32

……………………………………………Page 33

……………………………………………Page 34

……………………………………………Page 35

……………………………………………Page 37

……………………………………………Page 39

……………………………………………Page 41

http://www.TYAN.com

Appendix I: Installing Add-In Cards

Appendix II: Glossary

Technical Support

……………………………………………Page 42

……………………………………………Page 43

……………………………………………Page 48

http://www.TYAN.com

Before you begin…

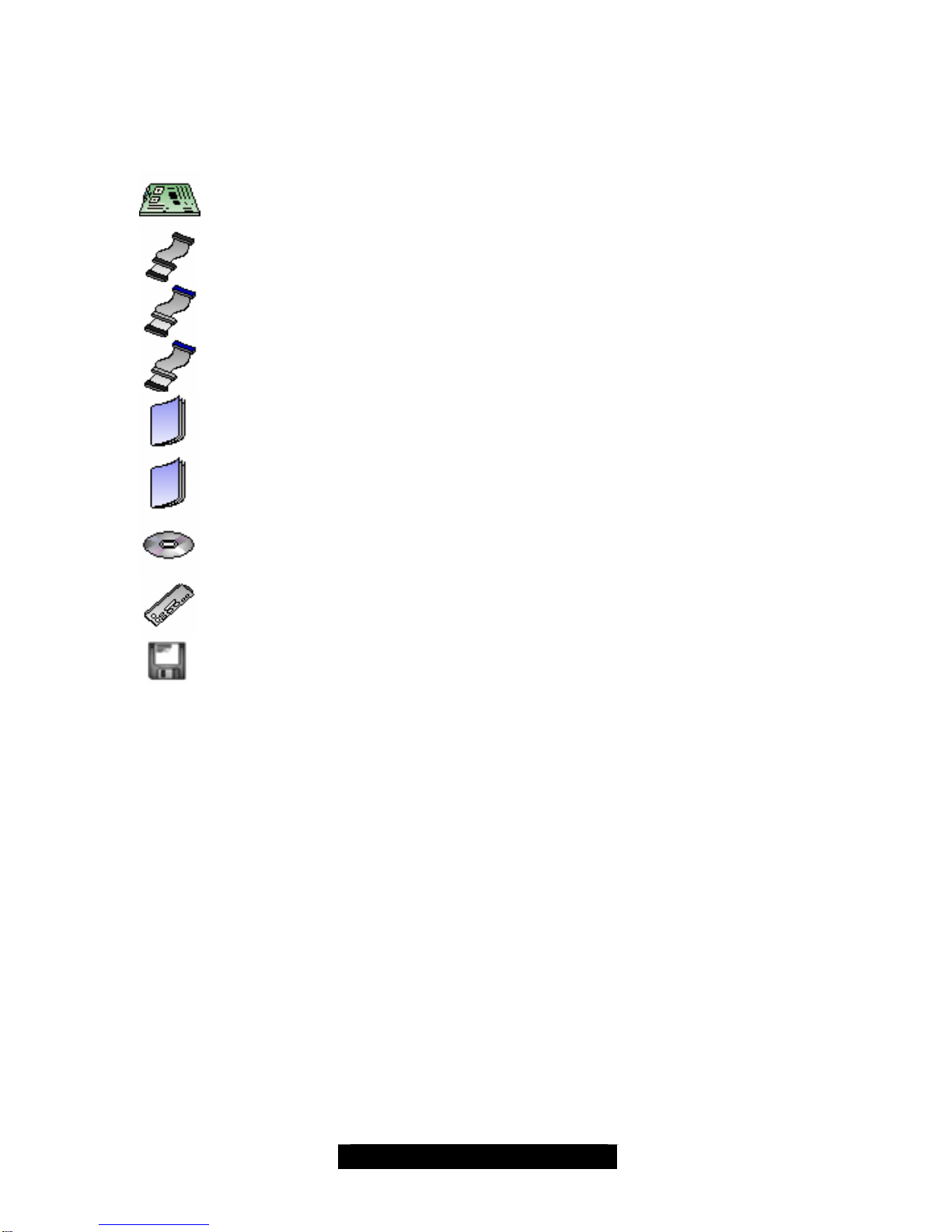

Check the box contents!

The retail motherboard package should contain the following:

1x Trinity i845E motherboard

1x 34-Pin floppy drive cable

1x Ultra-DMA-133/100/66 IDE cable

1x Ultra-DMA-133/100/66 IDE cable (only for models with Promise RAID)

1x Trinity i845E User’s Manual

1 x Trinity i845E Quick Reference

1x TYAN driver CD

1x I/O shield

Software driver disk for Promise RAID (only for models with Promise RAID)

If any of these items are missing, please contact your vendor/dealer for replacement before

continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

1.1 –Congratulations!

You have just bought one of the most advanced platforms suited for digital content creation,

productivity and 3D gaming applications. The Trinity i845E is based on Intel’s 845E chipset,

supporting the Intel Pentium 4 Processor, DDR memory, AGP Pro, and more. These features

enable breakthrough performance for today’s rapidly developing multimedia applications.

Visit TYAN’s Website at http://www.tyan.com. There you can find information on all of TYAN’s

products with FAQ’s, distributor’s list and BIOS setting explanations.

1.2 –Hardware Specifications

Processor

• Single mPGA478 ZIF socket

• Supports one Intel Pentium4 processor,

including "Northwood" series

• Onboard VRM (VRM 9.1 spec)

• Front-Side Bus support for 400MHz or

533MHz

Chipset

• Intel 845E chipset

• MCH + ICH4 + FWH

• Winbond W83627HF LPC I/O ASIC

Memory

• Four 184-pin 2.5v DDR DIMM sockets

• Supports up to 2GB of Unbuffered

PC2100/1600 DDR memory

• Supports ECC memory modules

Expansion Slots

• One AGP Pro slot

• Five 33MHz 32-bit (5-volt) PCI slots

• Total of six usable slots

Integrated PCI IDE

• Dual-channel master mode

• Supports up to four Enhanced IDE devices

• Support for ATA-100/66 IDE and ATAPI

compliant devices

Integrated LAN (manufacturing option)

• Gigabit Ethernet and Fast Ethernet

• Two LAN controllers

-one Intel 82540 Gigabit controller

-one Intel 82562 10/100 controller

Integrated IDE RAID (manufacturing option)

• Promise PDC20276 bus-master controller

• Dual-channel ATA-133 IDE RAID

• Supports up to 4 ATA-133/100/66 IDE drives

• Supports RAID Levels 0, 1

Integrated 2D/3D Graphics (manufacturing

option)

• ATI RAGE XL graphics controller

• 8MB frame buffer

• Standard 15-pin analog VGA port

http://www.TYAN.com

Integrated I/O

• One floppy connector supports up to two

drives

• One 9-pin 16550-based serial port

• One 25-pin SPP/ECP/EPP parallel port

• Six USB 2.0 ports

• PS/2 keyboard and mouse ports

1.3 Software Specifications

OS (Operating System) Support

•Microsoft Windows NT 4

•Microsoft Windows 2000

Microsoft Windows XP

TYAN reserves the right to add support or

discontinue support for any OS with or

withoutnotice.

Integrated Audio (manufacturing option)

• AC'97 6-channel audio codec

• Line-In, Line-Out, Mic-In jacks

• CD-In, Aux-In connectors

HardwareMonitoring

• Winbond 83627HF hardware monitoring

ASIC

• CPU temperature/voltage monitoring

• 3-pin fan monitoring headers

BIOS

• Phoenix AwardBIOS on 4Mbit Flash ROM

• Jumper-free overclocking and over-voltage

• User settings for hardware monitoring

• Auto-configuration of IDE hard drive types

• Multiple boot options

Form Factor

• ATX footprint (12" x 9.6")

• ATX12V power connector

• Stacked parallel (one), serial (one) and VGA

(one) ports

• Stacked USB (four) ports

• Side-by-side LAN (two) ports

• Stacked keyboard and mouse ports

Regulatory

• FCC DoC (Declaration of Conformity)

• European CE (Declaration of Conformity)

http://www.TYAN.com

Chapter 2: Board Installation

WARNING: The Trinity i845E only supports

ATX12V power supplies and will not operate with

other types. Refer to section 2.18for instructions on

installing ATX12V power supplies. DO NOT use

EPS12V or ATX-GES power supplies as they will

damage the board and void your warranty.

Only ATX form factor chassis’ are supported. Other

form factors may short the board because the

installation studs are in different locations than

those required by the Trinity i845E.

Installation

You are now ready to install your motherboard. The mounting hole pattern of the Trinity i845E

matches the ATX system board specifications. Your chassis should support a standard ATX

motherboard form factor.

How to install our products right…. the first time!

The first thing you should do is read this user’s manual. It contains important information that will

make configuration and setup much easier. Here are some precautions you should take when

installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic bag.

Unplug the power from your computer power supply and then touch a safely grounded

object to release static charge (i.e. power supply case). For the safest conditions, Tyan

recommendswearing astatic safetywrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board, or flex the

board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors, memory modules,

and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag that the

board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your chassis, as well

as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.tyan.com

2.0 –Board

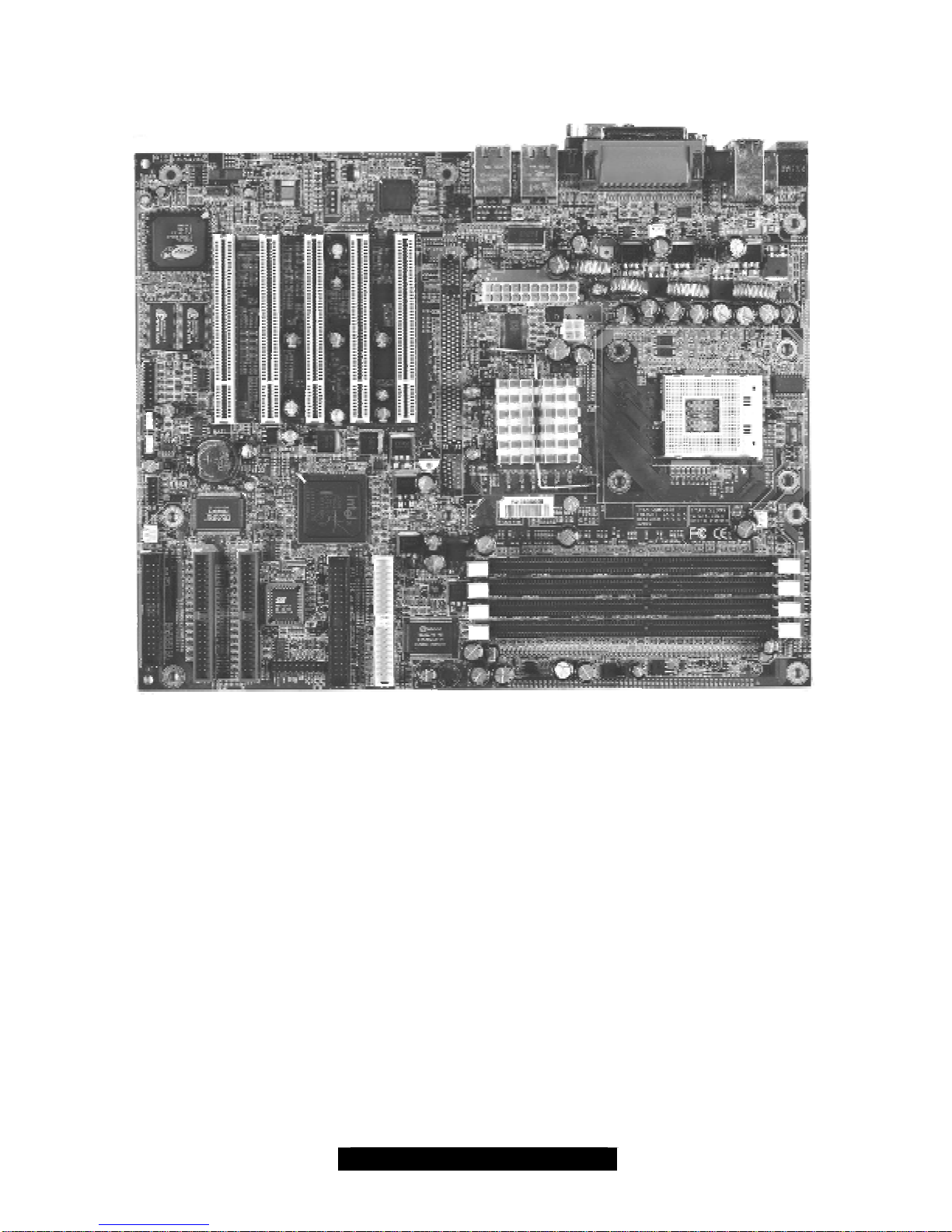

The following is an image of the Trinity i845E S2099.

S2099GNNR

The above photograph is purely representative. Due to engineering updates and new board

revisions, certain components may change and or be repositioned. The picture above may

or may not look exactly like the board you received.

The following page includes details on the vital components of this motherboard.

http://www.tyan.com

2.1 –Board Jumpers

This jumper diagram is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above diagram.

2.2 –Fan Connectors

Use these headers to connect cooling fans, both chassis and

processor fans, to your motherboard. Cooling fanshelp keep the

system more stable and operating reliably for its product life.

http://www.tyan.com

2.3 –Front Panel Connector (J27)

Your chassis will usually come with connectors to install onto the motherboard, such as HDD and

Power LEDs. The Front Panel Connector has been implemented for such purposes.

910

11 12

13 14

15 16

17 18

1,3: Hard drive LED

2,4: Power LED

5,7: Reset Switch

6,8: Power Switch

11,13,15,17: InfraRed

12,14,16,18: Speaker Switch

2.4 –CMOS Reset (JP3)

1,2: Default

2,3: Clear CMOS

Connect pins 2 and 3 together to reset the CMOS settings in case an incorrect setting

causes system instability or you have forgotten your system/setup password or have

just flashed your BIOS.

Power off the system and disconnect the power supply.

-Close pins 2 and 3 on JP1

-Wait about 5 seconds

-Close pins 1 and 2 on JP1

-Reconnect the power supply and power on the system

2.5 –Promise Controller (JP4)

1,2: Disabled

2,3: Enabled

2.6 –Onboard ATI RAGE XL (JP1)

1,2: Enabled

2,3: Disabled

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali TYAN Scheda madre

TYAN

TYAN S5501 Manuale operativo e di manutenzione

TYAN

TYAN S7100 Manuale utente

TYAN

TYAN TIGER K8W Manuale utente

TYAN

TYAN Tiger i7322 S5351 Manuale utente

TYAN

TYAN Tempest i5400XL Manuale utente

TYAN

TYAN TIGERCUB ATX Manuale utente

TYAN

TYAN S7103 Manuale utente

TYAN

TYAN THUNDER LE-T Manuale utente

TYAN

TYAN S7040 Manuale utente

TYAN

TYAN S8032 Manuale utente

TYAN

TYAN S7105 Manuale utente

TYAN

TYAN TEMPEST I5000PW Manuale utente

TYAN

TYAN TIGER I7520SD Manuale utente

TYAN

TYAN S7020 Manuale utente

TYAN

TYAN Thunder K8WE S2895 Istruzioni per l'installazione e il funzionamento

TYAN

TYAN TITAN III Manuale utente

TYAN

TYAN THUNDER K8SR Manuale utente

TYAN

TYAN Thunder K8W S2885 Manuale utente

TYAN

TYAN TIGER I7322DP Manuale utente

TYAN

TYAN TOMCAT I7230W Manuale utente

TYAN

TYAN S8212 Manuale utente

TYAN

TYAN TACOMA Manuale utente

TYAN

TYAN TOMCAT I845 Manuale utente

TYAN

TYAN TEMPEST I5000PT Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
