Ultimaker Heated Bed Upgrade Kit Manuale utente

English V1.0

Heated Bed Assembly manual

Original

Table of Contents

Introduction & Speciﬁcation p. 4

A. Preparing the frame. p. 5

B. Mounting the electronics. p. 11

C. Assembling the Z-stage. p. 15

D. Installing the Z-stage & electronics. p. 24

E. Updating the Firmware and Calibration p. 33

Introduction & Speciﬁcation

Support

We would love to hear from you. We are easy to reach and enjoy answering all

your questions. Technical assistance, sales enquiries or general information, we

are there for you. Find the information below to contact us.

General info@ultimaker.com

Support support@ultimaker.com

Sales sales@ultimaker.com

Marketing/PRpr@ultimaker.com

Phone +31 (0)345712017

Dear customer,

Thank you for purchasing the Heated Bed Upgrade Kit for your Ultimaker

Original!

This assembly manual will guide you through the build process step by

step. Besides this assembly manual there’s also a brand new user manual

available online: www.ultimaker.com/pages/support/manuals

There’s also a wealth of information, tips, tricks and amazing Ultimaker prin -

ted objects on our online community forum. Drop by and say hello:

www.ultimaker.com/forum

Visit YouMagine for fun projects and free printable models:

www.youmagine.com

Happy building and printing and we’ll be in touch!

Team Ultimaker

Technical speciﬁcation

Temperature

Operating heated build

plate temperature 50 - 100 degrees celsius

Printing with PLA 65 degrees celsius

Printing with ABS 100 degrees celsius

Electrical

AC INPUT 100 - 240 V,

Approx. 4 AMPS,

50 - 60 HZ

221watt max .

Power Requirements 24 V DC @ 9.2 AMPS

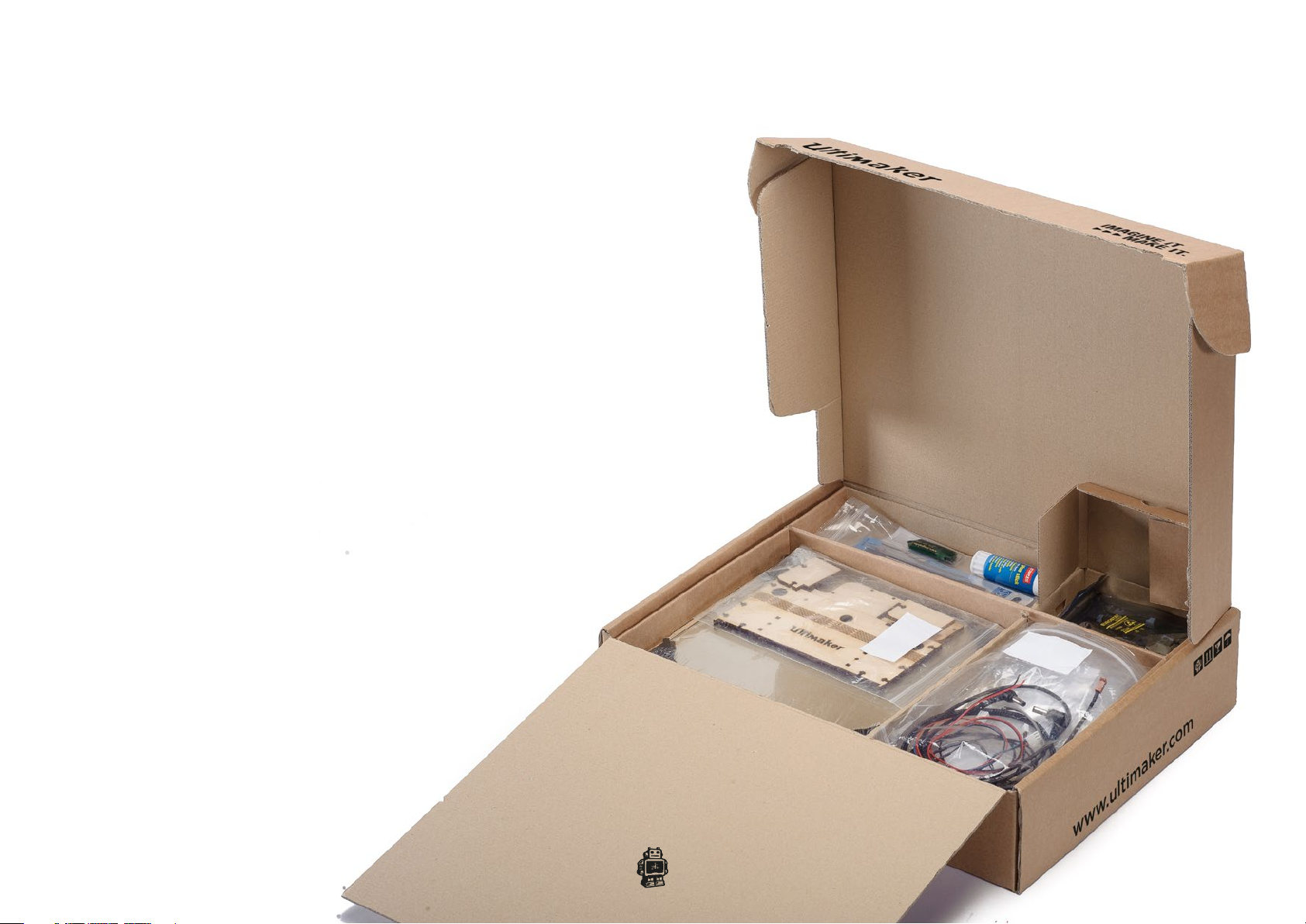

A. Preparing the frame. Part Amount

Drill bit 14mm 1

Drill bit 3,2mm 1

Handdrill 1

Scissors 1

(Blue) Tape 1

Hex Key Screwdriver 2 1

Hex Key Wrench 1.5 1

Powerplug Template 1

Heated Bed PCB Template 1

Note: Make sure you have

al the parts before you start

with the next step.

7Warning: When installing electronics or prefor -

ming any other maintenance on the machine, make sure

you are staticly discharged and ALWAYS DISCONNECT

THE POWER SUPPLY from the machine.

1. Use the Hex Key Wrench 1.5 to

undo the top two screws in the

Z-coupling.

2. Unscrew the Top caps (3B)

so you can remove the guiding

rods. Remember to save all the

nuts and bolts

3. Remove the guiding rods

from the frame

4. Lift the bed upwards and tilt

it to remove it from the frame.

5. Remove these 4 screws

from the Z-motor and save the

screws, you will re-use them to

install the new motor

6. Turn the machine on its side

and remove the Z-motor

7. Take the two templates and

the tape. You can use any tape

you want, just make sure it

sticks to the wood.

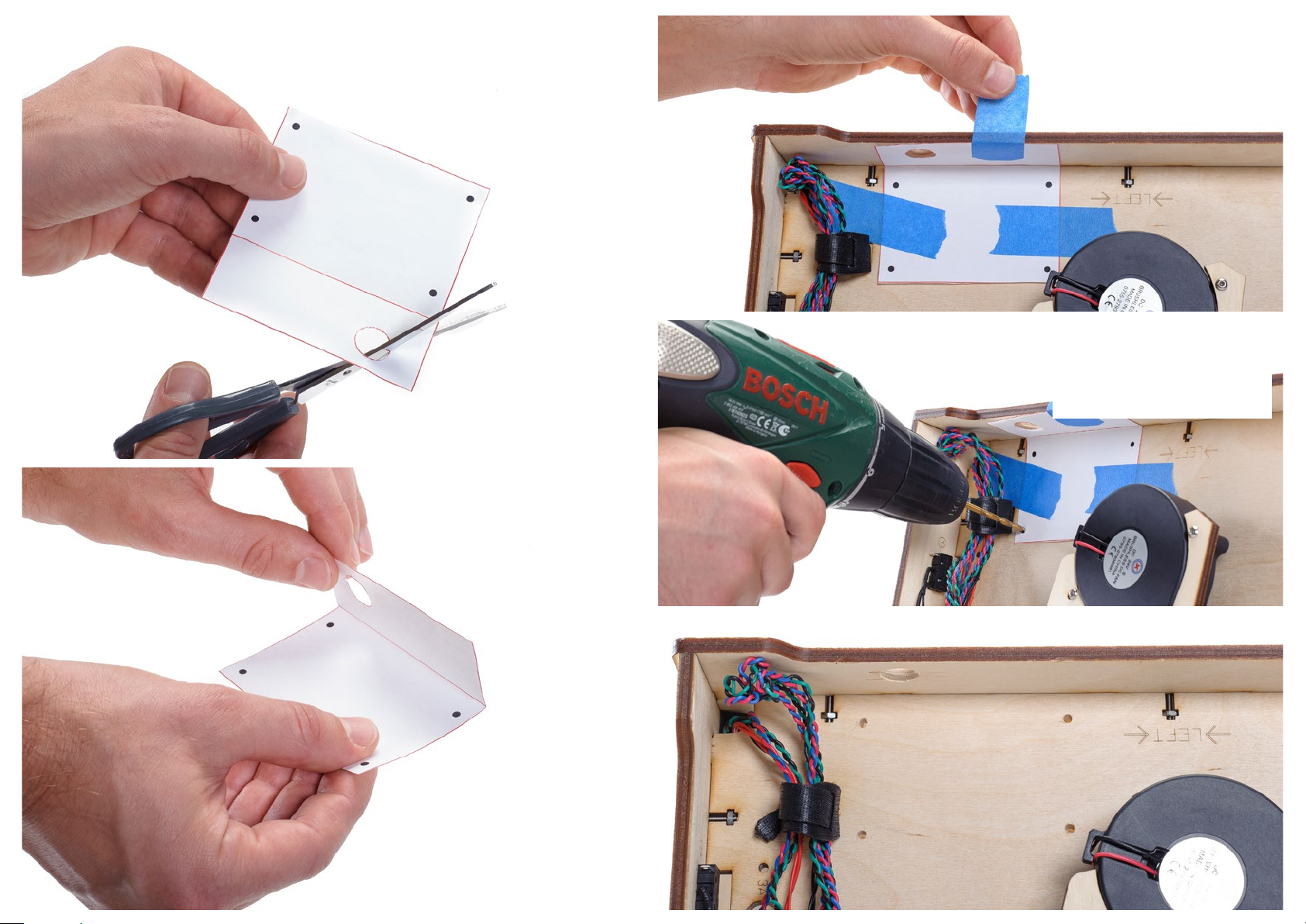

8. Cut out the Template with

the corner shape.

9. Line up the template with

the back left corner of the

frame and secure it with tape.

10. Take the handdrill and the

14mm drill bit, and drill out the

hole. You can use a center -

punch to create a nice starting

position.

Note: Make sure no wires are under -

neath the spot where you are going

to drill.

13. Line up the hole in the

template with the hole you just

drilled. Tape the template in

place.

14. Take the drill and the

3.2mm bit, and drill through

the 4 black circles in the tem -

plate.

11.Cut out the Heated Bed

PCB Template.

12. Cut out the hole in the tem-

plate and fold it on the red line.
