Viking Range VCWB301R Manuale utente

F20903A EN (041515)

Use & Care Manual

Viking Range, LLC

111 Front Street

Greenwood, Mississippi 38930 USA

(662) 455-1200

For product information

call 1-888-(845-4641)

or visit our web site at

vikingrange.com

Built-In Full Height Wine Cellar

Congratulations

Congratulations and welcome to the elite world of Viking ownership.

We hope you will enjoy and appreciate the care and attention we have

put into every detail of your new, state-of-the-art wine cellar.

Your appliance is designed to offer years of reliable service. This Use

and Care Guide will provide you with the information you need to

become familiar with your wine cellar’s care and operation.

Your complete satisfaction is our ultimate goal. If you have any

questions or comments about this product, please contact the dealer

from whom you purchased it, or contact Viking Range, LLC.

We appreciate your choice of wine cellar and hope that you will again

select our products for your other major appliance needs.

For more information about the complete and growing selection of

products, contact your dealer or visit us online at vikingrange.com.

WARNING

To reduce the risk of fire, electric shock, or injury when using

your unit, follow these basic precautions:

• Read all instructions before using the unit.

• Never allow children to operate, play with, or crawl inside the

unit.

• Never clean unit parts with flammable fluids. The fumes can

create a fire hazard or explosion.

• Always turn the power on/off switch (located behind the air

grille on top right side) to the OFF position before attempting

to change light bulbs, clean, or service the unit.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR OTHER

FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF

THIS OR ANY OTHER APPLIANCE. THE FUMES CAN

CREATE A FIRE HAZARD OR EXPLOSION.

Warnings

WARNING

ELECTRICAL SHOCK HAZARD

Plug into a grounded 3-prong outlet.

If a 2-prong wall receptacle is encountered,

contact a qualified electrician.

Do not remove ground prong.

Unit must be grounded at all times.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or

electrical shock.

Your safety is important to us. This use and care manual

contains safety symbols and statements. Please pay special

attention to these symbols and follow any instructions given.

This symbol alerts you to hazards such as fire,

electrical shock or other injuries.

WARNING

ELECTRICAL SHOCK HAZARD

Disconnect power or turn power

disconnect switch to OFF position before

removing top grille. Failure to do so can

result in death or electrical shock.

WARNING

Burn Hazard

Do not touch condenser coils near

defrost pan.

Doingso can result in burns.

WARNING

During normal use of the wine cellar, the kick plate must be

always installed for your own safety.

Warnings

WARNING

Children should be supervised to ensure that they do not play

with the appliance.

IMPORTANT: Child entrapment and suffocation are not

problems of the past. Junked or abandoned refrigerators are

still dangerous... even if they will sit for “just a few days.”

DANGER

Risk of Child Entrapment

Before You ThrowAway Your Old Unit:

• Take off the doors.

• Leave the shelves in place so that children may not easily

climb inside.

Warnings

GettingStarted

Wa r n i n g s __________________________________________ 3

Important Safety Instructions ______________________ 6

Proper Disposal (of old product) ___________________ 7

F e a t u r e s __________________________________________ 8

Product Controls

Settings and Functions ____________________________ 9

Electronic Control Center _________________________ 12

Operation

Wine Storage System _____________________________ 14

Shelf Removal ____________________________________ 15

Convertible Display Shelves _______________________ 16

Changing Light Tube (top zone) ___________________ 17

C h a n g i n g L i g h t Tu b e ( m i d d l e z o n e ) ________________ 18

Home Security System Connection ________________ 19

Door Stop Adjustment _____________________________ 19

Wine Storage Guidelines __________________________ 20

Product Care

C l e a n i n g a n d M a i n t e n a n c e ________________________ 21

Troubleshooting ___________________________________ 22

Service Information ________________________________ 23

Warranty __________________________________________ 24

Important Safety Instructions

• Install and level the wine cellar on a floor that will hold its weight and

in an area suitable for its size and use.

• Do not install a wine cellar near a heat source, nor in a location

where the surrounding temperature will fall below 60° F (16° C).

• Do not allow your wine cellar to be exposed to the weather or

outdoor elements.

• Connect the wine cellar only to the appropriate kind of electrical

outlet, with the correct power supply and grounding. (Refer to the

Electrical Requirements section of the Installation Instructions.)

• Properly maintain the wine cellar.

• Be sure the wine cellar is not used by anyone unable to operate it

properly.

• This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person

responsible for their safety.

• Do not store explosive substances such as aerosol cans with a

flammable propellant in this appliance.

Getting Started

Proper Disposal (of old product)

DANGER

Risk of Child Entrapment

Before You ThrowAway Your Old Refrigerator Unit:

• Take off the doors.

• Leave the shelves in place so that children may not easily

climb inside.

IMPORTANT:

Now that you have a new wine cellar, it is extremely important

that you dispose of your old appliance in a way that minimizes

the possibility that children will find it. There have been many

cases in years past of children crawling inside junked and

abandoned refigerators and becoming trapped or suffocated.

Contact your municipal waste disposal authority to find out

the best and safest way to dispose of your old product.

Getting Started

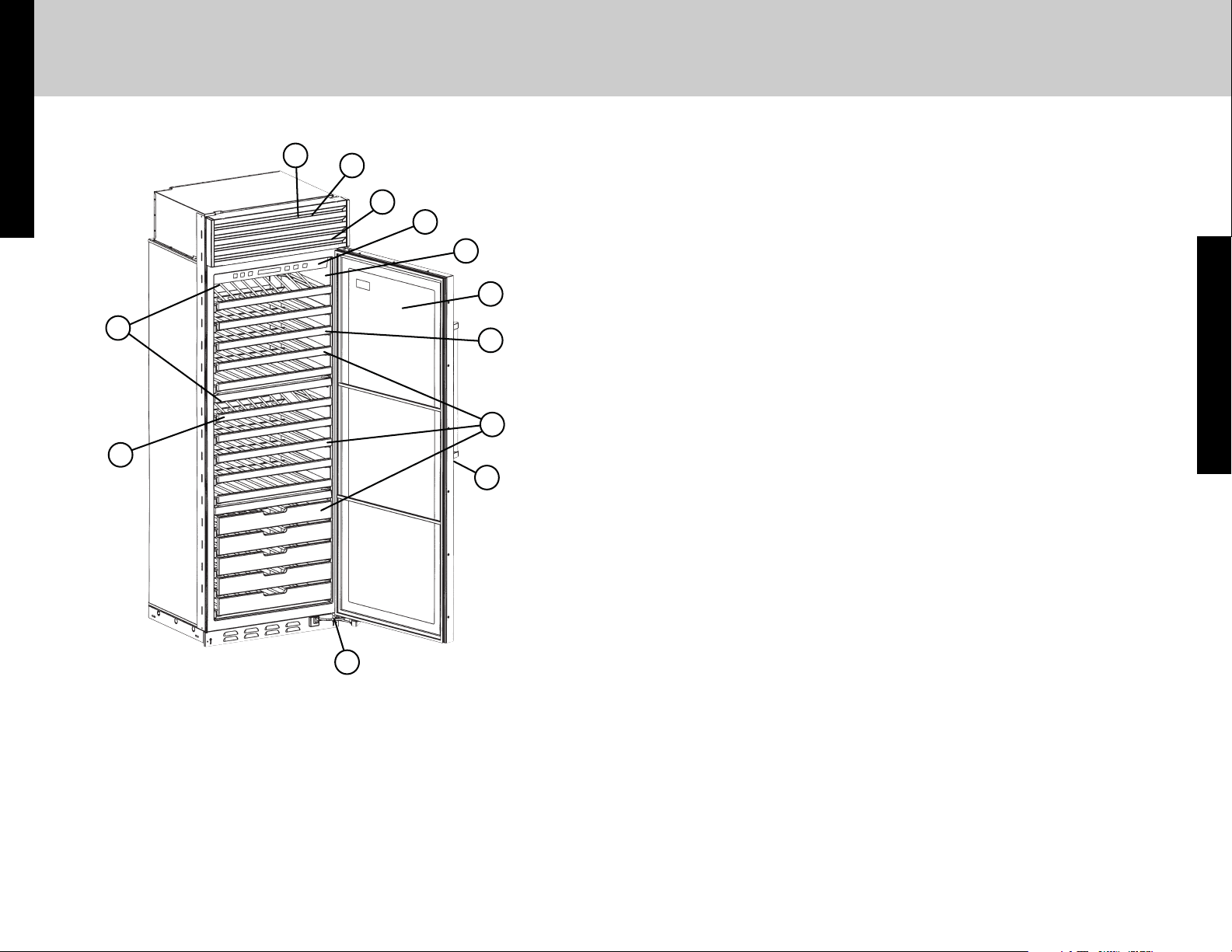

Features

1. TriTemp™ Storage System

Condenser (150 bottle capacity)

2. Electronic Control Center

3. Convertible Display Shelves (2)

4. Extendable Shelves (13)

5. Energy Efficient/UV Resistant

Glass

6. Low Intensity Lighting

7. Black Interior

8. High Temperature Alarm (behind

grille)

9. Open Door Alarm (behind grille)

10.Home Security System

Connection (behind grille)

11.Door Stop Settings - 90°, 110°,

120°

12.Door Lock (on front of door)

Product Controls

Settings and Functions

TriTemp™ Storage System

Your wine cellar has three independent temperature zones separated by

gaskets and tempered glass shelves to seal the zones. This allows you to

set the temperatures in your wine cellar to match your wine storage needs.

Each zone has its own fan, allowing for true air circulation within the zone.

One control, conveniently located at the top of the unit, allows you to

precisely control the temperature in each zone separately.

Bottom Zone - The bottom zone is designed for longer term wine storage

with no lighting and raised wood facings to add further UV protection. This

is the perfect place to store your most delicate and precious wine.

150 Bottle Capacity

Your wine cellar will accommodate 150 bottles of wine on the 15 shelves.

Each shelf has a 10 bottle capacity.

ElectronicControlCenter

The electronic control center allows you to set and monitor the operations

of the wine cellar easily and accurately.

Versatile ShelvingSystem

Your wine cellar's shelving system is designed for optimal wine storage.

This system includes two convertible display shelves that lay flat for normal

storage or convert to display shelves to beautifully display your wine. All

shelves are coated to absorb vibration and prevent unnecessary movement.

Shelves pull forward on roller bearing glides and remain level at full

extension allowing for easy loading and unloading and are fully removable

for easy cleaning. Shelves are designed to accommodate different bottles

sizes and shapes including standard bottle, half-size bottles and magnums.

Shelves may need to be removed to store some bottles.

Energy Efficient and UV Resistant Glass Doors

Glass door units are energy efficient and UV resistant. The doors are

insulated and coated to protect against UV rays.

Low Intensity Lighting

The low intensity lighting system allows wines to be displayed without

compromising wine integrity. Lights can be set so that they stay on for

display purposes or to only come on when the door is opened.

Black Interior

The wine cellar's black interior not only provides a stylish backdrop for your

prized wines but absorbs harmful light and protects your wines.

Settings and Functions

Product Controls

High Temperature Alarm

Your wine cellar has a high temperature alarm feature that will sound if

temperatures within your wine cellar fluctuate outside of your set point by 5

degrees for an extended period of time.

Open Door Alarm

The door alarm feature alerts you if you have left the wine cellar's door

open for more than 3 minutes.

Connection to Home Security System

For added peace of mind, your wine cellar can be connected to your home

security system to alert you while away from home if the temperatures

within your wine cellar fluctuate outside of your set point by 5 degrees for

an extended period of time.

Door Stop Settings

For utmost flexibility, the wine cellar door stop can easily be set to 90, 110,

or 120 degrees, allowing it to be used in many different applications.

Door Lock

A keyed door lock comes standard with the wine cellar. The door lock

provides added protection for your wine collection.

Before Using Your Wine Cellar

To obtain the best possible results from your wine cellar, it is important that

you operate it properly.

Product Controls

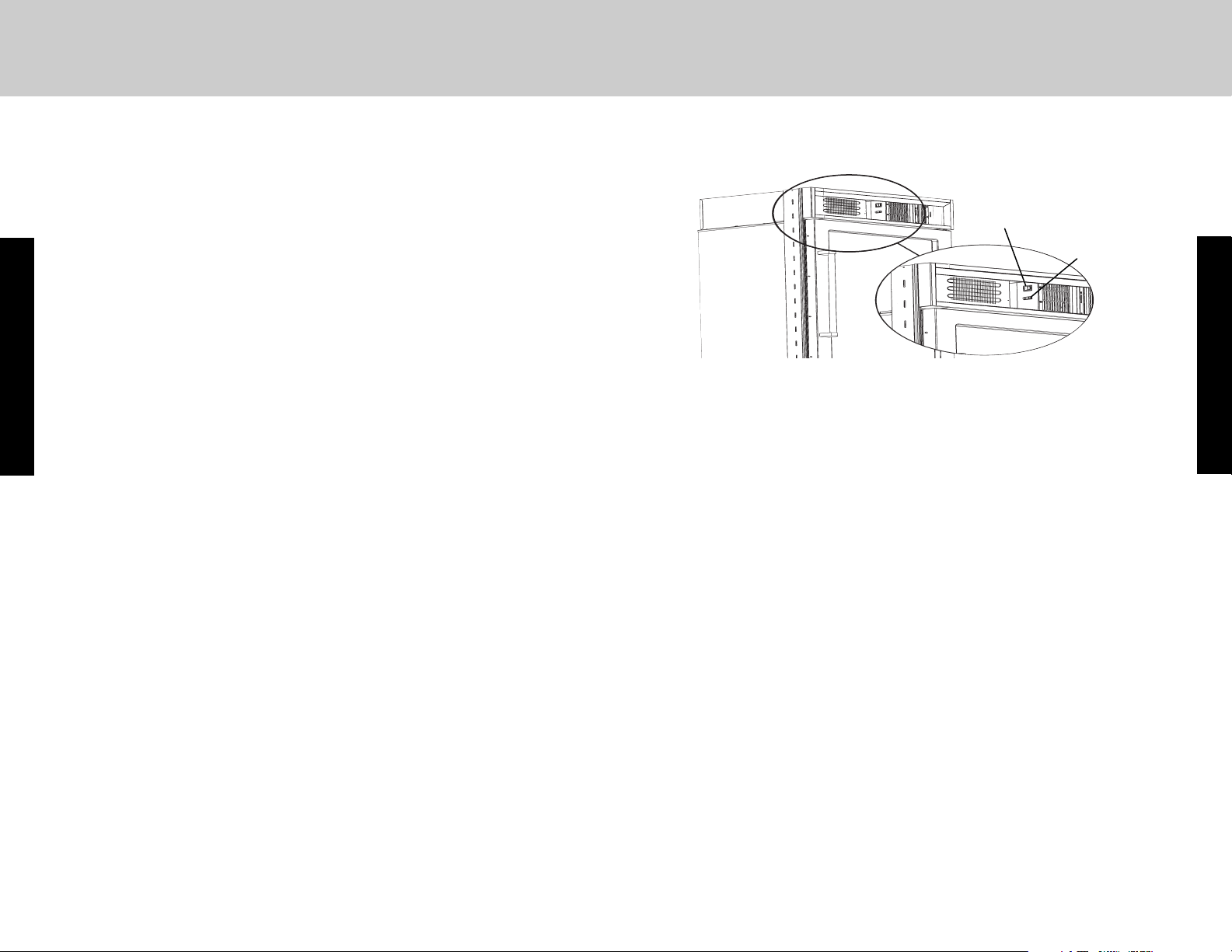

Power

On/Off

Switch

Showroom

Switch

IMPORTANT:

Be sure the power on/off switch is in the ON position after cleaning the

wine cellar or changing the light tubes.

Power ON/OFF Switch

The power on/off switch is used to turn the power off to the wine cellar

when cleaning it or changing the light tubes. The wine cellar is shipped

with the power on/off switch in the on position. To turn the power off,

remove the center grille assembly by grasping the three center louvers,

lifting up and pulling outward. Press the power on/off switch to the “Off”

position. To turn the power back on, press the power on/off switch to the

“On” position. Replace the center grille assembly by aligning the hooks in

the assembly with the slots in the brackets which are attached to the grille.

Push in over the hooks and slide grille assembly downward.

Showroom Switch

The showroom switch allows electronic controls and interior lights to

function independently of the refrigeration system. Your wine cellar is

shipped with the showroom switch in the “Off” position. To use the

showroom mode, remove center grille assembly and turn the showroom

switch to the “On” position. Showroom mode will be engaged.

1312

Electronic Control Center

Product Controls

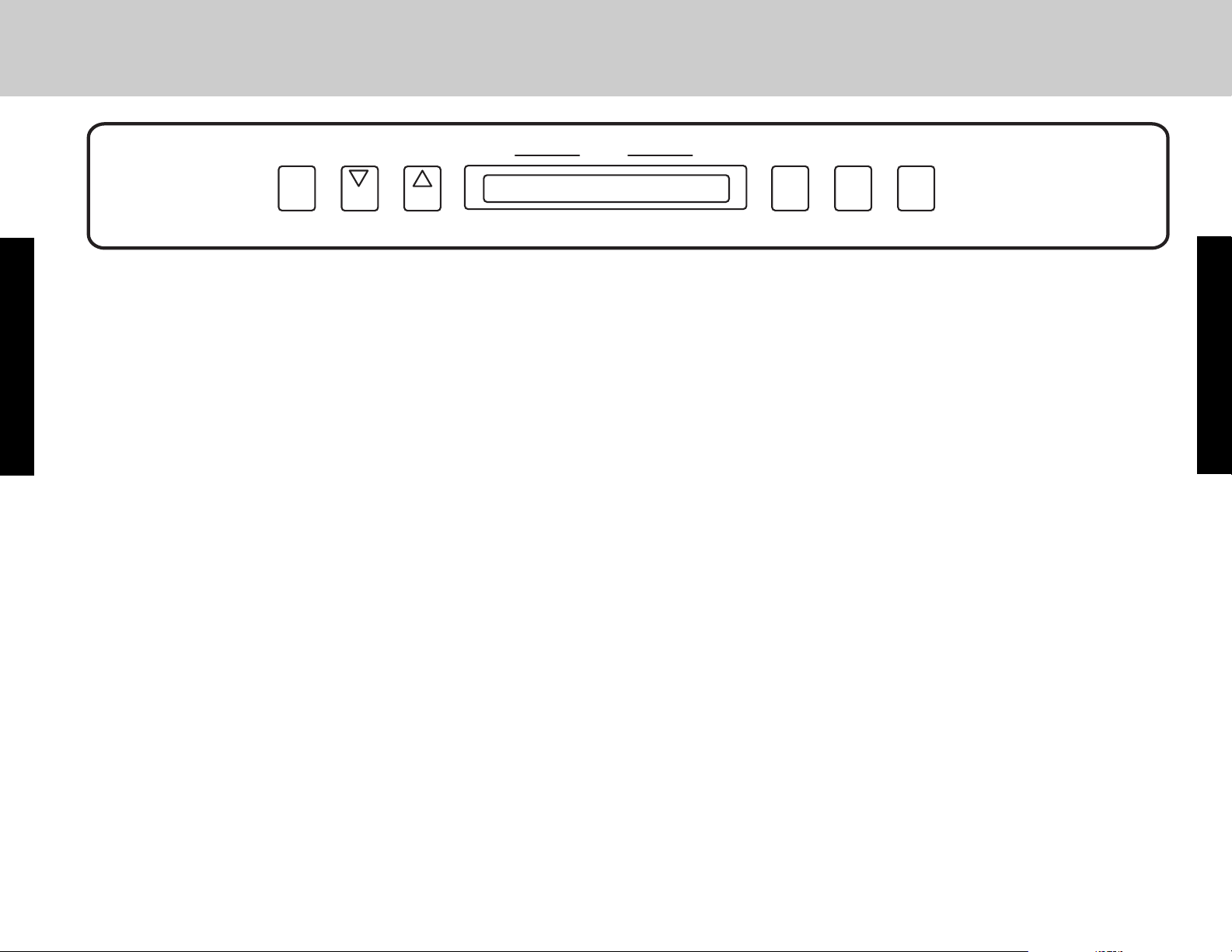

ElectronicControlCenter

With the TriTemp™ Storage System, you can set the temperature in each of

the three zones within a range of 43°F to 65°F (6°C to 18°C). The unit is

factory set at 43°F (6°C) in the top two zones and 55°F (13°C) in the bottom

zone. Select the zone you wish to adjust by pressing the "ZONE" key. The

lighted bar on the control center will toggle between the upper, middle,

and lower zones. When the bar above the zone you wish to adjust is lit,

press the lower temp or higher temp key to select the desired temperature.

The set temperature will flash on the control center. After 7 seconds, the

temperature displayed will revert to the ACTUAL zone temperature and will

no longer flash. To again view the set temperature, press the "ZONE" key.

Refer to the Wine Storage Guidelines section and the Suggested Serving

Temperatures section.

Lower Temp

The lower temp key allows you to decrease the temperature in the selected

zone in one degree increments.

Higher Temp

The higher temp key allows you to increase the temperature in the selected

zone by one degree increments.

Lights

The lights key allows you to turn the lighting on independent of the door

opening for displaying the contents of the upper and middle zones. To turn

the lights on, press the button once. Lights should not be left on for

extended periods of time, as long term light exposure will affect the quality

of your wine.

Display

The display key will turn the power to the display off. Press this button if

you do not wish for the control panel to be illuminated. To turn the display

on, press the display key.

TriTemp™ Wine Storage

150 Bottle Capacity

Three Independent Temperature Areas

Electronic Control Center

ZONE LIGHTS DISPLAY ALARM

LOWER

TEMP

HIGHER

TEMP

UPPER MIDDLE LOWER

Alarm

Your wine cellar is equipped with two alarms: High Temperature alarm and

Open Door alarm. The High Temperature alarm will signal if the

temperature in any zone fluctuates 5 degrees from your set point for an

extended period of time. To set this alarm, press and hold the alarm key for

two seconds. A bell will appear on the display when the alarm has been

successfully enabled. When the alarm is triggered, a beeping noise will be

heard and the wine cellar’s display will flash and show an alarm message. To

turn the alarm off, press the alarm key. To completely disengage the alarm,

press and hold the alarm key for two seconds. The Open Door alarm is set

automatically. The Open Door alarm will signal if the wine cellar’s door has

been left open for three minutes. A beeping noise will be heard and an

alarm message will appear on the display. The wine cellar’s door must be

closed in order to turn the alarm off.

Temperature Unit Conversion

Your wine cellar is factory set to display degrees Farenheit. If you prefer

Celsius, press and hold the alarm key and display key for 5 seconds.

Holiday Mode for SabbathObservance

Pressing and holding the display button continuously for 10 seconds

accesses this mode. The display will continue to be on as long as the

button is pressed and at the end of 10 seconds, the display will turn off and

holiday mode will be engaged. NOTE: To enter Holiday Mode, the display

must be on prior to initiating the Holiday Mode. To cancel Holiday Mode,

press and hold the display button continuously for 10 seconds. At the end

of 10 seconds the display will turn on. When Holiday Mode is selected: a

random time delay will be applied to the compressor relay start and stop.

The chamber lights relay will remain de-energized. The display will not be

illuminated. Audible sound (beep) from the control will be disabled. Fan

outputs will not be affected by opening or closing of the door switch. All

front panel buttons will be inoperative except a 10 second press of the

display button causing the control to exit Holiday Mode. All other functions

will continue as in normal cooling.

Wine Storage System

CAUTION

To store magnum or oversized bottles, the shelf directly above must

be removed. Failure to do so could result in bottle breakage. See

“Shelf Removal” section for proper shelf removal.

Versatile ShelvingSystem

Your wine cellar's shelving system makes it easy to store standard, magnum

and half-size bottles easily. There are a total of fifteen wine shelves which

will each accommodate 10 standard bottles of wine, alternately displayed.

Two convertible wine shelves adjust to allow bottles to be displayed.

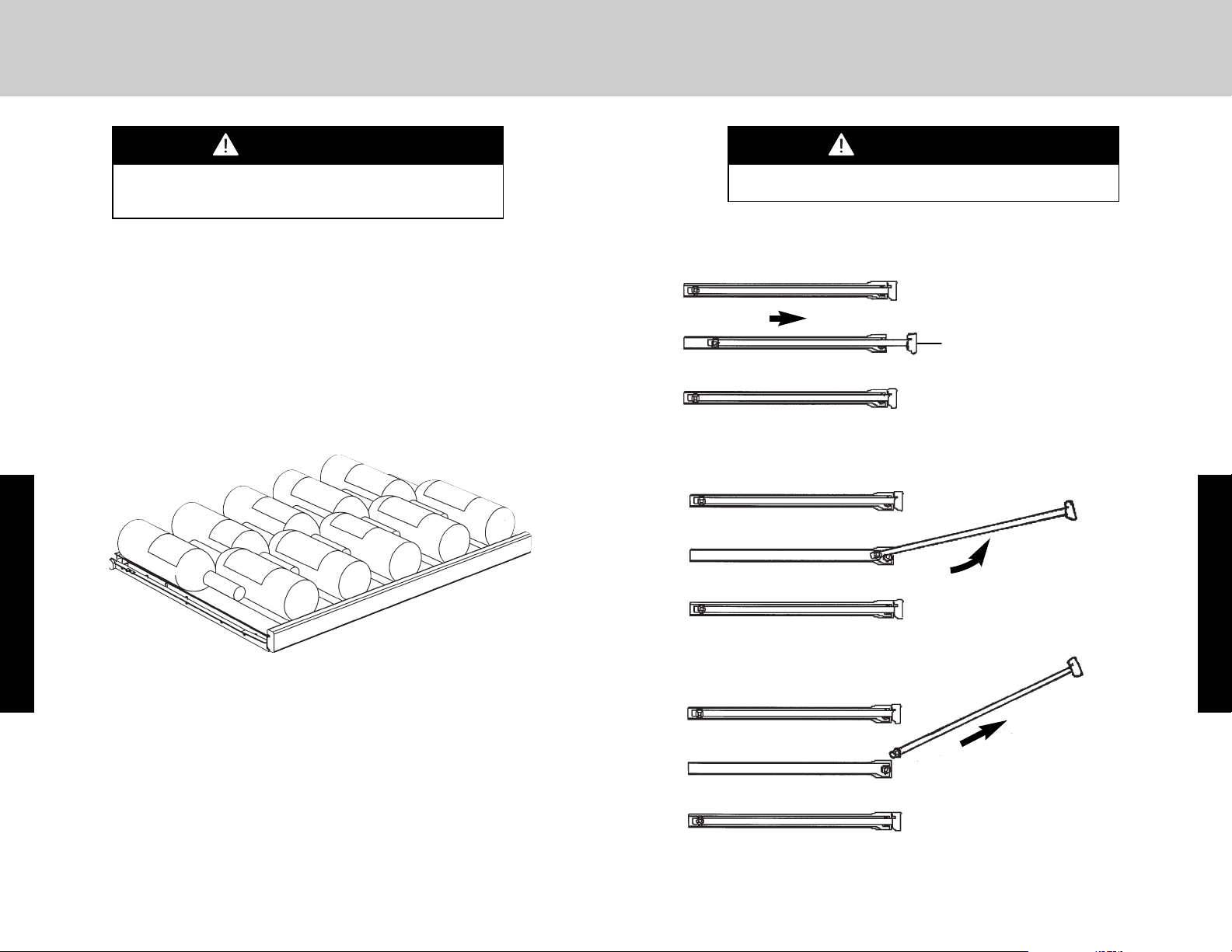

Loadingthe Shelves

To load a shelf, pull the shelf forward and place the bottles on the shelf

with the neck in the center of the shelf. Alternate the direction of the next

bottle. Note the illustration below for maximum bottle storage. Shelves

may need to be removed to store some bottles.

Operation

Shelf Removal

CAUTION

Remove wine bottles from shelves before removing shelves. Failure

to do so could result in bottle breakage.

To remove a wine shelf:

1) Pull the shelf forward until it is fully extended.

2) Lift up the front of the shelf.

To replace the shelf, line shelf up with glide, lower into place and push shelf

back.

Operation

Wood

Front

3) Remove from the glide.

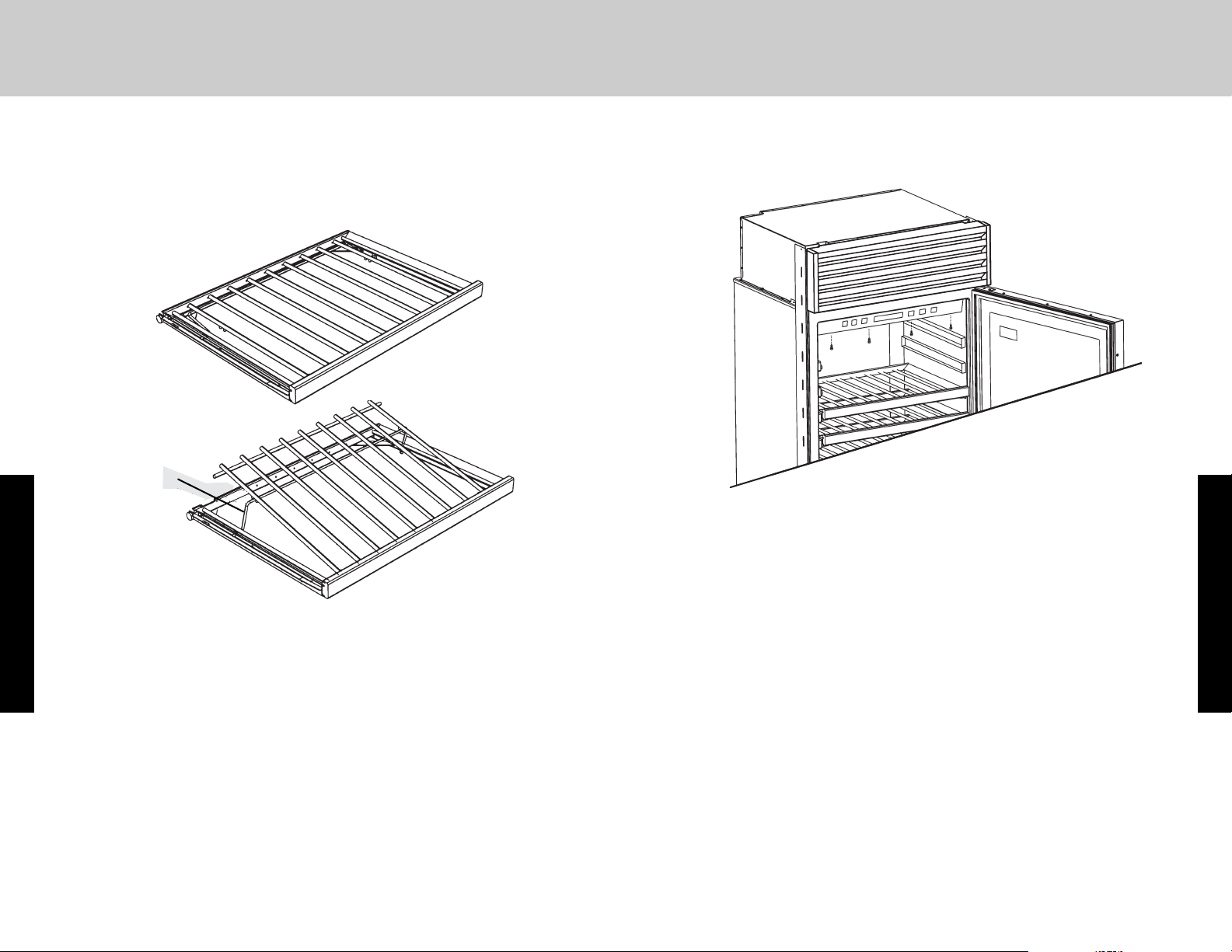

Convertible Display Shelves

Operation

Your wine cellar has two convertible display shelves - one in each of the top

two compartments. To use the display shelf, first remove any wine bottles

stored on the shelf. Next, remove the wine shelf directly above (see Shelf

Removal section). Lift the shelf up, rotate the shelf support up and lock

shelf into place with legs (see illustration below).

Shelf

Support

Wood Facings

Maple wood facings are included with each shelf. These facings may be left

unfinished, finished and sealed, or replaced with other wood to match your

cabinetry. Refer to the wine cellar installation instructions on how to replace

the wood facings.

NOTE: Some finishes may cause undesirable odors. The recommended

procedure is to test a sample in the wine cellar on scrap material before

making permanent changes to wine cellar fronts.

Changing Light Tube (top zone)

Operation

To change the light tube, first remove the center grille assembly and turn

the power ON/OFF switch to the OFF position (see the Before Using Your

Wine Cellar section).

ControlPanel

1. Remove the four screws from the lamp holder attaching the lamp holder

to the underside of the control panel.

2. Rotate the rear of the lamp holder down and forward then pull the front

tabs that engage into the control out of the control panel.

3. Set the lamp holder and screws to the side.

4. Pull the wires attached to the lamp tube through the hole in the control

panel and disconnect the wires attaching the lamp to the cabinet wire

harness.

5. The lamp tube is to be connected to one white wire and one yellow/red

wire.

6. Place tubes in lamp holder. Feed wires back into control panel and

reassemble in reverse order.

NOTE: Please contact your parts distributor or dealer to order new light

tubes.

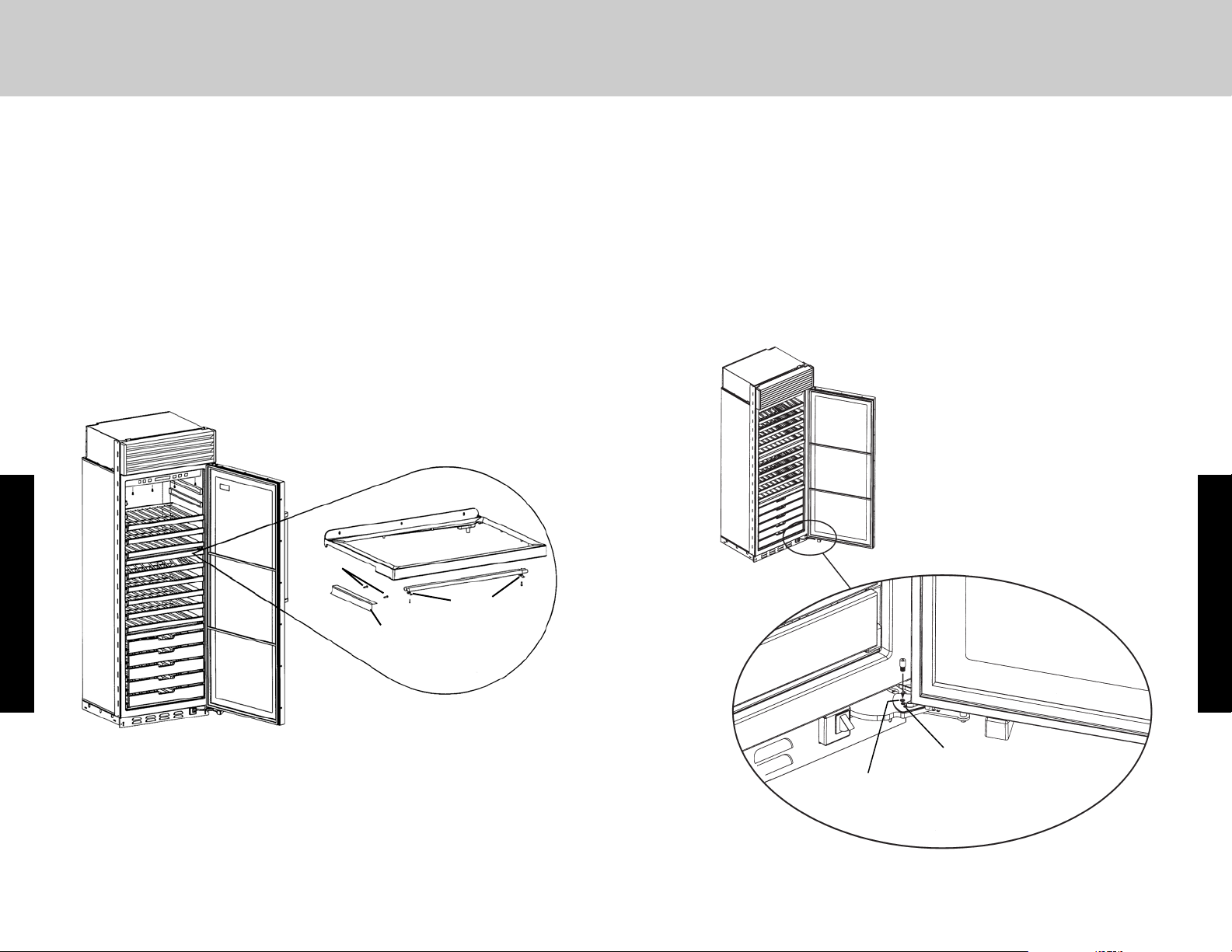

Changing Light Tube (middle zone)

Operation

To change the light tube, first remove the center grille assembly and turn

the power ON/OFF switch to the OFF position (see the Before Using Your

Wine Cellar section).

1. Remove the lamp wire cover by removing the two screws located on the

upper left side of the middle zone. (NOTE: ONLY REMOVE THE TWO

SCREWS HOLDING THE WIRE COVER; DO NOT REMOVE SHELF

MOUNTING SCREWS).

2. Set the wire cover and screws to the side.

3. Disconnect the lamp by disconnecting one yellow and one white wire

from each lamp.

4. Remove the clamp and screw located at the end of the lamp. The lamp

is located on the underside of the middle mullion shelf.

5. Carefully unsnap light tube from shelf and snap new light tube into

place.

6. Reassemble in reverse order.

Light

Clamps

Wire

Cover

Screws

Operation

90˚ stop

(farthest from unit)

120˚ stop

(closest to unit)

Home Security System Connection

The wine cellar may be connected to your home security system to protect

your wine while away from home. Contact a qualified technician or your

home security system representative and refer to the wine cellar installation

instructions.

Door Stop Adjustment

Your wine cellar is factory set at 110° door stop position. To change to

either the 90° or 120° position, remove door stop pin located in the

bottom hinge using a 3/16” allen wrench. For 120° swing, move pin to

utmost forward stop hole. For 90° swing, move pin to utmost rear stop

hole.

Home Security System Connection

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Viking Range Elettrodomestico da cucina

Viking Range

Viking Range P24CSTSS Manuale utente

Manuali Elettrodomestico da cucina popolari di altre marche

Tayama

Tayama TYG-35AF Manuale utente

AEG

AEG 43172V-MN Manuale utente

REBER

REBER Professional 40 Guida utente

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuale utente

Presto

Presto fountain popper Manuale utente

Westmark

Westmark 1035 2260 Manuale utente

Zanussi

Zanussi ZCG64396XA Manuale utente

HOFFEN

HOFFEN SM-9302M Manuale utente

Philips

Philips HD3133 Manuale utente

Ronco

Ronco Beef Jerky Manuale utente

Hendi

Hendi 470411 Manuale utente

Livoo

Livoo MEN386 Manuale utente

Vogue

Vogue D446 Manuale utente

croydon

croydon WR-10313-700 Manuale utente

ADE

ADE AUTOMATIC-L Manuale utente

Chefman

Chefman RJ43-SQ Series Manuale utente

Vacmaster

Vacmaster VP680 Manuale utente

Jetmaster

Jetmaster 900HG Manuale utente
