A PROUD HERITAGE OF EXPERIENCE & QUALITY
Wine Cooler
VT-12TEDi (12 bottle)
OWNER’S MANUAL
WWW.VINOTEMP.COM
2
WWW.VINOTEMP.COM
Your Wine Cellar
This unit can be used for Storage and/or Service. The unit has a glass door
and soft interior light that you can leave on to elegantly display your wine.
Serving Wines
Storing wines at the proper temperature is important. To preserve them as
long as possible wine should be stored at approximately 55° Fahrenheit.
However, the chart below suggests the optimal drinking temperature for the
different styles of wine.
°C °F Wine Style
19 66 Armagnac, Brandy, Cognac
18 64.5 Full Bodied Red wines, Shiraz
17 62 Tawny Port
15 59 Medium Bodied Red Wines
14 57 Amontillado Sherry
13 55.5 Light Bodied Red Wines
12 53.5 Full Bodied White Wines
11 52 Medium Bodied White Wines
10 50 Rosé, Light Bodied White Wines
9 48 Vintage Sparkling
8 53.5 Fino Sherry
7 44.5 Non Vintage Sparkling
3
17621 South Susana Road, Rancho Dominguez, California 90221
info@vinotemp.com
General Operating Instructions
Remove all packaging and labels from your wine cellar. Be sure that all parts
have been included before discarding any packaging materials. You may
want to keep the box and packing materials for use at a later date.
Upon receipt and inspection of unit, the supply cord must be replaced if it is
damaged. Contact our customer service at 1-800-777-8466 or
•Please fully read the instruction manual.
Please read and follow all safety rules
and operating instructions before using.
4
WWW.VINOTEMP.COM
Table of Contents
Cabinet and Circuit Diagram......................................................... 6
Technical Data ........................................................................... 7
Important Safety Instructions....................................................... 8
Installing Your Wine Cellar ........................................................... 9
Electrical Connection................................................................. 10
Important Safeguards ............................................................... 10
Operating Your Wine Cellar ........................................................ 12
Care and Maintenance............................................................... 12
Maintenance Of Your Wine Cellar ................................................ 12
Problems With Your Wine Cellar: Troubleshooting Guide................. 13
Terms Of Sale and Warranty ...................................................... 14
Service & Important Notice ........................................................ 15
Contact Information.................................................................. 15
5
17621 South Susana Road, Rancho Dominguez, California 90221
info@vinotemp.com

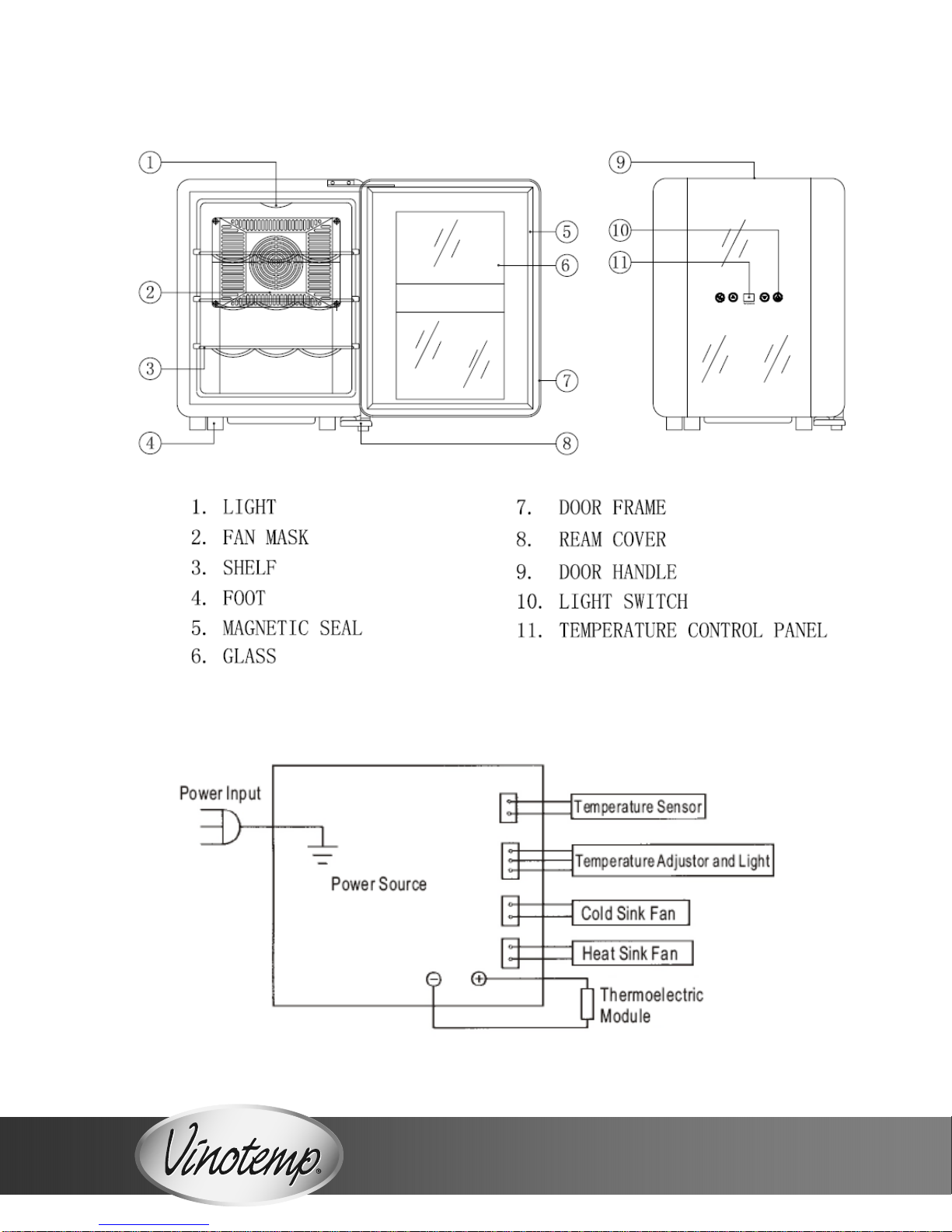

Cabinet Diagram
Circuit Diagram
6
WWW.VINOTEMP.COM
Technical Data
Model no. VT-12TEDi
Capacity 12 Bottles
Voltage 100-120V AC
Current 1A (77°F/25°C)
Protection class I
Frequency 60HZ
Climate class SN;N
Input power 70W (77°F/25°C)
Power Consumption
kWh/24h 1.0 (59°F/15°C)
Temperature Control
Range 50-66°F (10-18°C)
Net weight 26.5 Lbs (12 Kgs)
Gross weight 34.2 Lbs (15.5 Kgs)
Unit size
(W×H×D) 13.4"x18.7"x19.7"
340x475x500mm
Packing size
(W×H×D) 15.75"x20.87"x21.85"
400x530x555mm
7
17621 South Susana Road, Rancho Dominguez, California 90221
info@vinotemp.com
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire,
electrical shock or injury when
using your appliance, follow
these basic precautions:
•Read all instructions before using the wine cellar.
•DANGER or WARNING: Risk of child entrapment.
•Junked or abandoned appliances are dangerous…even if they “just sit in
the garage a few days.”
•Before you throw away your old wine cellar: Take off the door and
leave the shelves in place so that children may not easily climb inside.
•Never allow children to operate, play with, or crawl inside the appliance.
•Never clean appliance parts with flammable fluids. The fumes can create
a fire hazard or explosion.
•Do not store or use gasoline or any other flammable vapors and liquids
in the vicinity of this or any other appliance. The fumes can create a fire
hazard or explosion.
-Save these instructions-
8
WWW.VINOTEMP.COM
INSTALLATION INSTRUCTIONS
Before using your wine cellar
•Remove the exterior and interior packing
•Check to be sure the following parts are included:
oFor VT-12TEDi, 3 Slide out shelves
o1 Instruction manual
•Before connecting the appliance to the power source, let it stand upright
for approximately 2 hours. This will reduce the possibility of a malfunction
in the cooling system from handling during transportation.
•Clean the interior surface with lukewarm water using a soft cloth.
INSTALLING YOUR WINE CELLAR
•Place your appliance on a floor that is strong enough to support the
appliance when it is fully loaded. To level your appliance, adjust the front
legs at the bottom of the appliance.
•Unit must be placed as a freestanding unit—not to be built in.
•For proper installation, keep away from direct sunlight and sources of
heat (stove, heater, radiator, etc.). Direct sunlight may affect the
coating and heat sources may increase electrical consumption. Extreme
cold or hot ambient temperatures may also cause the appliances not to
perform properly.
•Not designed for placement in garage or basement. Designed for use
inside the home.
9
17621 South Susana Road, Rancho Dominguez, California 90221
info@vinotemp.com
ELECTRICAL CONNECTION
Improper use of the grounded plug can result in the risk of
electrical shock. If the power cord is damaged, have it replaced
by an authorized products service center.
This unit should be properly grounded for your safety. The power cord of this
unit is equipped with a 3-pin plug which mates with 3-pin wall outlets to
minimize the possibility of electrical shock. Do not under any circumstances
cut or remove the ground wire from the power cord supplied.
Don’t use extension cords.
This unit requires a standard 100-120V—60HZ electrical outlet with 3-pin
plug.
The cord should be secured behind the wine cellar and not exposed or
dangling to prevent accidental injury.
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS WINE COOLER
•Do not use if supply cord is damaged. If damaged, it must be replaced
by the manufacturer or a similarly qualified person in order to avoid
hazard.
•This wine cooler is not intended for use by young children or infirm
persons, without supervision. Young children must be supervised to
ensure they do not play with the appliance.
•Ensure the cooler is unplugged before cleaning.
•To clean the cooler, use only mild detergents or glass cleaning products.
Do not use harsh detergents or solvents.
•It is not recommended to use this wine cooler with an extension cord or
power board. Please ensure that the appliance is plugged directly into
the electrical outlet.
10
WWW.VINOTEMP.COM
