Bluetooth Scanner –WASP WWS450 Pairing and Setup

Butler Manufacturing recommends the Wasp WWS450, which is available

from Barcodes Inc (www.barcodesinc.com) or by phone at 1-800-351-9962.

Note the Battery and Charger is sold separately and required. The Scanner

Cradle is not required.

•Wasp WWS450 scanner Model #633808121464 (Scanner only)

•Model #633808121501 Battery and Charger –sold separately

Bluetooth Scanner –WASP WWS450 Pairing and Setup

1) Scan. Note: this may

take few seconds for

the scanner to rest. The

Scanner will beep.

2) Scan

3) From your device start the Bluetooth pairing

process by selecting the scanner from your

available Bluetooth devices. The scanner will be

listed as 1564+scanner serial number. If the

scanner is listed, but will not pair remove the

scanner from the list of Bluetooth devices.

4) The pairing process will begin and a “pairing code”

will appear on your device. If the “pairing code”

does not appear automatically your device may

notify you to “Create a pairing code for me”, or

similar verbiage. Select this option as needed.

5) Scan. Do NOT scan

until the pairing code is

displayed on your

device.

6) For each digit of the “pairing code” on your screen

scan the corresponding barcode numbers from the

table to the right. You should hear a single high-

pitched beep for each digit. If the beep is a low-

pitched beep, go back to step 1.

7) Scan immediately after the last digit of the “pairing

code” is entered. The

scanner will now be

paired to your device.

0

1

2

3

4

5

6

7

8

9

Bluetooth Scanner –WASP WWS450 Pairing and Setup

8) Once paired, scan the barcode to the

right. You will hear several beeps.

9) Scan each in order

10) Verify the output of the scanner. Open any app where you can input text such as

Outlook, Word, etc. Scan the data matrix code and verify the output format

matches what is shown.

For Android Devices Only, if the output does not match, and your device has

multiple keyboard options, use the “Gboard” option. Rescan, and verify the

scanner output matches what is shown.

STJ|1801234501|1AX

To view the iOS keyboard at any time scan

To view the Android keyboard, select in

the entry field. If your device has multiple

keyboard options use the “Gboard”

option.

Abbreviated

Plant Name

Package #

Vertical Lines

You will hear several beeps,

followed by a long beep.

Two Beeps

Single Beep

Single Beep

Single Beep

Indice

Altri manuali Wasp Lettore di codici a barre

Wasp

Wasp WPL610 Manuale utente

Wasp

Wasp Wasp WDI7500 Manuale di installazione e funzionamento

Wasp

Wasp WLS9600 Manuale di installazione e funzionamento

Wasp

Wasp WPL608 Manuale utente

Wasp

Wasp Wasp WDI7500 Manuale utente

Wasp

Wasp WWS110i Manuale utente

Wasp

Wasp WPA 1200 II Manuale utente

Wasp

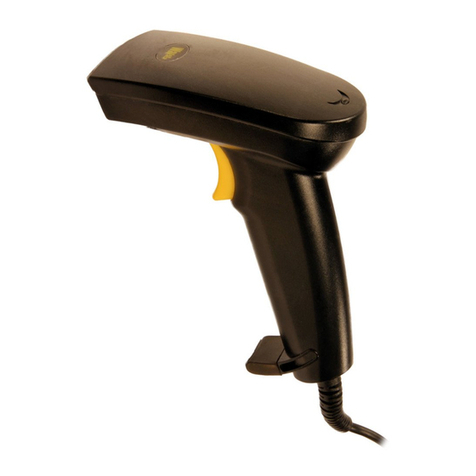

Wasp WLP 4170 Istruzioni operative

Wasp

Wasp WLS8600 Manuale utente

Wasp

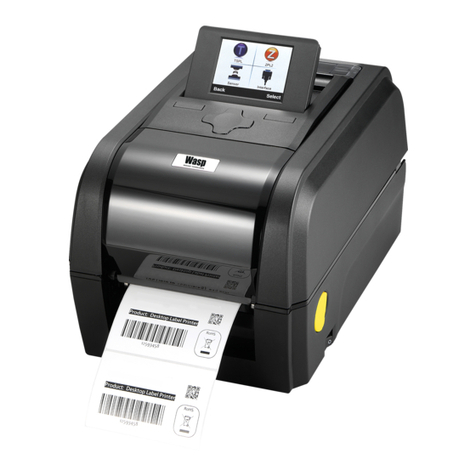

Wasp WPL308 Manuale utente
