Whirlpool WRID41TW Manuale utente

Whirlpool Of India Ltd.

Service Manual

Top Mount

No Frost Refrigerator

INDEX

Sno. Detail Page No.

1.0 Model Range 3

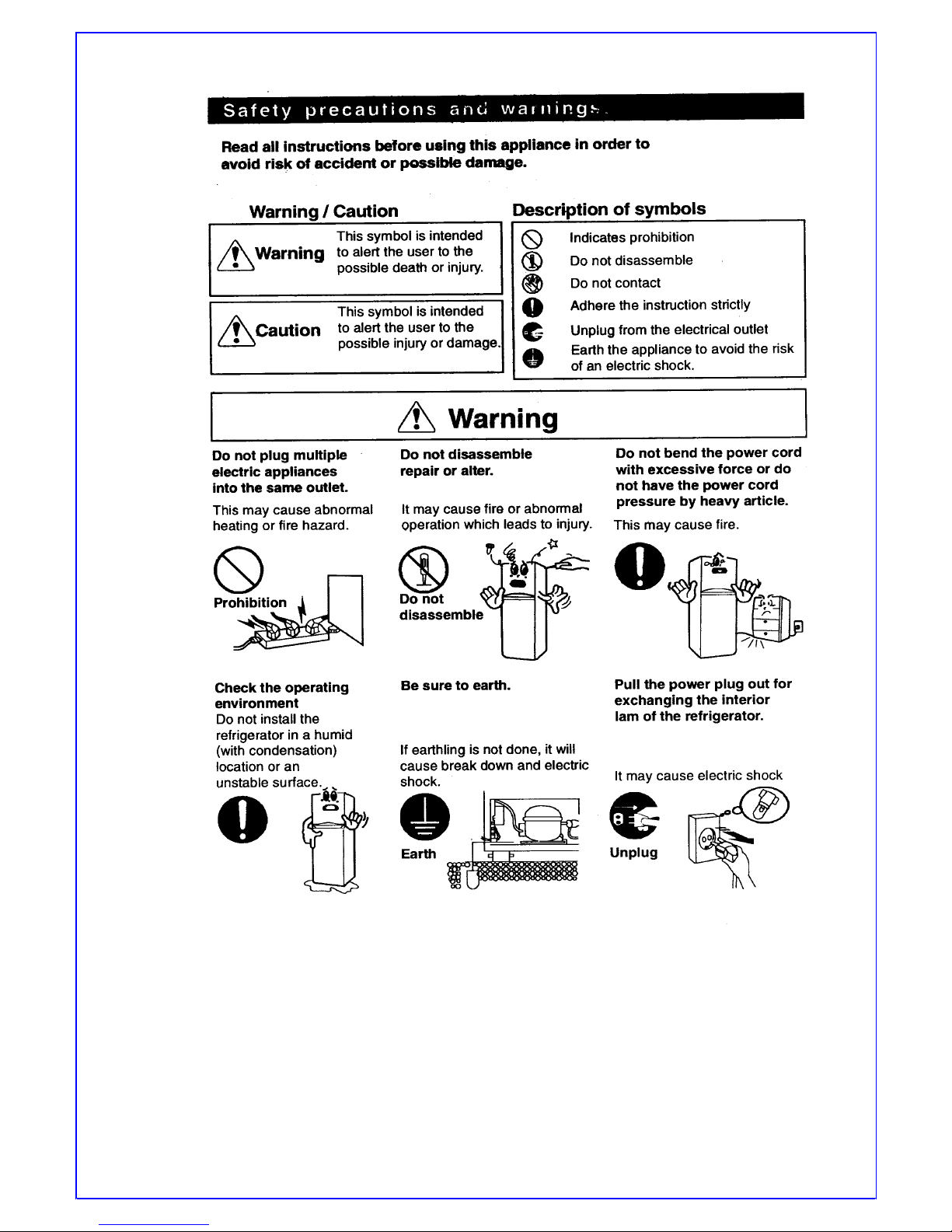

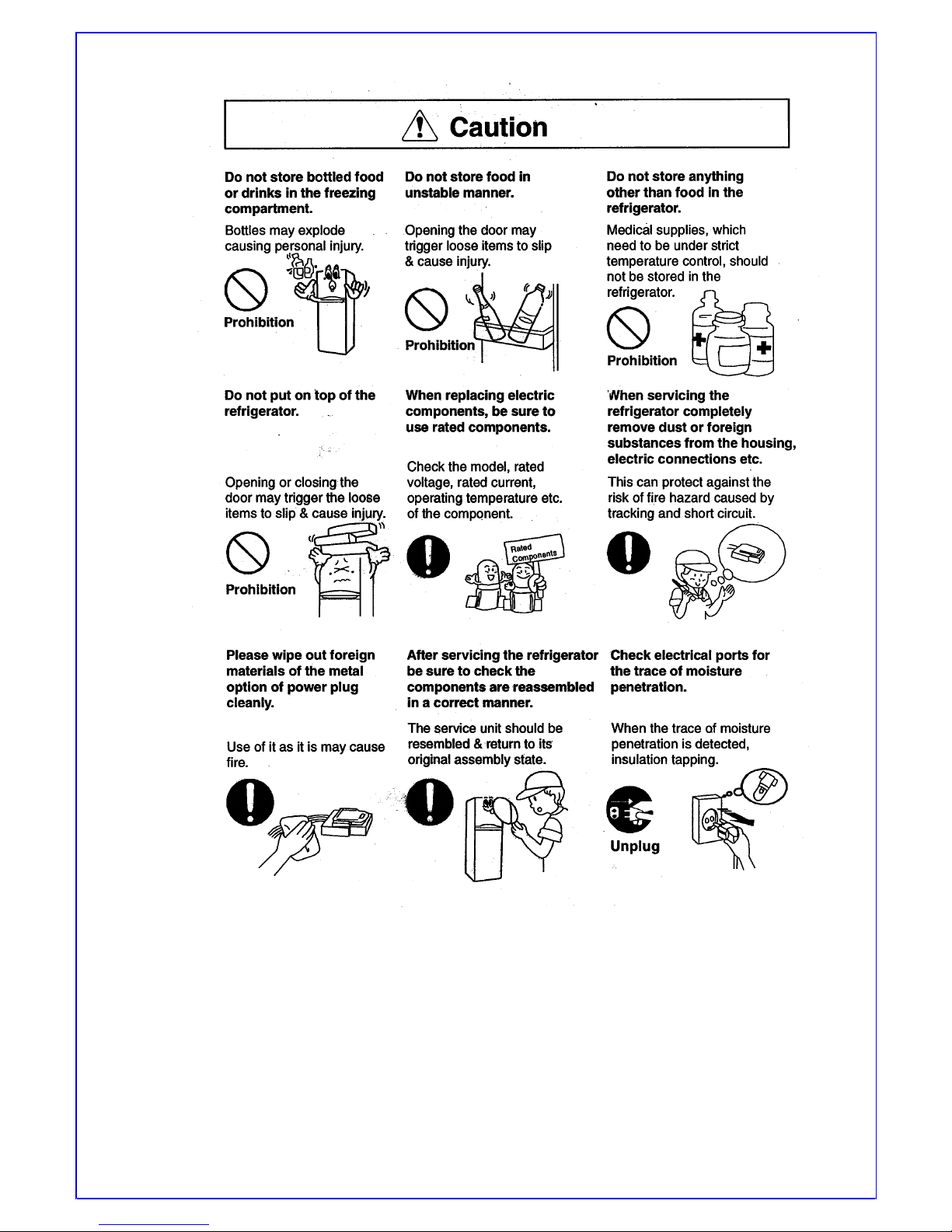

2.0 Safety Precuations 4

3.0 Feature /Technical specification 6

4.0 Controls & Electronic configuration 7

5.0 Wiring Diagram 9

6.0 Assembly/Dissembly 11

7.0 Controlling the refrigerator temperature 14

8.0 Error indications & Trigger 15

9.0 Exploded Views 17

10.0 Part List 23

NO FROST REFRIGERATOR: MODEL RANGE

410L Dlx - WRID41TW

410L Dlx – WRID41TS

445L Dlx – WRID45TW

445L Dlx – WRID45TS

TECHNICAL /FEATURE SPECIFICATION

MODEL 410 L Dlx 445 L Dlx

Type Frost Free Frost Free

Capacities (L) total net 410L 445 L

Product Dimensions (mm)

Width 700 700

Height 1652 1762

Depth 695 695

Gross Weight (kg) 85 90

Voltage / Hz 220-240V/50-60Hz 220-240V/50-60Hz

Compressor EGZS 80 HLC EGZS 80 HLC

Oil Capacity ISO 22 (280 ml) ISO 22 (280 ml)

Comp. Run Capacitor XS351505XLUB

5 microF/350VAC

XS351505XLUB

5 microF/350VAC

PTC Relay PTH7M220MD3

Resistance : 17.6 TO 26.4 @

25°C

PTH7M220MD3

Resistance : 17.6 TO 26.4 @

25°C

Motor Protector 4TM283KFBYY-53

opening temp – 105°C

Closing temp. – 61°C

Trip current – 9.4 A@25°C

4TM283KFBYY-53

opening temp – 105°C

Closing temp. – 61°C

Trip current – 9.4 A@25°C

Fan motor MI – AE2

2680 rpm , 230V , 50 Hz , 10.5W

MI – AE2

2680 rpm , 230V , 50 Hz , 10.5W

Split Diffuser NO NO

Deodorizer Yes Yes

Number of Shelves 2 2

Type of Shelves Glass Glass

Humidity Control Yes Yes

RC Illumination ( 8 LED Bank ) Illumination by LED’s Illumination by LED’s

FC Illumination ( 2 LED Bank ) Illumination by LED’s Illumination by LED’s

Bottle Separator YES YES

Packet Separator YES YES

Can Rack NO NO

Egg tray 1 No. 1 No.

Ice Twister Assembly YES –Plastic YES –Plastic

Ice Collector YES YES

Collapsible Shelf YES YES

Freezer Door Bins 2 2

Refrigerator Door Bins 4 4

Quick Chill Compartment YES YES

Door lock NO NO

Handle RECESSED RECESSED

Roof Rail NO NO

Cabinet Stopper YES YES

POT Control in RC compartment YES,8 SETTINGS YES,8 SETTINGS

Fast Forward Cool Operation NO NO

Door Alarm YES YES

Auto Power save mode NO NO

CONTROLS & ELECTRONICS

CONFIGURATION

Product Configuration No frost Dlx

Product Control RC Controlled

Software BEE/Pot based Professional

User interface No

Auto cool mode No

Ice accelerator No

Auto Power save mode No

Door Alarm Yes

Power supply for illumination DC (Linear 220mA)

RC Illumination (8 LED) Yes

FC Illumination (2 LED) Yes

Control Board Yes(Nilgiri BEE)

Defrost heater Yes (Integrated Al tube

275W)

Fan motor 10.5W MI Shaded Pole AC

fan motor

FC Door grounding No

Compressor EGZS 80 HLC

Run Capacitor No

Door Reversibility YES

RATED VOLTAGE : 220-240V,50-60Hz, IPH

VOLTAGE RANGE : 198V – 255V

INPUT WATTAGE : 117W

DEFROST WATTAGE : 271W

FULL LOAD AMPS : 0.5A

Top Mount : Deluxe models: -------------------

This refrigerator is managed by an Electronic System, mainly consisting of the components:

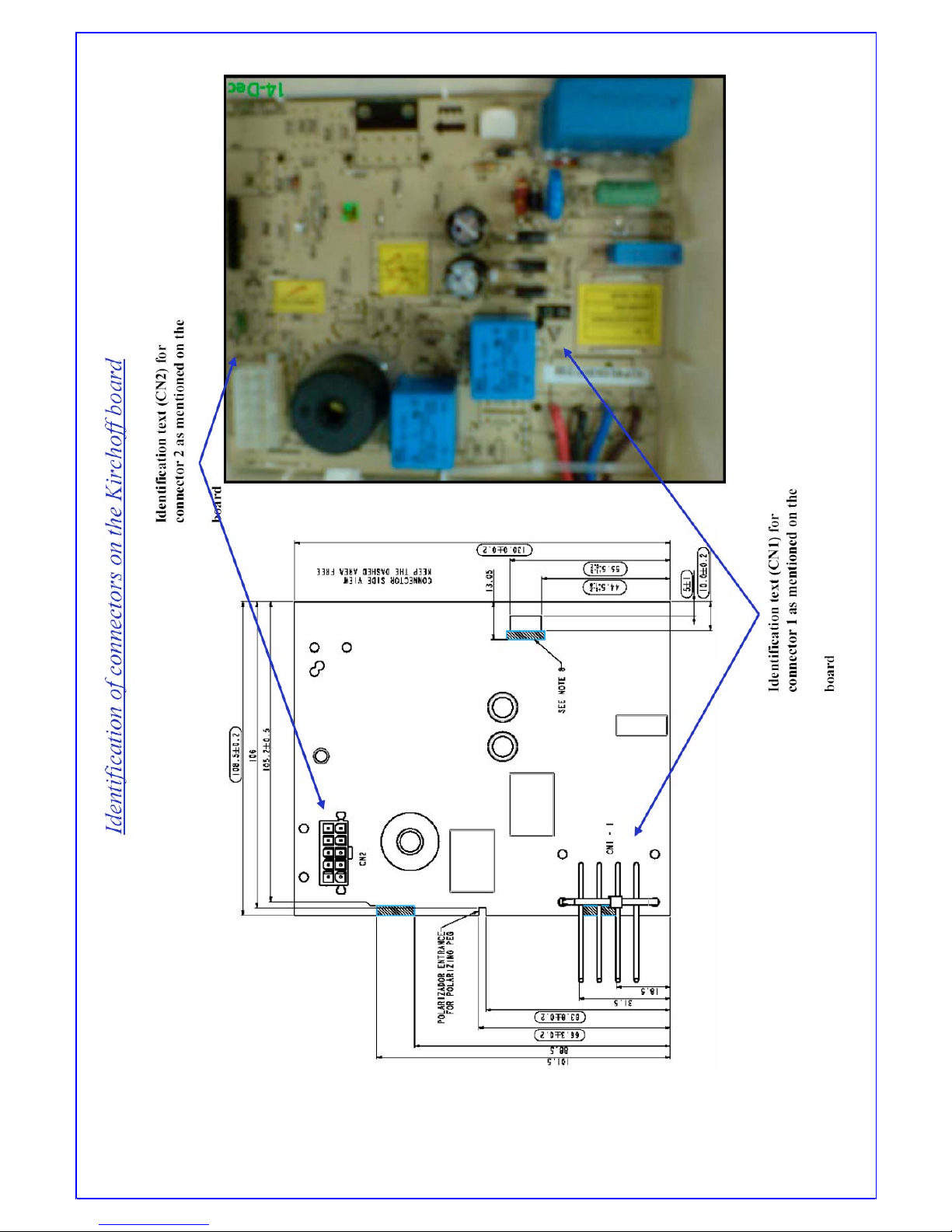

•Electronic Control Board (Nilgiri- Dlx (BEE))

•POT (Potentiometer) in case of Dlx (BEE) models only.

•Temperature Sensors {refrigerator, Defrost & POT(Dlx)}

•Compressor ( With Run capacitor)

•Freezer Fan Motor (AC)

•Defrost Heater ( Integrated Al tube 245W)

•Door Open Sensing

These components are described as shown below.

– Electronic Control

The complete operation of this product is done by the Electronic Control, Functions of this models are

fully controlled by the Micro-controller IC which executes the functions according to the needs, turning

the components On or Off through received/managed signals, such as:

- Compressor On/Off

- Defrost Heater On/Off

-Temp setting in refrigerator Compartment, through received signals by the POT along with the RC &

FC Sensors Temp. Feedback.

-Door open sensing / Alarm

- Among many other functions controlled by its software.

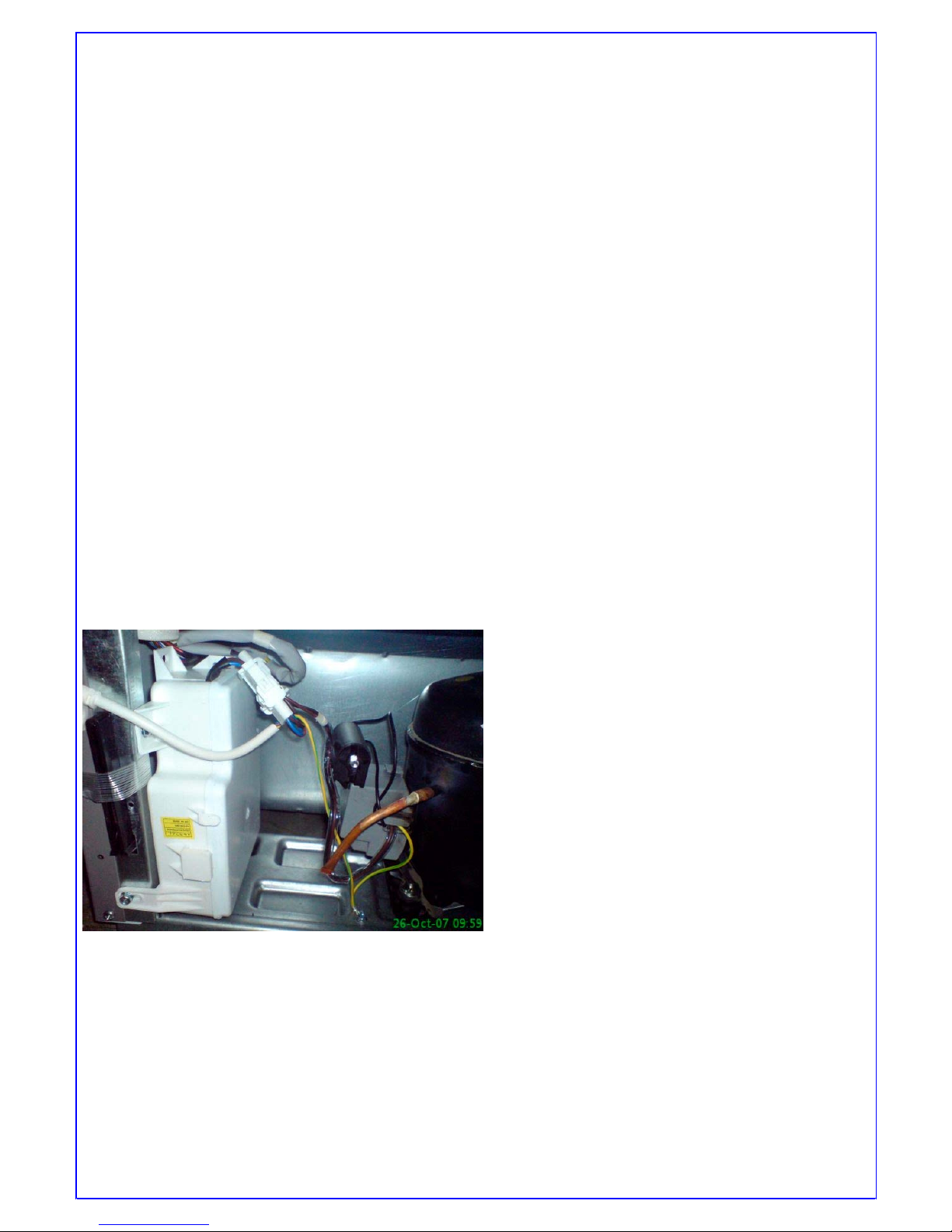

The Electronic Control is located at the rear of the refrigerator, next to the cabinet and besides the

Compressor, inside a plastic box. Cables going inside the product, using connectors that do not permit an

assembling failure do its connection to the mains and its components.

Note: For more details see Wiring Diagram.

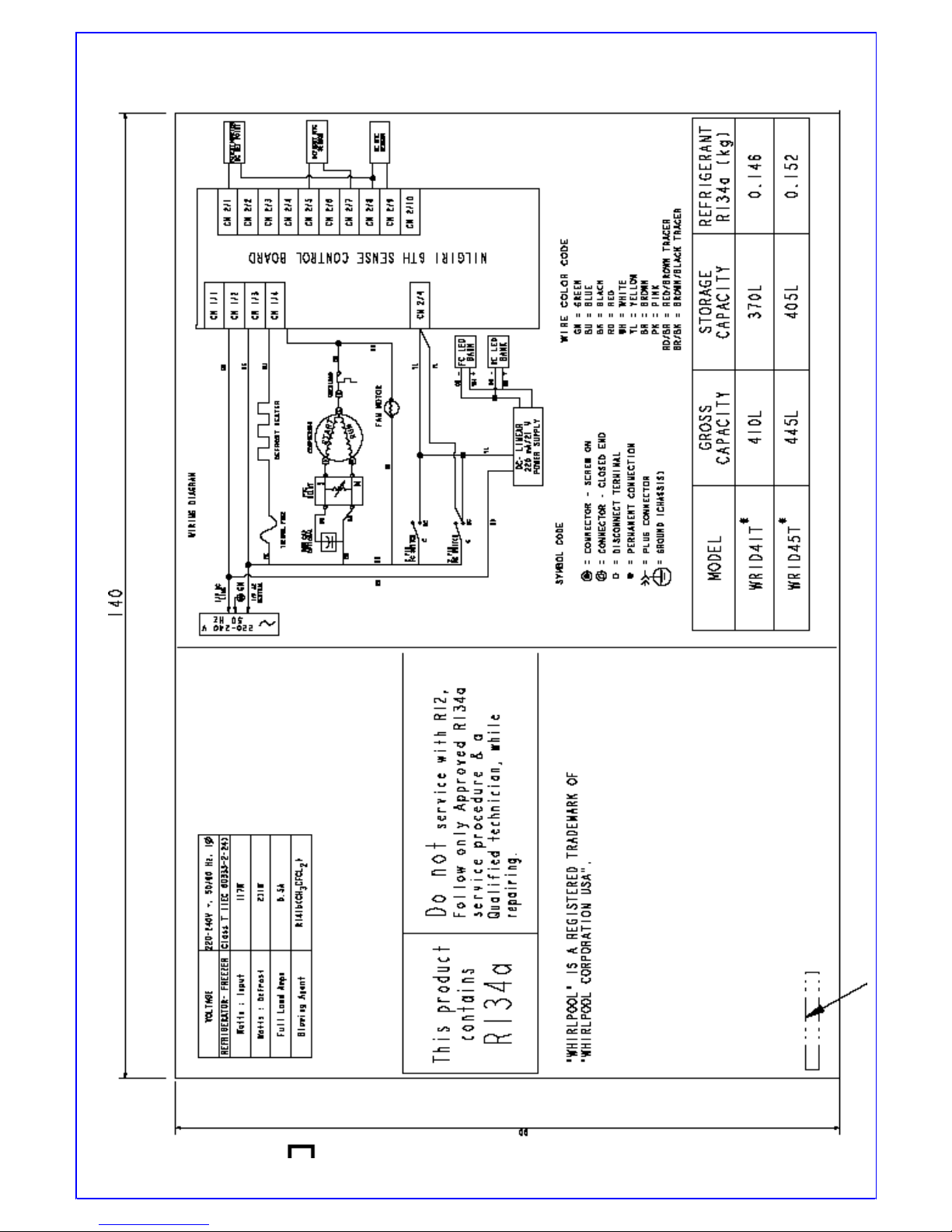

Wiring Diagram : Top Mount – No Frost Dlx
