Williams Sound PLR BP1 Istruzioni per il montaggio
PLR BP1
Proloop Body Pack Induction Loop
Receiver
Instructions For Use and Care
Operating Instructions
1. Open the battery compartment. Slide the battery
selection switch to the correct position for the type of
batteries that will be used. Use “Alkaline” for non-
rechargeable batteries, “NiMH” for rechargeable NiMH
batteries (only). (FIG. A)
2. Install the AA batteries. Be sure to observe proper
polarity (+/-). Damage due to improper battery
installation may void the warranty on the product. The
“Power On” LED on top of the unit will ash when the
batteries are getting low; you may continue to use until
the unit quits operating, then replace or recharge the
batteries. (FIG. A)
3. Insert the earphone or headphone plug into the
headphone jack. (FIG. B)
TONE
CONTROL
AA
AA
–
+
+
–
Tone
Control
A298
ALKALINE/
NiMH SWITCH

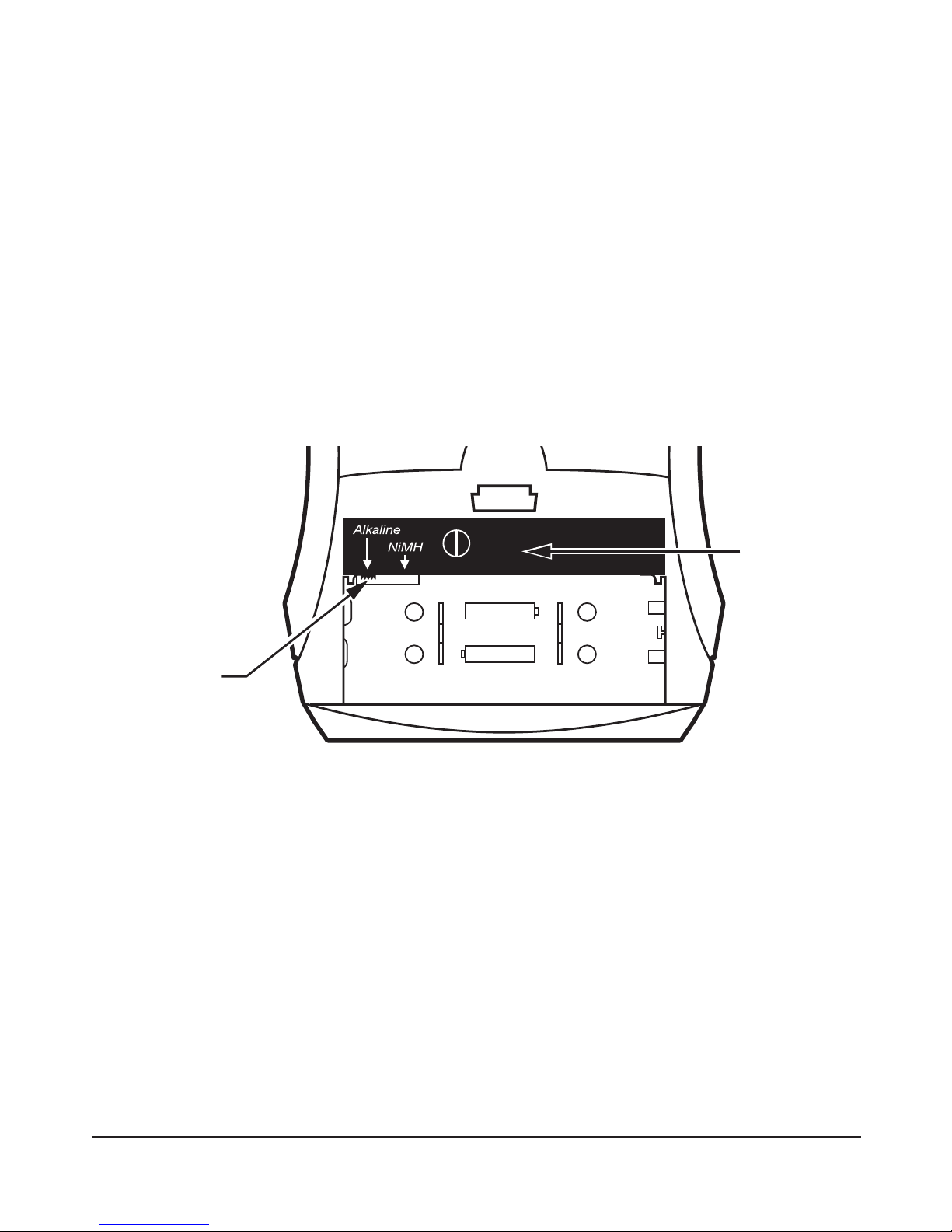

FIG. A: Battery Compartment
ON/OFF, VOLUME
CONTROL SWITCH
A299
OFF
HEADPHONE
JACK
"ON"/ LOW BATTERY/
FLASH CODE INDICATOR
4. Turn the receiver on, and adjust the volume (top control)
and tone (inside battery compartment) to a comfortable
listening level. (FIG. B).
Belt Clip Installation
To install the belt clip on the rear of the PLR BP1, position
the belt clip on the back. Turn the belt clip 180˚ left or right
to secure the clip. The BP1 can now be clipped onto a belt.
To remove, turn the belt clip 180˚ so the open end of the
clip points up, and gently pull the belt clip off. (FIG. C)

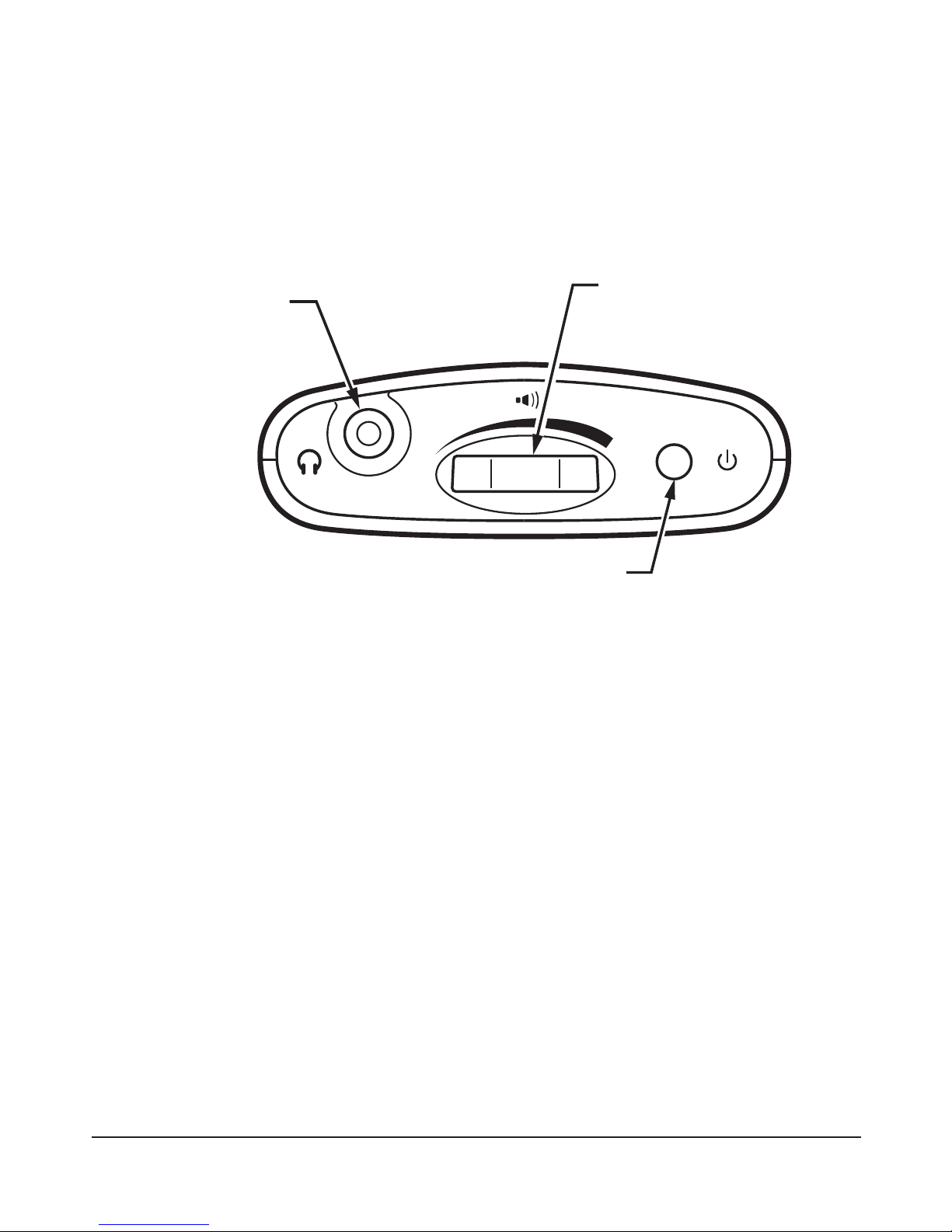

FIG. B: Top of Receiver
A132

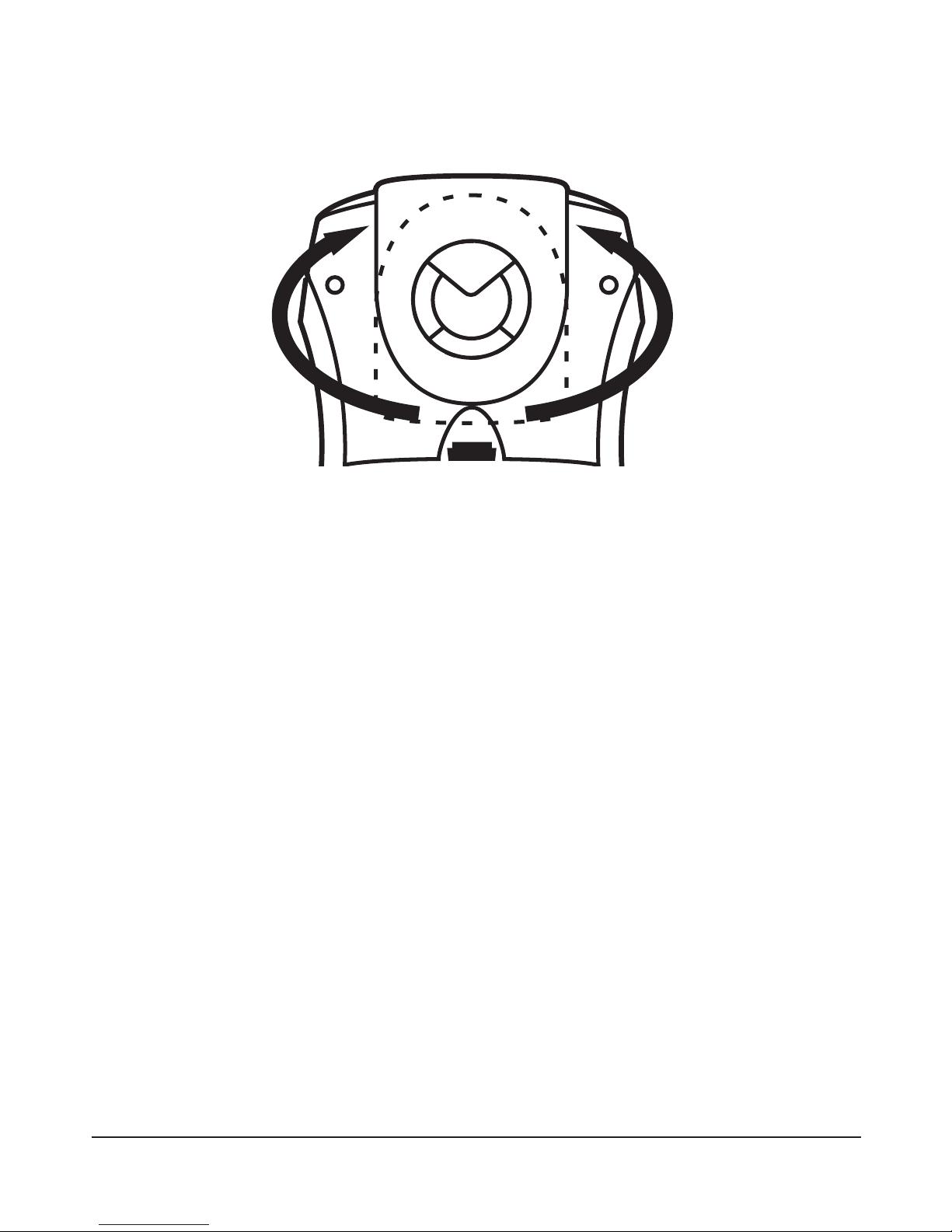

FIG. C: Belt Clip Installation
Hints and Tips
The PLR BP1 has been designed to be as easy to use as possible.
However, if you have trouble, check the following:
• Make sure the earphone/headphones are securely
plugged in.
• Make sure the batteries are not depleted and have
been correctly inserted into the battery compartment.
• Turn down the volume if above 3 or 3 ½.
• Turn the tone control (in the battery compartment)
counterclockwise to reduce high frequency boost.
• If the above steps do not resolve your problem,
contact our Customer Service department at 1-800-
843-3544 (U.S.A.) or +1 952 943 2252 (Outside the
U.S.A).
System Specications
PLR BP1 Receiver
Dimensions: 4.1”H x 2.85”W x 1.38”D (104 mm H x 72 mm
W x 35 mm D).
Weight: 4.6 oz (130 g) with batteries, 2.6 oz (73 g)
without batteries.
Color/Material: Black ABS/polycarbonate molded plastic case.
Battery Type: (2) AA (1.5VDC) Alkaline or NiMH
(rechargeable).
Battery Life: Up to 200 hours with Alkaline batteries.
LED Indicator: Green LED indicates power on, ashes when
batteries are low.
Headphone Jack: 3.5mm stereo TRS jack works with mono or
stereo headphones.
Volume control: External switched thumb wheel controls power
on/off and volume level.
Tone control: Rotary control inside battery compartment
(1kHz reference at 400mA/m input with Tone
at mid position)
Induction Coil: Maximum reception: receiver oriented vertically
Power Output: 35mW (max) into 33 ohms mono impedance
THD: <2%
Freq. Response: 300Hz to 10KHz, -6dB
Loop Sensitivity: Compatible with IEC 60118-4 Systems
S/N Ratio: 62 dB Typical
Notch Filter: -20dB @ 120Hz xed notch lter
Tone Control
Range:
-10dB cut @ 300 Hz to 6dB boost @ 6 kHz
Environment: Operational: 32°F to 122°F (0°C to 50°C) at
less than 95% RH
Storage: -13°F to 131°F (-25°C to 55°C) at
less than 95% RH
Warranty: 5 Years
Approvals: CE, FCC, Industry Canada, RoHS2, WEEE
System Specications
PLR BP1 Receiver
Recycling Instructions
Help Williams Sound protect the environment!
Please do not dispose of equipment or used
batteries in the household trash. Take the
equipment to an electronics recycling center or
return to the factory. Take batteries to a retail or
community recycling location.
Battery Information
The PLR BP1 uses 2 AA batteries. We commend using
Williams Sound Alkaline batteries (BAT 001-2) or
rechargeable batteries (BAT 026-2) for longer battery life
than other brand batteries.
Low Battery Indicator
The “On” indicator on top of the unit will ash to indicate
low battery.
Multi Charger CHG 3512
This optional charger is ideal for customers using
rechargeable batteries. It will charge up to 12 receivers at
one time. See our website or call us for ordering information.
Accessories
To order accessories including earphones and replacement
earpads, batteries, and chargers, contact Williams Sound at
800-843-3544 or order on-line at: www.williamssound.com.
Safety Information
HEARING SAFETY
CAUTION!
This product is designed to amplify sounds to a high
volume. To protect your hearing and the hearing of others:
1. Make sure the unit is OFF or the volume is turned down
before putting on the earphones.
2. Set volume level at the minimum setting you need to hear.
3. Do not allow children or other unauthorized persons to
have access to this product.
BATTERY SAFETY
CAUTION!
Do not attempt to recharge alkaline or other non-
rechargeable batteries, which may explode, release
dangerous chemicals, cause burns, or cause other serious
harm to the user or product.
MEDICAL DEVICE SAFETY
CAUTION!
Before using this product with a pacemaker or other
implantable medical device, consultant your physician
or the manufacturer of the device to make sure that you
are using this product in accordance with their safety
guidelines.
Warranty
Williams Sound products are engineered, designed, and
manufactured under carefully controlled conditions to
provide you with many years of reliable service.
Williams Sound warrants the PLR BP1 against defects
in materials and workmanship under normal use and
conditions for 5 years from date of purchase.
Microphones, earphones, headphones, batteries, chargers,
cables, carry cases, and most other accessory products
carry a 90-day warranty.
This warranty does not cover reimbursement for your costs
of removing and transporting the product for warranty
service evaluation or installation of any replacement product
provided under this warranty.
*For Complete Warranty Statement go to:
www.williamssound.com/warranty-statement
NOTICE: Williams Sound products are NOT designed
for use in extreme temperature, humidity or chemical
environments. The introduction of chemicals such as
chlorine, salt water or human sweat into the product will
cause damage to the circuitry. Damage due to these
causes is NOT covered under the Product Warranty.
Customer Service
If you experience difculty with your system, call Toll-Free
for Customer Assistance:
1-800-843-3544 (U.S.A.) or
+1 952 943 2252 (Outside the U.S.A.)
If it is necessary to return the system for service, your
Customer Service Representative will give you a Return
Authorization Number (RA) and shipping instructions.
Note: FCC regulations, section 15.21, requires the user to
comply with the rules of transmitter operation. Any changes
or modications made by the user not expressly approved
for compliance may result in the loss of all privileges and
authority to operate the equipment.
NOTE: SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE.
MAN 171C
Printed in the USA
©2013 Williams Sound, LLC
10300 Valley View Rd • Eden Prairie, MN 55344
800-328-6190 / 952-943-2252 • FAX: 952-943-2174
www.williamssound.com
