Wilson Electronics 801230 Manuale utente

Amplifier

Installation

Guide

SignalBoost

Vehicle Wireless

Dual-Band

Cellular / PCS

Amplier

Contents:

Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · · 1

How it Works · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2

Before Getting Started · · · · · · · · · · · · · · · · · · · · · · · · · · 3

Installing a Wilson Outside Antenna · · · · · · · · · · · · · · · 4

Installing a Wilson Amplier · · · · · · · · · · · · · · · · · · · · · · 5

Installing a Wilson Inside Antenna (Wireless) · · · · · · · · 6

Attaching a Wilson Inside Antenna (Laptop/Data Card) · ·7

Optional Cell Phone Cradle Plus · · · · · · · · · · · · · · · · · · 7

Powering Up a Wilson Amplier · · · · · · · · · · · · · · · · · · · 8

Understanding the Amplier Lights · · · · · · · · · · · · · · · · 8

Warnings and Recommendations · · · · · · · · · · · · · · · · · 9

About Wilson Electronics · · · · · · · · · · · · · · · · · · · · · · · · 10

Amplier Specications · · · · · · · · · · · · · · · · · · Back Cover

Wilson

Electronics, Inc.

Warning: This manual contains

important safety and operating information.

Please read and follow the instructions

in this manual. Failure to do so could be

hazardous and result in damage to your

amplier.

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson’s 30-day money-back

guarantee. If, for any reason, the performance of any product is not acceptable,

simply return the product directly to the reseller with a dated proof of purchase.

1-Year Warranty

Wilson Electronics ampliers are warranted for one (1) year against defects in

workmanship and / or materials. Warranty cases may be resolved by returning the

product directly to the reseller with a dated proof of purchase.

Ampliers may also be returned directly to the manufacturer at the consumer’s

expense, with a dated proof of purchase and a Returned Material Authorization

(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either

repair or replace the product. Wilson Electronics will pay for delivery of the repaired

or replaced product back to the original consumer.

This warranty does not apply to any ampliers determined by Wilson Electronics

to have been subjected to misuse, abuse, neglect, or mishandling that alters or

damages physical or electronic properties.

RMA numbers may be obtained by phoning Technical Support at 866-294-1660.

Disclaimer: The information provided by Wilson Electronics, Inc. is believed to

be complete and accurate. However, no responsibility is assumed by Wilson

Electronics, Inc. for any business or personal losses arising from its use, or for

any infringements of patents or other rights of third parties that may result from

its use.

Operation is subject to the following two conditions: (1) This device may not cause

interference, and (2) this device must accept any interference, including interference that

may cause undesired operation of this device.

Installation Instructions for the Following Wilson Amplier:

SignalBoost Vehicle Wireless Dual-Band Amplier

Part # 801230 Model #271230

FCC ID: PWO271230SA (pending) IC:4726A-271230SA (pending)

The term “IC” before the radio certication number only signies that Industry Canada

technical specications were met.

Inside this Package

How it Works

Your new Wilson amplier has been carefully engineered to signicantly improve the

performance of your cell phone or cellular data card in mobile applications. Together with an

outside antenna, the amplier’s state-of-the-art technology is designed to increase your signal

up to 10 times, reduce disconnects and dropouts, and increase data communication rates

needed for 3G technologies.

The outside antenna will collect the cell tower signal and send it through the cable to the

amplier. The signal is then boosted and sent through the Ultra-slim inside antenna. Your

cell phone or data card then communicates with the improved signal. When the cell phone

or data card transmits, the signal goes through the inside antenna, is boosted by the

amplier and broadcast back to the cell tower through the outside antenna. The Ultra-slim

antenna may also be attached directly to a laptop or cellular data card for maximum signal

performance.

Wilson Electronics manufactures a wide variety of antennas to help you customize your

amplier for your specic application. Several are shown below. See your dealer or visit

www.wilsonelectronics.com.

Wireless

amplier

NMO

Mount

Dual-BandMagnet

Mount

Dual-Band Trucker

Mount

Dual-Band

Mini

Magnet

Dual-Band Marine

Antenna

Dual-Band

NOTE: Use of this amplier with an

antenna gain higher than 6.12 dBi is in

violation of FCC regulations for which the

offender is fully liable. All Wilson mobile

antennas are 6.12 dBi or less.

Ultra-slim

antenna

DC plug-in

power supply

Before Getting Started

This guide will help you properly install Wilson’s SignalBoost Vehicle Wireless amplier. It is

important to read through all of the installation steps for your particular application

prior to installing any equipment. Read through the instructions, visualize where all the

equipment will need to be installed and do a soft installation before mounting any equipment.

If you do not understand the instructions in full, seek professional help, or contact Wilson

Technical Support at 866-294-1660.

Warning: In a wireless installation,

do not plug the amplier directly into the

cell phone or data card using an antenna

adapter. It will damage the amplier.

Outside

Antenna

Ultra-slim

Inside

Antenna

Amplier

DC Power

Supply

Cell Phone

PDA

Notebook

Outside

Antenna

Amplier

DC Power

Supply

Laptop with Ultra-

slim antenna

attached (see pg. 7)

Installation Diagram

Inside Antenna

Warning: Do not plug the amplier

directly into the laptop or data card using

an antenna adapter. It will damage the

amplier.

Installation Diagram

Laptop Use

Installing a Wilson Outside Antenna

To receive the best cell signal, select a location in the center of the vehicle’s roof 12 inches

away from any other antennas and free of obstructions.

Follow the specic antenna installation instructions included with the outside antenna (sold

separately).

The outside antenna must be installed

vertically. Signal performance will be

degraded if the antenna is not vertical.

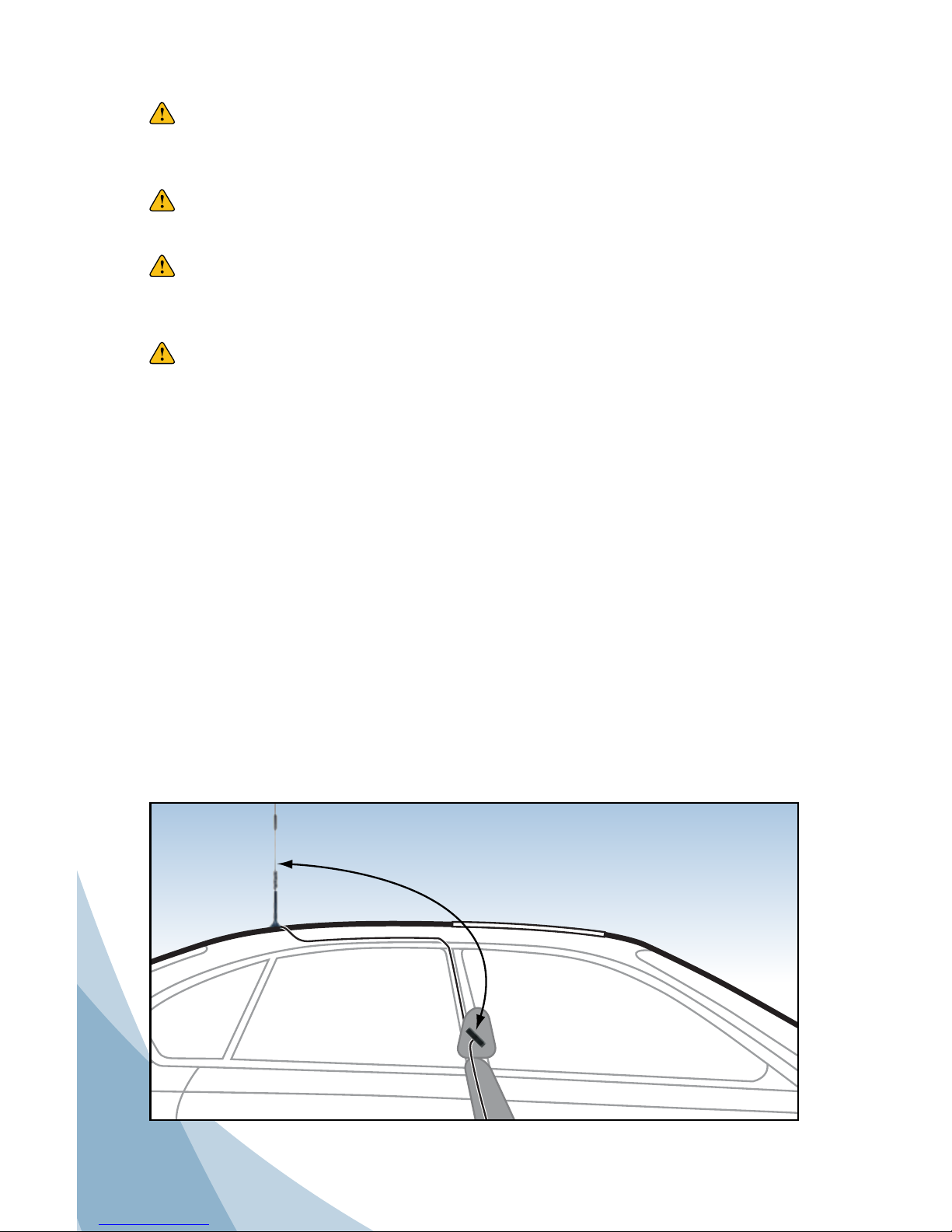

The antenna cable may be run through the

door to the amplier.

The antenna cable is small enough to easily

tuck under the door seal or plastic molding.

For a more professional-looking installation,

the antenna cable may be run under the

door seal. Carefully pull down the door

seal. Run the cable through the seal

and push the seal back into place. This

prevents constant wear and tear on the

cable as the door opens and closes.

Warning: Do not use any type of glass-

mount antenna with this amplier. The outside

and inside antennas must be shielded from

each other to prevent oscillation.

Optional Magnet-

Mount Antenna

Shown

Carefully

Pull Down

Door Seal

Run Cable

Under

Seal

Tuck Cable

Under Seal

Warning: The outside antenna must

have a separation of at least 10 inches from all

persons during normal operation.

Installing a Wilson Amplier

Warning: Do not plug in the DC power

supply until the outside and inside antenna

cables are attached to the amplier.

Wilson offers two options of improved signal

inside a vehicle:

Option A (Wireless) - offers the

convenience of no physical connection to

the cell phone or cellular data card.

Option B (Attached) - places the Ultra-slim

antenna directly on the laptop or cellular

data card for maximum signal performance.

Select a location to install the amplier that

is away from excessive heat, direct sunlight

or moisture and that has proper ventilation.

Recommended installation locations are:

• Under the seat

• On the console

• On the dashboard

Run the cable from the outside antenna

and attach it to the SMA connector labeled

“outside antenna” on the amplier.

Attach the Ultra-slim inside antenna cable to

the SMA connector labeled “inside antenna”

on the amplier.

Install the Ultra-slim inside antenna 8-12

inches from where the cell phone is located

or directly on the cellular data card or laptop.

Place the inside antenna on the side of the

driver’s seat for maximum performance.

Install the inside antenna at least eight

inches, but not more than 12 inches, from

where the cell phone or cellular data card

will be used.

Install the inside antenna at the same angle

as the cell phone when held in use, or

place next to the laptop’s cellular data card

(see pg. 7). This will maximize the signal

strength.

For a more professional-looking installation,

the Ultra-slim antenna may be slid under

the seat cover or leather, high on the

driver’s seat.

Warning: Do not install the Ultra-slim

antenna within four inches of metal. (Metal

found inside the vehicle’s seat will not affect

the antenna’s performance.)

Amplier Ultra-slim

Antenna

Installing a Wilson Inside Antenna

Wireless

Warning: The inside antenna must

be installed with a separation of at least

eight inches from all persons and must not

be located in conjunction with any other

antenna or amplier.

The Ultra-slim antenna must be placed on or

near the cellular data card to work properly.

Attach the Ultra-slim antenna to the laptop

or cellular data card with the VELCRO®

included in the package. IMPORTANT:

The adhesive of the gray Velcro patch that

adheres to the laptop or cellular data card

needs time to “cure.” For best results, do not

use the Velcro connection for a minimum of

24 hours after application.

The Ultra-slim antenna included in the

package is long enough to reach the

amplier location. This allows for ease and

convenience of use.

To maximize performance, attach the Ultra-

slim antenna as close as possible to the

original antenna on your laptop or cellular

data card.

If you have questions as to the placement of

the Ultra-slim antenna, call Wilson Technical

Support at 866-294-1660 or visit

www.wilsonelectronics.com.

Amplier Ultra-slim

Antenna

Attaching a Wilson Ultra-slim Inside Antenna to a Laptop or a Cellular Data Card

Laptop or Data Card

On cellular data card

On laptop

Optional Cell Phone Cradle Plus

As an alternative to the Ultra-slim antenna,

Wilson offers the Cell Phone Cradle Plus, a

high-quality phone cradle with a built-in inside

antenna. The Cradle Plus accommodates

any cell phone or wireless-capable PDA and

supports any hands-free device including

earbuds and Bluetooth products.

Like the Ultra-slim antenna, the Cradle Plus

communicates with multiple cell phones

and data cards in the vehicle. The cable

from the Cell Phone Plus attaches to the

“Inside Antenna” connector on the amplier.

Powering up a Wilson Amplier

Make sure both the outside and inside

antenna cables are connected before

powering up the amplier.

Connect the power cable from the DC

plug-in power supply to the amplier and

insert the large end into DC power socket

(the cigarette lighter outlet.)

The amplier may remain on all the time.

However, leaving the amplier on in a

vehicle when it is not running can discharge

the battery in a day or two.

A good option is to power the amplier

through the ignition switch so the amplier

is turned on and off with the vehicle.

Carefully insert the power cable.

IMPORTANT: Do not power up the ampli-

er unless antenna cables are attached to

amplier.

Warning: Use only the power

supply provided in this package. The

power supply must be 6 V DC.

Understanding the Amplier Lights

If the light turns red, oscillation is occurring and the amplier has powered down.

The outside antenna needs to be moved farther from the inside antenna. Move the

outside antenna on the roof of the car to the rear of the car, but at least 8-12 inches

from the rear or side windows. Remove power from the amplier and reinstall

power - this resets the amplier.

If the light is now green, the oscillation has stopped and the amplier is working. If

the red light is still on, move the antenna farther away and repeat the process.

Always use a magnet-mount or roof-mount antenna. Do not use a glass-mount

antenna, as oscillation may cause continuous shut-down of the amplier.

An amber light indicates overload from the cell site. The amplier has temporarily

shut down and will automatically reset approximately 1,000 feet or more from the

cell site.

Warnings and Recommendations

Warning: In a wireless installation, do not plug the amplier directly into

the cell phone or cellular data card using an antenna adapter. It

will damage the cell phone or cellular data card.

Warning: Do not plug in the DC power supply until the outside and inside

antenna cables are attached to the amplier.

Warning: RF Safety: The inside antenna must be installed with a

separation of at least eight inches from all persons and must not

be located in conjunction with any other antenna or amplier.

Warning: RF Safety: The outside antenna must be installed with a

separation of at least 10 inches from any of the vehicle’s

occupants or nearby persons and must not be located or

operating in conjunction with any other antenna or amplier. All

roof-mount antennas should be centrally located on the roof of

the vehicle. Use of this cellular amplier with an antenna gain

higher than 6.12 dBi is in violation of FCC regulations for which

the offender is fully liable. All Wilson mobile antennas are 6.12

dBi or less.

Separation of inside and outside antennas is very important. The metal

roof of the vehicle acts as a barrier and helps shield the two antennas from

each other, preventing oscillation.

If the vehicle has a sunroof, it is important to separate the inside and outside antennas

by at least ve feet. This prevents the amplier from overloading or oscillating.

Distance between antennas

through a sunroof must be

5 feet or more.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Wilson Electronics Amplificatore

Wilson Electronics

Wilson Electronics SIGNALBOOST 811210 Manuale utente

Wilson Electronics

Wilson Electronics 814001 Manuale utente

Wilson Electronics

Wilson Electronics BD800AM Manuale utente

Wilson Electronics

Wilson Electronics WilsonPro ENTERPRISE A8000 Manuale utente

Wilson Electronics

Wilson Electronics 271245 Manuale utente

Wilson Electronics

Wilson Electronics SignalBoost Manuale utente

Wilson Electronics

Wilson Electronics 271245 Manuale utente

Wilson Electronics

Wilson Electronics SignalBoost DT Manuale utente

Wilson Electronics

Wilson Electronics IoT 5-Band Manuale utente

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 1300 Manuale utente

Wilson Electronics

Wilson Electronics 271245 Manuale utente

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 4300R Manuale utente

Wilson Electronics

Wilson Electronics 271220 Manuale utente

Wilson Electronics

Wilson Electronics 801105 Manuale utente

Wilson Electronics

Wilson Electronics PRO 710i Manuale utente

Wilson Electronics

Wilson Electronics SIGNALBOOST C-Booster Manuale utente

Wilson Electronics

Wilson Electronics SIGNALBOOST MobilePro Manuale utente

Wilson Electronics

Wilson Electronics 271247-75 Manuale utente

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 4300 Manuale utente

Wilson Electronics

Wilson Electronics SIGNALBOOST 811210 Manuale utente

Wilson Electronics

Wilson Electronics 271247-75 Manuale utente

Wilson Electronics

Wilson Electronics Smart Technology 801201-A Manuale utente

Wilson Electronics

Wilson Electronics PRO 710i Manuale utente

Wilson Electronics

Wilson Electronics WILSONPRO PRO 140i Manuale utente

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
