da Vinci Mini Series

User Manual

Specification

Product Overview

Button and Indicator light

Unpacking

Accessory Checklist

Important Safety Notes

Extruder module installation

Accessory installation

XYZware operation

Wi-Fi setup (da Vinci Mini w only)

Advanced XYZware operation

Function descriptions

Using the accessory tools

Print Bed Adjustment

Error message and Action

English

V1 - 1 -

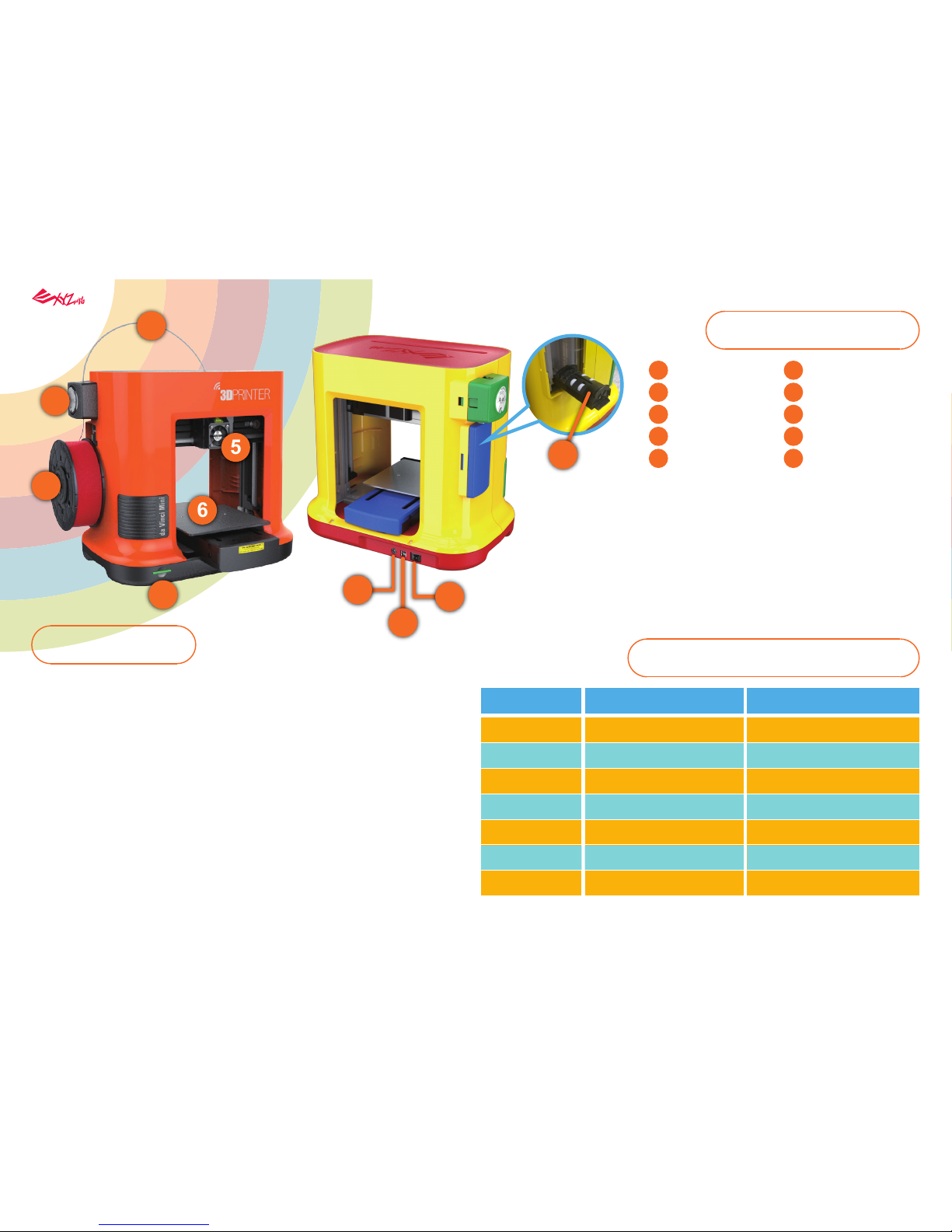

Guide tube

Feed module

Filament

Extruder module

Function button

/ status indicator

Print bed

Filament holder

Power connector

USB port

Power switch

Solid green

Flashing green

Solid red

Flashing red

Solid orange

Flashing orange

Pulsing orange

Indicator signals Status Action

Standby/Ready to print

Receiving data

General error

Critical error

Printing

Paused

Press the button to return to printing status, refer

to instructions in software to fix the issue.

To pause the print, press the button once. To

cancel the print, press and hold the button for 5

seconds.

Job complete (printing complete /

printing cancellation complete)

If the printer encounters issues, please refer to the XYZware screen troubleshooting instruction to fix

the issues.

Refer to instructions in the software to solve the

issue or reboot the Mini.

To resume the print, press the button once.

To return to Ready to print, press the

button once.

Specification

400 x 336 x 362 mm

8 KG

Fuse Filament Fabrication (FFF)

PLA

1.75 mm

0.4 mm

150 x 150 x 150 mm

0.1/0.2/0.3/0.4mm

USB 2.0 (da Vinci miniMaker)

USB 2.0/ WiFi (da Vinci Mini w)

XYZware

STL / 3W

Dimensions

Weight

Print Technology

Print Material

Filament Diameter

Nozzle Diameter　

Print Dimension

Print Resolution　

Connectivity

Print Software

File Format

Button and Indicator light

Product Overview

- 2 -

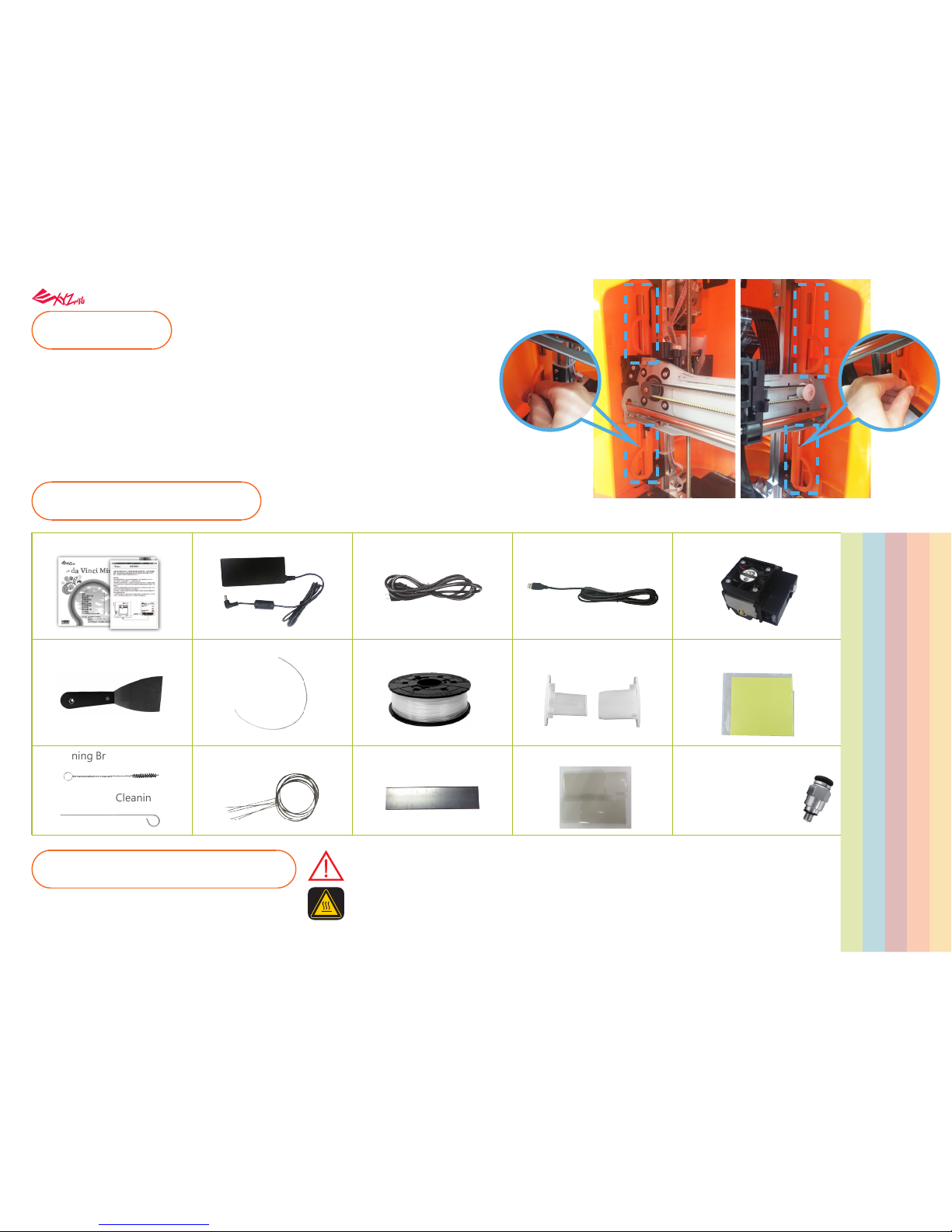

• Before using this printer, remove all fixed materials from the extruder module and

print bed. Switching on the printer without removing these fixed materials may

damage the machine.

• Be sure to remove the 4 clips from the shafts as illustrated on the right.

• Do not use the printer in dusty high humidity or outdoor environments.

• Place the printer on a stable and even surface to avoid it falling and causing serious injury.

• Do not put your hand into the machine during operation to avoid collision risk due to

movement of the machine or to avoid burn due to high temperature.

1. Quick Guide, Warranty Card

Keep original packaging materials in case you need to send your unit back for repair

during the warranty period.

If other packing materials are used instead, the printer may become damaged during transportation.

In such a situation, XYZprinting reserves the right to charge a repair fee.

Notes

13. Cleaning Wire x 511. Cleaning Brush

2. Power Adapter 3. Power Cord 4. USB Wire 5. Extruder Module

7. Guide Tube 8. Bundled Filament 9. Filament Spool Ring

(installed on the filament spool)

6. Scraper

14. Leveling tool

12. Feeding Path Cleaning Wire

10. Bed Tape X 3pcs （Only replace

the reusable tape when it is worn.）

16. Feeding Tube Grip X1

(For replacing and installing

the Feeding Tube Grip,

please watch the tutorial

video on XYZprinting official

website)

15. PET Protection cover

Unpacking

Accessory Checklist

Important Safety Notes

- 3 -

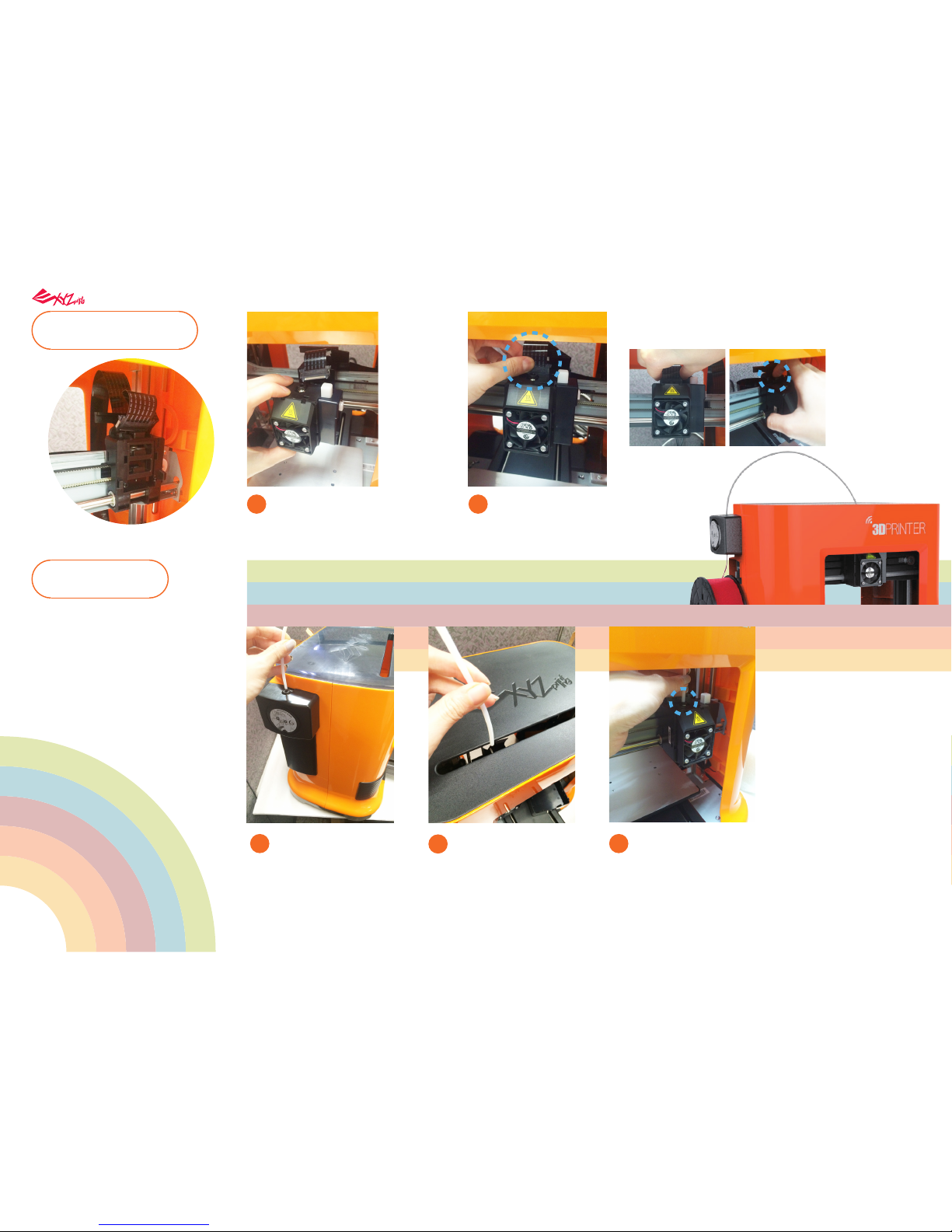

NOTE: To unload the extruder module, first detach the

heating bus and press the black disengage button.

Ensure that the guide tube

is properly inserted into the

feed port of the extruder

module to complete the

installation.

Ensure that the guide

tube has been tightly

inserted into the port.

1Feed the guide tube

through the slot at the

top of the printer to

the extruder module.

Make sure that the printer is

powered off. Place the extruder

module that the fitting pin is

secured the proper location.

1Insert the black ribbon

connector to complete

the installation.

Installing the

Accessories

1. Install the guide tube

Installing the

Extruder module

- 4 -

Handy tips

• The filament will load better when the tip of the filament is cut at a 45° angle.

• When the printer is not in use, raise the filament spool holder and close the side cover.

Lower the filament spool

holder on the left side of

the printer until horizontal.

Use a phillips screw-

driver to loosen the

securing screws of the

filament spool ring.

(please refer to this step if the axle ring is not installed on the spool)

Install the sensor chip.

Note the orientation of

the sensor chip on the

spool ring.

Use a phillips screw-

driver to tighten and

secure the spool ring

to complete the

installation.

Separate the spool ring

from both sides of the

spool.

Place the assembled

filament spool (with

the spool ring) on

the spool holder.

Press the release arm and

push the filament all the

way to the bottom so that

the front end of the

filament is completely

inserted into the extruder

module.

Remove the side cover by pressing down

firmly at the center on the left side of the

cover and pushing aside the cover. (pay

attention to where you apply your force to

ensure proper dismantling) Keep the side

cover securely for future use.

1 3 Take the tip of the

filament and

insert it into the

feeding hole.

4 5

3.Installing the filament

Feed both parts of the

spool ring through the

center hole of the

spool and assemble

them together.

Retrieve the filament

spool and chip.

2.Installing the Filament spool ring

21 3 4 5 6

- 5 -

After completing the hardware installation, download XYZware from the XYZprinting official website and install it

on your computer.

Before launching XYZware, connect the printer to your computer using the supplied USB cable and turn it on. For

an optimal user experience, we recommend following the instructions below:

XYZware operation

Handy tips

Registration via XYZware before your

first print is strongly recommended.

When registered with XYZprinting, you

will receive latest technical supports

and updates. To register, simply click

"Register Now".

Before you start printing, please attach

the bed tape to the print bed. The print

bed tape is reusable, and can be

replaced worn.

If the room you are printing in is below

25 ℃/ 77 ℉, for greater adhesion,

apply glue to the bed tape.

After printing has started, check if the

first layer is stuck to the print bed.

Good base layer is one of the keys to

successful printing.

Open XYZware

1Open Functions panel

Load filament

4Close Functions panel

5Print

Import 3D file

Click Import and select the file to print.

- 6 -

1. The network printing function is only available when the printer and the

computer are both connected to the same wireless network.

2. Before connecting the printer, your wireless network settings need to be

adjusted. For more information, refer to the instruction manual of your

wireless router.

3. The wireless network's channel width needs to be set to 20 MHz for the

printer to connect to it wirelessly. Refer to the vendor instruction manual for

more information.

4. The Mini supports WEP, WPA, and WPA2 security encryption standards.

Wireless pass word information will be requested when setting up the

printer connection.

Wi-Fi setup (da Vinci Mini w only)

The printing status, including the printing progress,

elapsed time, and remaining time, will be shown while

printing. You can pause or cancel the printing task in this

window.

8When done, "Printing Complete"

will be shown on screen.

9After the print has finished,

use a scraper to remove the

printed object.

●Pre-setup

Connect the printer to your computer with the USB cable, and open

"XYZware".

Click the "Printer Monitor" button on the lower right corner on the

screen, open "Operation Function".

●Setting up Wi-Fi

• WEP • WPA • WPA2

Select the "Printer Monitor" icon to open the Wi-Fi connection settings.

- 7 -

Use the pull-down menu to view a list of

Wi-Fi connections available in the area, and

select the Wi-Fi connection that you wish to

connect to.

Wait for the printer to obtain the correct

information, provide the wireless password

and press Start wireless connection.

Select the USB COM port, click Connect >

Establish printer connection.

Click "Wireless Setting"

to view wireless print settings.

In the "Printer Monitor" window, select My

Printer > Scan to search for the connected

printer.

7 8 9

Enter the printer name, then press the Scan

button.

- 8 -

Note:

• Name the printer and wireless network with the alphanumeric characters only.

• If no connection is detected within 90 seconds, the printer will time-out. If this is the

case, check that the configuration process is correct and try again.

• Confirm your wireless network's security key on the router's wireless settings page.

Update the printer connection method.

10 XYZware will use the USB connection to

update the printer settings.

11 Once the connection method has been changed from

USB to Wi-Fi, you can unplug the USB cable and

continue with the printing process.

- 9 -

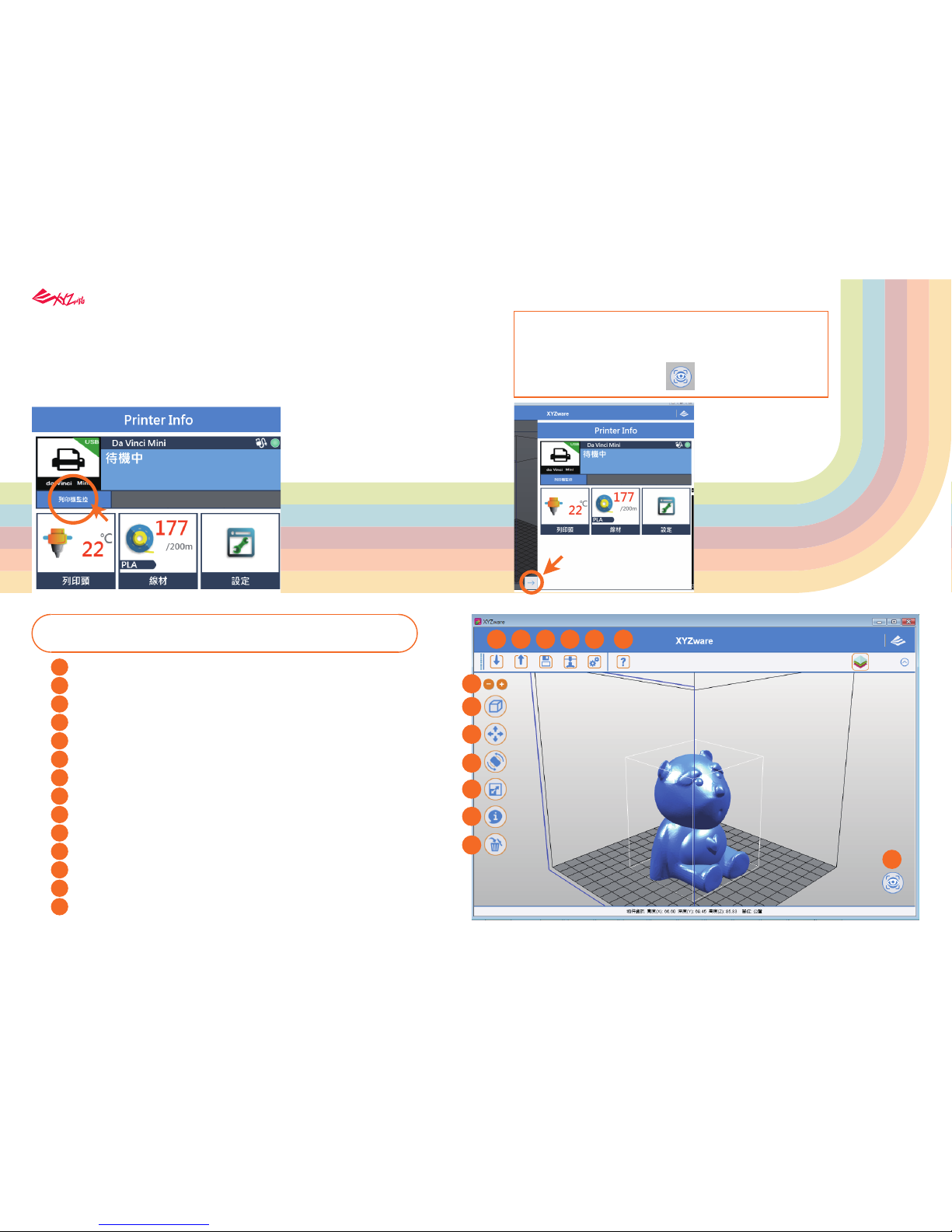

Operating the printer with XYZware

When using the software to operate the printer, one must first place filament spool ring

pre-loaded with the filament at the axis to activate XYZware.

Click on the Printer Monitoring function at the lower right corner to activate the operating

function.

Then select the Printer Monitoring function icon to activate the USB connection (this step

would be similar to Wi-Fi setup steps 1 to 5).

The USB cable can be removed once the printing file

has been transferred. To monitor printing status,

please re-connect the printer and computer with the

USB cable and re-activate the Printer Monitoring

(function).

If information shown

on-screen is not

updated accordingly,

you may switch off

the operation func-

tion screen and then

switch it on again.

(Reload)

Import: Import .stl, .3w files

Export: Convert to .3w file

Save: Save .stl file

Print: Set print preference, transfer print file

Setting: Set software display language, preview color, Printer Type

About: Query, update software and firmware versions, open link to official website

Adjust display scale

View: Switch preview angle rapidly

Move: Move location of the model

Rotate: Change angle of the model

Scale: Adjust size of the model

Info: Display information about the model

Remove: Delete the model from the virtual platform

Printer Monitor: Open functio

B C D E F

- 10 -

Indice

Altri manuali XYZ Printing Stampante 3D

XYZ Printing

XYZ Printing da Vinci Jr. 1.0 Manuale utente

XYZ Printing

XYZ Printing da Vinci Jr.1.0 Manuale utente

XYZ Printing

XYZ Printing PartPro200 xTCS Manuale utente

XYZ Printing

XYZ Printing da Vinci Color mini Manuale utente

XYZ Printing

XYZ Printing da Vinci Jr.1.0w Manuale utente

XYZ Printing

XYZ Printing da Vinci Super Manuale utente

XYZ Printing

XYZ Printing da Vinci 1.0 Manuale utente

XYZ Printing

XYZ Printing Nobel 1.0 Manuale utente

XYZ Printing

XYZ Printing ds Vinci Color Manuale utente

XYZ Printing

XYZ Printing da Vinci 1.0 Pro Manuale utente

XYZ Printing

XYZ Printing 3C10A Manuale utente

XYZ Printing

XYZ Printing da Vinci nano Manuale utente

XYZ Printing

XYZ Printing da Vinci Jr.1.0 Manuale utente

XYZ Printing

XYZ Printing da Vinci Super Manuale utente

XYZ Printing

XYZ Printing da Vinci Jr 1.0 Pro Manuale utente

XYZ Printing

XYZ Printing da Vinci Jr. WiFi Pro Manuale utente

XYZ Printing

XYZ Printing da Vinci Jr.1.0w Manuale utente

XYZ Printing

XYZ Printing Nobel Superfine Manuale utente

XYZ Printing

XYZ Printing da Vinci Jr. 1.0 Manuale utente

XYZ Printing

XYZ Printing da Vinci 1.0 Manuale utente

XYZ Printing

XYZ Printing Nobel Superfine Manuale utente

XYZ Printing

XYZ Printing da Vinci Jr.1.0 Manuale utente

XYZ Printing

XYZ Printing do Vinci nono Manuale utente

XYZ Printing

XYZ Printing da Vinci 1.0 Manuale utente

Manuali Stampante 3D popolari di altre marche

Ultimaker

Ultimaker S5 Material Station Manuale utente

EcubMaker

EcubMaker TOYDIY Manuale utente

AnyCubic

AnyCubic Kossel Plus Manuale utente

ReDeTec

ReDeTec ProtoCycler Manuale utente

Kywoo3D

Kywoo3D Tycoon IDEX Manuale utente

CraftBot

CraftBot PLUS PRO Manuale utente

3DGence

3DGence INDUSTRY F340 Manuale utente

HP Jet Fusion 4200 Istruzioni operative

Rokit

Rokit AEP Series Manuale utente

AnkerMake

AnkerMake M5 Manuale utente

DIYElectronics

DIYElectronics PRUSA I3 Istruzioni per il montaggio

Ackuretta

Ackuretta FreeShape 120 Manuale utente

LONGER

LONGER LK5Pro Manuale utente

Stratasys

Stratasys J850 Manuale utente

MakerBot

MakerBot Replicator Manuale utente

Stratasys

Stratasys FDM Vantage Series Manuale utente

ZYYX

ZYYX Pro II Manuale utente

FLASHFORGE 3D PRINTER

FLASHFORGE 3D PRINTER Creator Guida utente

XYZ Printing da Vinci Mini Series Manuale utente

Manuali Stampante 3D popolari di altre marche
