Version 3.0 Supplementary Manual

Contents

Functions added in Version 3.0

Monitoring input signals of speciﬁc tracks without recording ..................................................03

Saving multiple settings for signals sent to headphone output (Headphone Routing) ..........04

Setting the keys held (Key HoldTarget) .......................................................................................05

Backing up and loading settings (Backup/Load Settings) .............................................06

Setting the level meter reference (Reference Level) ..................................................................08

Showing total recording time during long recording periods (Time Counter)........................10

Using an

as a controller (Connect).......................................................................11

Setting the type of keyboard connected to the

(KeyboardType) .......................12

Setting user keys for the

(User Key).....................................................................13

Setting the power supply used by the

(Power Source) ......................................14

Setting the

LED brightness (LED Brightness) ......................................................15

Updating the

ﬁrmware ..........................................................................................16

Other new functions......................................................................................................................18

Appendix

List of shortcuts.............................................................................................................................19

Functions added in Version 3.0

F8 Multi Track Field Recorder

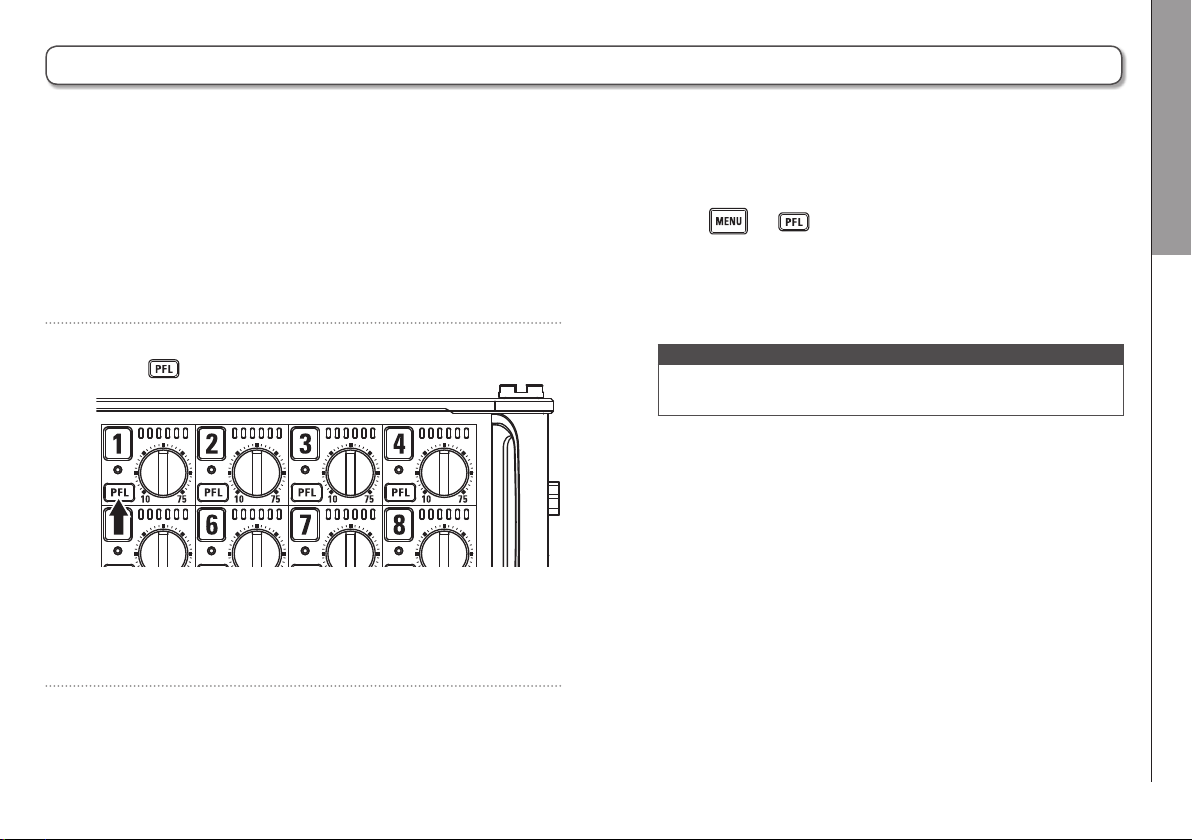

Monitoring input signals of speciﬁc tracks without recording

1. Press the track key for the tracks that you want to

monitor without recording so that their indicators

become unlit.

2. Press on the tracks that you want to monitor.

The selected track indicators will light orange, and the PFL

screen will open.

"PFL" or "SOLO" appears at the top of the display, and you

will be able to monitor the input signal with headphones.

3. Press or on a track that you were

monitoring.

The PFL screen will close and the headphone monitoring

sound will return to normal.

NOTE

This does not change the signals output from MAIN OUT and

SUB OUT.

Monitoring input signals of speciﬁc tracks without recording

Even tracks that have not been set to record can be input to the PFL screen and their input sound monitored.

This is convenient when using tracks as RTN inputs.

Functions added in Version 3.0

5. Use and to

change the setting show and

edit each item.

Settings are saved automatically.

See "Setting signals sent to the headphone output" in the

Operation Manual for how to change the settings.

6. Press .

HINT

You can also press + to open the Headphone Routing

screen.

Saving multiple settings for signals sent to headphone output (Headphone Routing)

You can edit and save up to 10 settings for signals sent to the headphone output.

1. Press .

2. Use to select OUTPUT,

and press .

3. Use to select

Headphone, and press .

4. Use to select

Headphone Routing,

and press .

Functions added in Version 3.0

Functions added in Version 3.0 Setting the keys held (Key HoldTarget)

F8 Multi Track Field Recorder

1. Press .

2. Use to select SYSTEM,

and press .

3. Use to select Key Hold

Target, and press .

4. Use to select the keys

held, and press .

HINT

You can select Track 1-8, PFL 1-8, Trim Knob 1–8, Slate Mic,

SlateTone, Encoder, MENU, HP Volume, REW, STOP, FF, PLAY

and REC.

5. Press .

HINT

• Even when hold is on for "STOP" and "Track1-8", you can

press + to turn the hold function off.

• Operation using the

and F8 Control is possi-

ble even when the hold function is on.

Setting the keys held (Key Hold Target)

Use the hold function to prevent misoperation during recording. Press + to turn it on/off.

Follow these instructions to set which keys are disabled by the hold function.

Functions added in Version 3.0

Backing up and loading settings (Backup/Load Settings)

settings can be backed up to and loaded from SD cards.

1. Press .

2. Use to select SYSTEM,

and press .

3. Use to select

Backup/Load Settings,

and press .

4. Use to select the SD

card to use for backup/

loading, and press .

▶Continue to one of the following procedures.

Backing up …………………………………………………… P. 6

Loading ……………………………………………………… P. 7

Backing up

This saves a backup ﬁle to the "F8_SETTINGS" folder in the

root directory of the SD card.

5. Use to select Backup

and press .

6. Edit the name of the ﬁle

saved.

See "Character input screen" in

the Operation Manual for

how to input characters.

HINT

The extension of the saved backup ﬁle is ".ZSF".

Backing up and loading settings (Backup/Load Settings)

Functions added in Version 3.0

F8 Multi Track Field Recorder

Backing up and loading settings (Backup/Load Settings)

7. Use to select "Yes",

and press .

You can load a backup ﬁle that is saved in the "F8_SETTINGS"

folder in the root directory of the SD card.

5. Use to select Load/

Delete, and press .

6. Use to select the ﬁle to

load, and press .

NOTE

You can press and hold to delete a ﬁle.

HINT

Deleting a ﬁle will completely erase its data.

Functions added in Version 3.0 Setting the level meter reference (Reference Level)

Setting the level meter reference (Reference Level)

1. Press .

2. Use to select SYSTEM,

and press .

3. Use to select Level

Meter, and press .

4. Use to select Reference

Level, and press .

5. Use to select the

reference level setting,

and press .

Setting the level meter reference makes it easier to adjust the volume of input signals.

Functions added in Version 3.0 Setting the level meter reference (Reference Level)

F8 Multi Track Field Recorder

Setting value

Explanation

When level meter type

is Peak Only

When level meter type

is Peak + VU or VU Only

Normal Level

The center of the level

meter is −12 dBFS.

Clear monitoring of

levels higher than −12

dBFS is possible.

The center of the level

meter is 0 VU (−20

dBFS). Clear monitor-

ing of levels higher

than 0 VU (−20 dBFS) is

possible.

Low Level

The center of the level

meter is −20 dBFS.

Clear monitoring of

levels lower than −20

dBFS is possible.

The center of the level

meter is −10 VU (−30

dBFS). Clear monitor-

ing of levels lower than

−10 VU (−30 dBFS) is

possible.

HINT

See "Setting level meter appearance" in the Operation Man-

ual for how to set the level meter type.

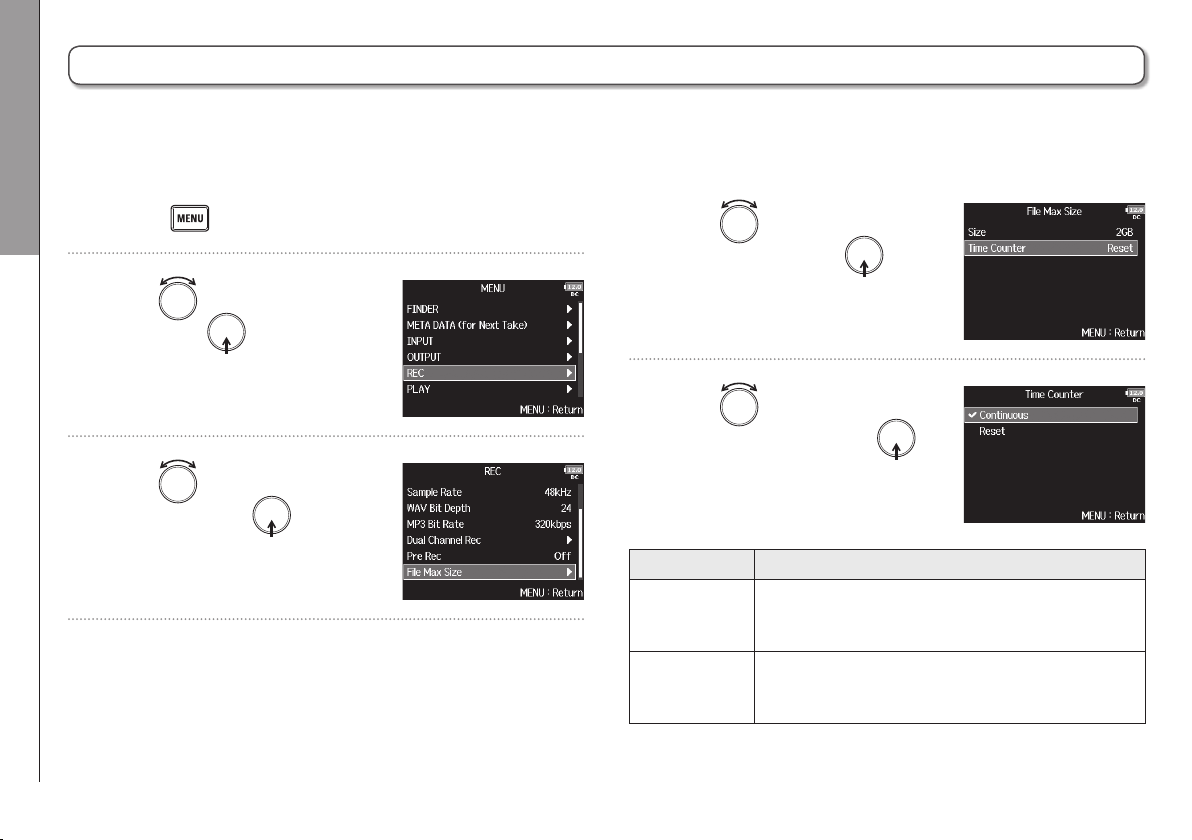

Functions added in Version 3.0 Showing total recording time during long recording periods (Time Counter)

Showing total recording time during long recording periods (Time Counter)

1. Press .

2. Use to select REC,

and press .

3. Use to select File Max

Size, and press .

4. Use to selectTime

Counter, and press .

5. Use to select

Continuous, and press .

Setting value Explanation

Continuous

When recording, even if the ﬁle size set with "File

Max Size" is reached, the counter shown on the

Home Screen will not be reset.

Reset

When recording, if the ﬁle size set with "File Max

Size" is reached, the counter shown on the Home

Screen will be reset to 000:00:00.

When recording for a long time, if the ﬁle size set with "File Max Size" is reached, recording will continue in a

new take and the recording time will reset.You can change this, however, so that it is not reset and the total

recording time is shown.
