V75100X VISE
OWNER'S MANUAL
9: THUMBSCREW
P/N:TS10
ANTI-SIEZE
11: MOUNTING BOLT X2
M8x40
2
2X
1
2X
4
1X
3
2X
5
2X
6
1X
7
2X
8
8X
NOTE:
WARRANTY VOID
IF REMOVED
Page 2
INCLUDED IN BOX
10: ANTI SIEZE
PACKET
P/N: LB8008C5-A
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY
1
SB3V
SHOULDER BOLT
2
2
LP8
LOCATING PIN
2
3
M5X10.DP
DOWEL PIN 5x10MM
2
4
V75100X-4RK
LEADSCREW REPLACEMENT KIT
1
5
V75100X-2
TRUCK
2
6
V75100X-1
V75100X VISE BODY
1
7
V75100X-5
MASTER JAWS
2
8 76232
SHCS M8x16MM
8
9
TS10
THUMBSCREW
1
10
LB8008C5-A
ANTI-SIEZE PACKET
1
11 76252
BOLT M8x40MM
2
BILL OF MATERIAL
YES
NO
YES
SHIM
Maintenance and Use
Clean leadscrew with soft brush
•
Use copper based anti-sieze on leadscrew (Loctite P/N: LB8008C5-A)
•
Do not let chips build up during use
•
Do not torque vise past 60 Nm [45 Ft LBS]
•
Do not side load vise (see illustration below)
•
Clamping Force at max torque with Master Jaws installed-22.2 kN [5000 lbf]
•
Weight: 2.72 Kg [5.16 lbs]
•
Torque Values
Jaw Bolts: 27 Nm [20 Ft LBS]-M8x16mm (P/N: 76232)
•
Mounting Bolts: 34 Nm [25 Ft LBS]-M8x40mm (P/N: 76252)
•
Lead Screw: 60 Nm [45 Ft LBS] Max
•
Special Notes
Removing leadscrew assembly is not recommended and will void the
•
warranty
Failure to follow these instructions will cause self centering accuracy and/or
•
repeatability to fail and may cause damage to the vise
It is recomended to use only the two outside locating pin holes [LP8] labeled
•
on page 4 as "A & B"
To Machine Profiles into Soft Jaws/Anti-Lift Soft Jaws:
Insert an appropriately sized shim between the jaws
•
Torque to operating torque value
•
Machine profile of part
•
Remove shim and place the part in vise
•
Torque to same value as previous
•
Following these steps will ensure the highest accuracy
and will compensate for any jaw deflection
in the vise.
Page 3
75.00
2.953
100.00
3.937
52.00
2.047
60.00
2.362
3X
8.019
8.009
.3157
.3153
M5X0.8 FOR LP8
4X
12.014
12.004
.4730
.4726
M8X1.25 FOR PS16F
A
B
108.00
4.252
56.13
2.210
53.63
2.111
35.00
1.378
23.00
.906
20.00
.787
37.00
1.457
12.00
.472
2.50
.098
45°
M5
8

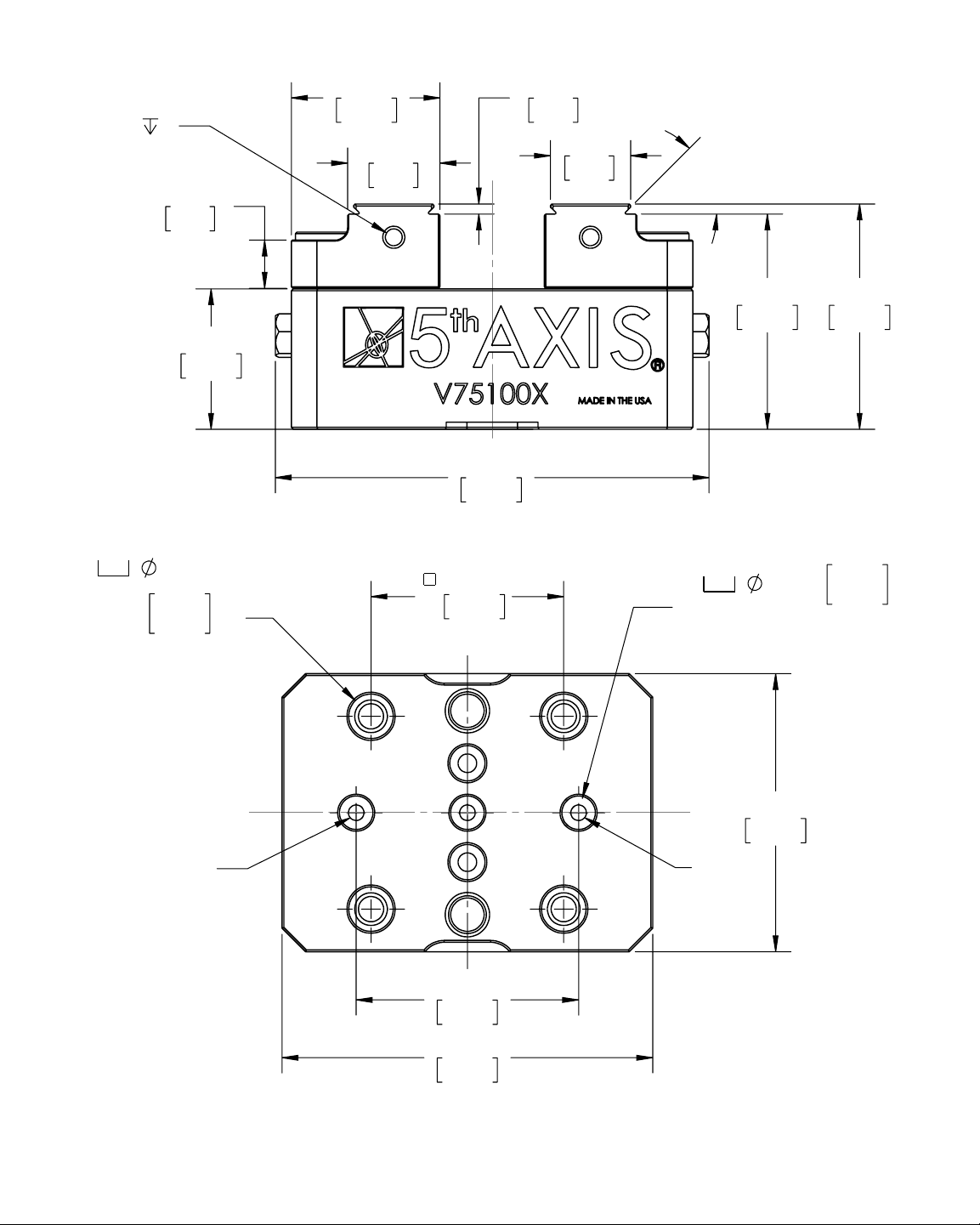

DIMENSIONS
C
L
C
L
C
L
Page 4
0-40 mm
[0-1.57 in]
40-76 mm
[1.57-3 in]
Use Dovetail for:
Harder Materials
•
Heavier Machining
•
Parts Larger than the Vise
•
Use Serrations For:
Softer Materials (Aluminum
•
and soft steels)
Less Aggressive Machining
•

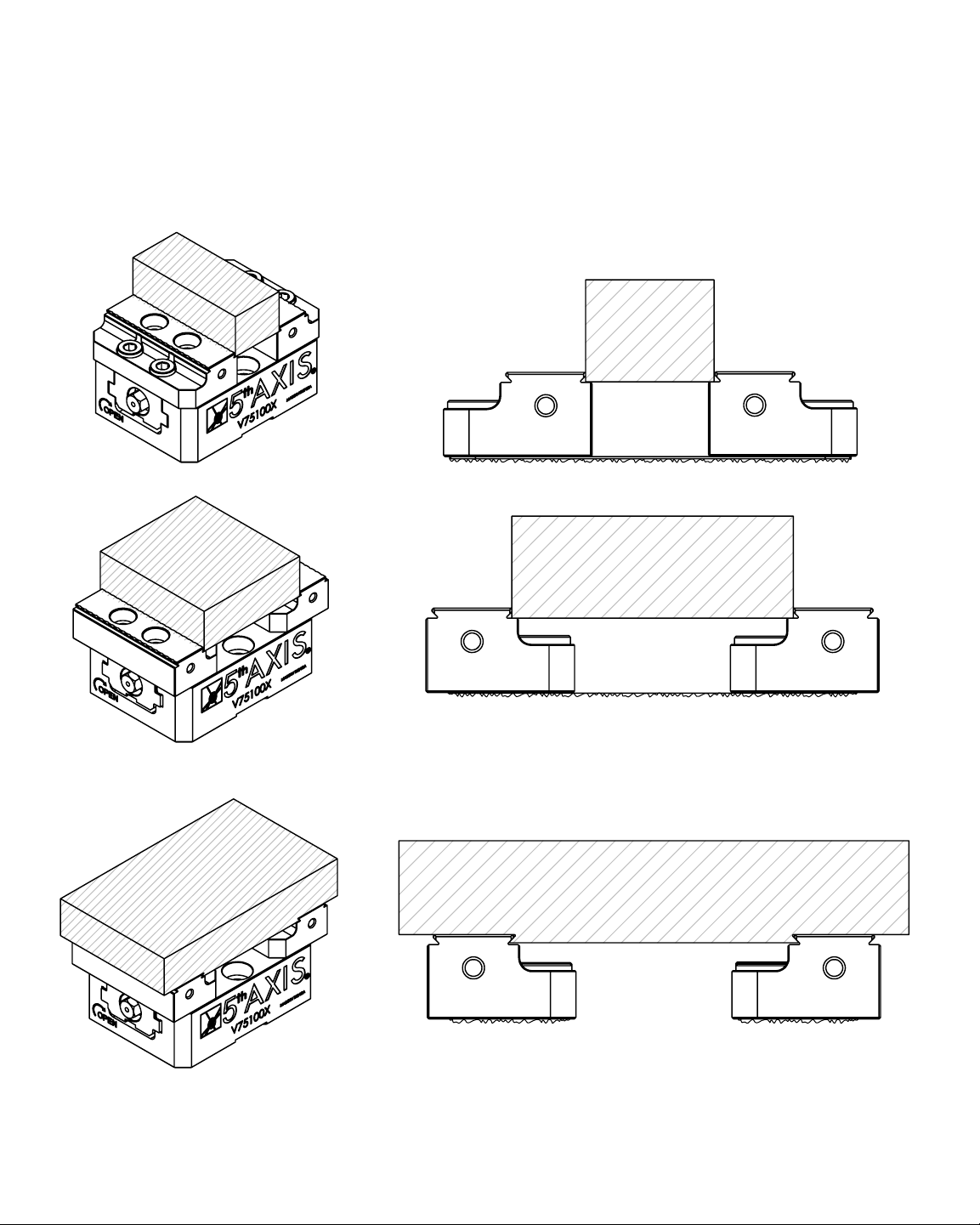

CONFIGURATIONS
(See next page for dovetail stock prep)
Page 5
45.47
1.790
TO SHARP
B
DETAIL B
SCALE 2 : 1
[R .0381 mm]
R .015
D
Gap
DETAIL D
SCALE 2 : 1.2
Contact
Contact
45°
C
2.50
.098
R0.25
.010
1.38
.054
DETAIL C
SCALE 4 : 1
X
.085 .010
(2X/3)
TO SHARP
Master Jaws
Steel Grade: 4140 Steel
Hardness: HRC 53-57
P/N:V75100X-5
Dovetail Stock Prep
Dovetail Cutter
Page 6
Anti-Lift Soft Jaws
P/N: AL75XA (ALUMINUM), AL75XS (STEEL)
REPLACEMENT JAW P/N: AL75-2A (ALUMINUM), AL75-2S (STEEL)
WHAT IS INCLUDED
Anti-Lift Cleats
AL75 Anti-Lift Soft Jaws
Jaw Covers
Jaw Cover Hardware
Soft Jaws
VAJ75X- Aluminium
P/N: VAJ75X
6061-T6
•
Compatible with V75100
•
and V75100X
75mm x 45mm x 25mm
•
DOWNLOAD DRAWINGS AT: FIFTHAXIS.COM/DOWNLOADS
Replacement Master Jaws
P/N: V75100X-5
P/N: V75100X-5
•
75mm x 37mm x 21mm
•
Cutter Details
Shank Diameter (in) 1″ (P/N: DC1750-45)
•
Shank Diameter (mm) 25mm (P/N: DC1750-M)
•
Insert Part Number: DC1750-B
•
45 Degrees
•
Material H13 Tool Steel
•
5 Flute Cutter
•
Cutting Diameter: 45.5mm [1.79in]
•
52mm Pull Studs
P/N: PS16-F
For 52mm Rocklock
•
Hardened S7 Tool Steel
•
M8 Threads
•
VSJ75X-Steel
P/N: VSJ75X
1018 Annealed
•
Compatible with V75100
•
and V75100X
75mm x 45mm x 25mm
•

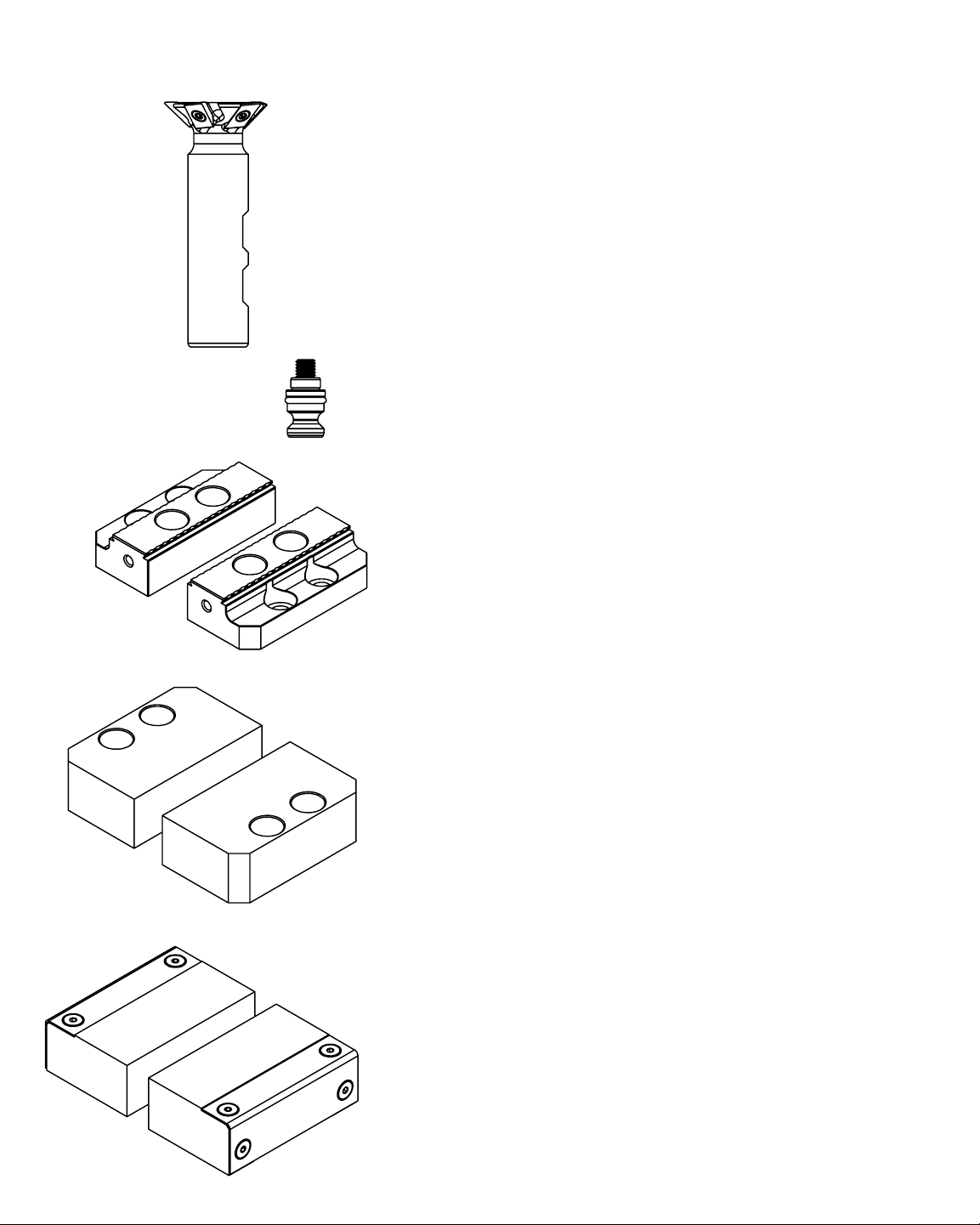

ACCESSORIES
BENEFITS
High Precision Op 2
•
Reduced Jaw Lift <.025mm
•
(<.001 in)
Patent Pending
•
Available in Aluminum
•
and 1018 Steel
Installing Pull Studs
Secure threaded stud
•
finger tight only
Grease precision
•
surfaces
Torque to 10 Ft-lbs via
•
bottom hex head
Page 7
V75100X OWNER'S
MANUAL
REV A
APPROVED 5/1/2019
Available for download
at: fifthaxis.com/downloads
