ADA INSTRUMENTS ProDigit 60 Manuale utente

Manufacturer: ADAINSTRUMENTS Address: WWW.ADAINSTRUMENTS.COM

Operating manual

Digital level

Model: ProDigit 60

ProDigit 60

Table of contents

1. Safety symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3. Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4. Specications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5. Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

6. Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

7. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

8. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

9. Specic reasons for erroneous measuring results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

10. Electromagnetic acceptability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

11. Laser classication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

12. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

13. Exceptions from responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

14. Appendix 1- “Certicate of acceptance and sale”

15. Appendix 2- “Warranty card”

ProDigit 60

MEASUREMENT FOUNDATION

ProDigit 60

Safety symbols

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the explana-

tions with them, deserve your careful attention and understanding. The symbol warnings DO NOT by themselves elim-

inate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

WARNING: BE SURE to read and understand all safety instructions in this manual, including all safety alert symbols

such as “DANGER”, “WARNING” and “CAUTION”, BEFORE using this digital level. Failure to follow all instructions

listed below may result in electric shock, re and/or serious personal injury.

SYMBOL MEANING

SAFETY ALERT SYMBOL Indicates DANGER, WARNING, OR CAUTION. May be used in conjunction with other

symbols or pictographs.

DANGER Failure to obey this safety warning WILL result in death or serious injury to yourself or to others. Always

follow the safety precautions to reduce the risk of re, electric shock and personal injury.

WARNING Failure to obey this safety warning CAN result in death or serious injury to yourself or to others. Always

follow the safety precautions to reduce the risk of re, electric shock and personal injury.

CAUTION Failure to obey this safety warning MAY result in personal injury to yourself or others or property damage.

Always follow the safety precautions to reduce the risk of re, electric shock and personal injury.

DAMAGE PREVENTION AND INFORMATION MESSAGES

These inform user of important information and/or instructions that could lead to equipment or other property damage

if not followed. Each message is preceded by the word “NOTE:” as in the example below:

NOTE: Equipment and/or property damage may result if these instructions are not followed.

MEASUREMENT FOUNDATION

ProDigit 60

Safety instructions

WARNING: BE SURE to read and understand all instructions in this manual before using this level. Failure to follow all instruc-

tions may result in hazardous radiation exposure, electric shock, re and/or serious personal injury.

SAFETY PRECAUTIONS FOR LASERS

WARNING: Use of controls, adjustments or performance of procedures other than those specied in this manual may result in

hazardous radiation exposure. WARNING: The use of optical instruments such as, but not limited to, telescopes or transits to

view the laser beam will increase eye hazard.

This level has a built-in laser light. The laser is a Class2 and emits output power of a maximum 1 mW and 635-665 nm wave-

lengths. These lasers do not normally present an optical hazard. However, DO NOT stare at the beam as this can cause ash

blindness. CAUTION: The following label is on your tool. It indicates level emits the laser light.

BE AWARE of the laser light location. ALWAYS MAKE SURE that any bystanders in the vicinity aware of the dangers of look-

ing directly into the laser. WARNING: LASER RADIATION. DO NOT stare into beam. Class2 laser product.

Only turn laser beam on when the level is on the work surface.

DO NOT remove or deface any product labels. Removing product labels increases the risk of exposure to laser radia-

tion.

DO NOT stare directly at the laser beam or project the laser beam directly into the eyes of others. Serious eye injury

could result.

DO NOT place the Digital level in a position that may cause anyone to stare into the laser beam intentionally or uninten-

tionally. Serious eye injury could result.

DO NOT use any magnifying optical tools such as, but not limited to, telescopes or transits to view the laser beam. Seri-

ous eye injury could result.

DO NOT operate the Digital level around children or allow children to operate the tool. Serious eye injury could result.

ALWAYS turn the Digital level off when not in use. Leaving the tool on increases the risk of someone inadvertently star-

ing into the laser beam.

DO NOT operate the Digital Level in combustible areas such as in the presence of ammable liquids, gasses or dust.

DO NOT use on surfaces such as sheet steel that have a shiny, reective surface. The shiny surface could reect the

ProDigit 60

MEASUREMENT FOUNDATION

ProDigit 60

beam back at the operator. Be aware that laser light reected off a mirror or any other reective surfaces can also be

dangerous.

DO NOT place the Digital level in a position that may cause anyone to stare into the laser beam intentionally or uninten-

tionally. Serious eye injury could result.

DO NOT use any magnifying optical tools such as, but not limited to, telescopes or transits to view the laser beam. Seri-

ous eye injury could result.

DO NOT operate the Digital level around children or allow children to operate the tool. Serious eye injury could result.

ALWAYS turn the Digital level off when not in use. Leaving the tool on increases the risk of someone inadvertently star-

ing into the laser beam.

DO NOT operate the Digital Level in combustible areas such as in the presence of ammable liquids, gasses or dust.

DO NOT use on surfaces such as sheet steel that have a shiny, reective surface. The shiny surface could reect the

beam back at the operator. Be aware that laser light reected off a mirror or any other reective surfaces can also be

dangerous.

DO NOT attempt to modify the performance of this laser device in any way. This may result in a dangerous exposure to

laser radiation.

DO NOT use the Digital Level for any purpose other than those outlined in this manual. This could result in serious injury.

ALWAYS USE two “AAA” size batteries. Use of any other batteries may create a risk of re. INSERT the batteries cor-

rectly. Match the polarities, positive (+) to positive and negative (-) to negative, as marked inside battery compartment.

DO NOT short battery terminals.

DO NOT mix old and new batteries. If batteries are weak, replace both of them with two new batteries. These new bat-

teries should match each other in brand and type.

Remove dead batteries immediately and dispose of them according to your local ordinance.

NEVER dispose of batteries in re.

Keep batteries out of reach of children. They are not playthings.

Remove batteries and store separately if level will not be used for several days.

Do not attempt to repair or disassemble the laser level. If unqualied persons attempt to repair this laser product, serious

injury may result. Any repair required on this laser product should be performed by authorized service center personnel.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

MEASUREMENT FOUNDATION

ProDigit 60

NOTE: Before attempting to use your level, familiarize yourself with all of the operating features and safety requirements.

This digital level is a highly versatile leveling tool designed for fast, easy operation.

Heavy-duty, lightweight aluminum construction, with the LCD digital module constructed of unbreakable ABS polymer that’s

sealed against dirt and water, and the toughest acrylic block bubble vials and solid-state laser components all add up to on-

the-job durability and long, dependable service.

Use the digital LCD readout for all your angle measurements and layout jobs, such as roof pitches, saw cut angles and drain-

age slopes.

Use the laser beam to extend a visual leveling line over distances much greater than a traditional bubble vial beam level.

Use the level manually, hand held, or mounted on a tripod (sold separately).

Use the digital level inside or outside to measure pitch in inches of rise per foot of run.

Measure in degrees with up to 0.05° accuracy.

Measure any slope in percent...measure level and plumb with either the LCD digital display or with the vertical and horizontal

bubble vials.

Features (Fig.1a)

Keyboard

LCD Display - Large, easy-to-read display screen reads right side up even when level is upside down.

Bubble Vials- The level or plumb of a surface can also be accurately measured by positioning the bubble inside the vial

in between the marks on the vial’s surface. The highly sensitive vial ensure the digital level has an accuracy of 0.029°.

Integrated 57cm Ruler

Laser On/OFF Button - Located on the right end cap of the level, powers the laser on/off.

Endcaps - Ends cushioned to help protect level from damage.

Laser Light Aperture - The laser beam is emitted from this opening, which is on the end cap of the level.

Magnetic Bottom -Four magnets in the working base allow for secure contact to metal, handy when working with steel

studs or metal ductwork.

1/4 -inch Tripod Threaded Hole - Allows level to be mounted to a 1/4 tripod, sold separately.

MEASUREMENT FOUNDATION

ProDigit 60

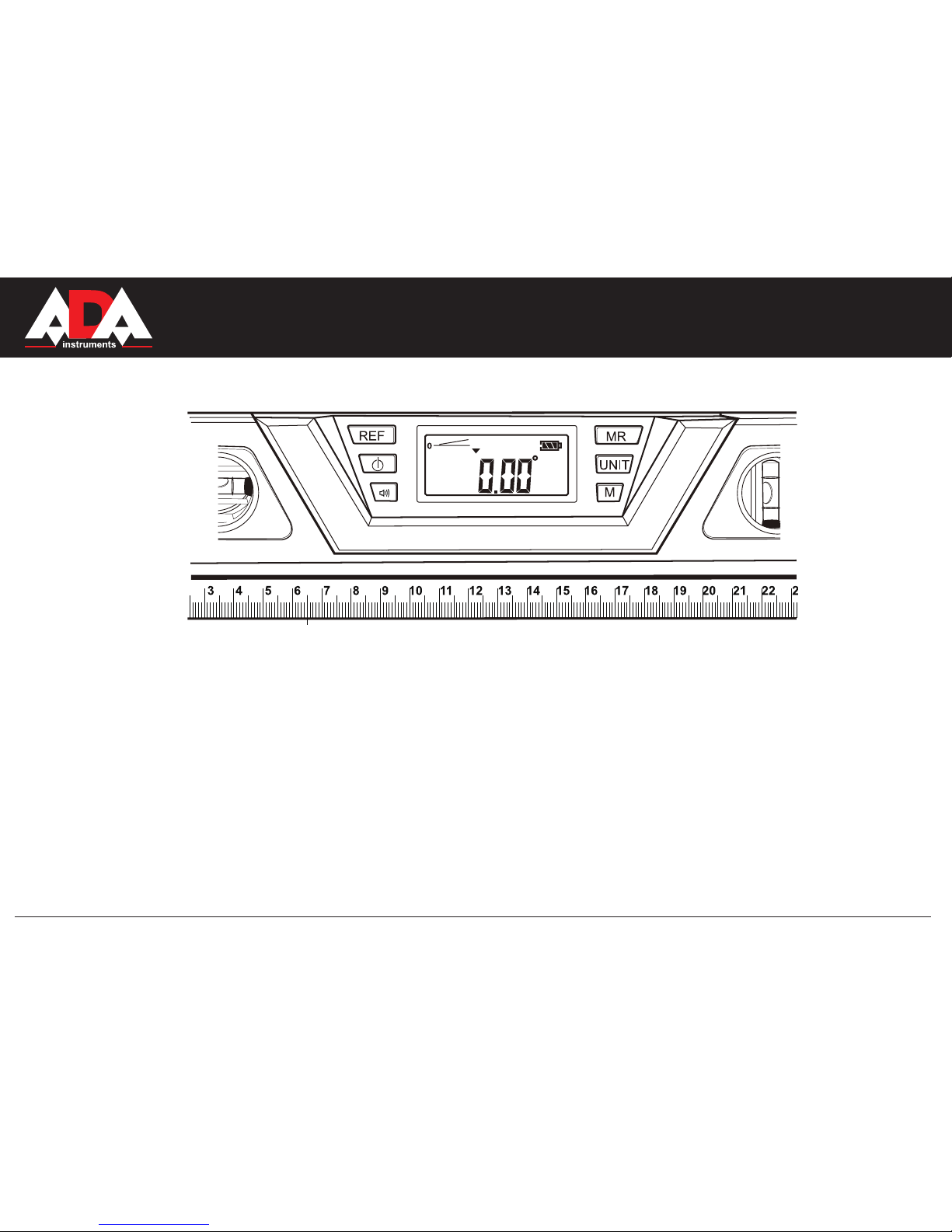

Key function (Fig.1b)

Power button-press the button to turn the LCD display screen on. Long press it to turn off the LCD display.

REF Button - Push the button briey to set current angle to zero, enter relative angle measurement mode. Push the

button for about 3 seconds to start the calibration.

Sound On/Off Button- Used to activate the beeper. When button is pushed, beeper sounds at level (0°), 45°, plumb

(90°) and last saved angle. To turn sound off, simply push button again.

M Button - Push to save the current reading in its memory. The level will save last nine different consecutive angle read-

ings in its memory.

MR Button - Push button to recall the last 9 measurements that are saved in the memory. They will read in order of the

latest measurement entered as “rst”.

UNIT Button - By pushing this button you can convert angles to different units. Push to change the display units from

degrees (°) to pitch (in / ft), to percent slope (%). Pitch readings are in 1/8-inch/feet increments. Plus and minus signs

indicate that the pitch is slightly more (+) or less (-) than true level.

ProDigit 60

MEASUREMENT FOUNDATION

ProDigit 60

LCD SCREEN ICONS

Up/Down Indicator - The zero line (0°) indicates the level position. The arrow indicates the current angle’s position,

either up or down away from the level (0°).

Battery Power Icon - Indicates the amount of battery power in the unit. Replace batteries when the black power bar

disappears.

Sound / Beeper Icon - This icon appears on the screen when the beeper function is activated.

M1-M9 Memory Icon - This icon shows when the memory function is being used. Level can recall the last nine saved

measurements.

REF Indicates that the level is working in relative angle mode.

Err Indicates that the level is wrong positioned or wrong operation in calibration.

CAL1 Indicates that the digital level is in calibrating for one direction.

CAL2 Indicates that the digital level is in calibrating for the another direction.

Specications

Recommended use Indoors or Outdoors

Laser class Class2, max laser output ≤1mW

Power supply 2x 1.5V AAA battteries

Angle measuring range 0 to 360°

Optimum operation range 0 to 40°

Accuracy of vials ±0.029°

Accuracy of digital display ±0.05°(level or plumb)

±0.1°(other angles)

Estimated Battery life 10 hours with alkaline batteries

MEASUREMENT FOUNDATION

ProDigit 60

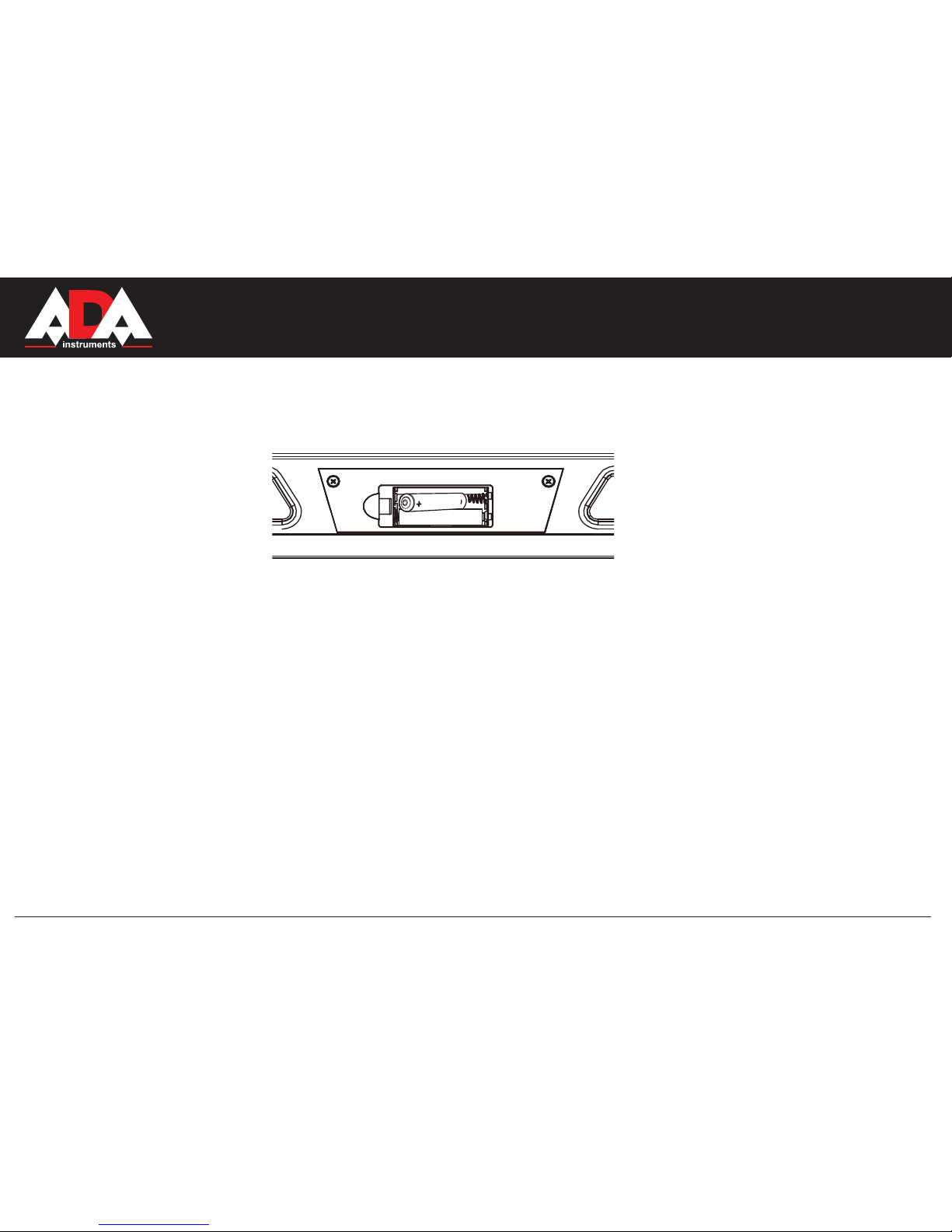

Battery installation (Fig. 2)

This multi-function digital laser level uses two “AAA” batteries (sold separately), to power both the LCD module display and

the Laser dot.

Fig.2

NOTE: Always ensure the on/off button is in OFF position before installing or replacing the batteries.

Open the battery cover, located in the middle of the back of the level (Fig.2).

Insert two new “AAA” alkaline batteries with the polarity (+/-) as indicated on the inside of the battery compartment.

Close the cover securely in place.

Turn on the LCD display

Press the Power button to turn the LCD display screen on. When the screen rst comes on, the temperature is displayed in

centigrade for about 2 seconds, to indicate if level is being used in optimum operating temperature range. The current angle

of the level is then displayed, and a picture of that angle is shown either above or below the line for true level. An arrow on

the display indicates if the level has to be moved up or down. True level is reached when the two lines are together and the

angle shows 0.00°. Turn off the LCD display by pressing and holding the button in for about 2 seconds. If the digital level is

not used for 5 minutes the level automatically turns off. The LCD display is large and easy to read. When the level is turned

upside down, the LCD screen senses and changes to read correctly in the inverted position.

Indice

Lingue:

Altri manuali ADA INSTRUMENTS Strumento di misura

ADA INSTRUMENTS

ADA INSTRUMENTS ROTARY 500 HV SERVO Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS AngleMeter 30 Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS WHEEL 100 DIGITAL Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS CUBE 360 Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS ProDigit MICRO Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS ZHT 125 Electronic Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS Robot Mini Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS ZHM 125B Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS AngleRuler Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS ProDigit MICRO Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS PaintMeter 1500 Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS ROBOT-40 Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS Schmidt Hammer 225 Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS COSMO MINI Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS COSMO 70eter Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS TOPLINER 3-360 Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS DigiTeo-2 Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS ZCM 130 Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS LASERMARKER 70 Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS WHEEL 50 DIGITAL Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS Ruber-X32 Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS Cosmo 40 Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS ZSM 330 Manuale utente

ADA INSTRUMENTS

ADA INSTRUMENTS Vertical Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
