MEASUREMENT FOUNDATION
Operating manual
Laser level
TOPLINER 3-360 GREEN
2
1. Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Technical requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Safety requirements and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4. Order working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5. Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6. Safety precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
8. Exceptions from responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Appendix 1- “Warranty card”
Table of contents
3
1. CAUTIONS
Laser level ADA TOPLINER 3-360 GREEN is an up-to-date functional and multi-prism device designed for indoor
and outdoor performance. The device emits:
one horizontal laser line (beam scan angle of 360°)
two vertical laser lines (beam scan angle of 360°)
Do not look at the laser beam!
Do not install the device on the eye level!
Before using the device, do read this operating manual!
2. TECHNICAL REQUIREMENTS

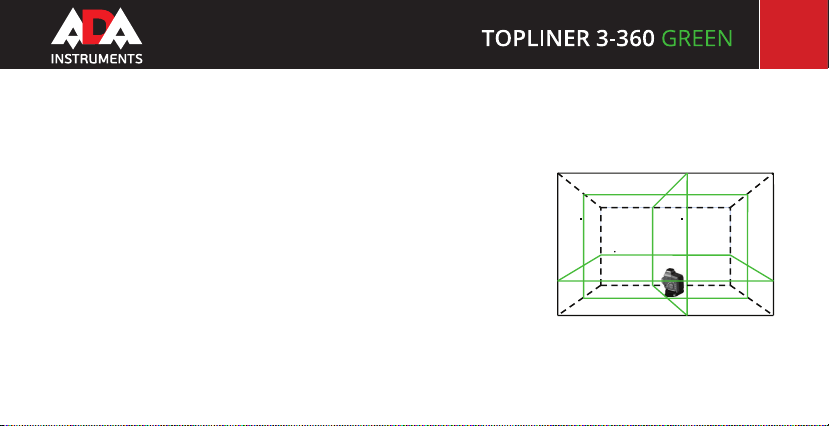

2.1. FUNCTIONAL DESCRIPTION
Emitting a horizontal and two vertical laser line.
Quick self-leveling: when line accuracy is out of the range the laser line
ashes and the warning sound is produced. Compensator locking system
for safe transportation. Intermediate compensator locking system for slope operation.
Indoor and outdoor performance function.
360 eVercal Line
360 eVercal Line
360 eHorizontal Line
4
1. Keypad
2. Jack for charger
3. Battery compartment
4. Rotating base
5. Lock switch
(ON/X/OFF)
6. Vertical laser window
7. Horizontal laser window
2.2. FEATURES 1
2
3
5
4
6
7
5
Button panel
Tilt LED (1)
Indicator lights up in the intermediate position of the
compensator lock.
Detector LED (2)
Indicator lights up when press Detector button.
Power LED (3)
Indicator lights up when power is on.
Indicator blinks when power is low.
Horizontal switch (H) (4)
Detector switch (5)
Vertical switch (V) (6)
2
3
4
5
6
1
6
2.3. SPECIFICATIONS
Laser 2V1H (360° laser)
Light sources 532nm
Laser safety class Class 2, <1mW
Accuracy ±3 mm/10 m
Self-leveling range ±4.5°
Operating range with/without receiver radius 40~70m (with detector)
Rotation/Fine adjustment 360 °/ ±10° (with Rotation base)
Power source Li battery set
Operation time Approx. 5-8 hours, if everything is on
Tripod thread 1/4 ″ and 5/8 ″
Operating temperature -10°C +40°C
Weight 0.9 kg (with Rotation base)
Size 130mm ×60mm ×160 mm (with Rotation base )
7
3. SAFETY REQUIREMENTS AND CARE
Follow safety requirements! Don’t face and stare at laser beam!
Laser level is an accurate Instrument, which should be stored and used with care.
Avoid shaking and vibrations! Store the Instrument and It’s accessories only In the carrying case.
In case of high humidity and low temperature, dry out the Instrument and clean It after the usage.
Do not store the Instrument at a temperature below -20°C and above 50°C, otherwise the Instrument can be
out of action.
Don’t put the Instrument Into the carrying case If the Instrument or case are wet. To avoid moisture condensa-
tion Inside the Instrument- dry out the case and laser Instrument!
Check regularly Instrument adjustment!
Keep the lens clean and dry. To clean the Instrument use a soft cotton napkin!
Do not aim laser beam at persons or animals.
Do not open instrument housing. Repairs should be carried out by authorized workshops only.
Do not remove warning labels or safety instructions.
Keep instrument away from children.
Do not use instrument in explosive environment.
8
4. ORDER WORKING
Assemblage of the rotating base
Remove the instrument from the base (Picture 1).
Place the instrument on the base (Picture 2).
Picture 2Picture 1
9
Insert the battery (Picture 3)
Use standard Li-battery only.
Pay attention to the polarity.
Insert the battery.
Cover the battery cover.
Li-battery
Battery cover
Picture 3
10

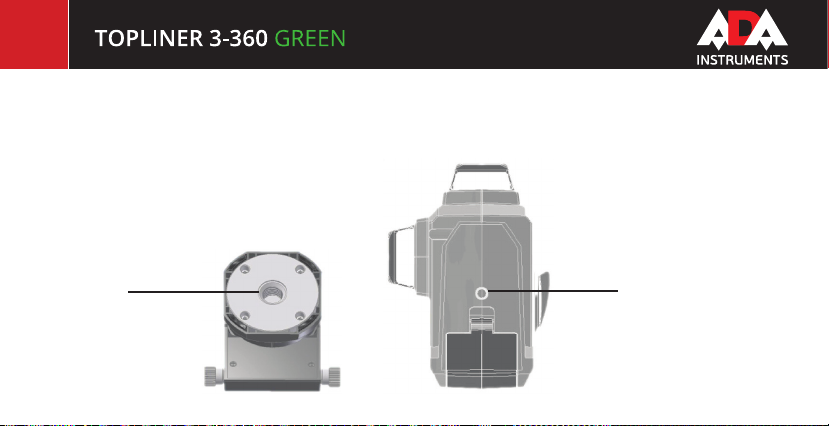

Picture 5 Picture 4
Mounting thread
It is possible to place the instrument on the tripod or wall mount during operation. For attachement use
thread 1/4” (pic.4) at the bottom part of the instrument or thread 5/8” (pic. 5) at the bootom part of the
rotating base.
